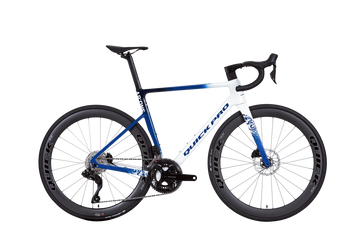

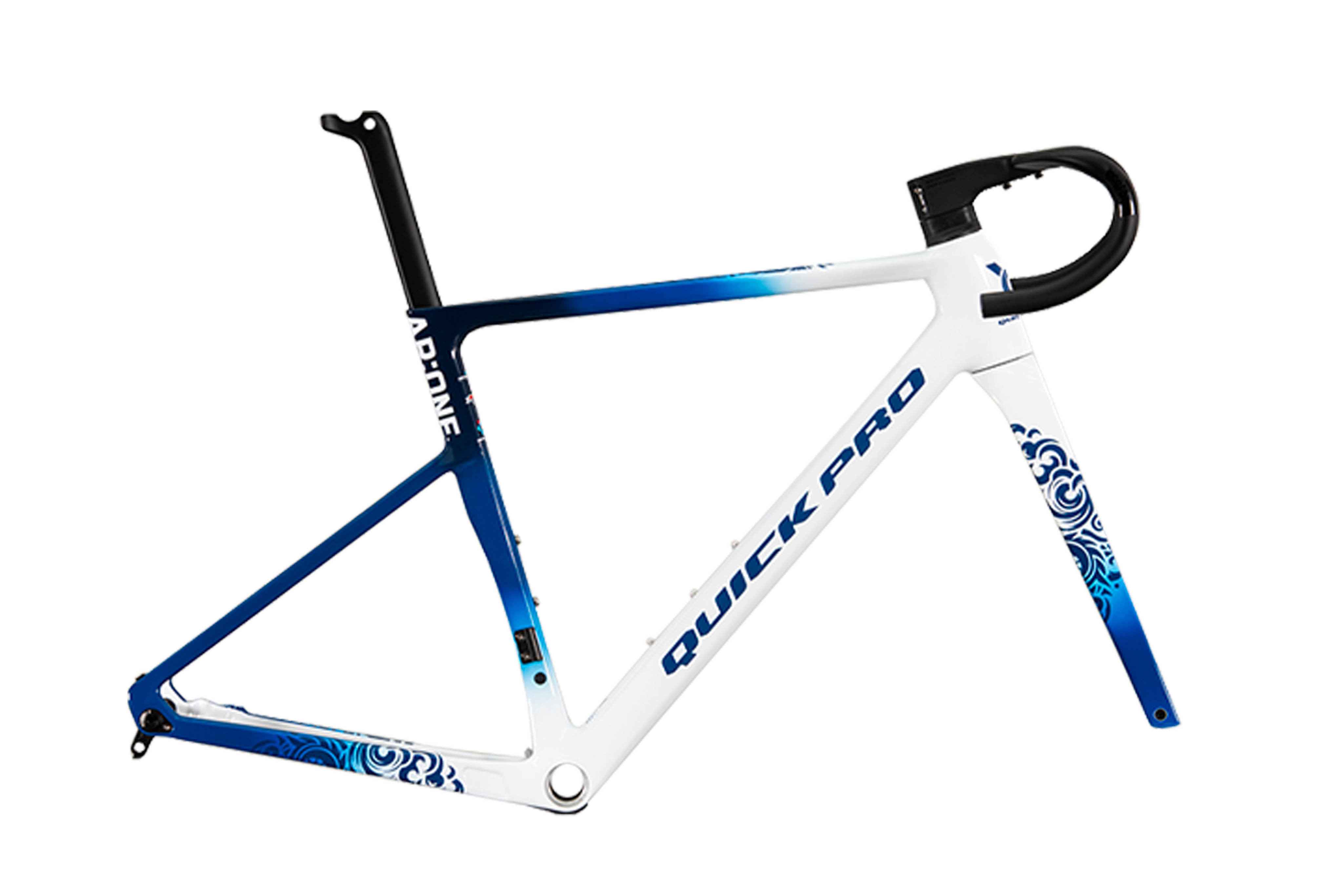

AR:ONE DURA-ACE Di2
Regular price
$8,499.00 AUD
Sale price
$8,499.00 AUD
Regular price
Unit price
AR:ONE DURA-ACE Di2

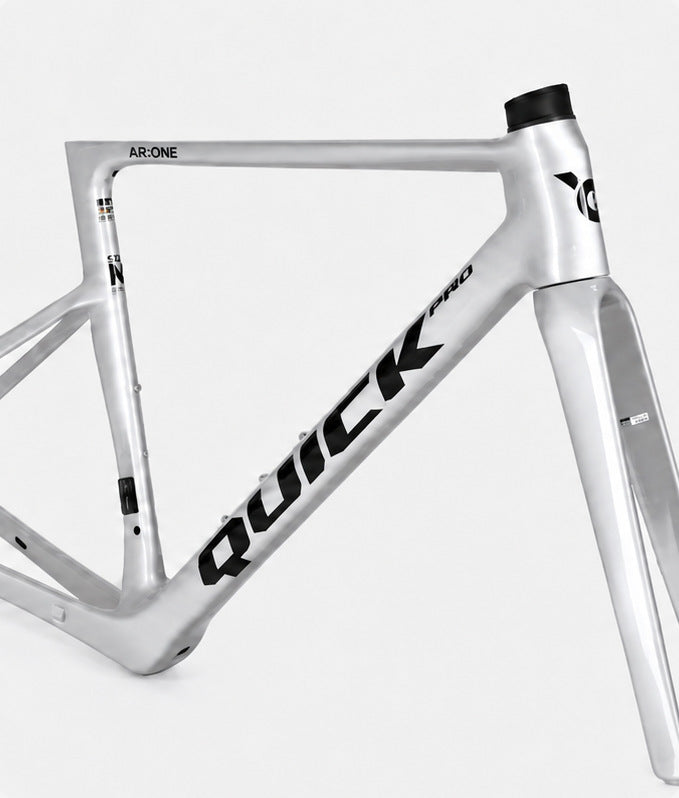

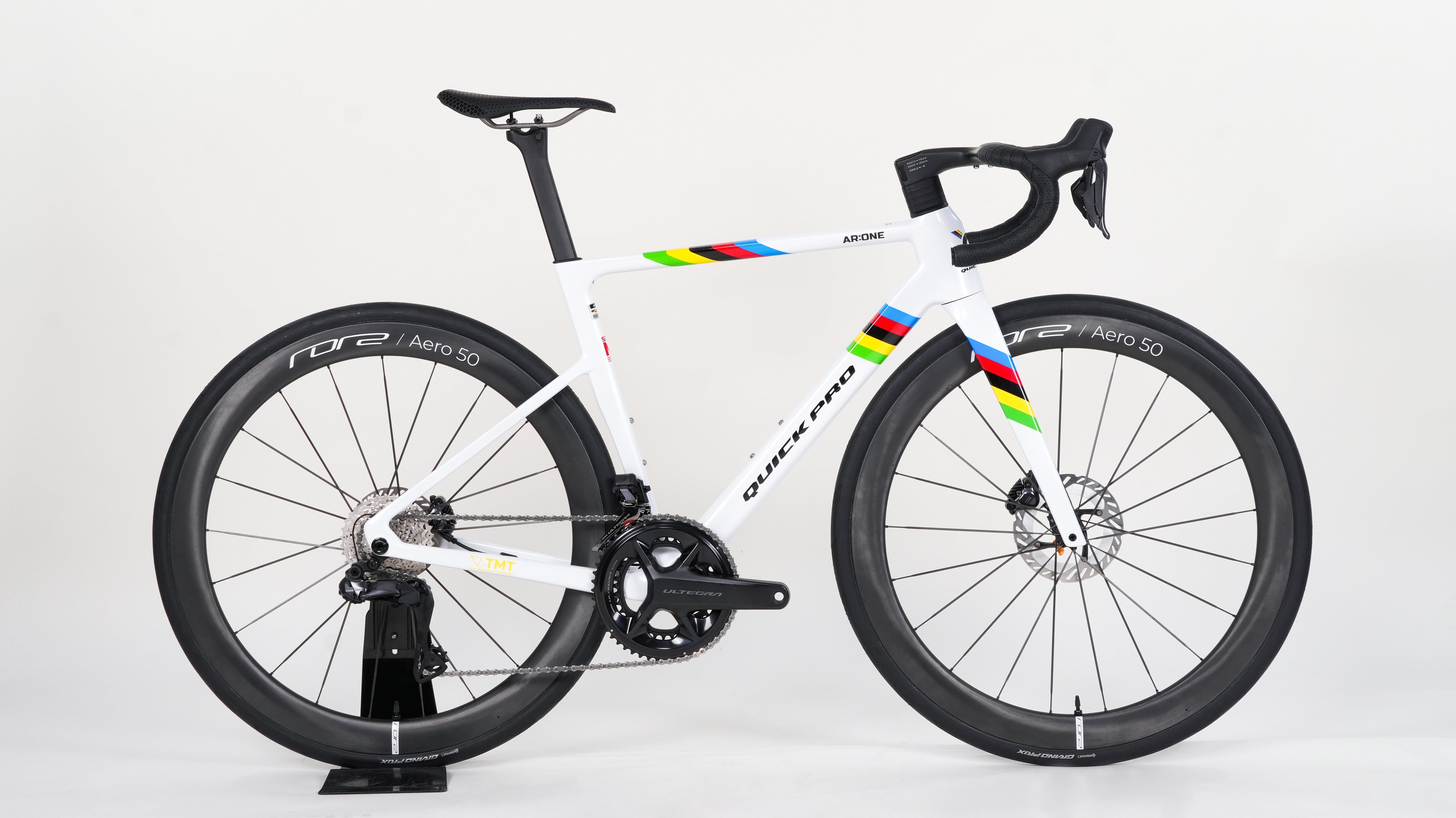

Meet the AR:ONE
The do-it-all road bike. From hills to flat terrain, the AR:One is undoubtedly quick.
Discover what makes the AR:ONE an all-round road weapon.
UCI Approved Race Bike
Advanced material – built with premium Toray T1100 and M56 high grade carbon fibers
All round road weapon

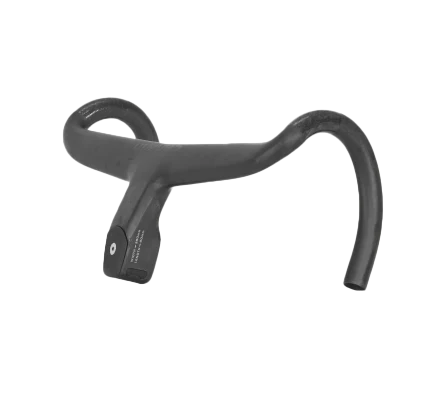

Lightweight integrated bar
Customisable componentry.
Your bike, your way
AR:ONE DURA-ACE Di2 Specifications
Complete Bike Weight
- 6.9kg with RORE Steel Wheelset
- 6.6kg with RORE AERO 50 Wheelset
- 6.5kg with RORE Lighter 50 Wheelset
Weight
- Frame: 799g (±5%)
- Fork: 399g (±5%)
- Seatpost: 128g (±5%)
Dimensions
- Thru-axle: F/100×12mmR/142×12mm
- HT: 52×52mm
- BB: BSA–68mmThreaded
Wheels
- Wheel options: AERO 50, AERO 60, Lighter 50 or Lighter 60
- Inner tube: 700×28c
- Max tire: 700×32c
Cockpit & Saddle
- Handlebar: CANWIN ZEPHYR SSL
- Saddle: SAMASSI 3D Print Saddle
Frame
Size Options
XS/430, SM/460, MD/490,
LG/520, XL/550, XXL/584

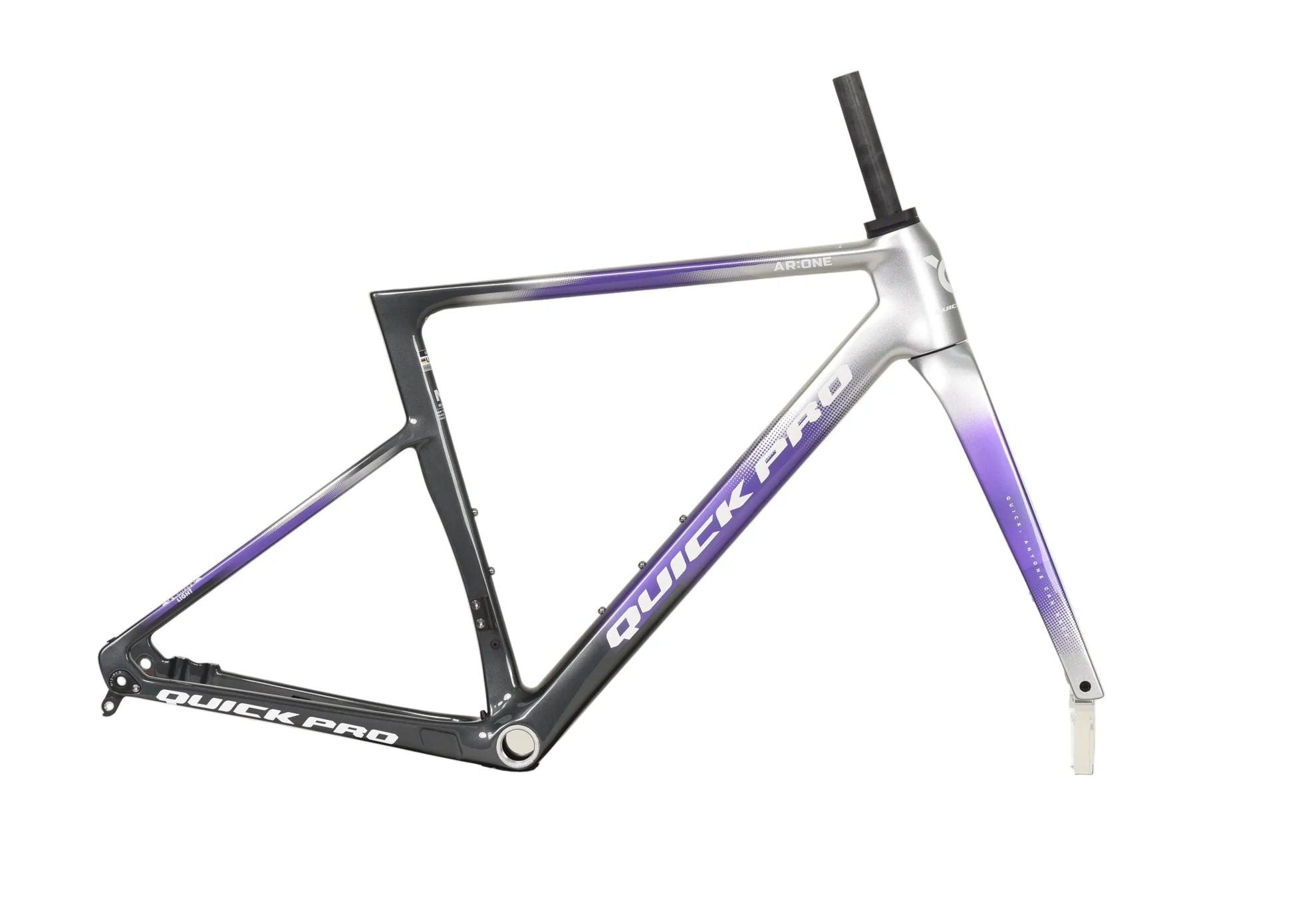

Frameset
T1100 & M65 Modulus Carbon,
Monolith One Piece Construction (840g)
Brakes
Front Brake
Shimano BR-R9270
Rear Brake
Shimano BR-R9270
Brake Rotors
RT-CL900
(160mm Front / 140mm Rear)
Drivetrain
Shift Levers
Shimano ST-R9270
Derailleurs
F: Shimano FD-R9250
R: Shimano RD-R9250
Cassette
Shimano CS-R9200-12 (11/34T)
Chain
Shimano CN-M9200
Crankset/Chainrings
Shimano FC-R9200
165/170mm length options &
50/34 or 52/36 chainrings
Bottom Bracket
QuickPro/SSpade Stainless
Steel BSA/68mm
Wheelsets
AERO50
Price$1339
Size (Wheel)700c
Inner Width23mm
Outer Width32mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishUD weave
Rim Depth50mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (28–35c) or clincher
Rec. Max System Weight263 lbs / 120 kg
Brake Rgr (8mm int / F / R)260/257mm, 276/276mm
Wheelset Weight1180 ± 20g
AERO60
Price$1339
Size (Wheel)700c
Inner Width23mm
Outer Width32mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishUD weave
Rim Depth62mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (28–35c) or clincher
Rec. Max System Weight263 lbs / 100 kg
Spoke Length (F / R)251/247mm, 267/266mm
Wheelset Weight1310 ± 20g
LIGHTER50
Price$1599
Size (Wheel)700c
Inner Width22mm
Outer Width28mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishCF filament winding
Rim Depth50mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (25–32c) or clincher
Rec. Max System Weight220 lbs / 100 kg
Spoke Length (F / R)261/257mm, 276.5/276mm
Wheelset Weight1020 ± 20g
LIGHTER60
Price$1690
Size (Wheel)700c
Inner Width22mm
Outer Width31mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishCF filament winding
Rim Depth60mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (25–32c) or clincher
Rec. Max System Weight220 lbs / 100 kg
Spoke Length (F / R)251/247mm, 265.5/266mm
Wheelset Weight1220 ± 20g
Find Your AR:One Fit

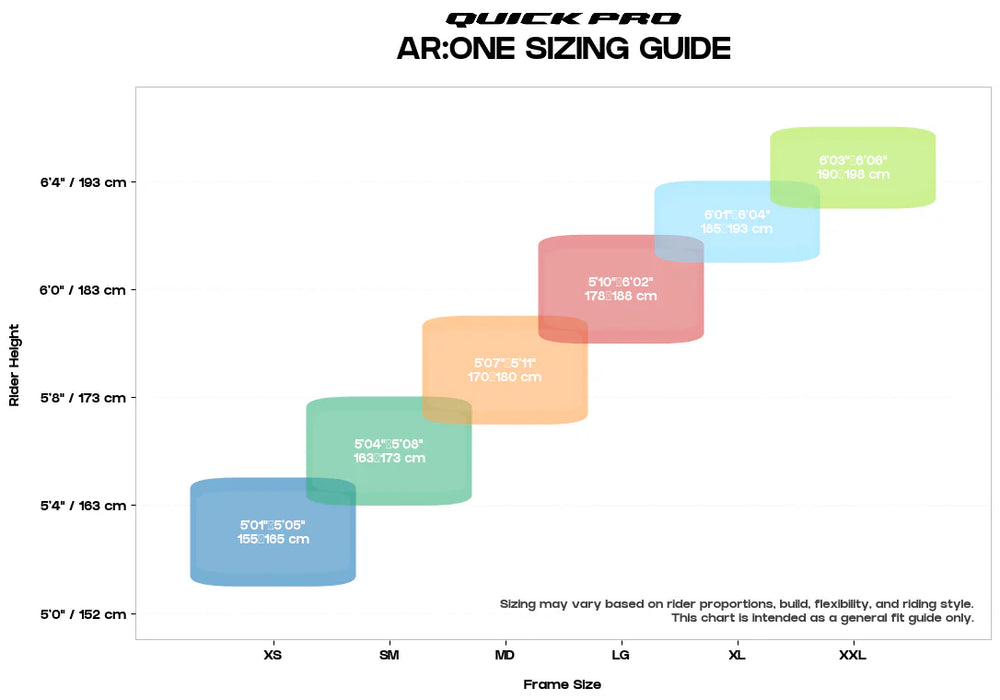

Rider Size Guide
Use your rider height
to find your ideal
AR:One frame size.
XS
5’01” to 5’05”155–165 cm
SM
5’04” to 5’08”163–173 cm
MD
5’07” to 5’11”170–180 cm
LG
5’10” to 6’02”178–188 cm
XL
6’01” to 6’04”185–193 cm
XXL
6’03” to 6’06”190–198 cm
Frame Size

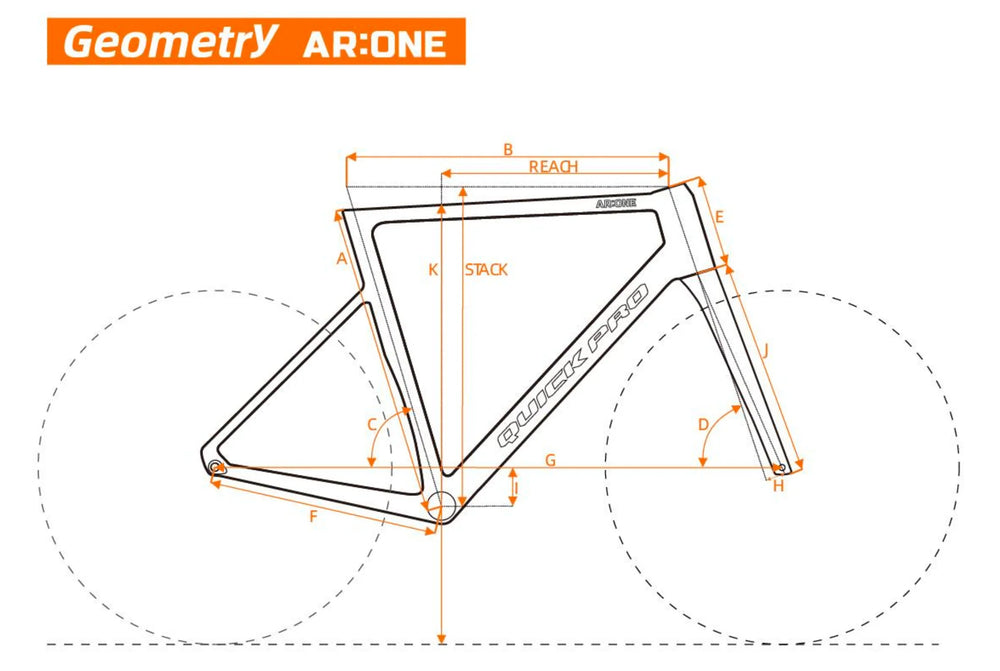

Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| XS / 430 | S / 460 | M / 490 | L / 520 | XL / 550 | XXL / 580 | ||
|---|---|---|---|---|---|---|---|
| A | Frame Size / Seat Tube Length (mm) | 430 | 460 | 490 | 520 | 550 | 580 |
| B | Effective Top Tube Length (mm) | 510 | 525 | 540 | 555 | 570 | 589 |
| C | Seat Tube Angle (°) | 75.0 | 74.5 | 74.0 | 73.5 | 73.5 | 73.5 |
| D | Head Tube Angle (°) | 70.0 | 71.0 | 72.0 | 73.0 | 73.0 | 73.5 |
| E | Head Tube Length (mm) | 105 | 115 | 130 | 145 | 160 | 180 |
| F | Chainstay Length (mm) | 408 | 408 | 408 | 408 | 408 | 408 |
| G | Wheelbase (mm) | 982 | 984.5 | 986 | 987 | 1002 | 1013.7 |
| H | Fork Offset / Rake (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| I | Bottom Bracket Drop (mm) | 71.65 | 71.65 | 71.65 | 71.65 | 71.65 | 71.65 |
| J | Fork Length (mm) | 370 | 370 | 370 | 370 | 370 | 370 |
| K | Standover Height (mm) | 710.5 | 736 | 761.5 | 787 | 812.5 | 837 |
| L | Stack-to-Reach Ratio (STR) | 1.34 | 1.35 | 1.38 | 1.41 | 1.41 | 1.42 |
| — | Reach (mm) | 375.37 | 382.17 | 386.71 | 391.4 | 402 | 412.3 |
| — | Stack (mm) | 503.9 | 516.73 | 534.57 | 552 | 566.5 | 587.7 |
