BLADE GEN 2 RED AXS 2x12
Regular price
$8,499.00 AUD
Sale price
$8,499.00 AUD
Regular price
Unit price

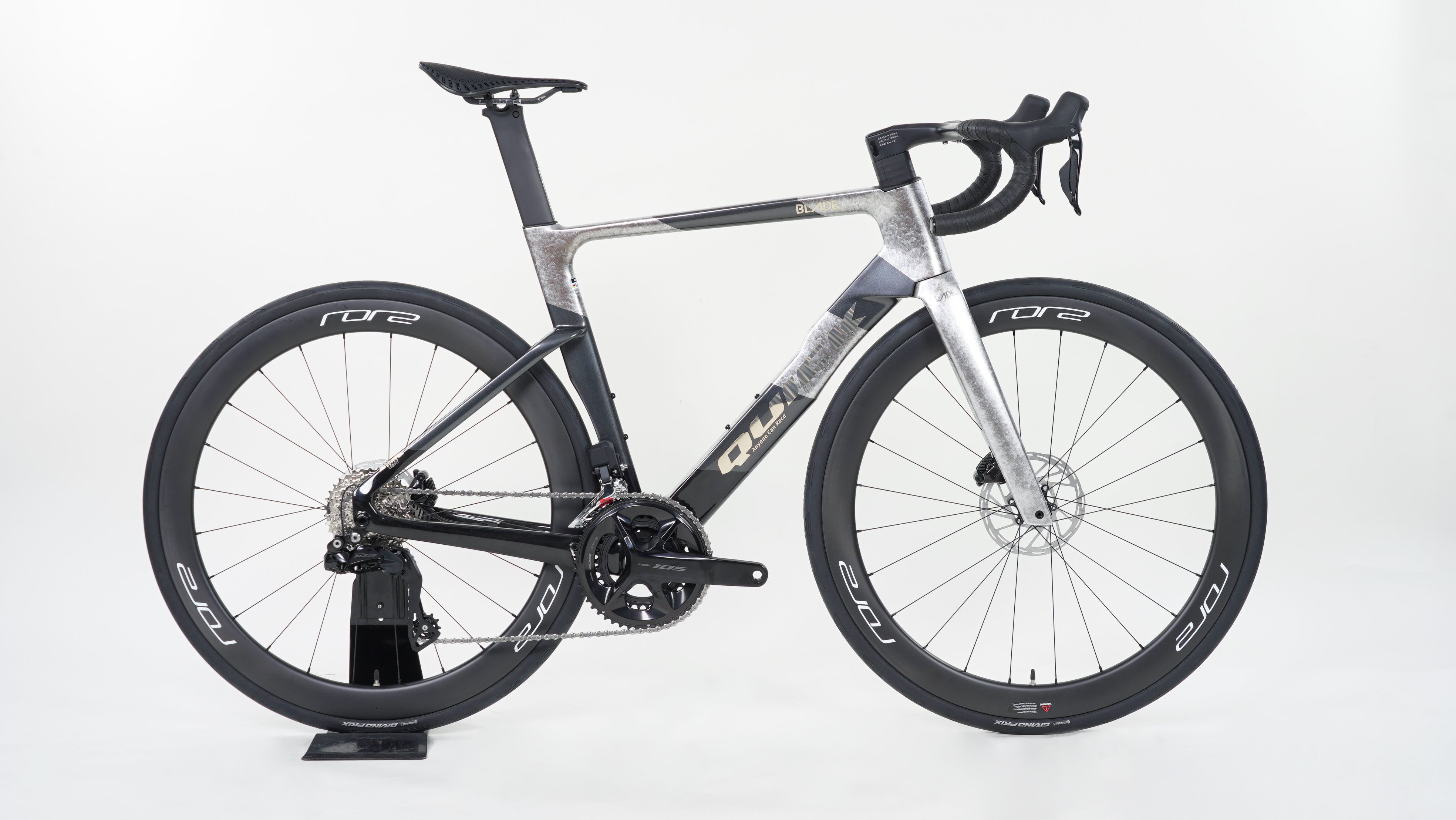

BLADE GEN 2 RED AXS 2x12
Meet the Blade.
Blade is the endurance focused QuickPro. Offering a more
upright riding position to ensure stable handling over rough
asphalt. Built for long-distance comfort.
Endurance optimised.
Optimized tube profiles
to minimize frontal dragUCI Approved Race Bike
Premium T1000 and
M60 carbon fibersCustomisable componentry.
Your bike, your wayLightweight integrated
handlebar
BLADE GEN 2 RED AXS 2x12 Specifications
Complete Bike Weight
- 7.0kg with RORE Steel Wheelset
- 6.8kg with RORE Aero Wheelset
- 6.7kg with RORE Lighter Wheelset
Weight
- Frame: 924g
- Fork: 445g
- Seatpost: 139g
Dimensions
- Thru-axle: F/100×12mmR/142×12mm
- HT: 52×52mm
- BB: T47–85.5mm Threaded
Wheels
- Wheel options: AERO 50, AERO 60, Lighter 50 or Lighter 60
- Inner tube: 700×28c
- Max tire: 700×32c
Cockpit & Saddle
- Handlebar: CANWIN ZEPHYR SSL
- Saddle: SAMASSI 3D Print Saddle
Frame
Size Options
XS/456, SM/486, MD/514,
LG/536, XL/558, XXL/576
Frameset
High-Strength High-Modulus
Carbon Fiber
Brakes
Front Brake
SRAM Red AXS
Rear Brake
SRAM Red AXS
Brake Rotors
SRAM Paceline X CL A1
(160mm Front/140mm Rear)
Drivetrain
Shift Levers
SRAM Red AXS E1
Derailleurs
F: SRAM Red AXS E1
R: SRAM Red AXS E1
Cassette
SRAM Red XDR 10/36T
Chain
SRAM Red AXS E1
Crankset/Chainrings
SRAM Red AXS E1
170mm length options &
50/37 chainrings
Bottom Bracket
T47–85.5mm Threaded
Wheelsets
AERO50
Price$1339
Size (Wheel)700c
Inner Width23mm
Outer Width32mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishUD weave
Rim Depth50mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (28–35c) or clincher
Rec. Max System Weight263 lbs / 120 kg
Brake Reg (6mm int / F / R)260/257mm, 276/276mm
Wheelset Weight1180 ± 20g
AERO60
Price$1339
Size (Wheel)700c
Inner Width23mm
Outer Width32mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishUD weave
Rim Depth62mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (28–35c) or clincher
Rec. Max System Weight263 lbs / 100 kg
Spoke Length (F / R)251/247mm, 267/266mm
Wheelset Weight1310 ± 20g
LIGHTER50
Price$1599
Size (Wheel)700c
Inner Width22mm
Outer Width28mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishCF filament winding
Rim Depth50mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (25–32c) or clincher
Rec. Max System Weight220 lbs / 100 kg
Spoke Length (F / R)261/257mm, 276.5/276mm
Wheelset Weight1020 ± 20g
LIGHTER60
Price$1690
Size (Wheel)700c
Inner Width31mm
Outer Width31mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishCF filament winding
Rim Depth62mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (25–32c) or clincher
Rec. Max System Weight220 lbs / 100 kg
Spoke Length (F / R)261/257mm, 265.5/266mm
Wheelset Weight1080 ± 20g
Find Your BLADE Fit
Rider Size Guide
Use your rider height
to find your ideal
BLADE frame size.
XS
5’01” to 5’05”155–165 cm
SM
5’04” to 5’08”163–173 cm
MD
5’07” to 5’11”170–180 cm
LG
5’10” to 6’02”178–188 cm
XL
6’01” to 6’05”185–196 cm
XXL
6’04” to 6’08”193–203 cm
Frame Size
Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| XS/456 | S/486 | M/514 | L/536 | XL/558 | XXL/576 | ||
|---|---|---|---|---|---|---|---|
| A | Size / ST Length (mm) | 456 | 486 | 514 | 536 | 558 | 576 |
| B | Virtual TT (mm) | 505 | 524 | 542 | 559 | 575 | 593 |
| C | ST Angle (°) | 74.3° | 74° | 73.5° | 73.5° | 73.3° | 73° |
| D | HT Angle (°) | 71° | 71.5° | 72° | 72.5° | 72.8° | 73° |
| E | HT Length (mm) | 101.7 | 117 | 138 | 157 | 175 | 192 |
| F | RC Length (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| G | Wheel Base (mm) | 963 | 976 | 985 | 998 | 1010 | 1022 |
| H | Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| I | BB Drop (mm) | 72 | 72 | 72 | 72 | 72 | 72 |
| J | Fork Length (mm) | 375 | 375 | 375 | 375 | 375 | 375 |
| K | Standover (mm) | 745 | 764 | 786 | 806 | 824 | 841 |
| — | Reach (mm) | 360 | 373 | 380 | 391 | 400 | 409 |
| — | Stack (mm) | 509 | 525 | 547 | 567 | 585 | 602 |
