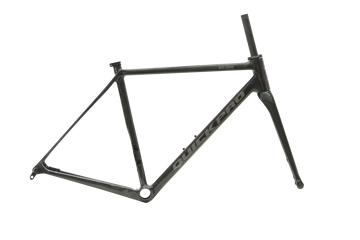

SR:One Frameset, Size 54, Silver King
Regular price
$2,299.00 AUD
Sale price
$2,299.00 AUD
Regular price
Unit price
SR:One Frameset, Size 54, Silver King

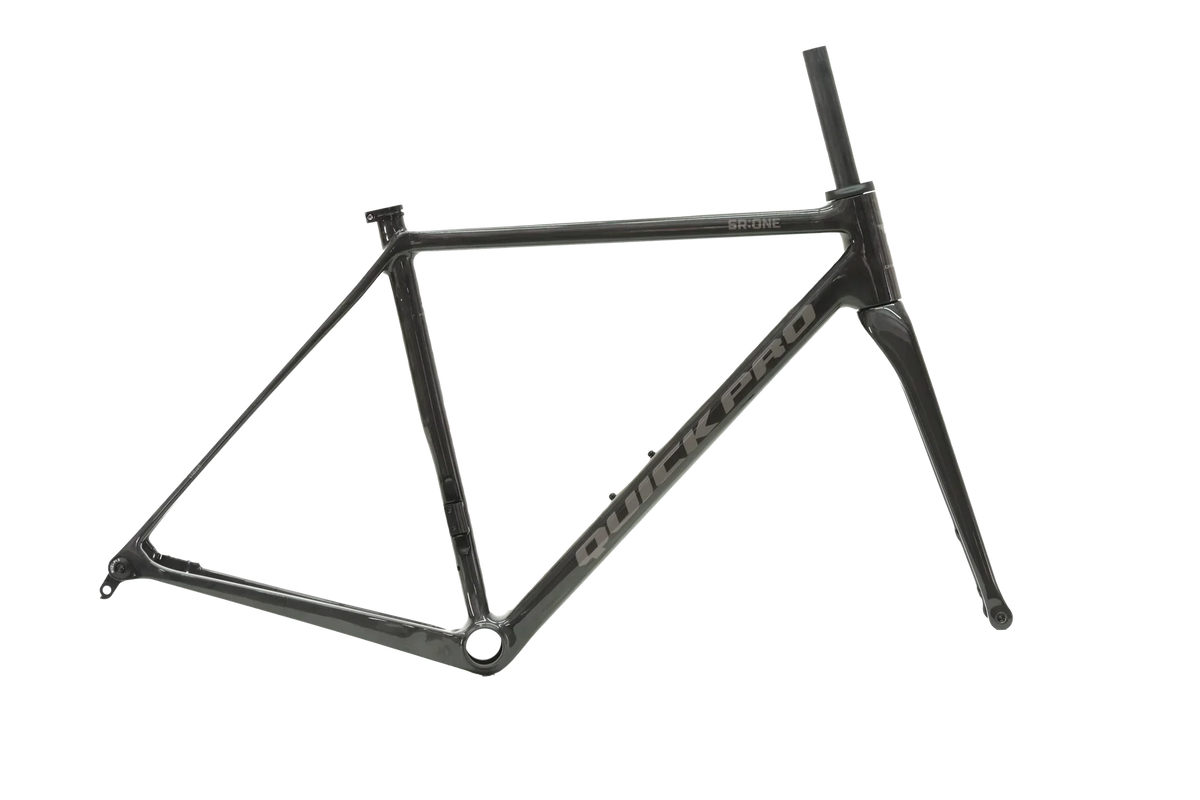

Meet the SR:ONE
The QuickPro model designed specifically for climbing.
Ultra lightweight. Built around one-piece molding technology.
Frameset weight of just 639g.
Advanced material – built
with premium Toray T1100
and M56 high grade
carbon fibersThe ultimate climbing bike.
Lightweight integrated bar
Customisable componentry.
Your bike, your way
Find Your SR:One Fit
Rider Size Guide
Use your rider height
to find your ideal
SR:One frame size.
480
5'0" to 5'5"153–165 cm
500
5'3" to 5'7"160–171 cm
520
5'5" to 5'10"165–178 cm
540
5'8" to 6'0"173–183 cm
560
5'10" to 6'2"178–188 cm
580
6'0" to 6'5"183–196 cm
Frame Size
Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| 480 | 500 | 520 | 540 | 560 | 580 | ||
|---|---|---|---|---|---|---|---|
| A | Frame Size / Seat Tube Length (mm) | 480 | 500 | 520 | 540 | 560 | 580 |
| B | Effective Top Tube Length (mm) | 510.1 | 522 | 534 | 547 | 559.6 | 575 |
| C | Seat Tube Angle (°) | 74.7° | 74.4° | 74.1° | 73.8° | 73.5° | 73.2° |
| D | Head Tube Angle (°) | 71.5° | 72° | 72.6° | 72.9° | 73.1° | 73.3° |
| E | Head Tube Length (mm) | 110 | 115 | 125 | 140 | 155 | 175 |
| F | Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| G | Wheelbase (mm) | 971.4 | 976.4 | 978.7 | 986.3 | 994.1 | 1004.3 |
| H | Fork Offset / Rake (mm) | 48 | 48 | 45 | 45 | 45 | 45 |
| I | Bottom Bracket Drop (mm) | 72 | 72 | 69 | 69 | 69 | 69 |
| J | Fork Length (mm) | 368 | 368 | 368 | 368 | 368 | 368 |
| K | Standover Height (mm) | 714.6 | 725.1 | 749.6 | 768.9 | 785.1 | 799.3 |
| — | Reach (mm) | 370.3 | 377.6 | 383.9 | 388.9 | 394.6 | 400.9 |
| — | Stack (mm) | 510.9 | 517.5 | 526.8 | 542.2 | 557.3 | 576.7 |
