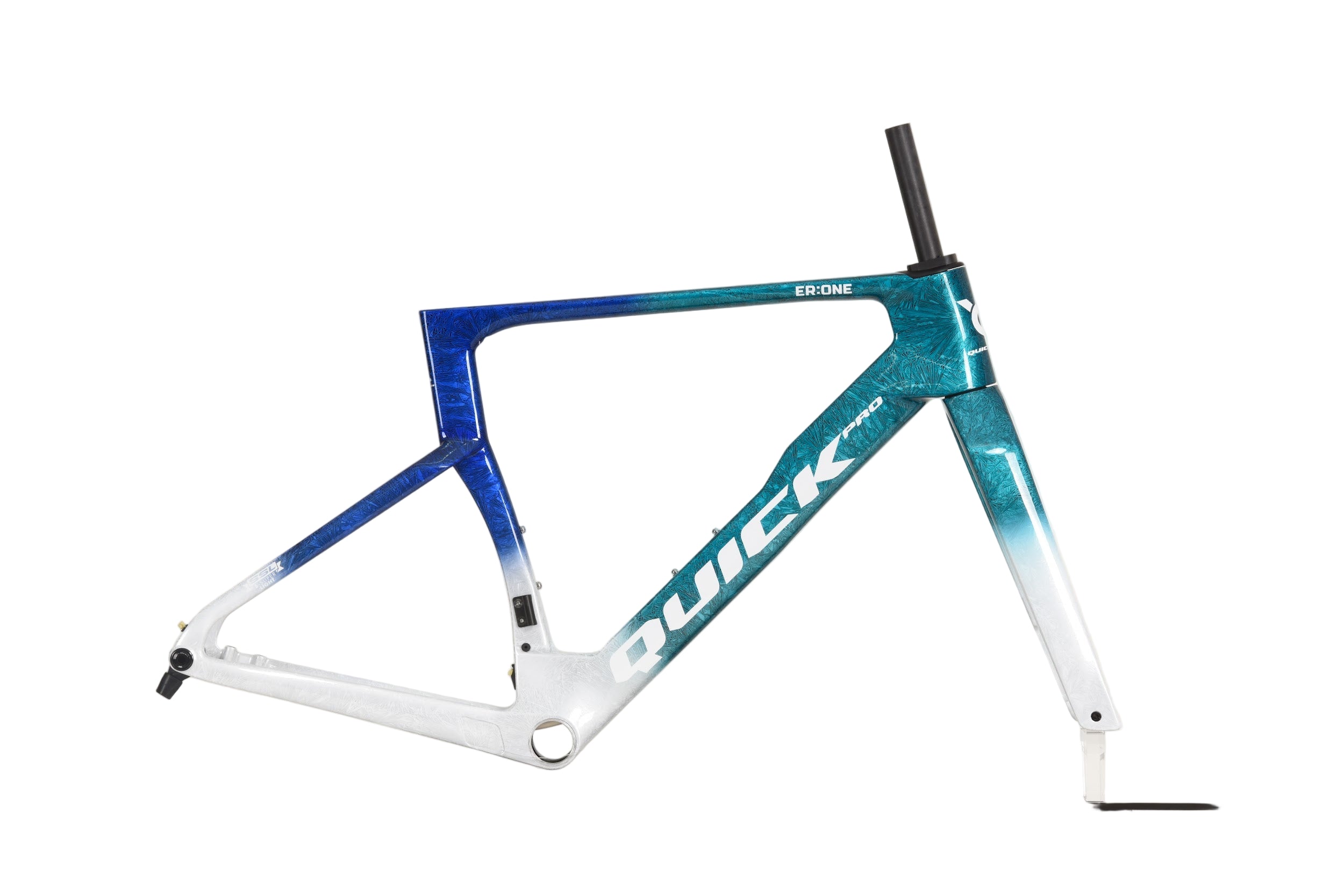

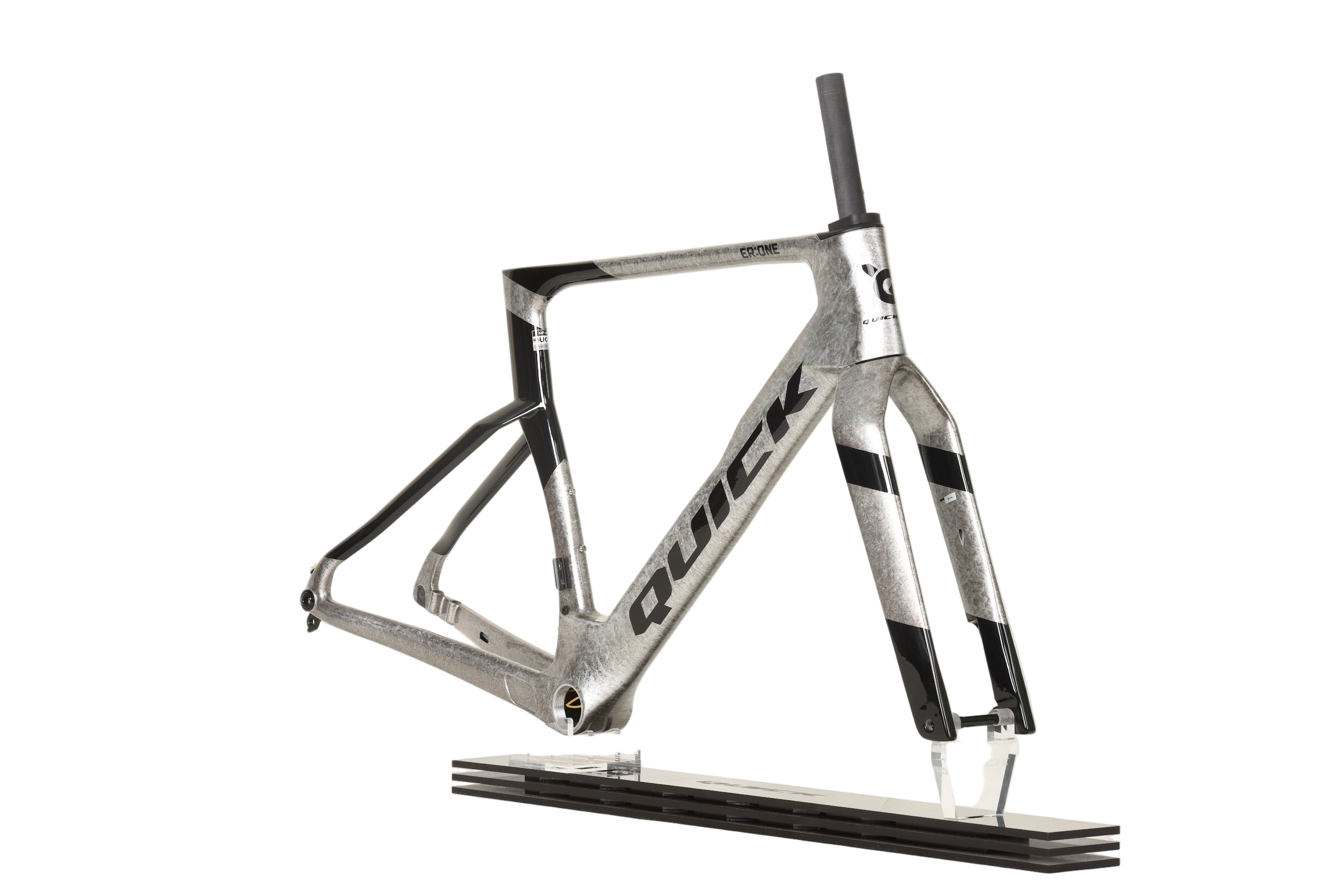

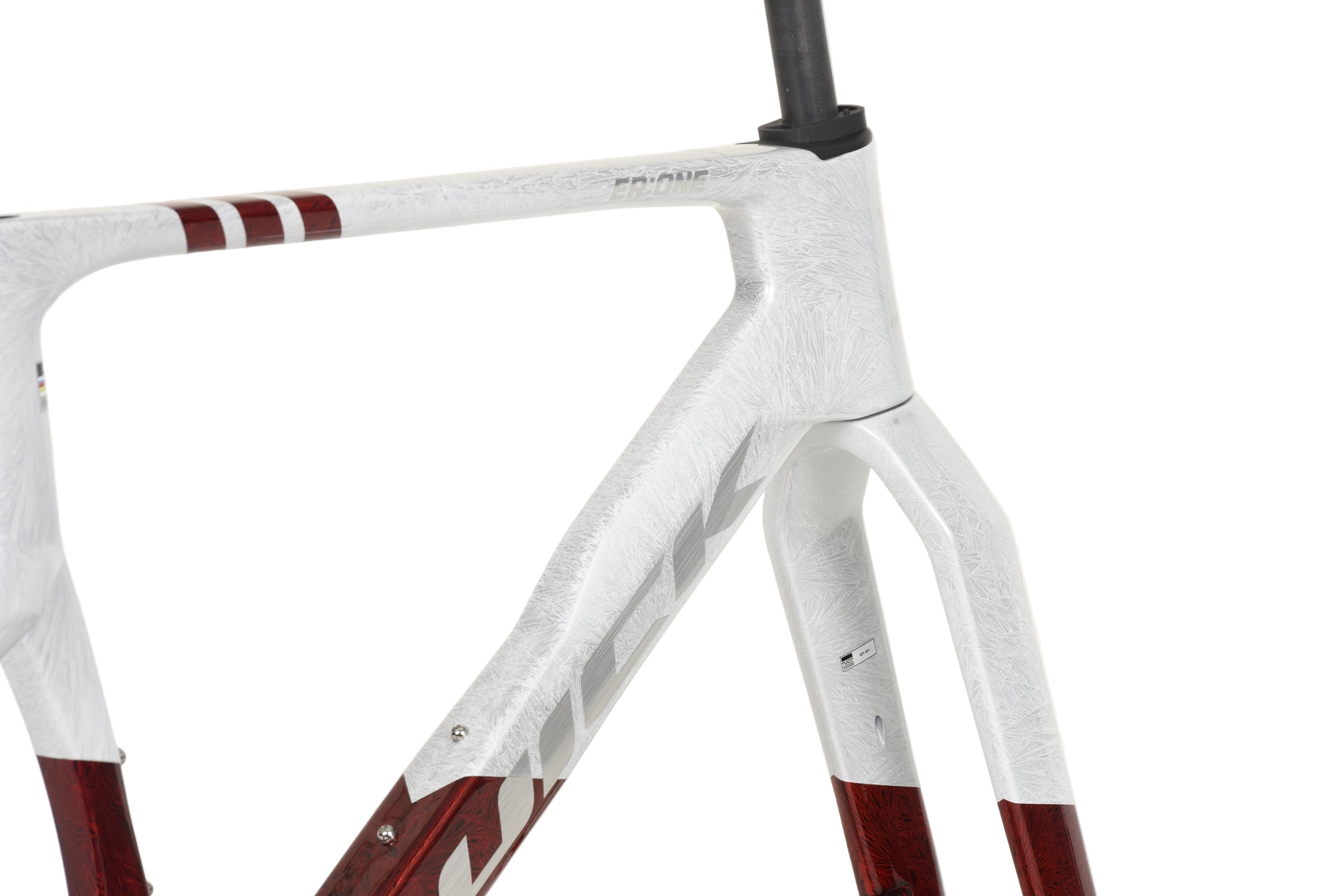

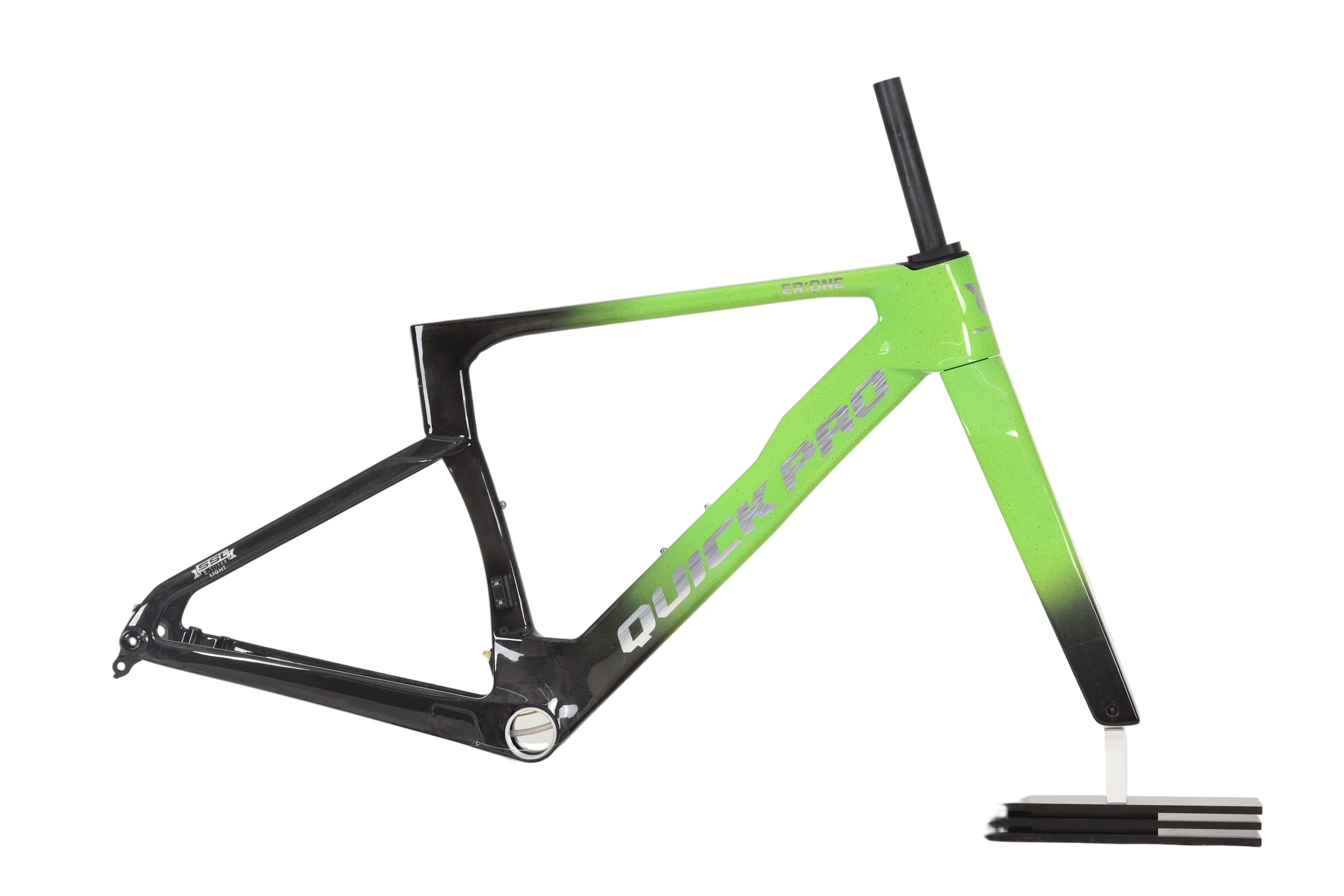

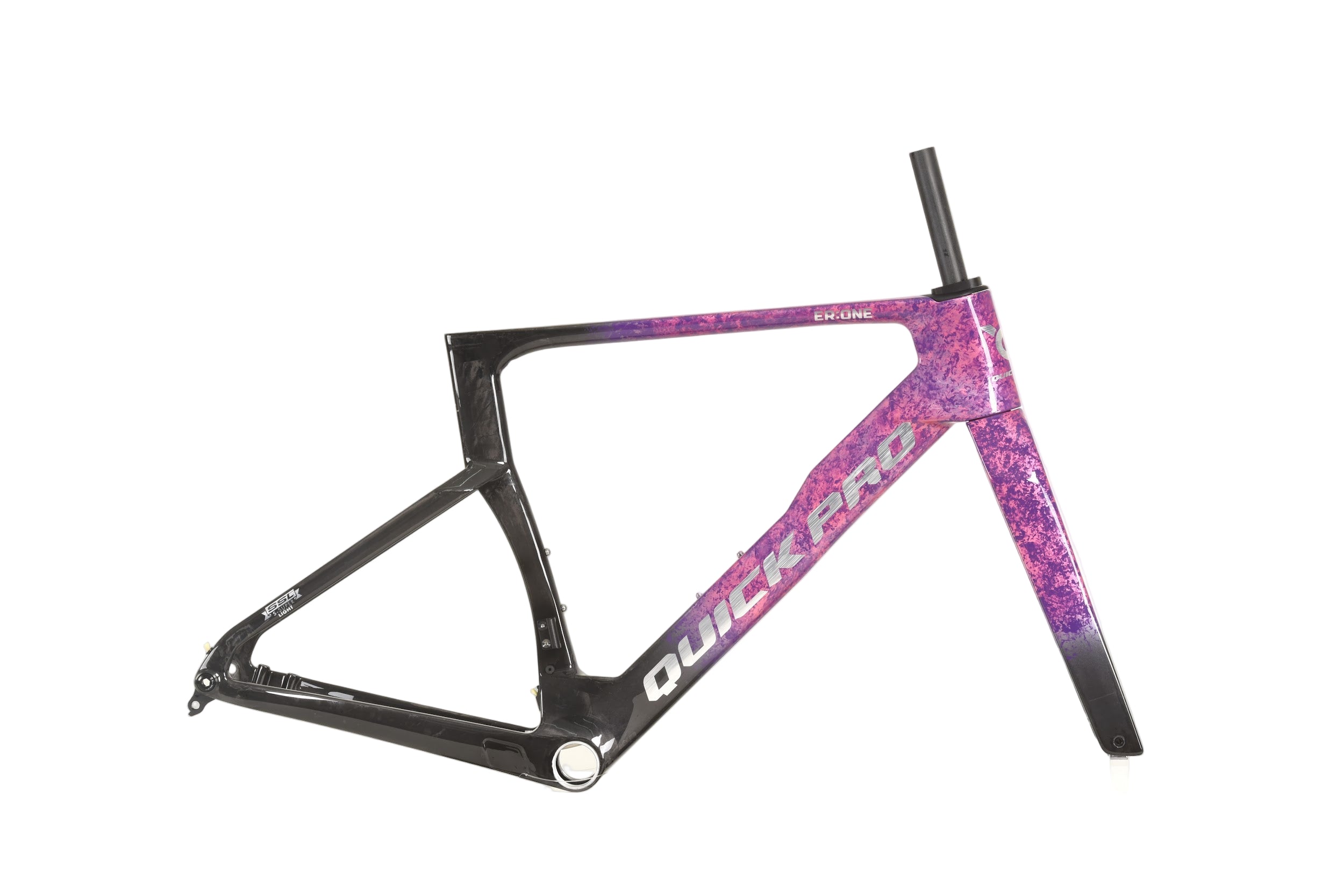

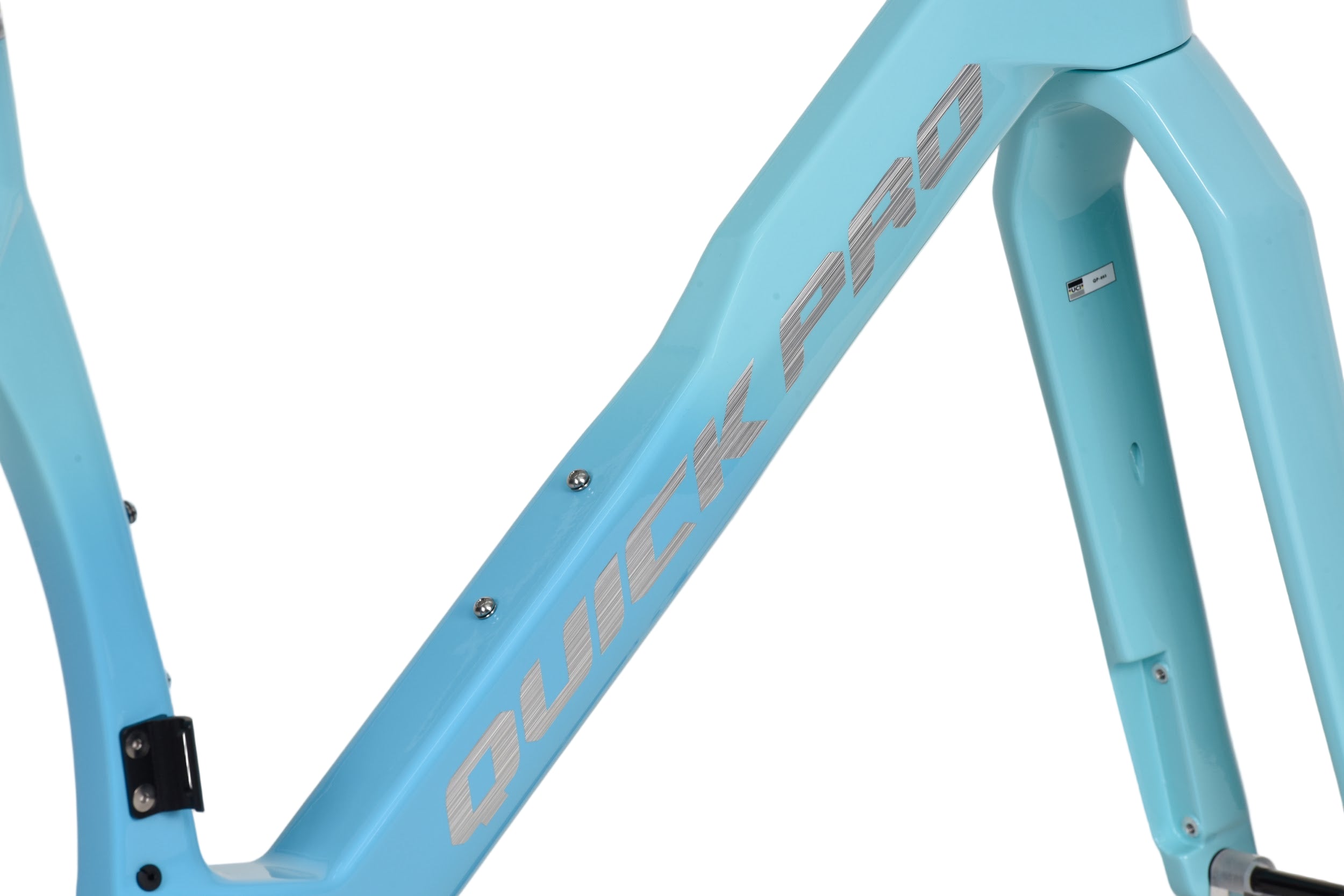

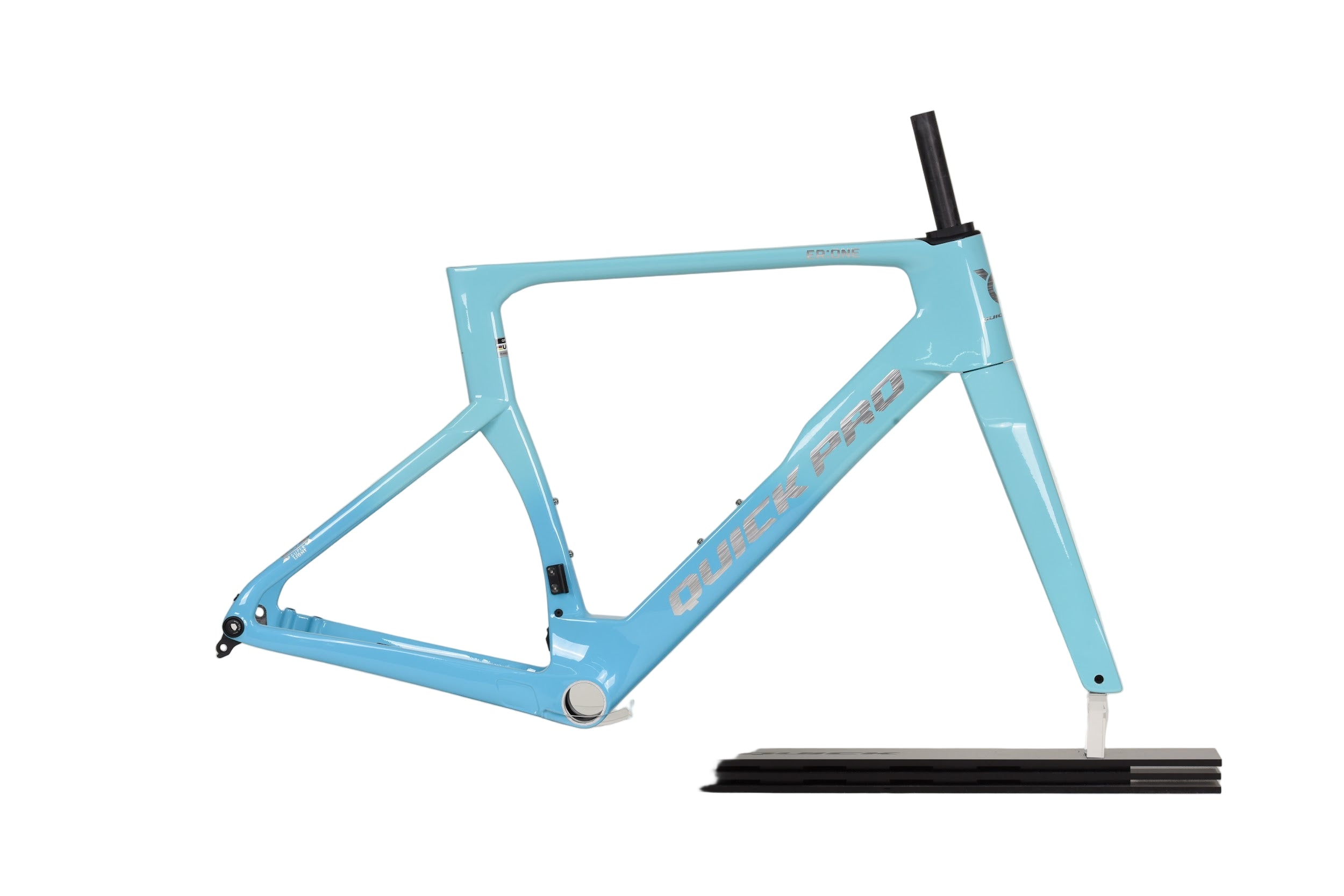

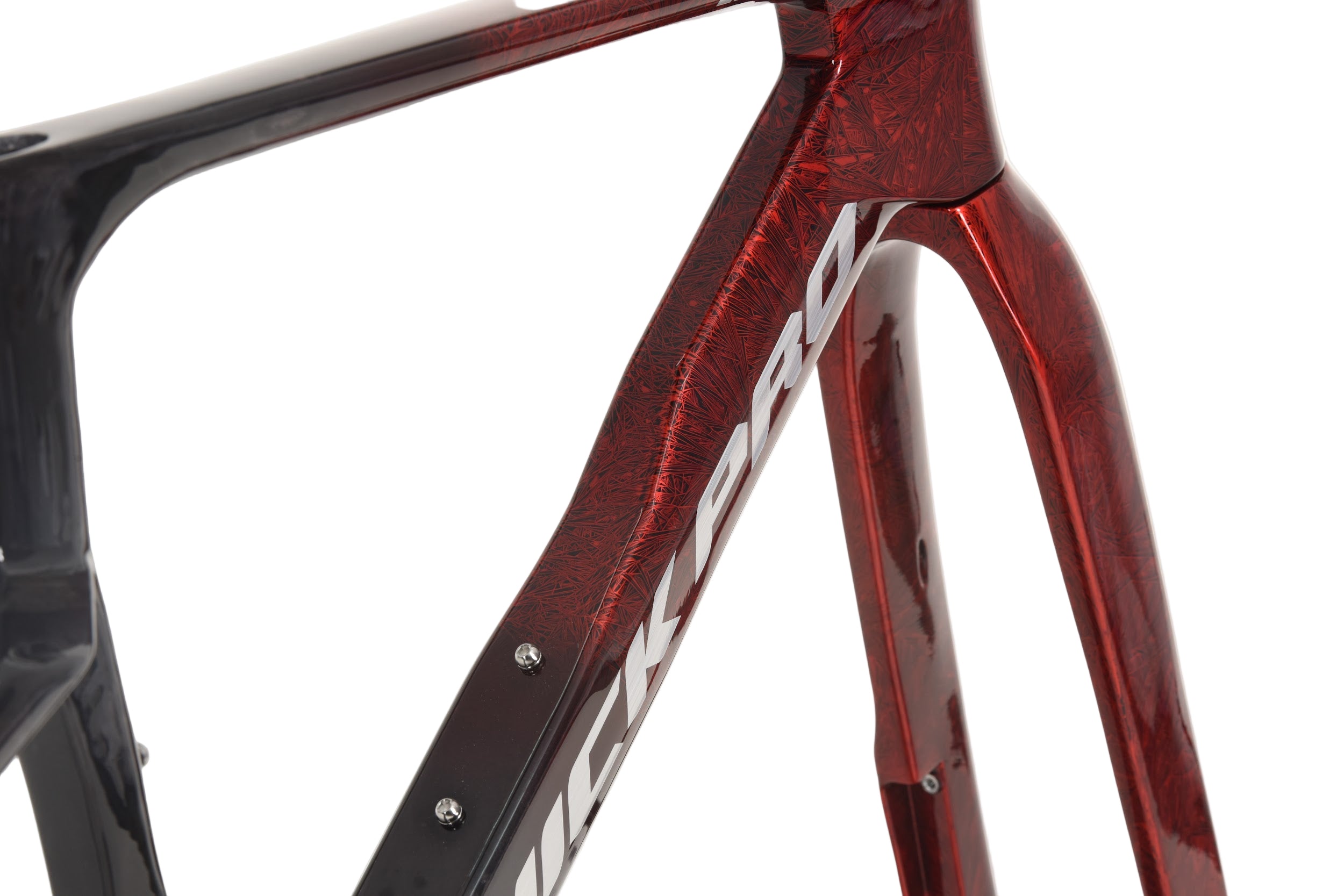

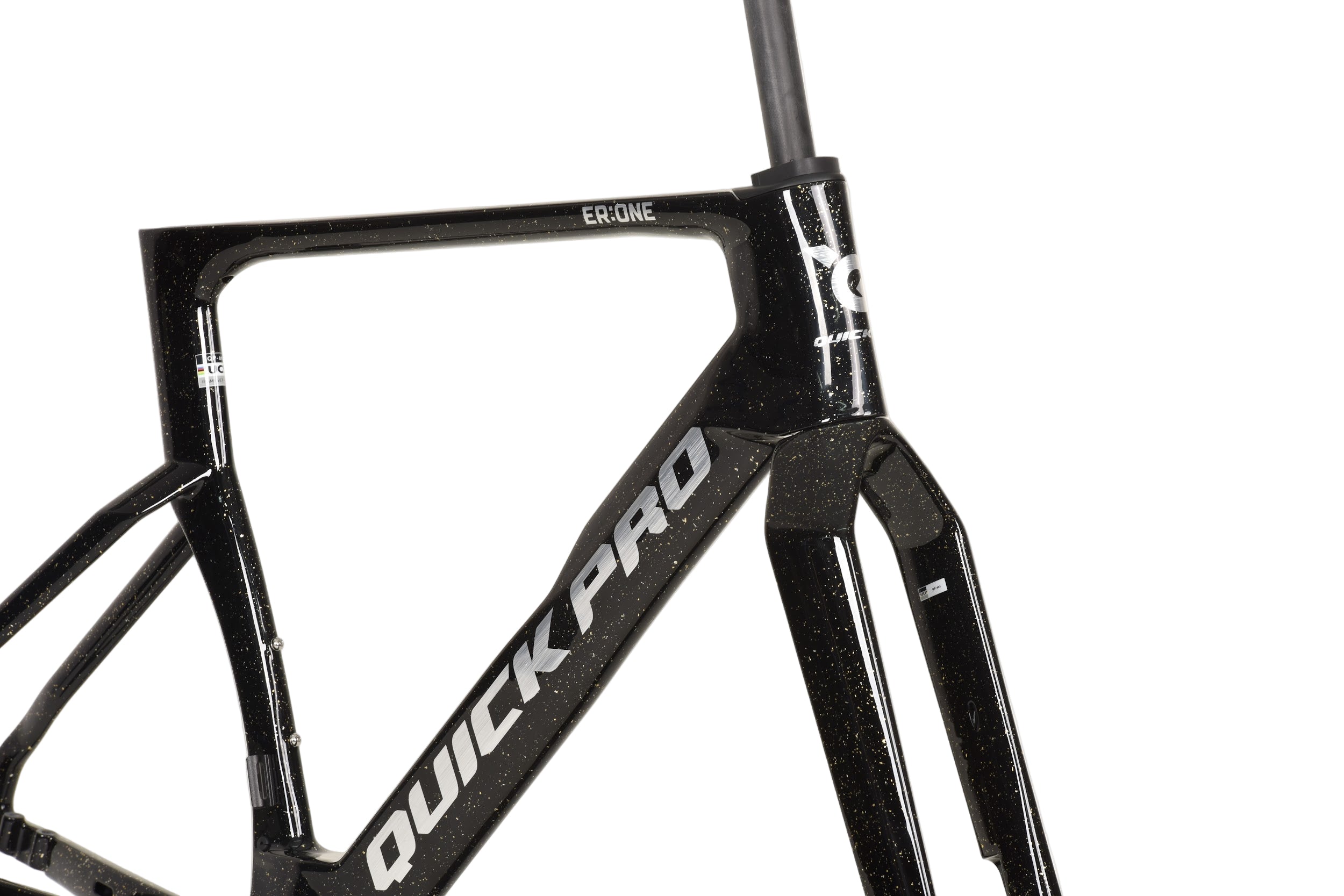

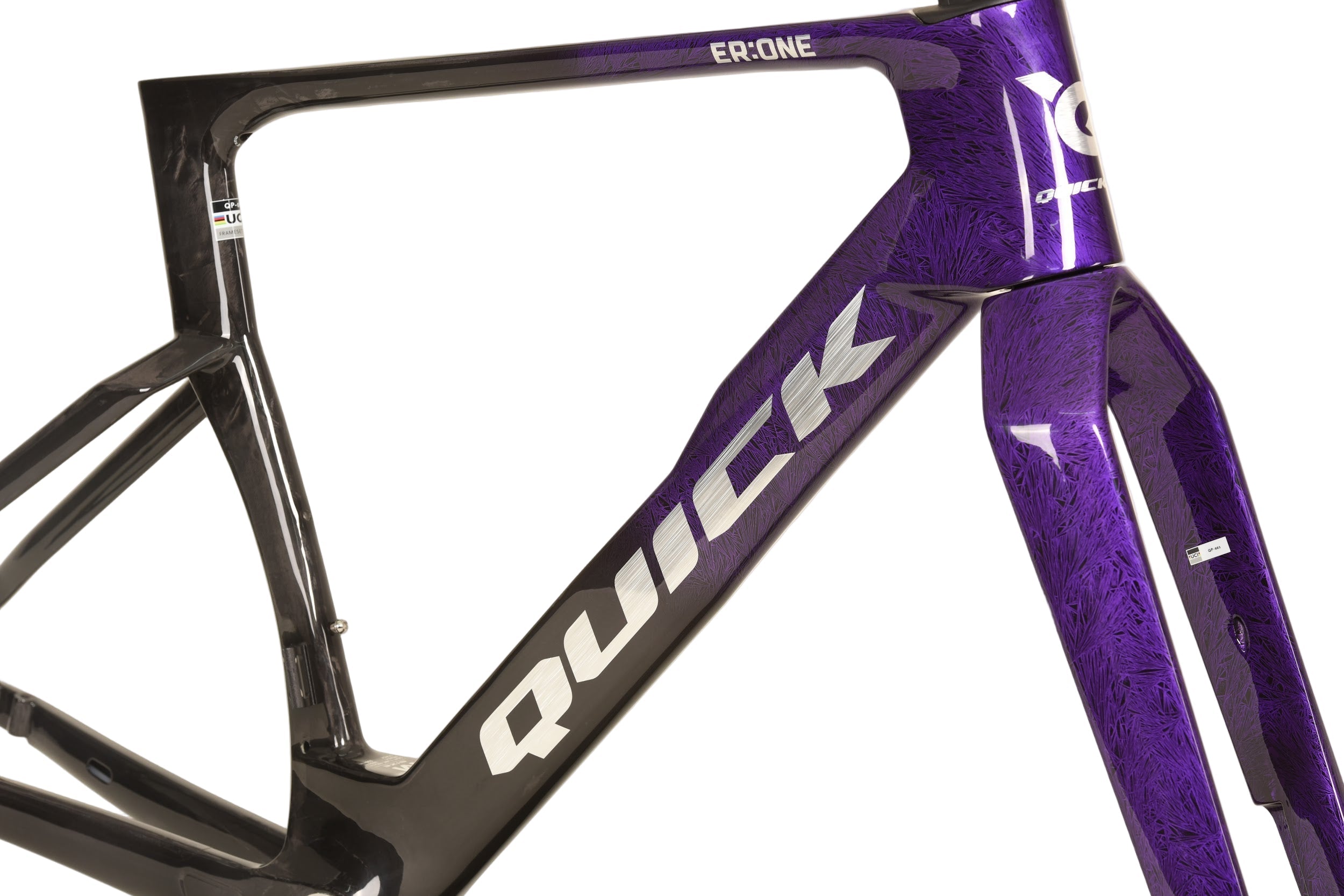

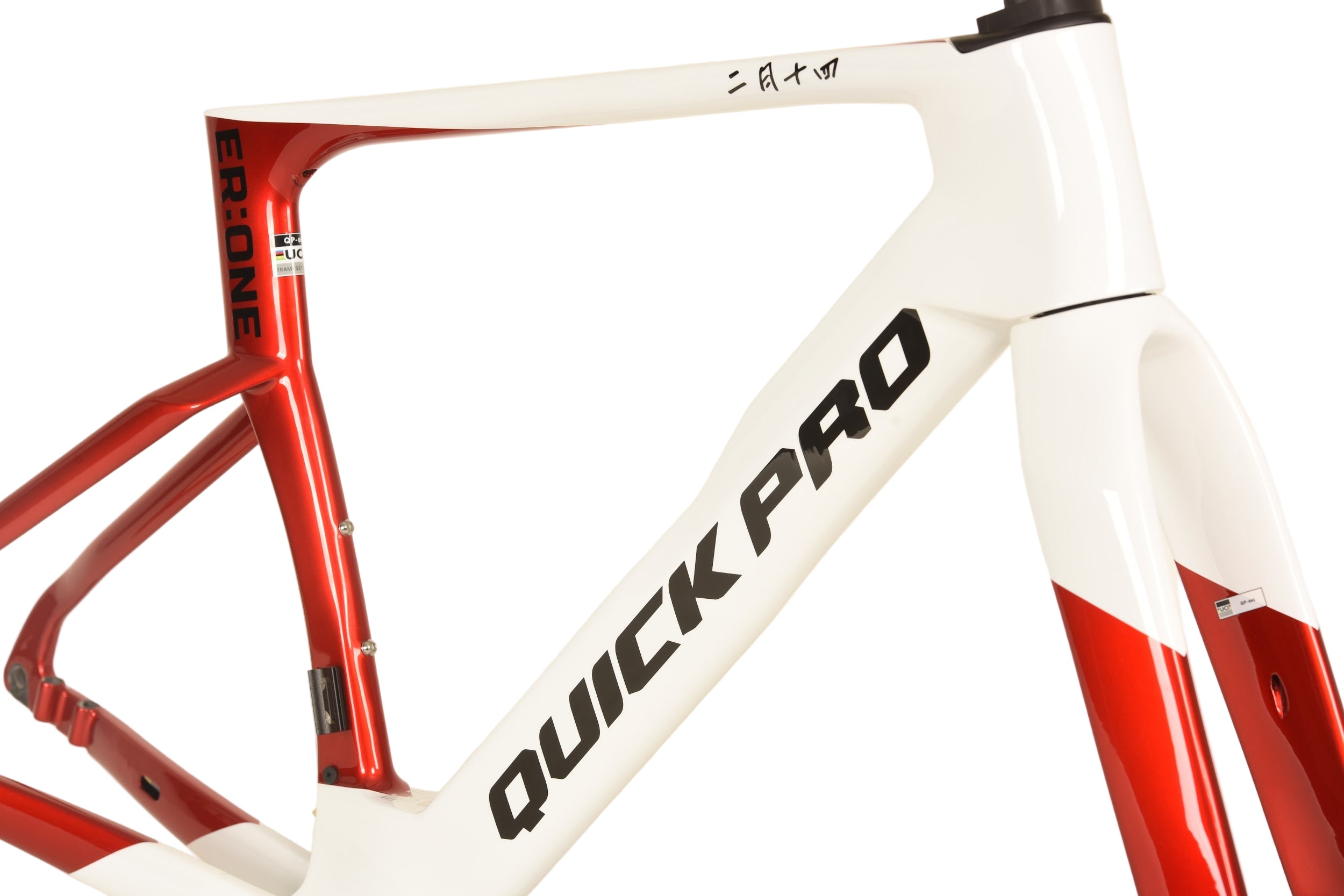

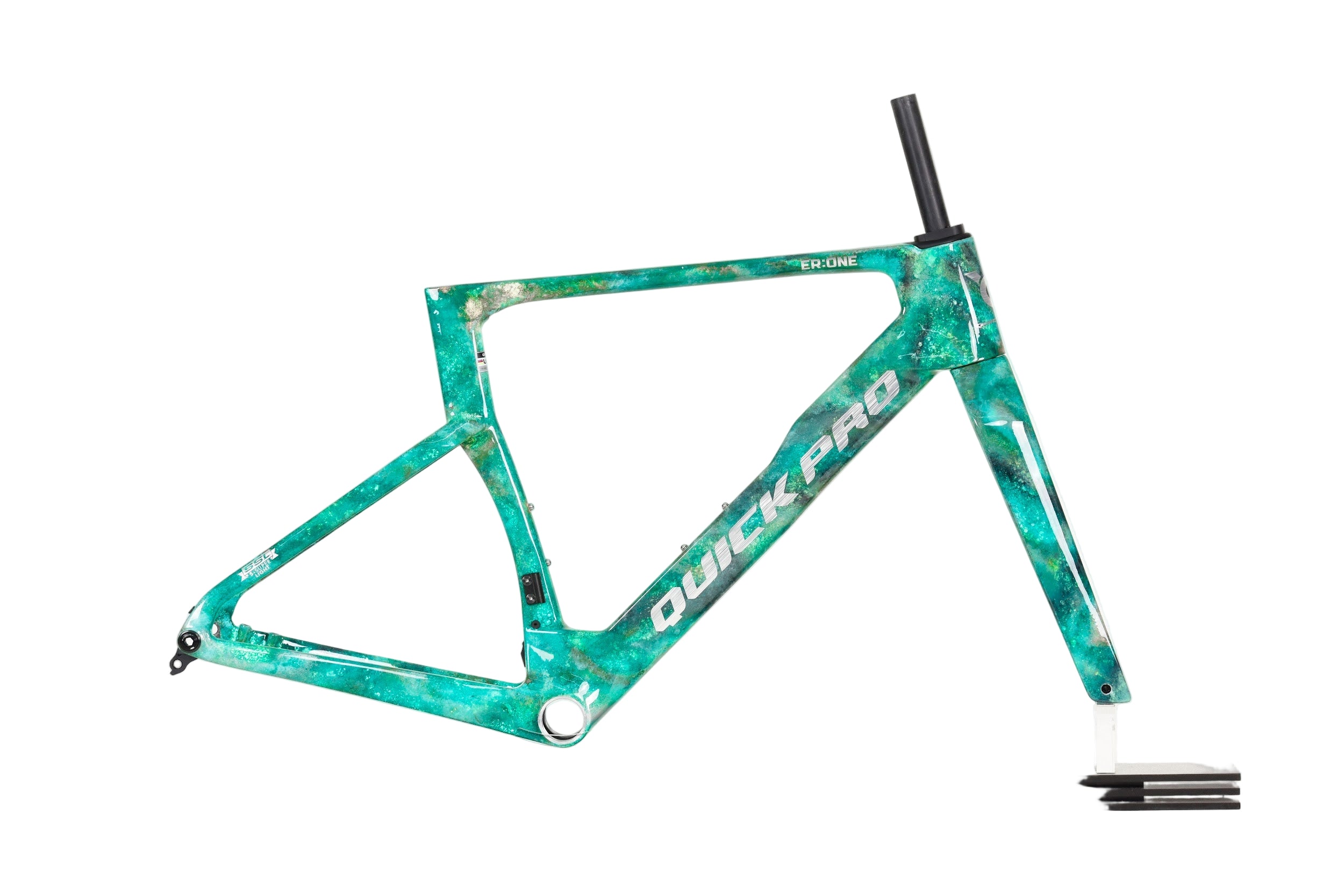

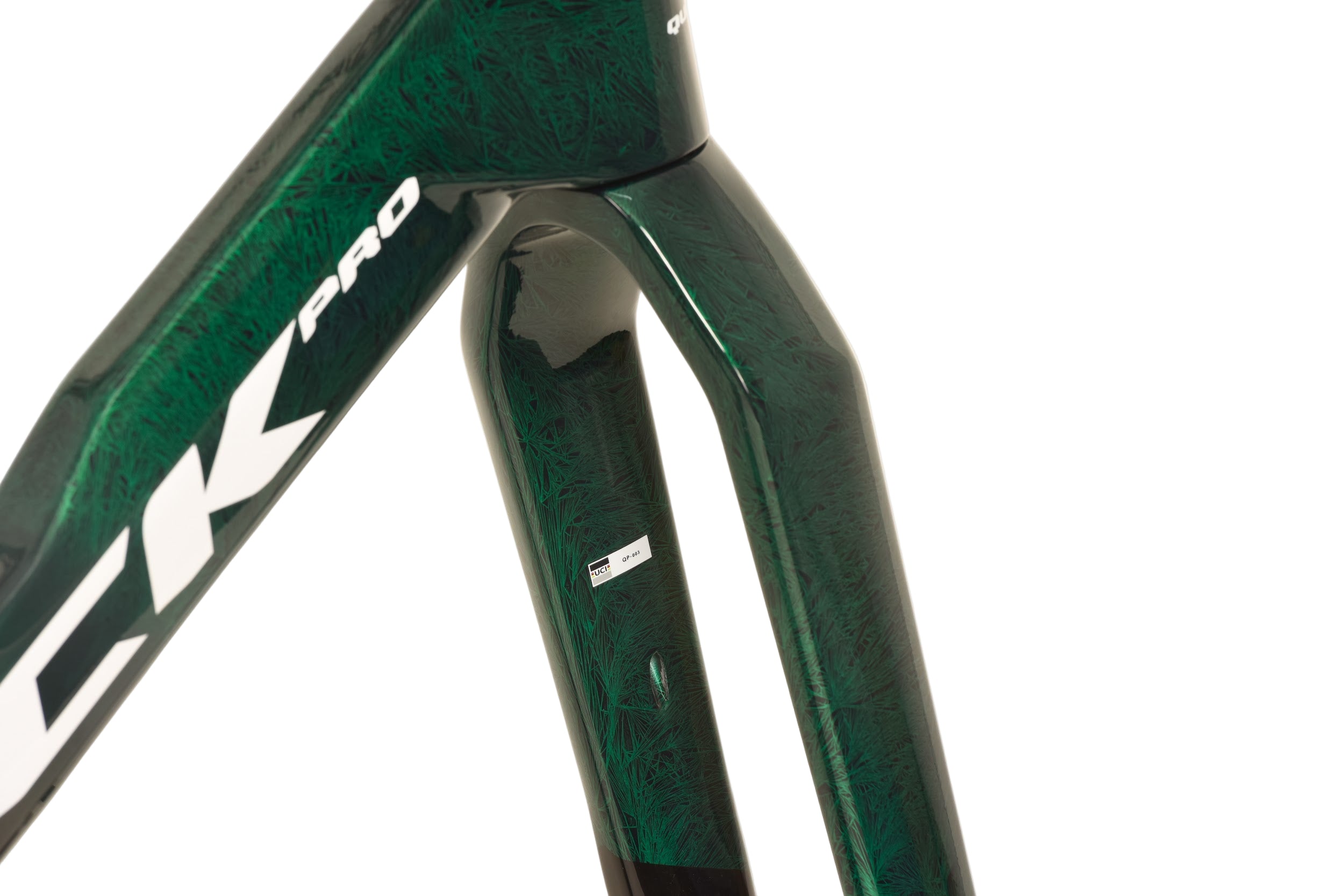

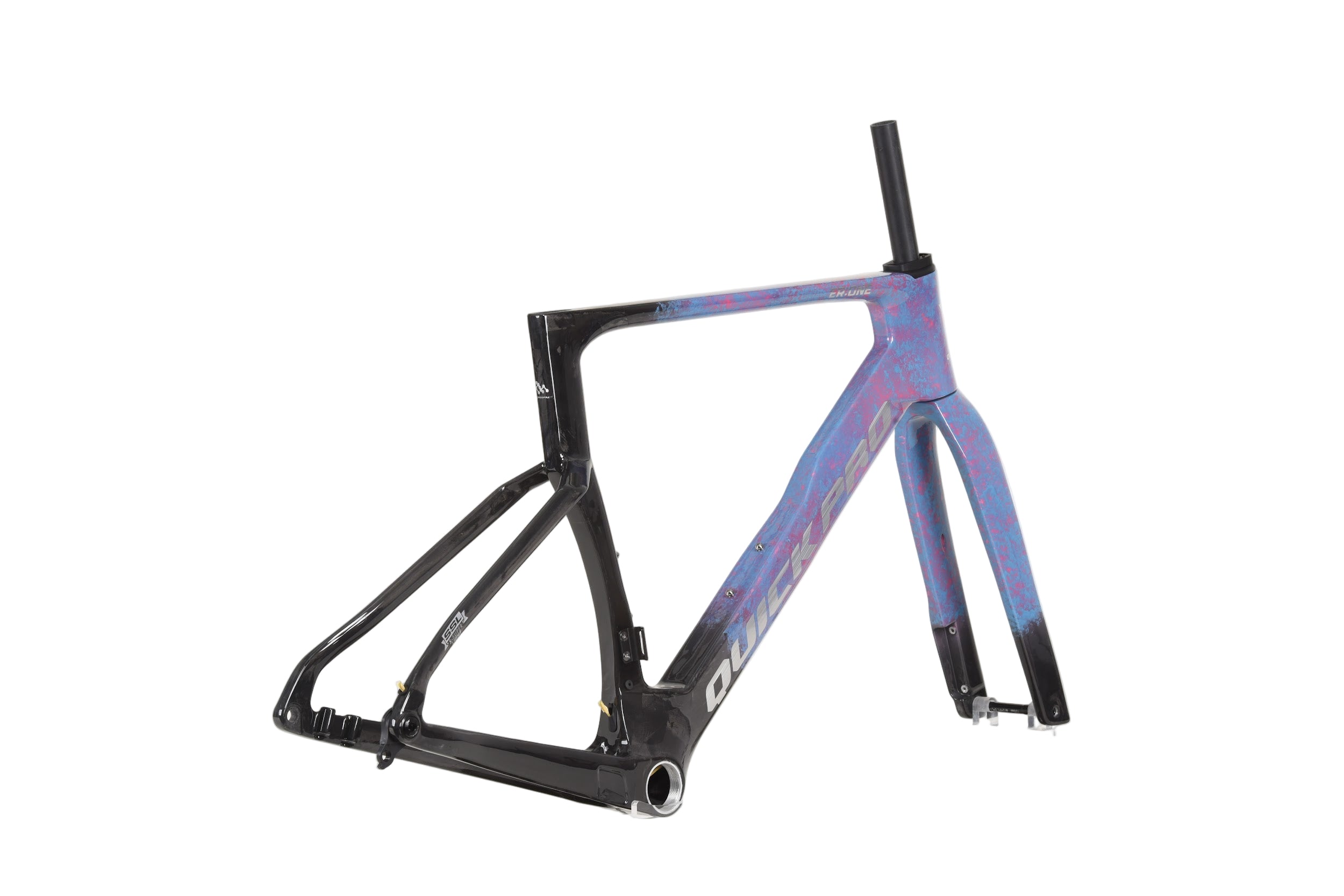

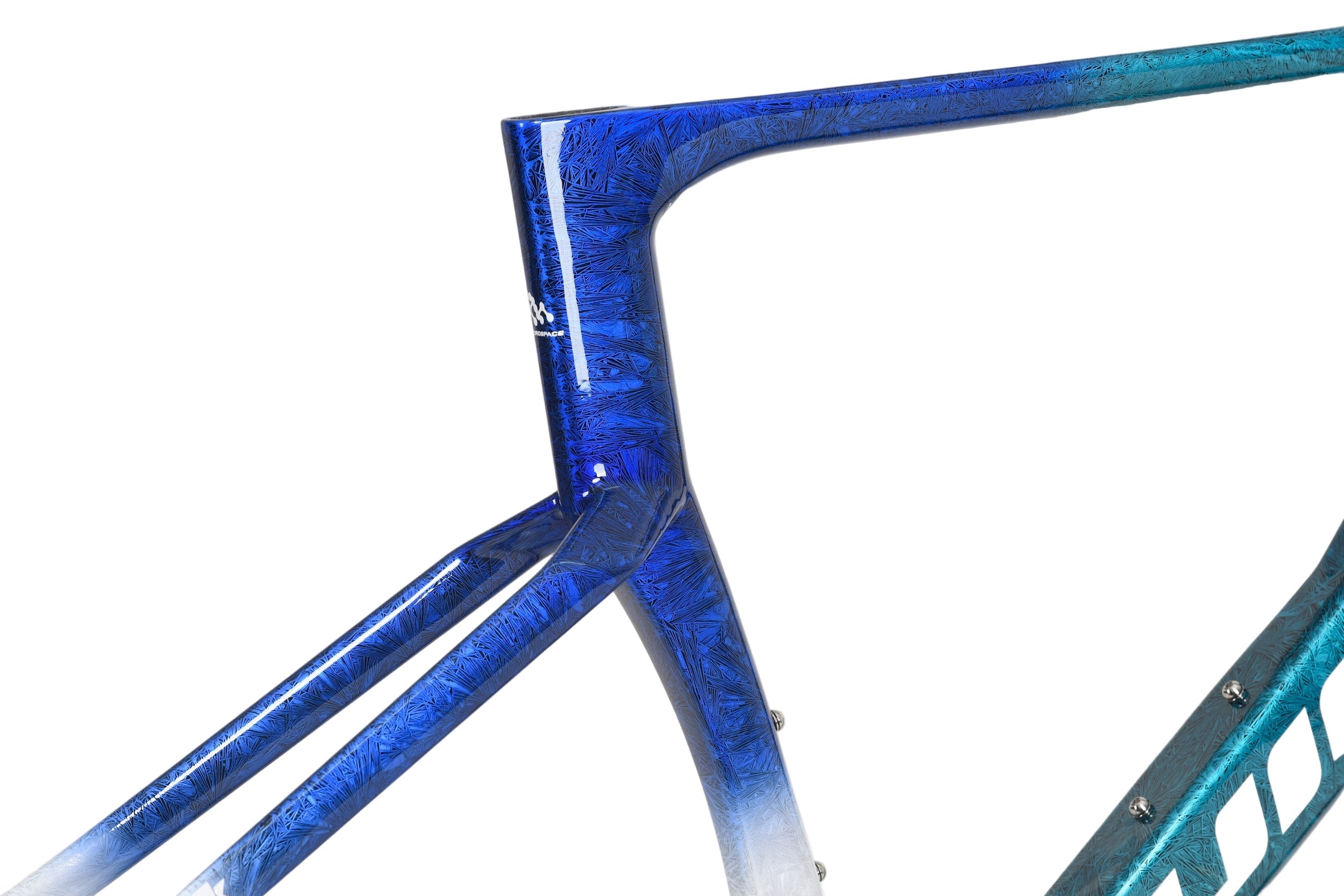

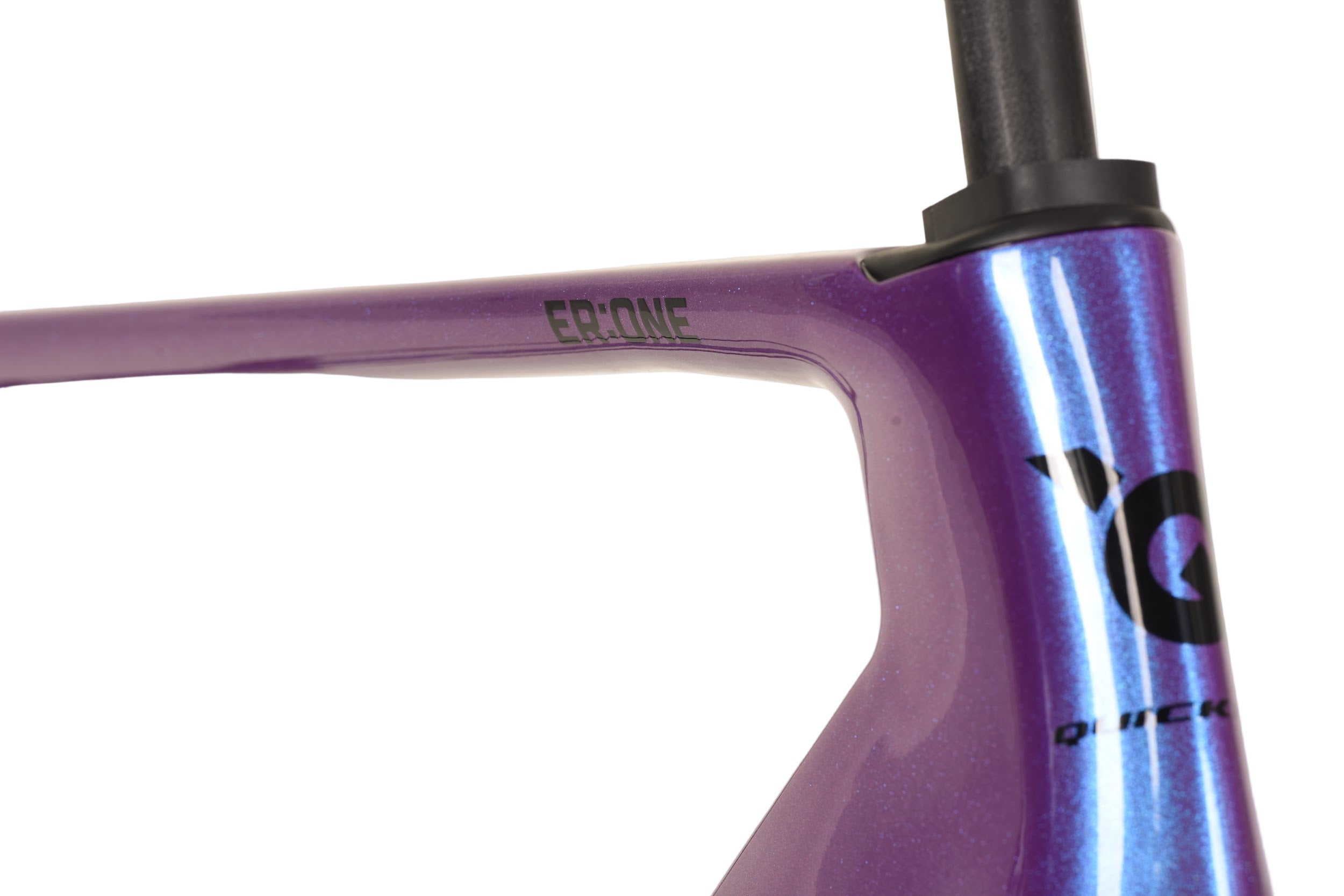

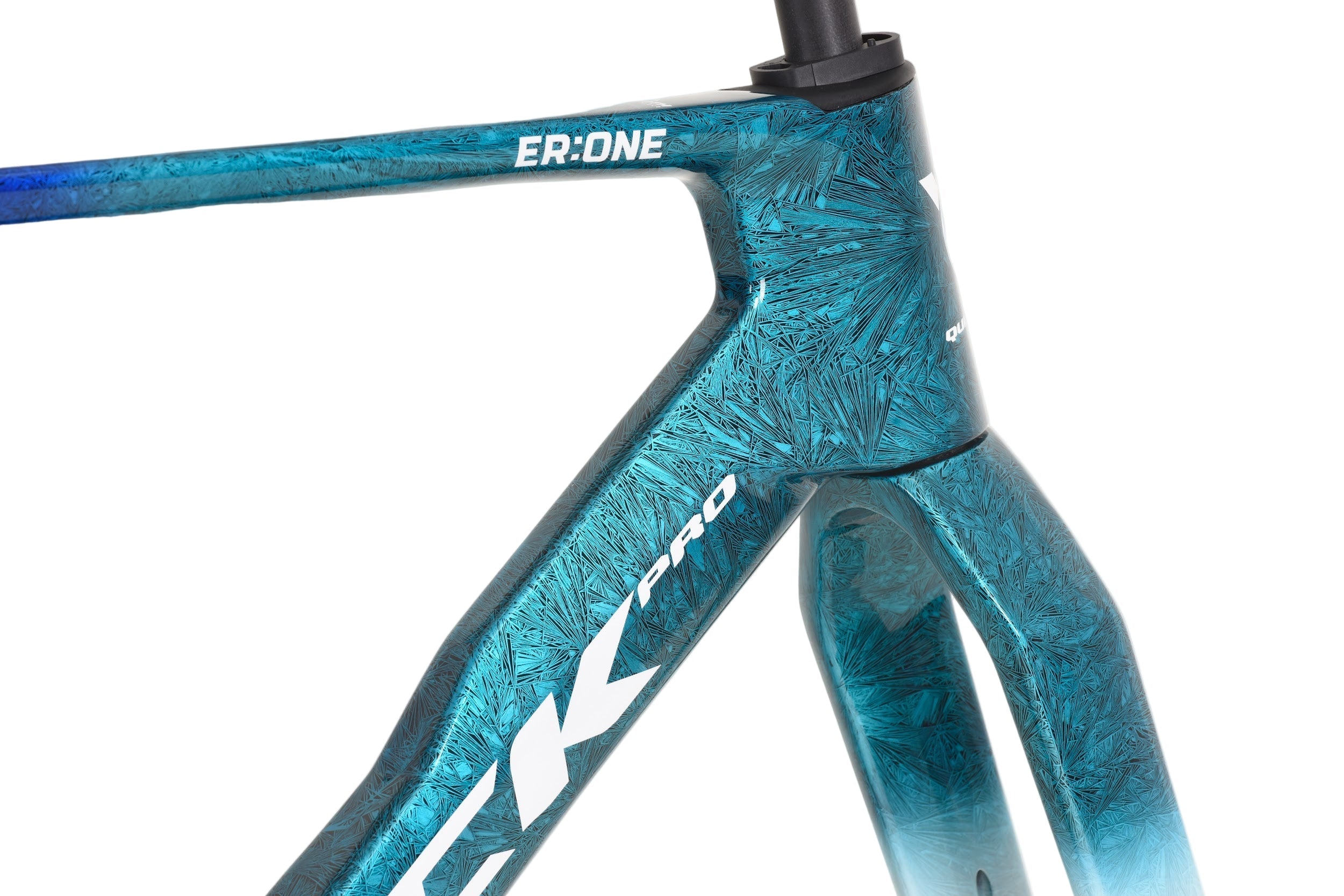

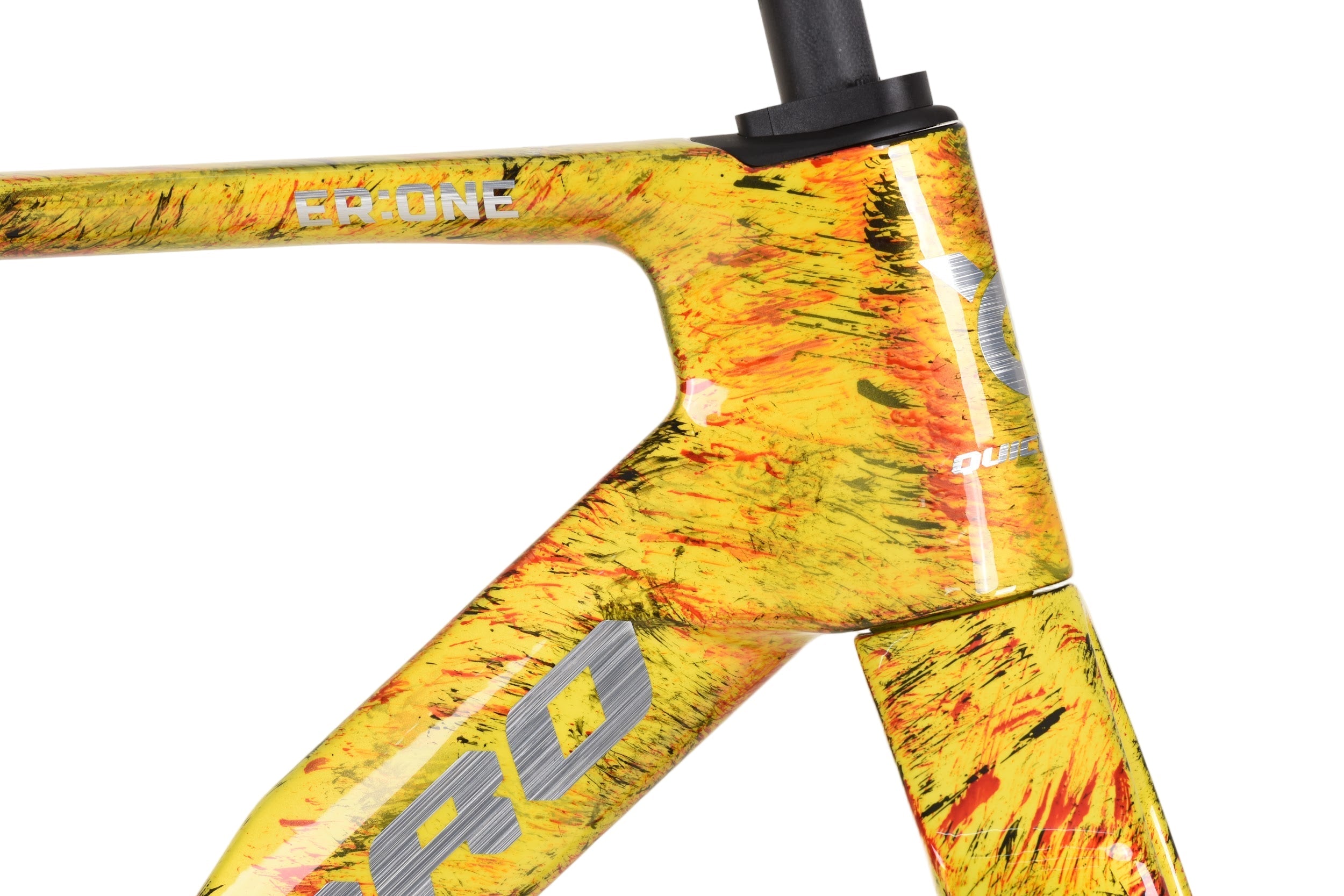

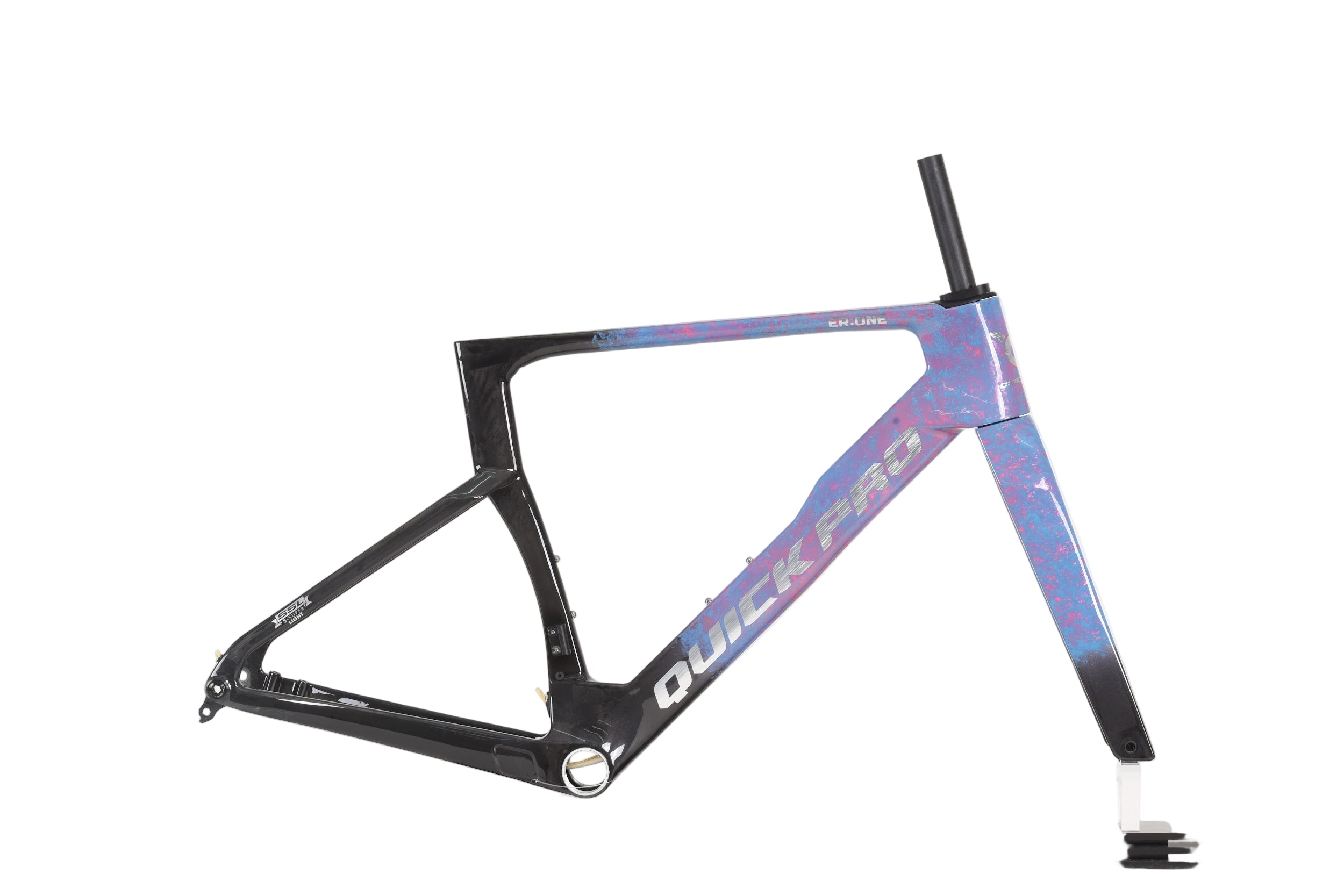

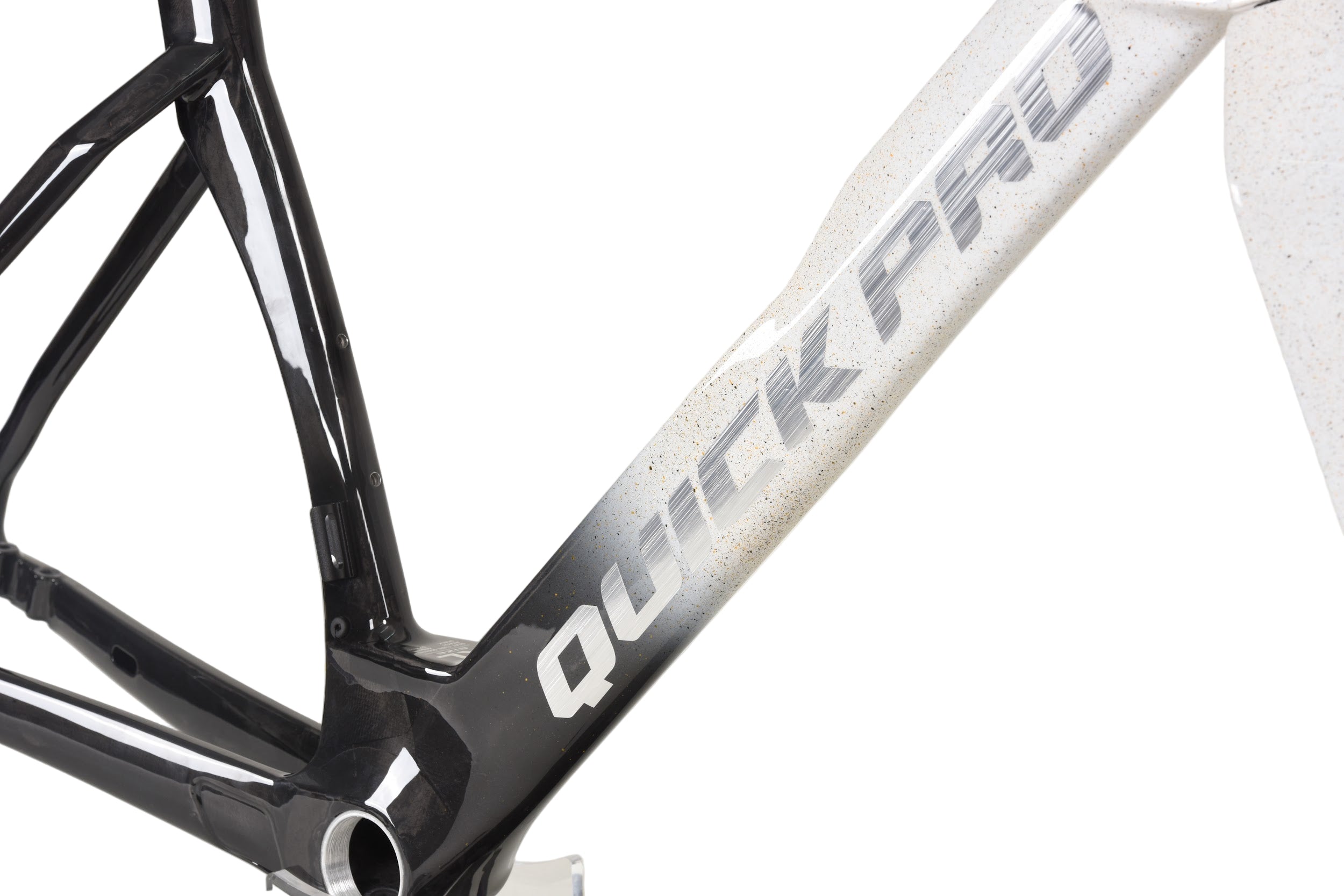

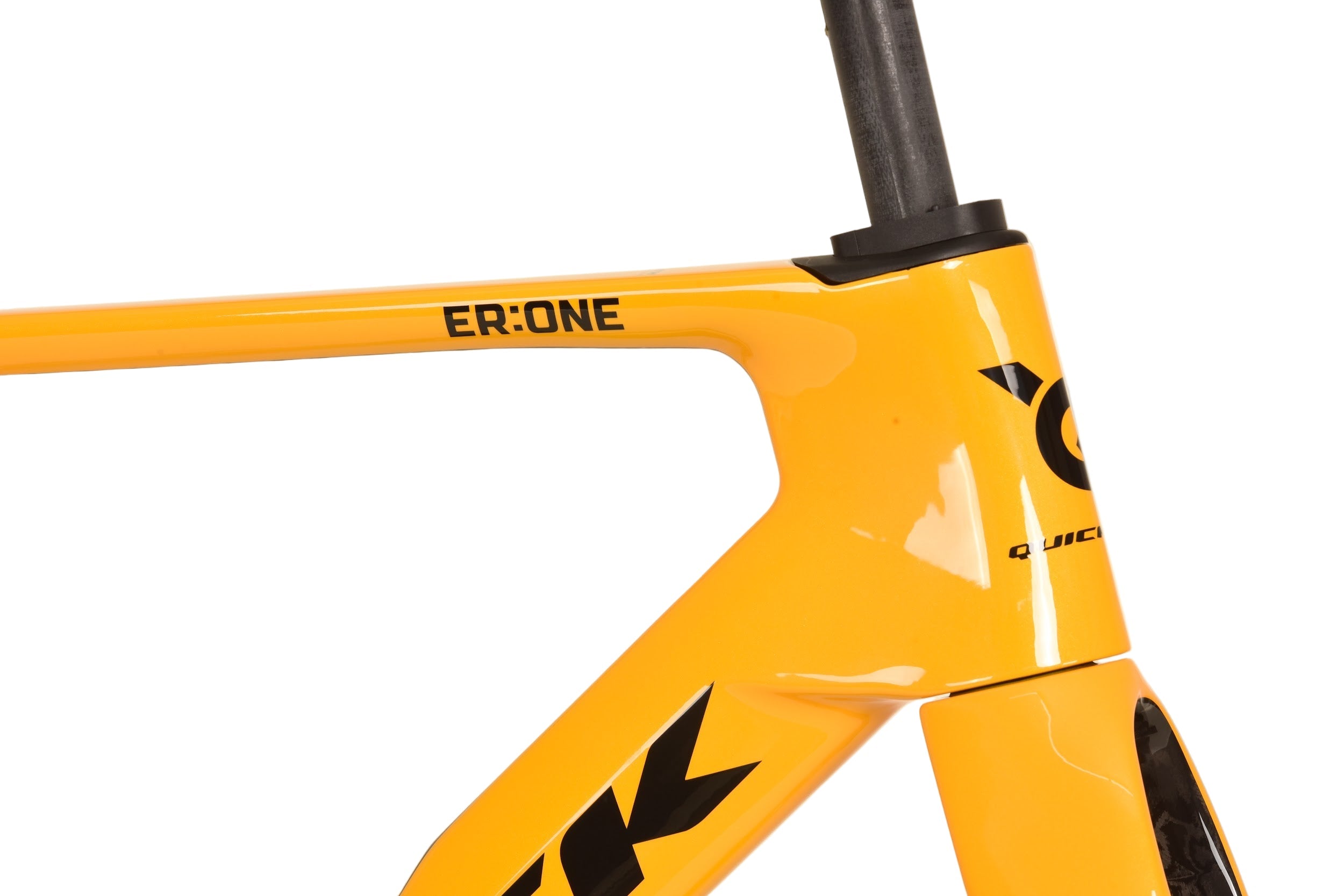

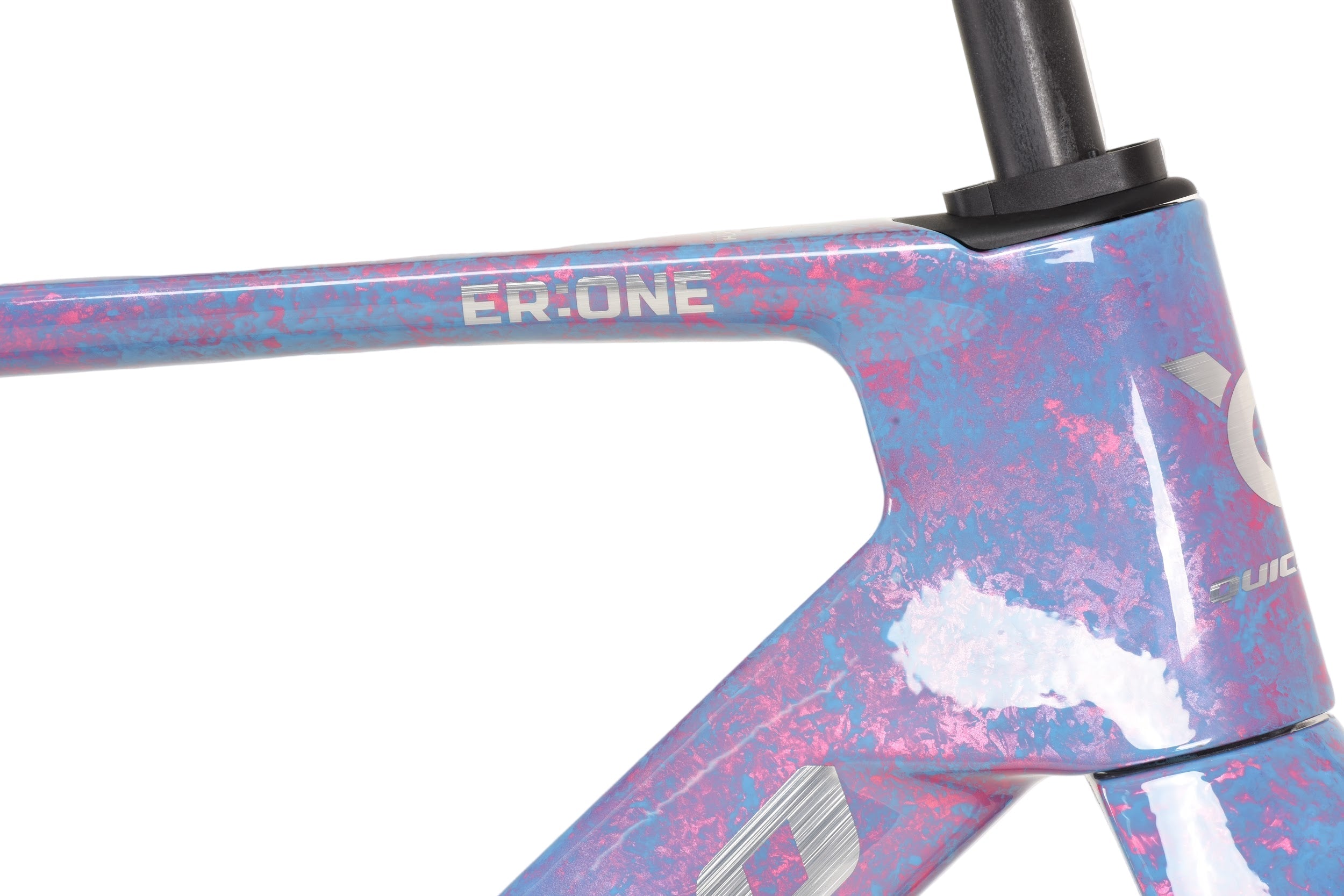

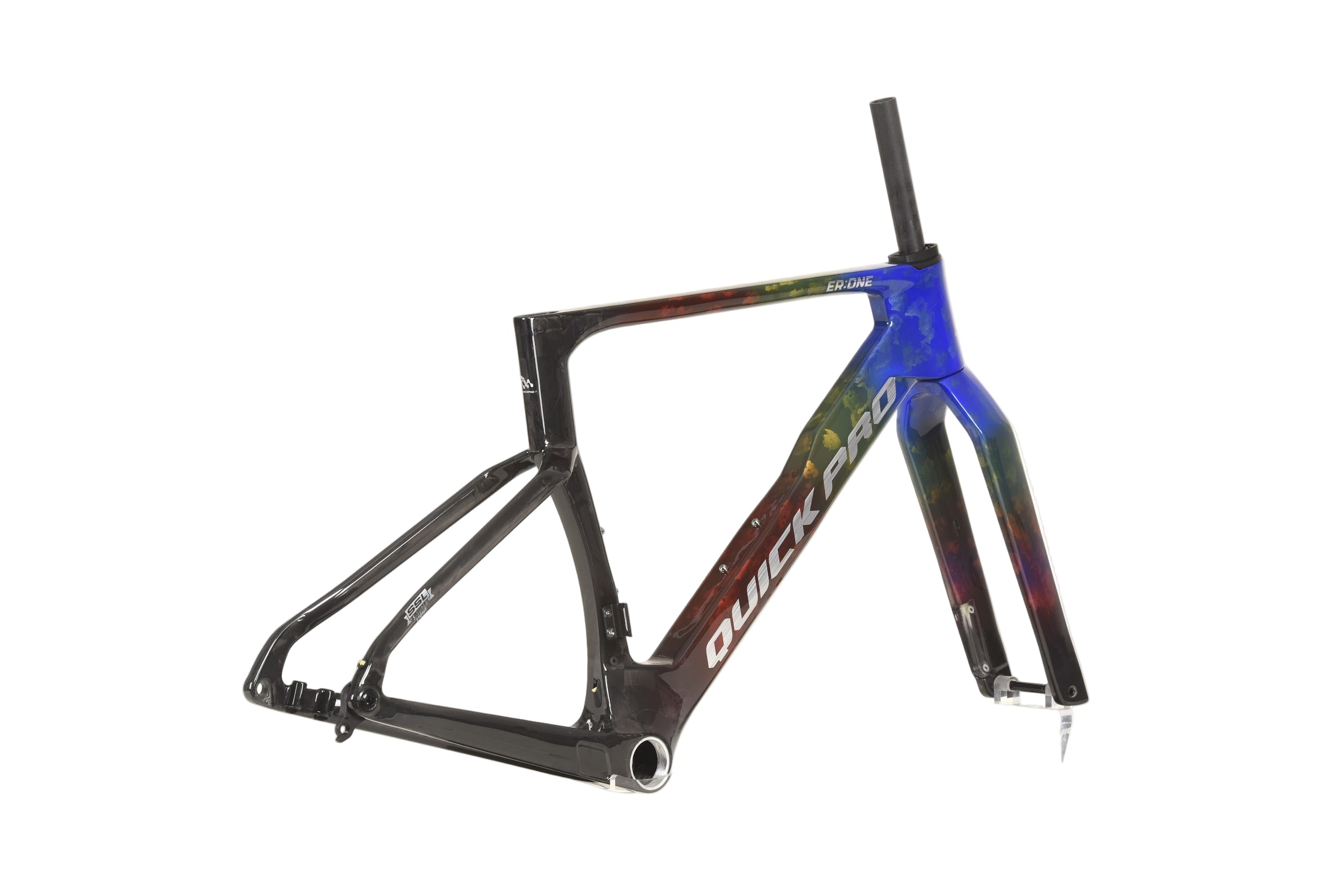

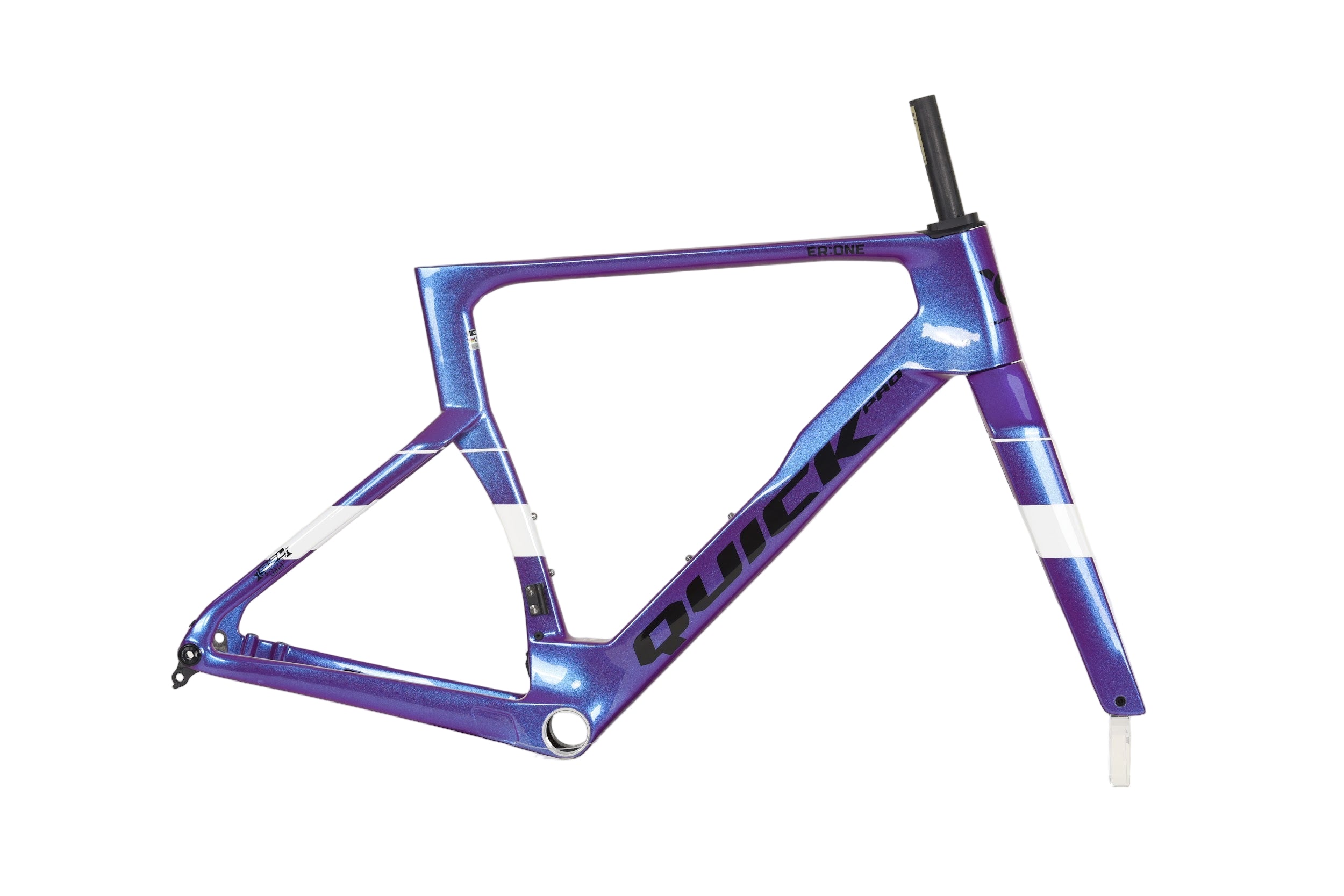

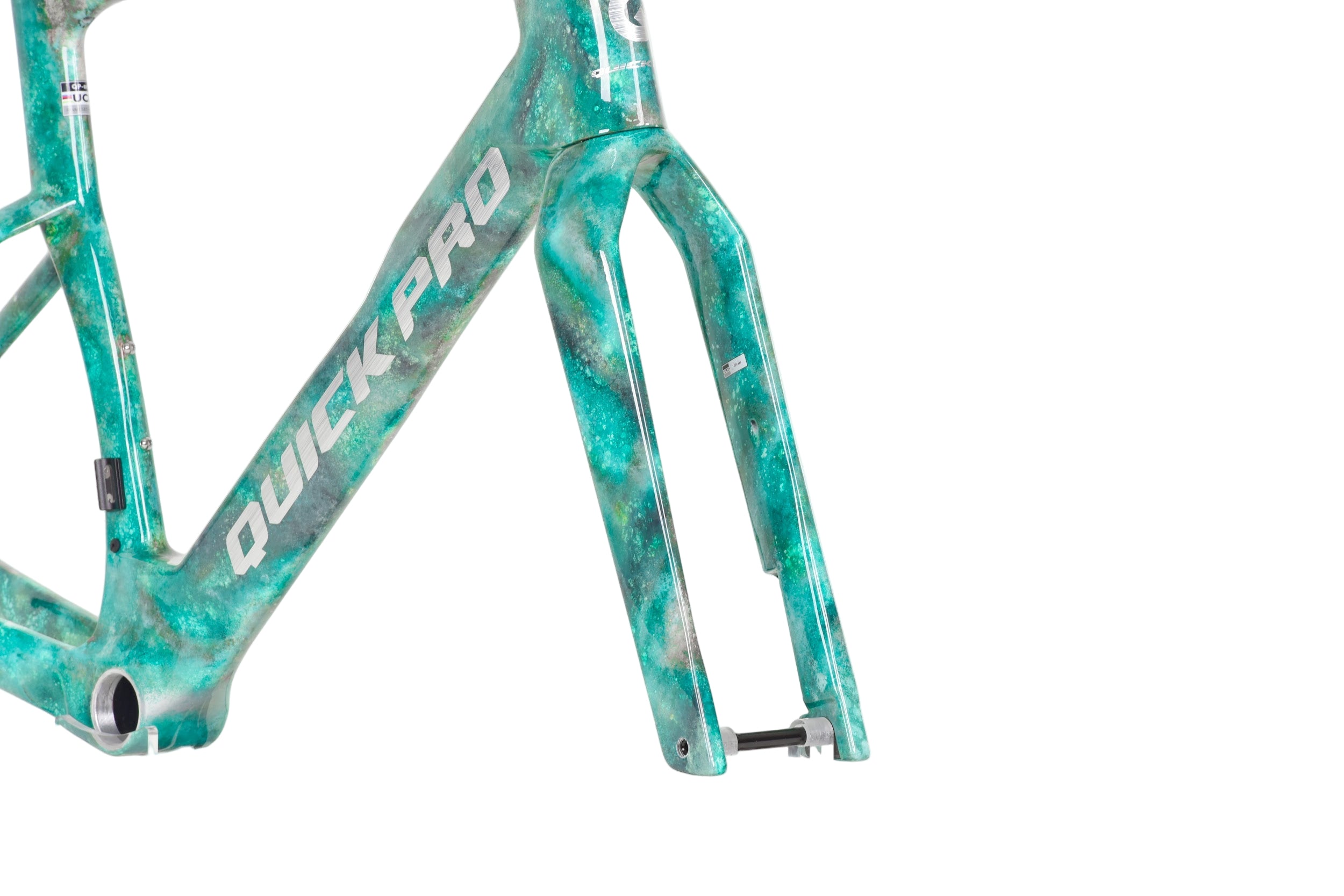

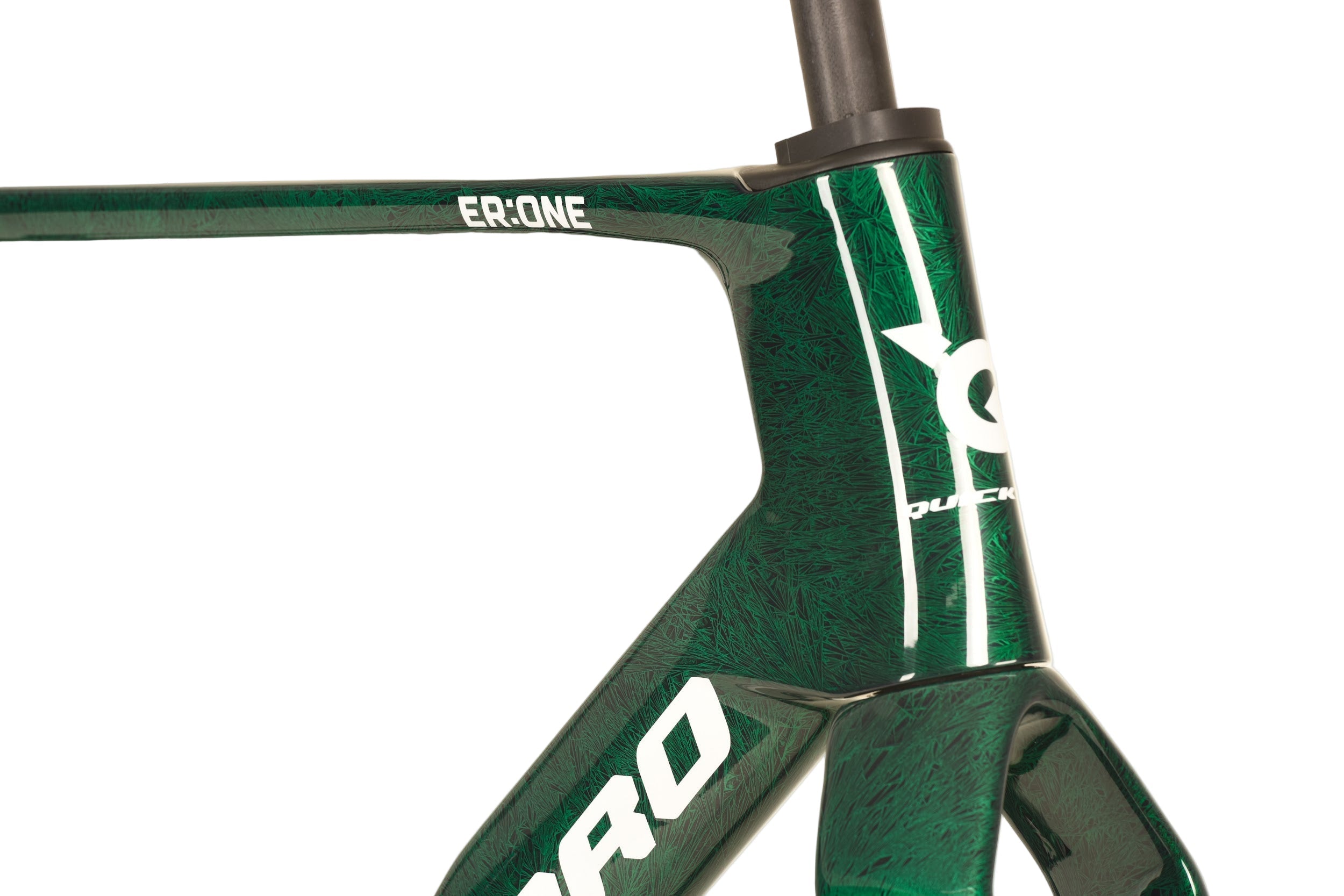

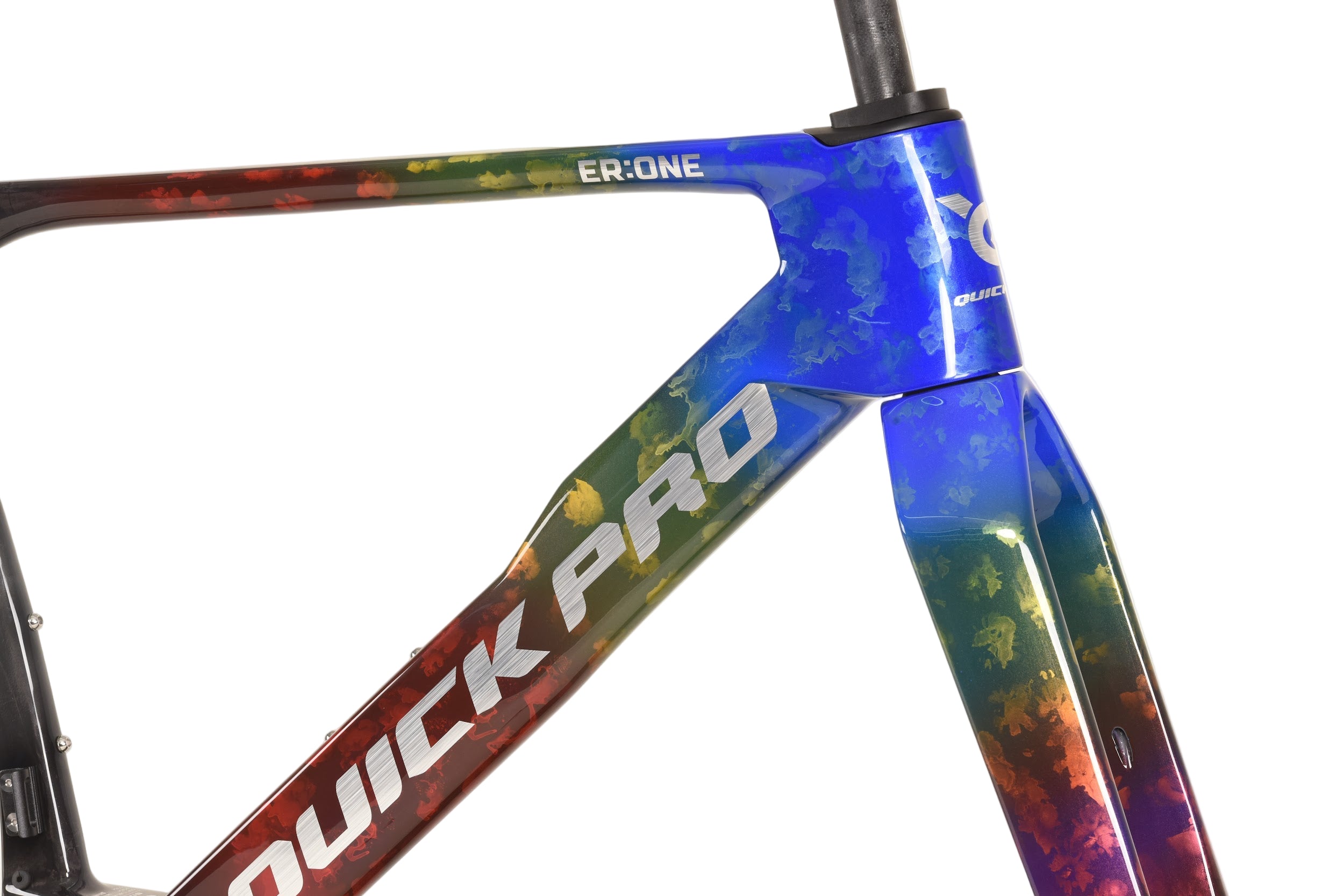

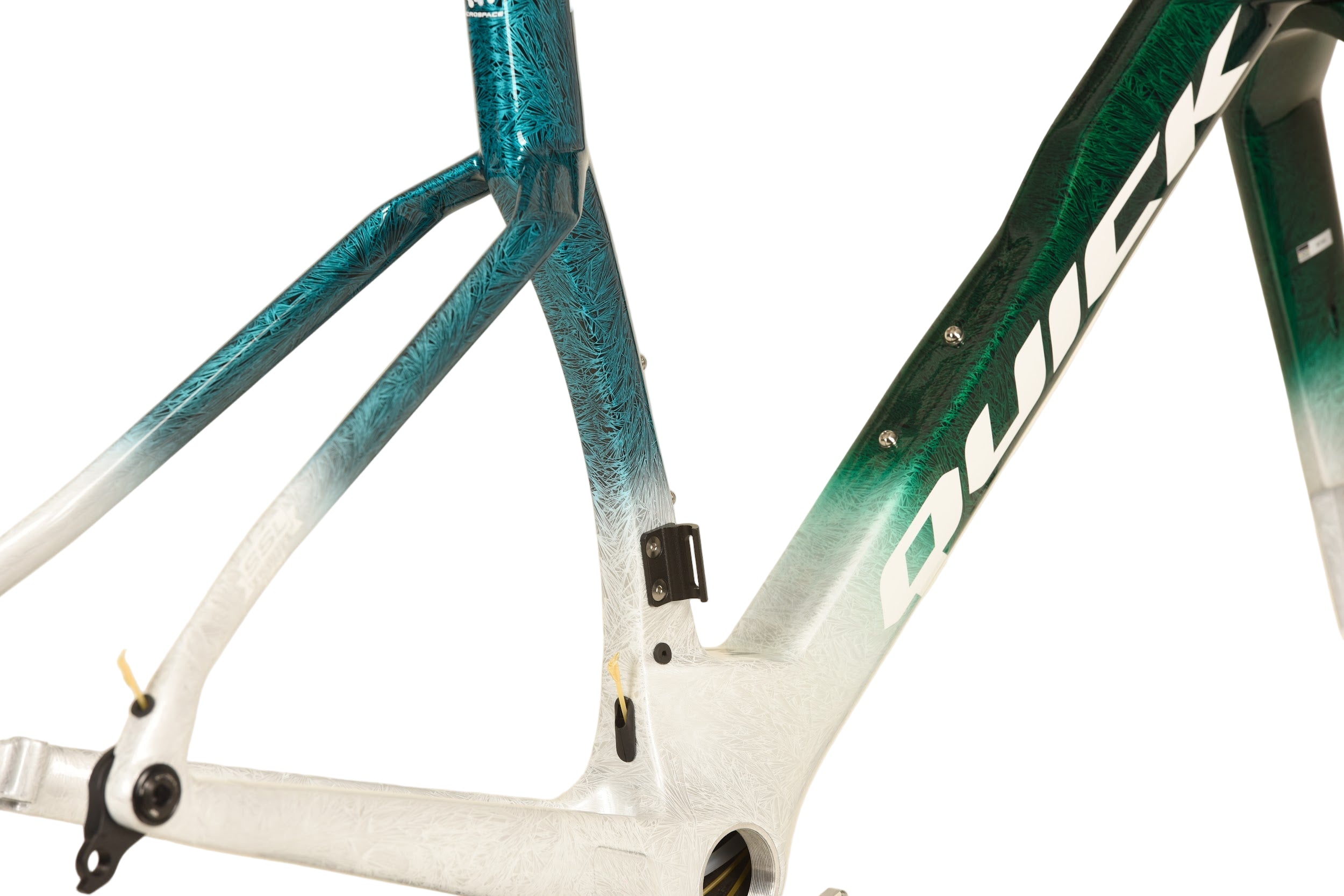

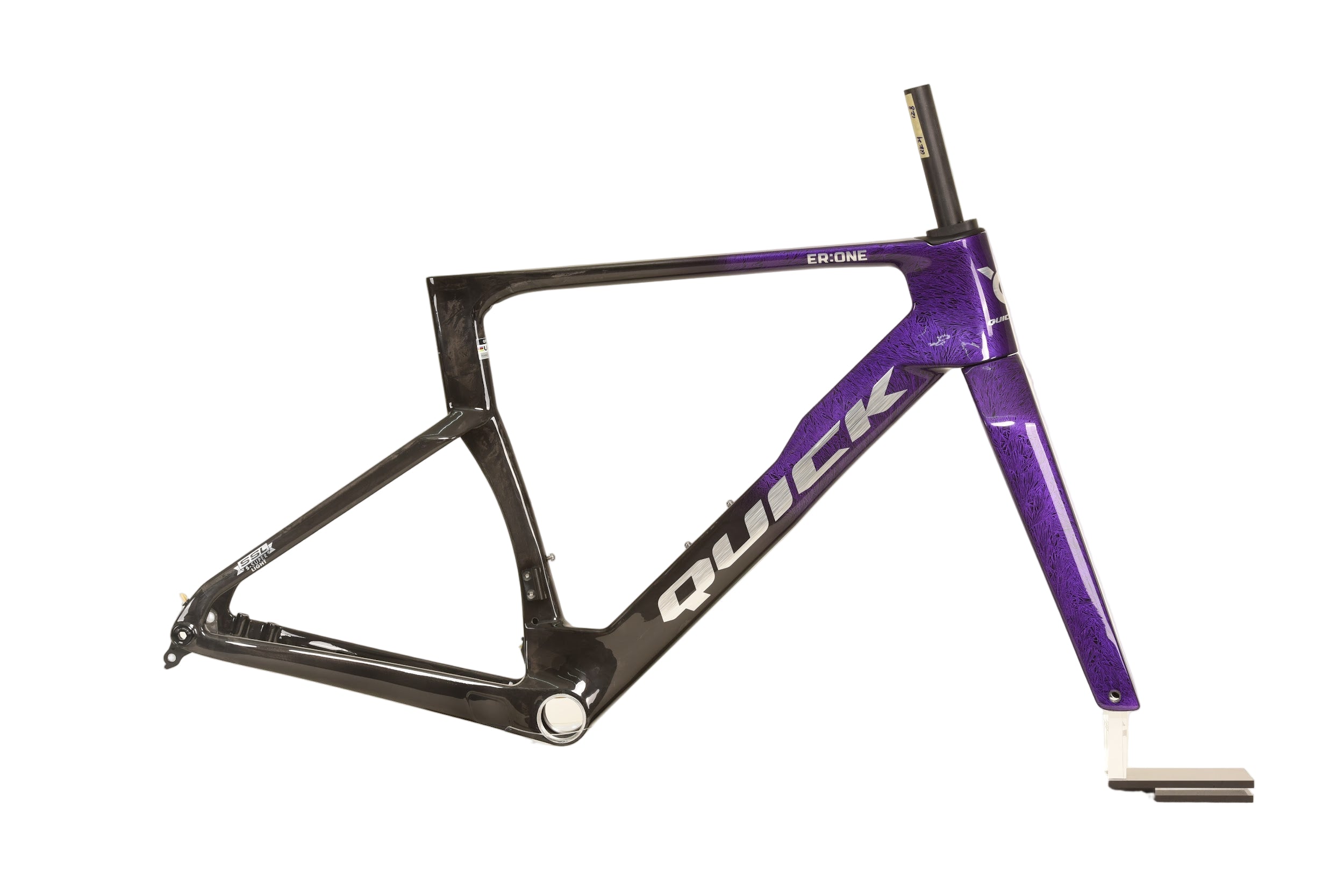

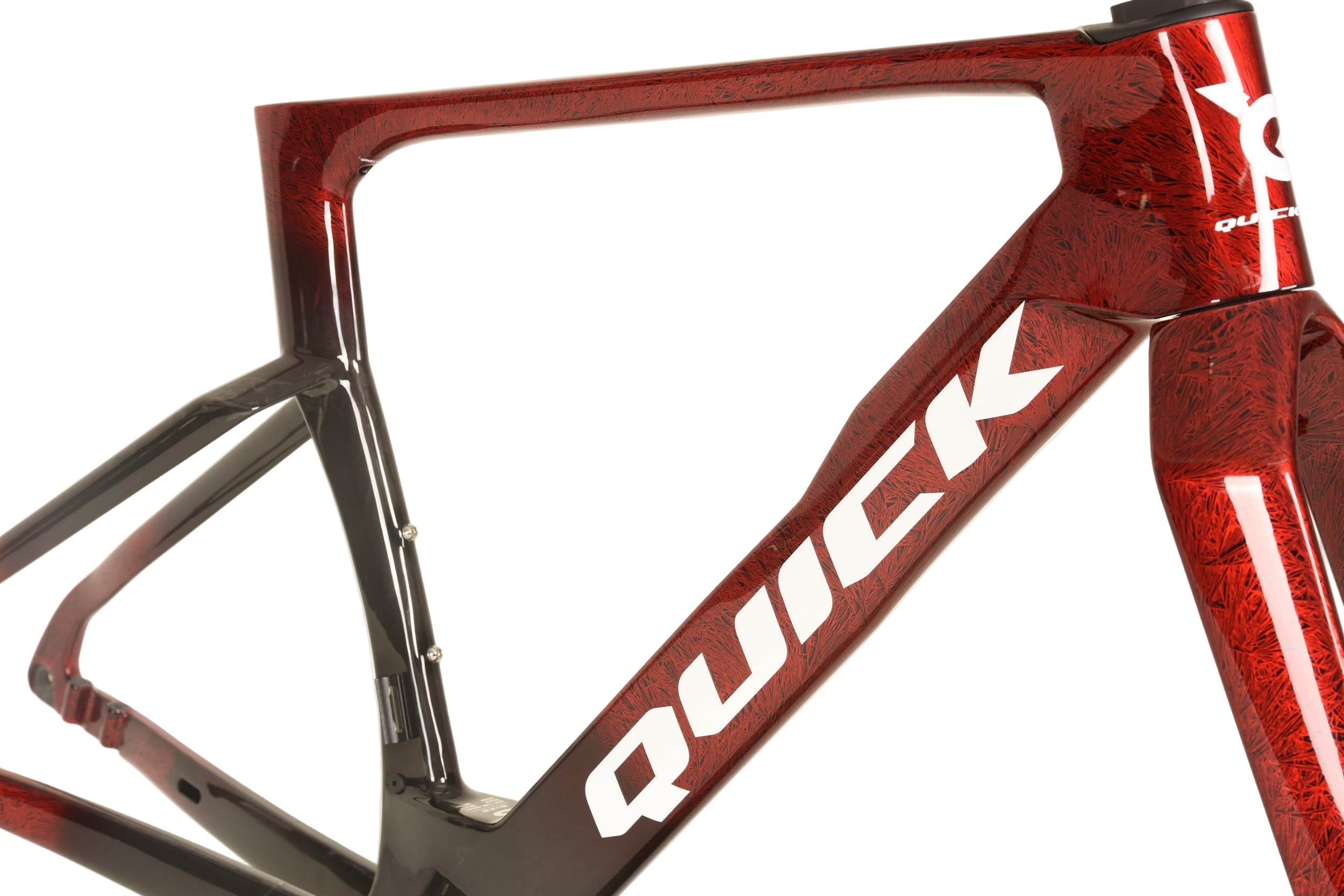

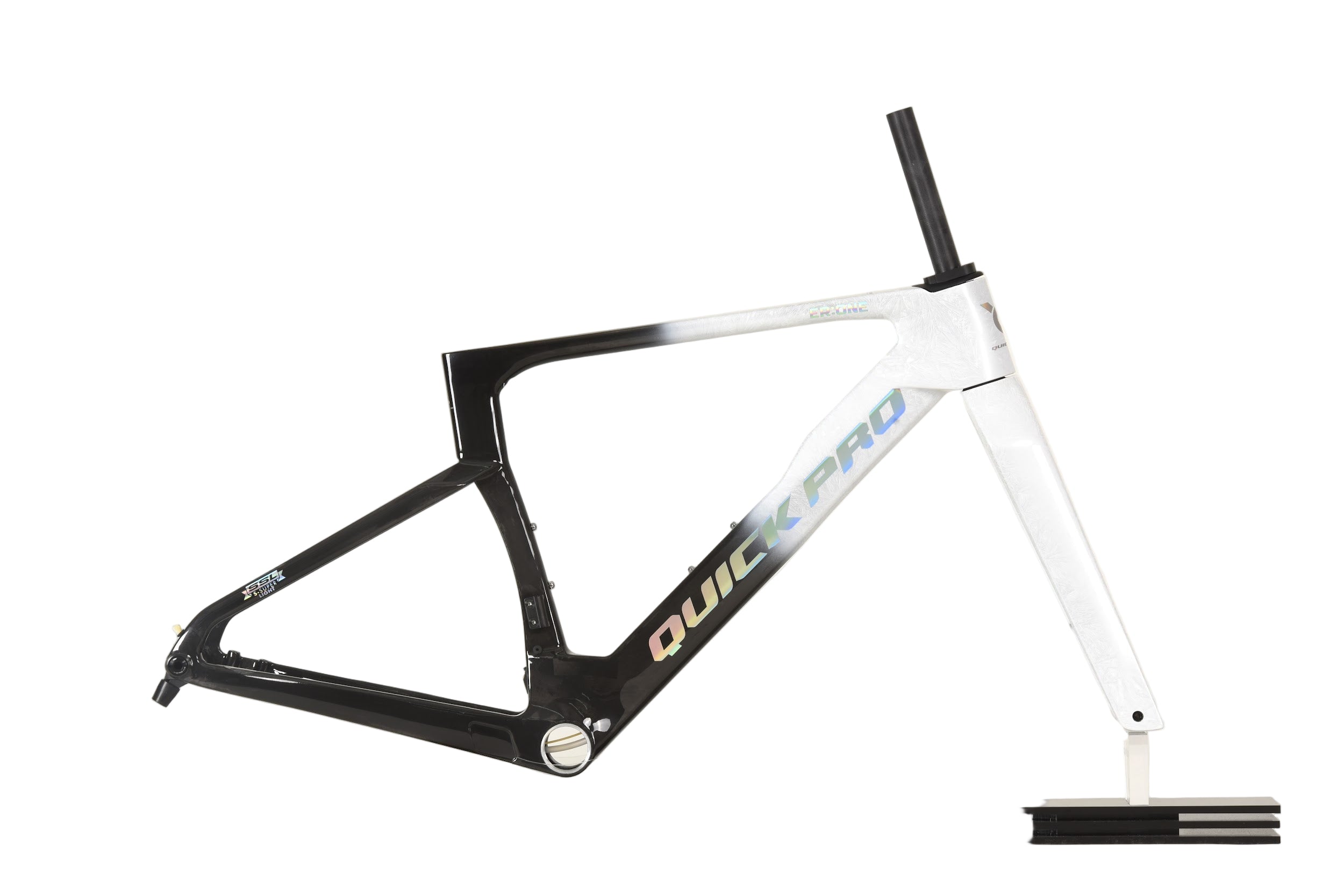

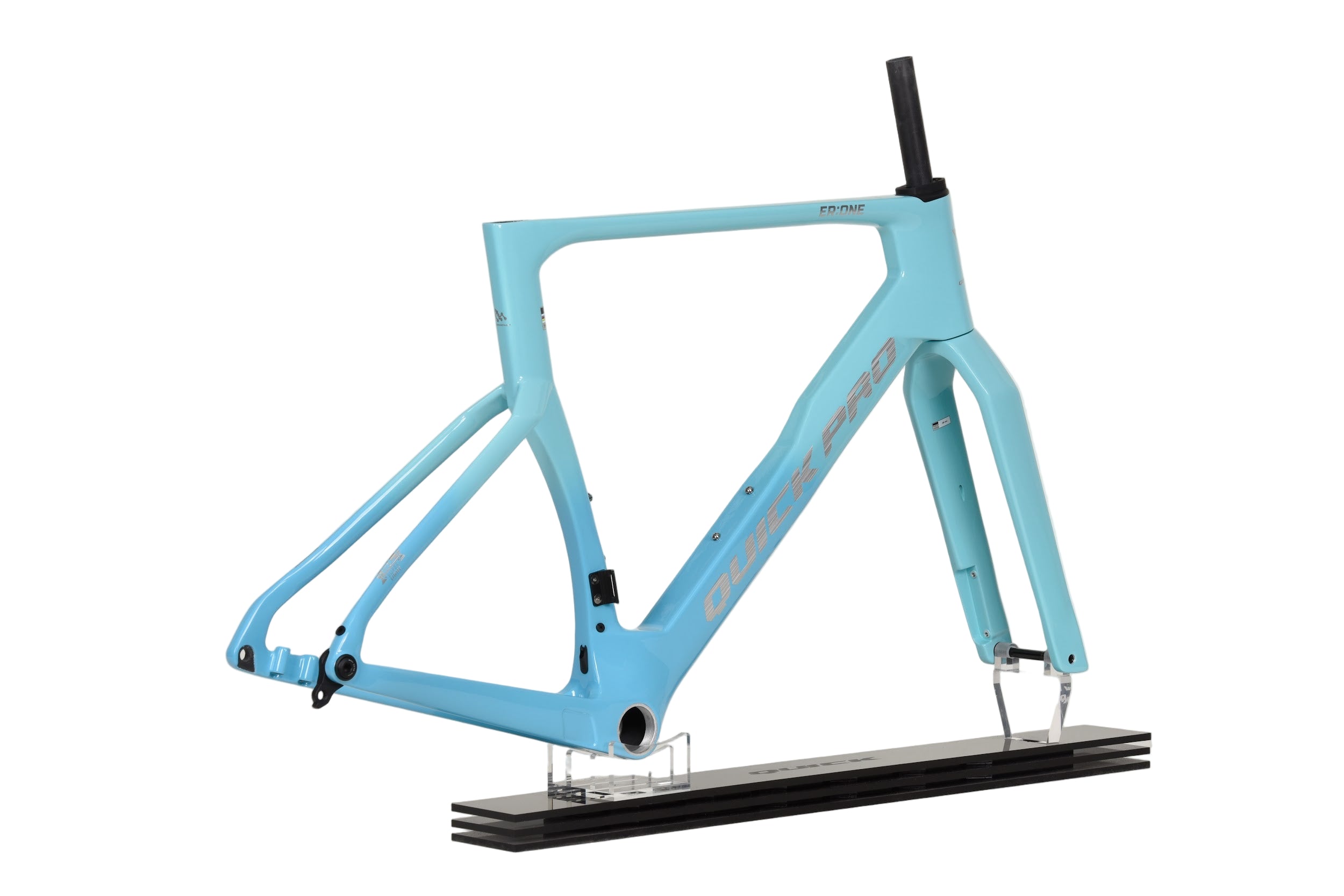

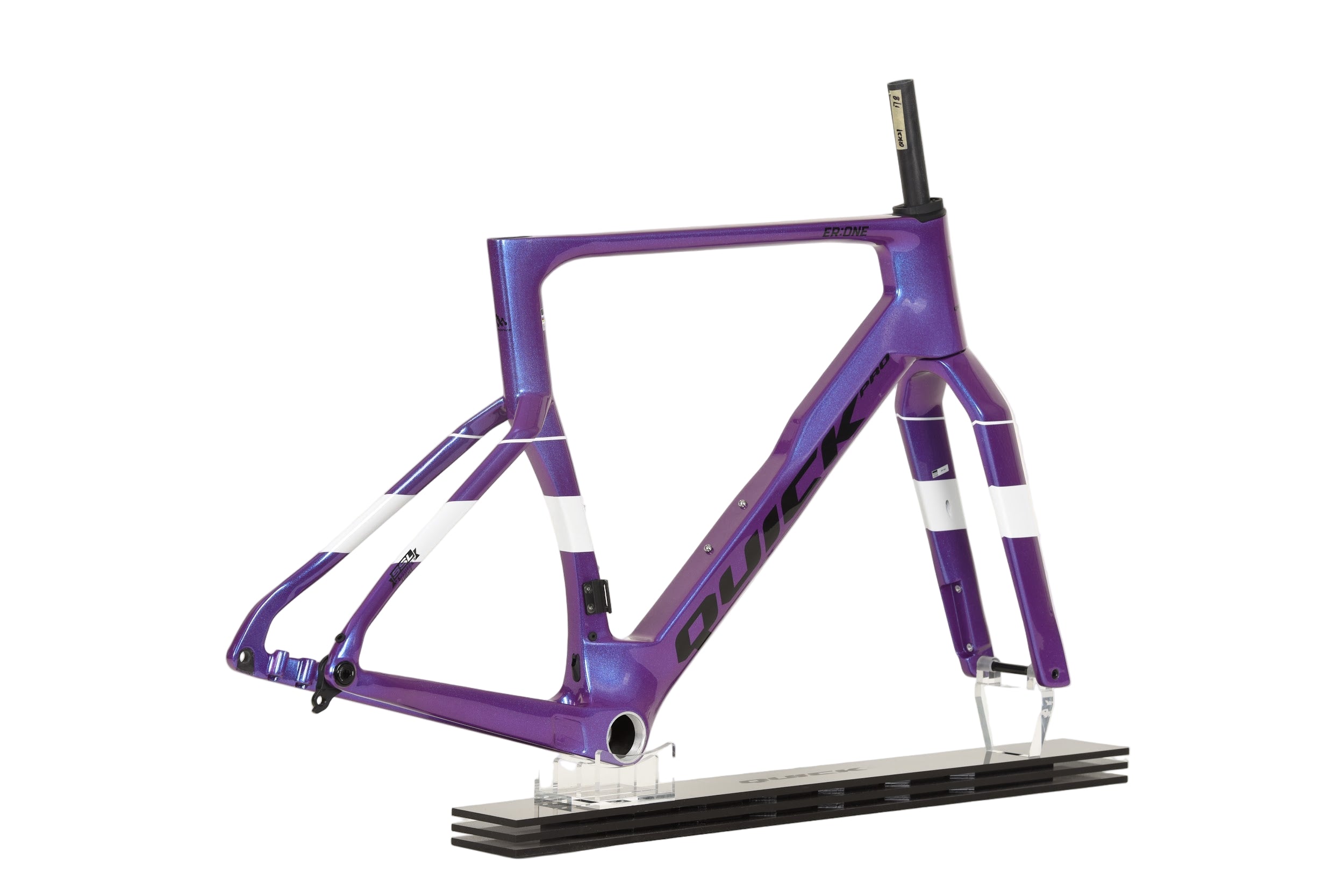

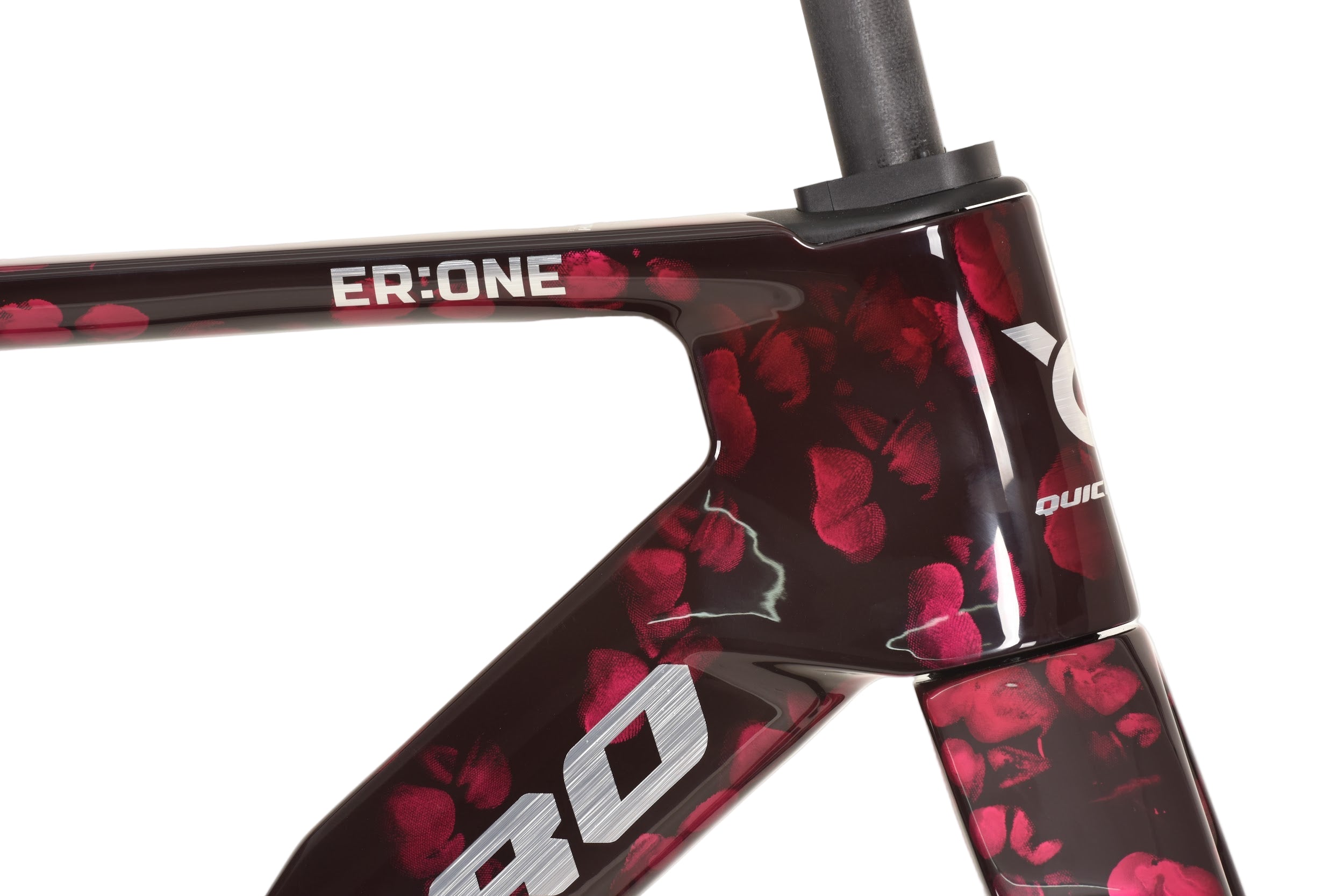

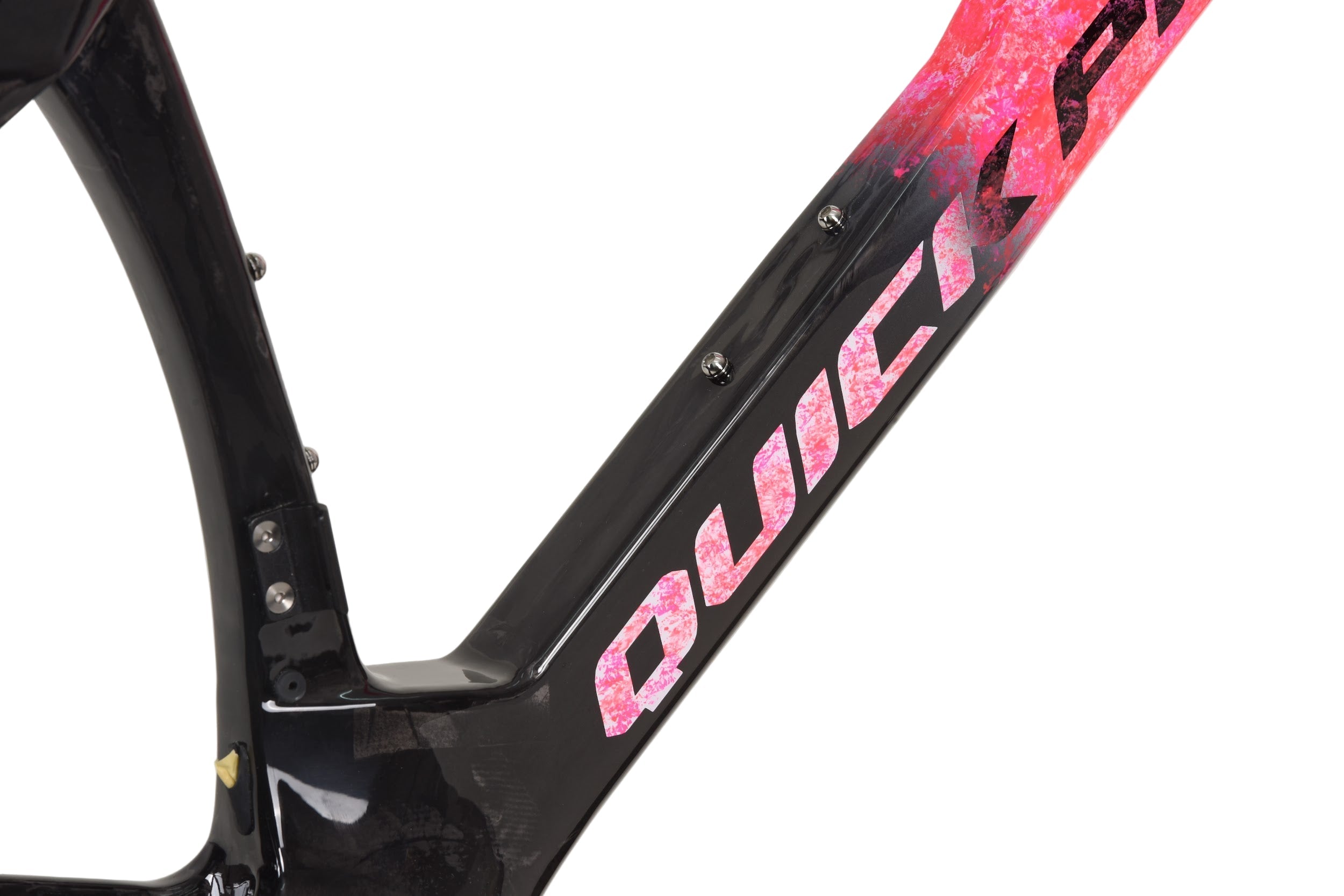

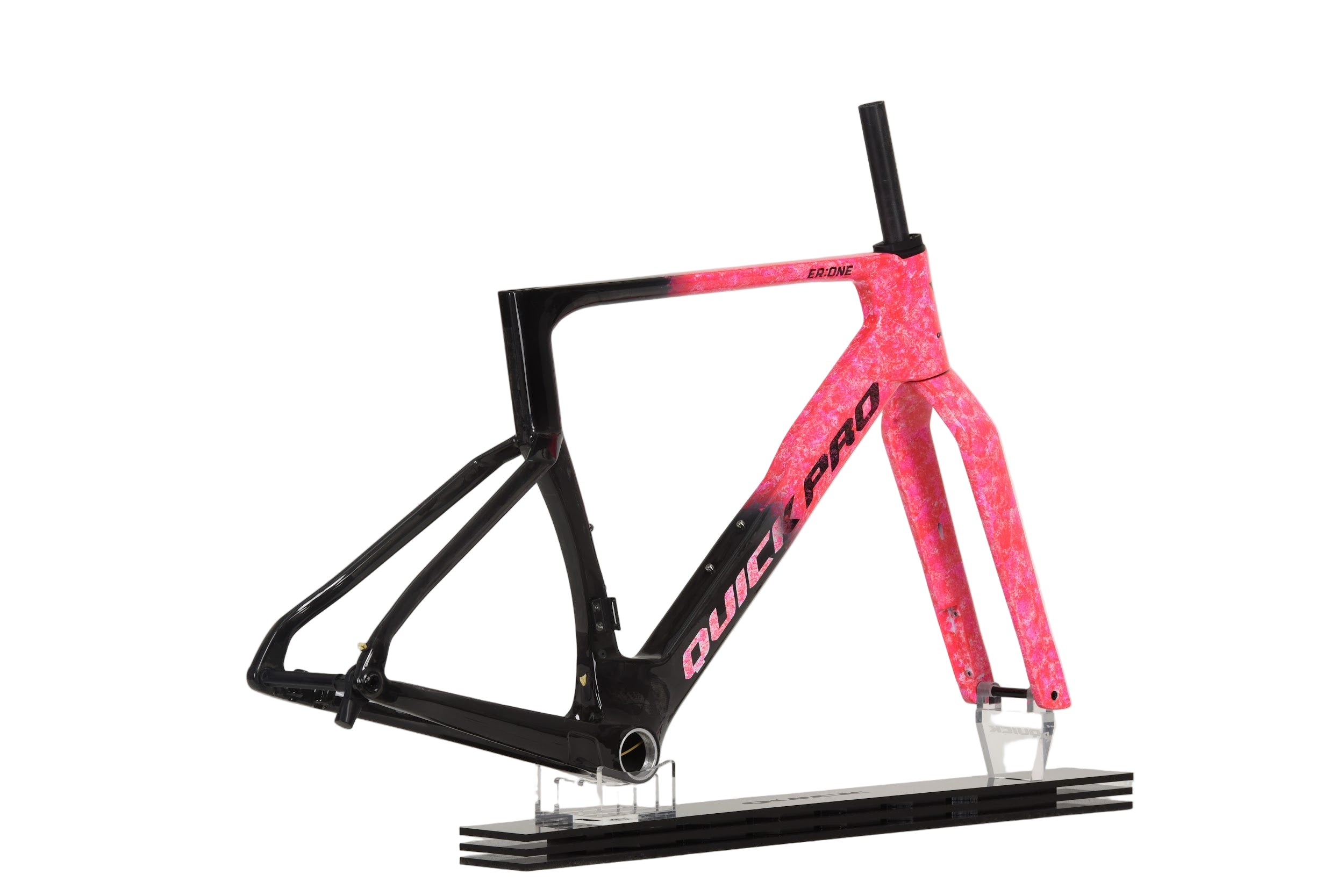

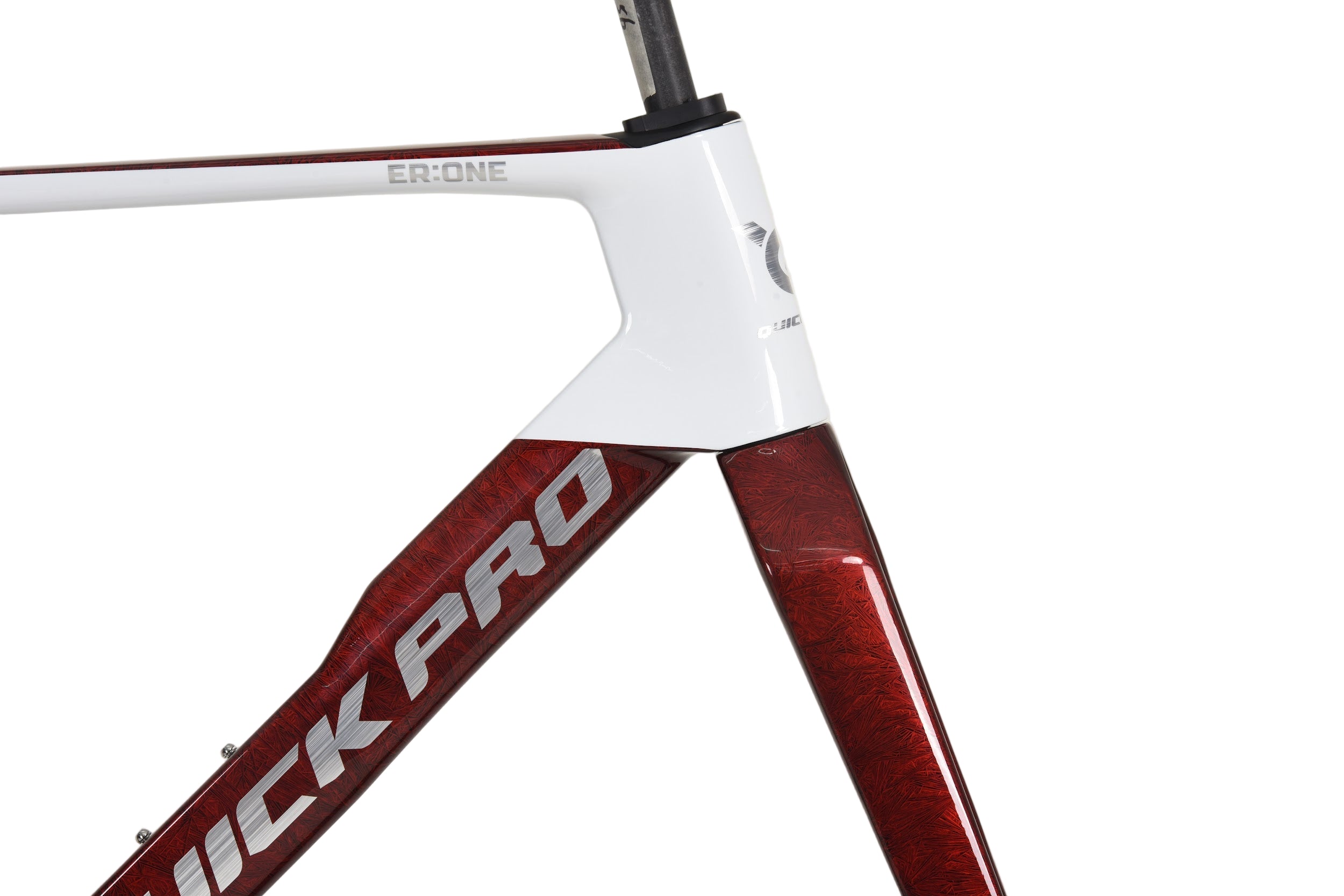

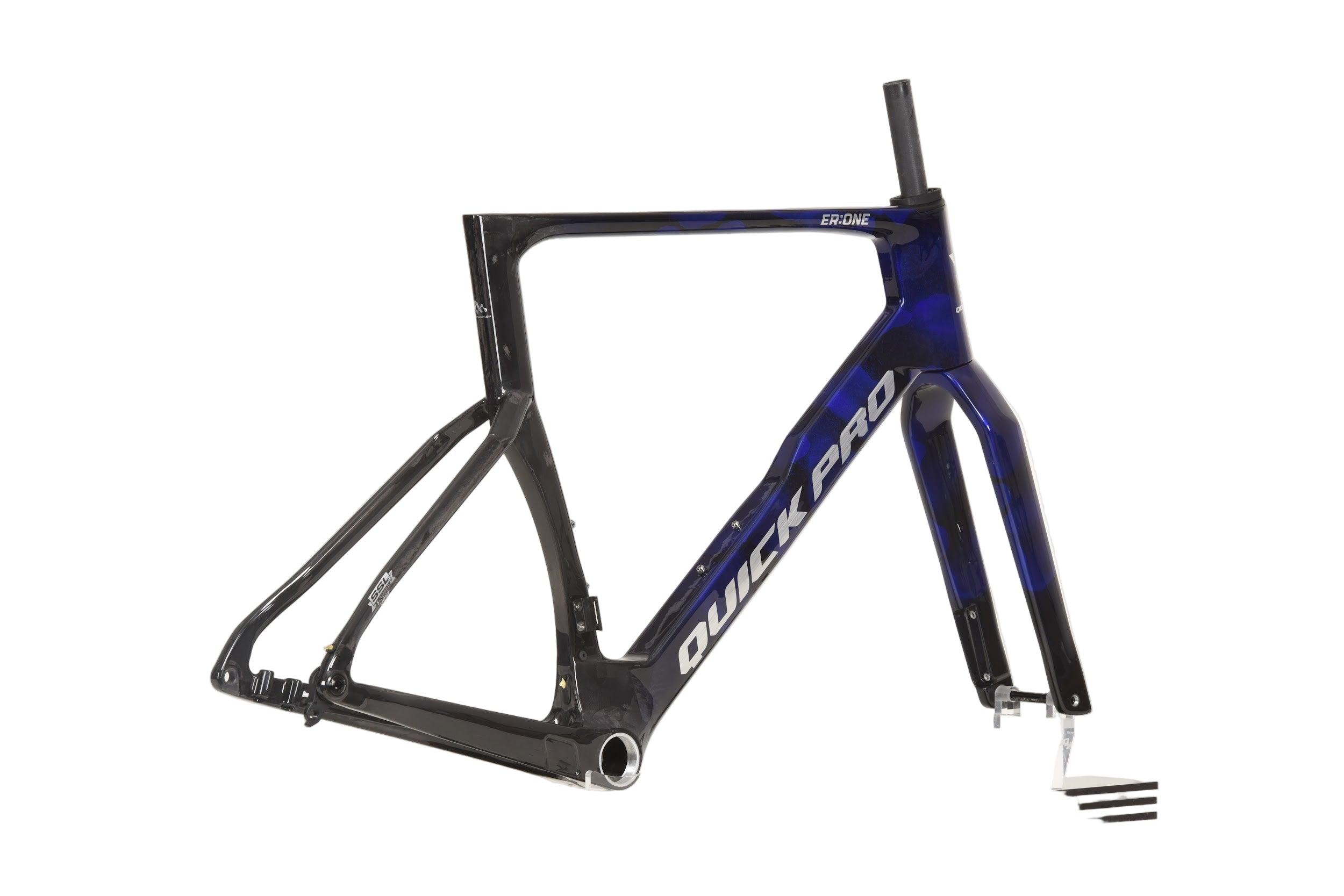

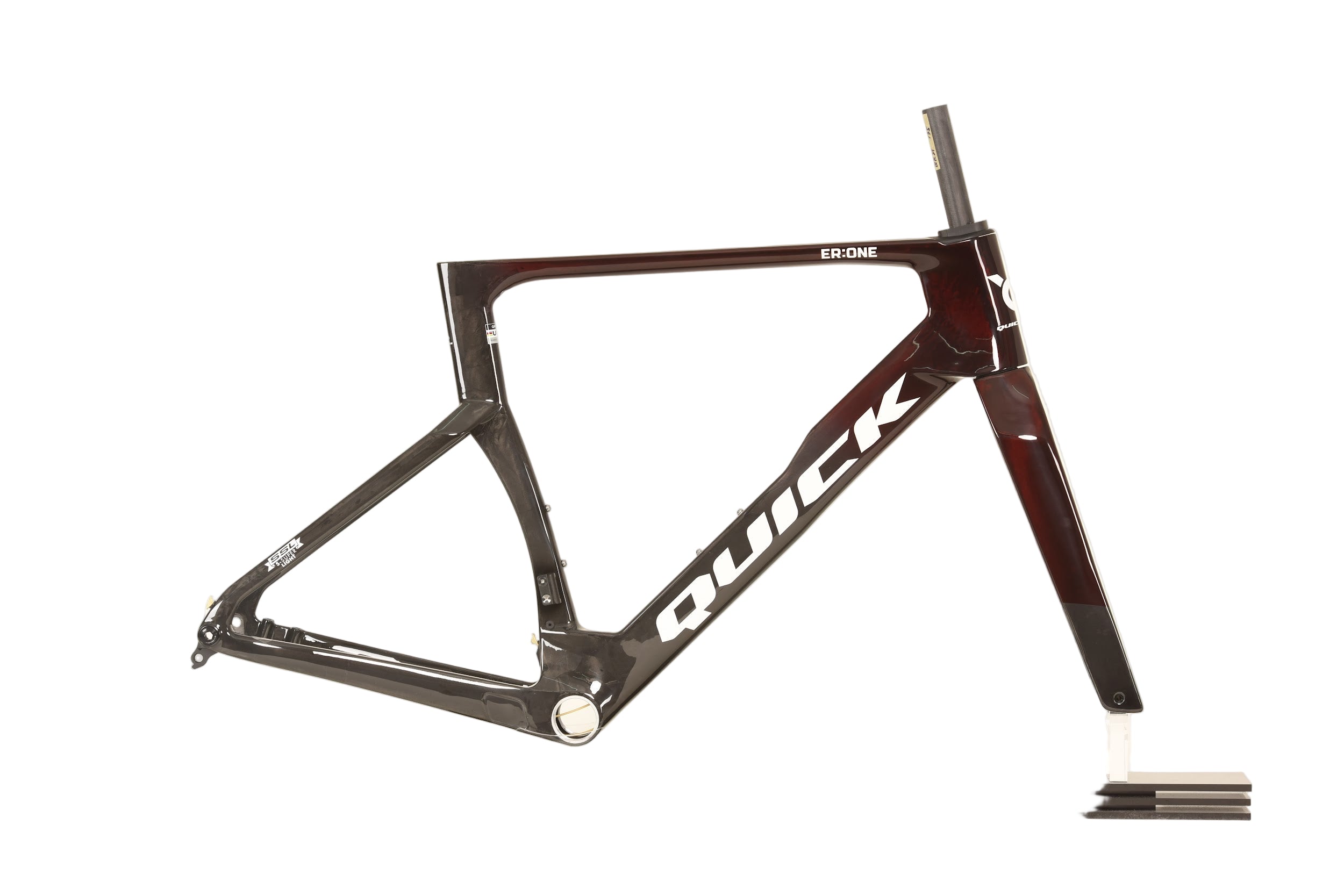

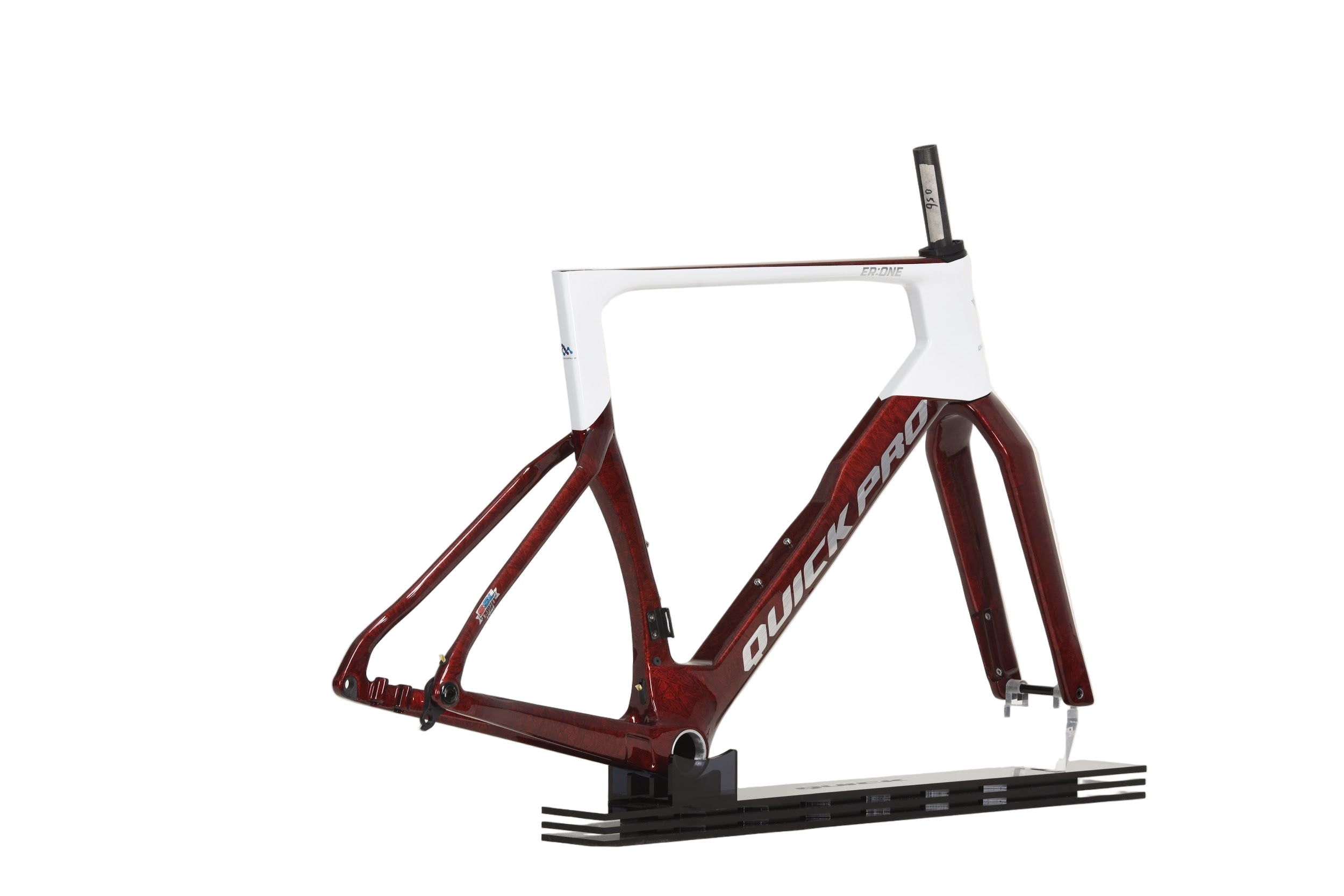

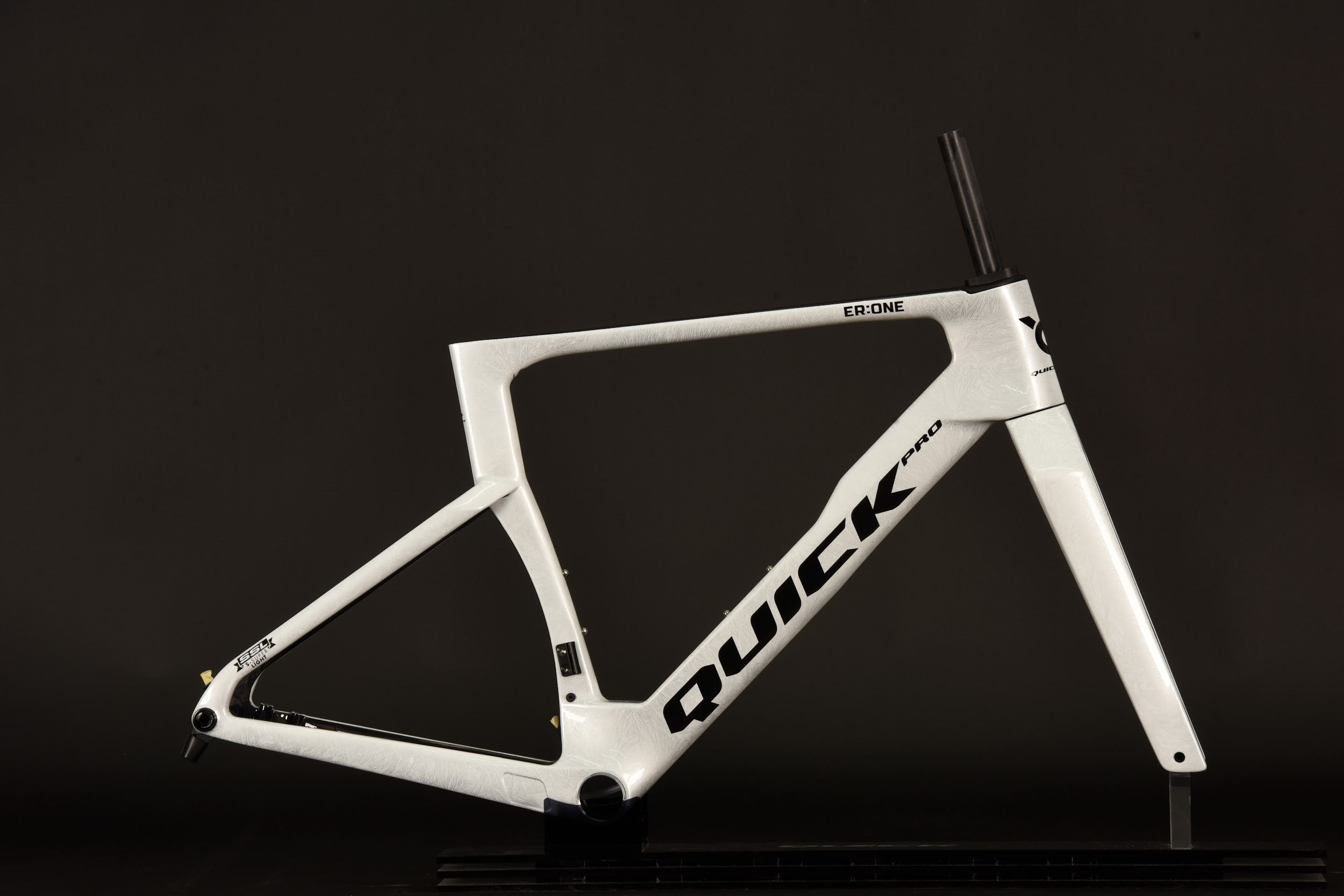

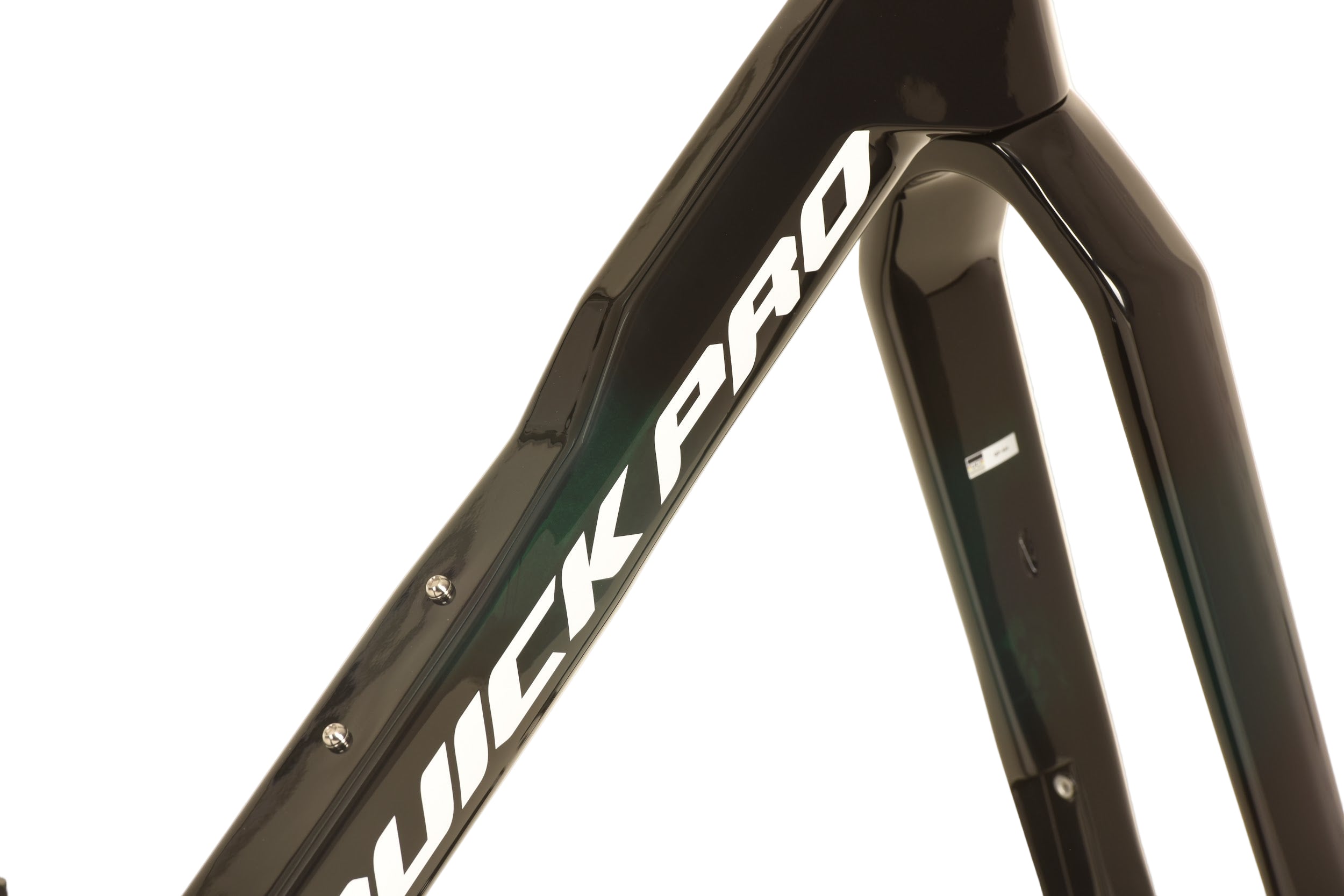

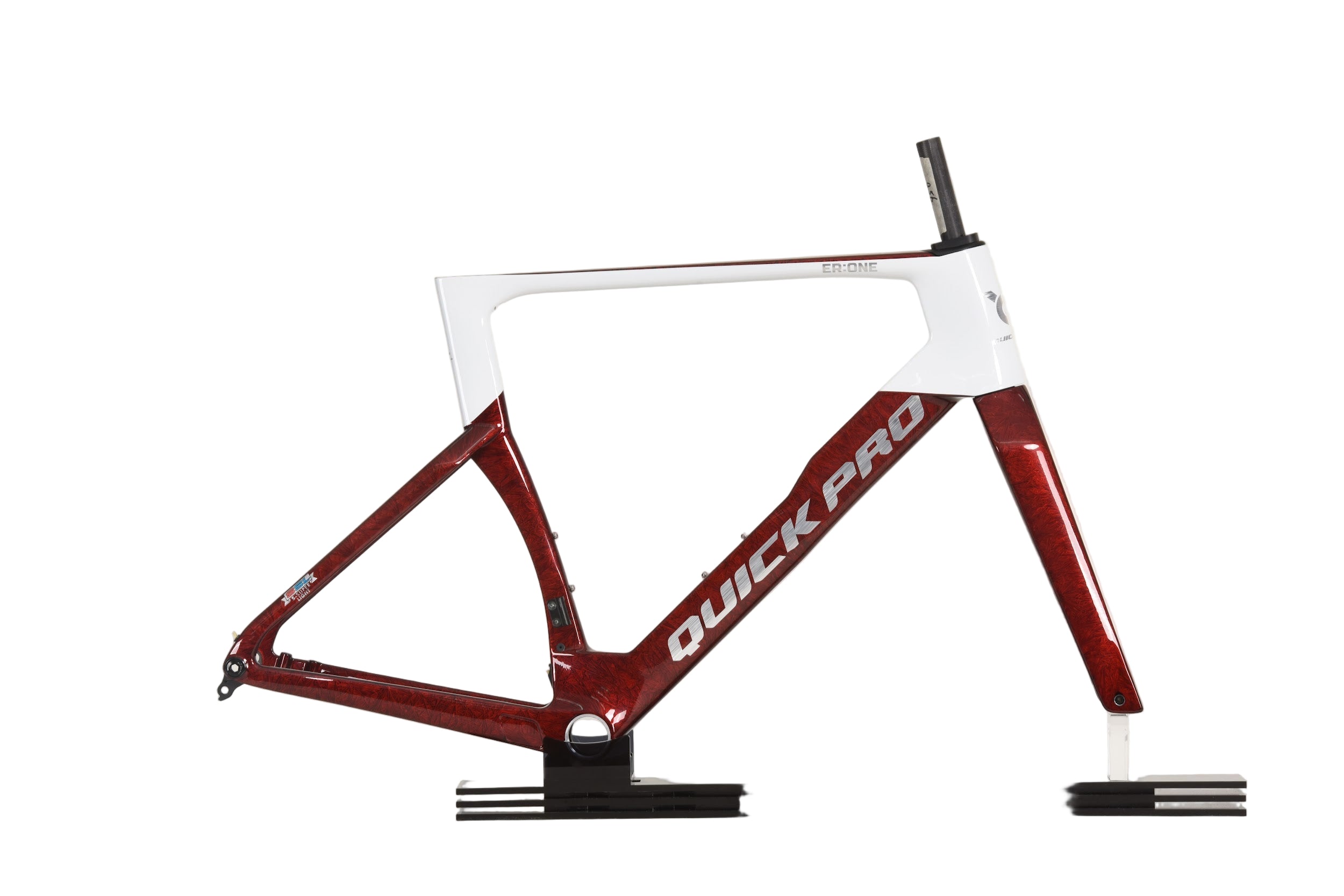

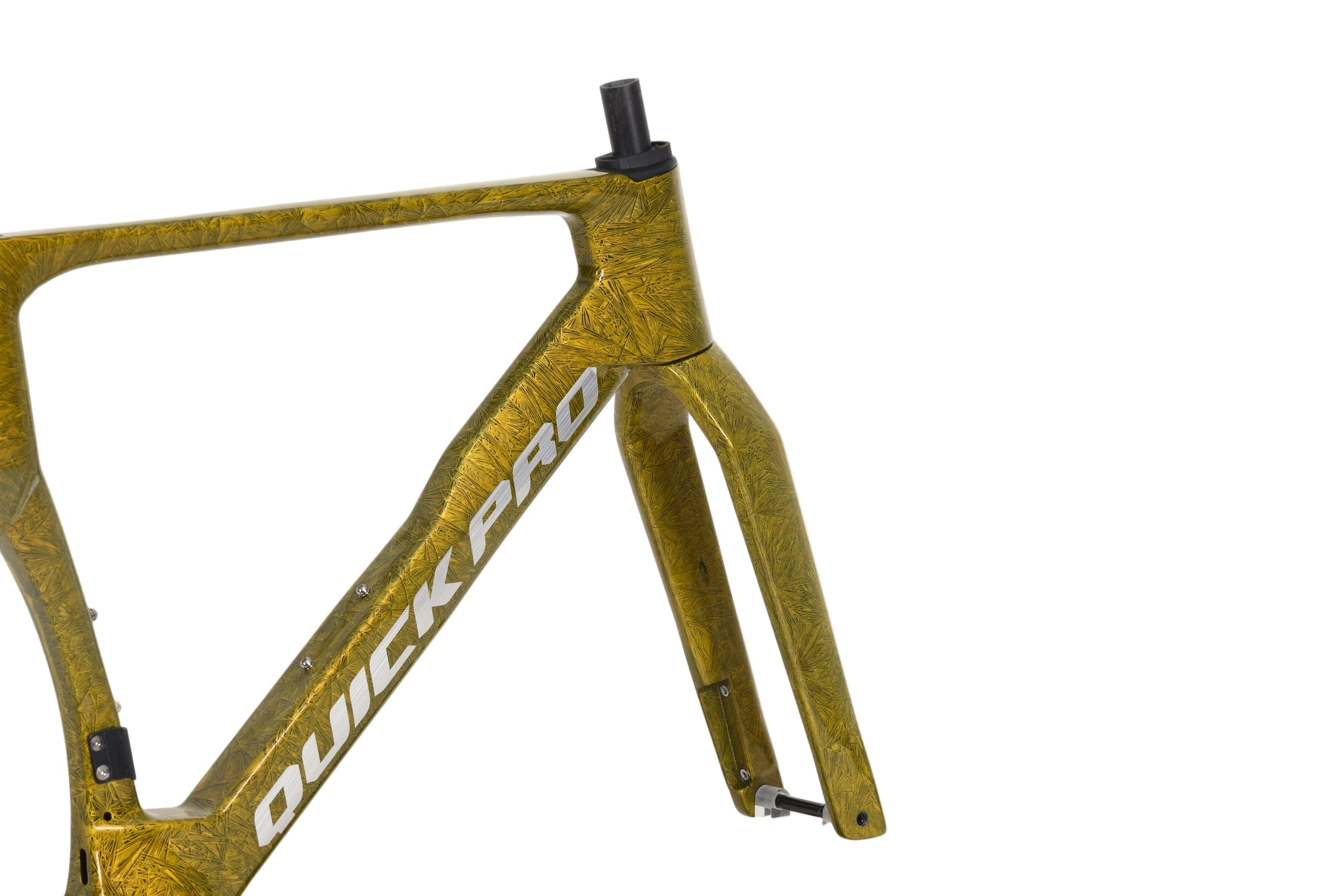

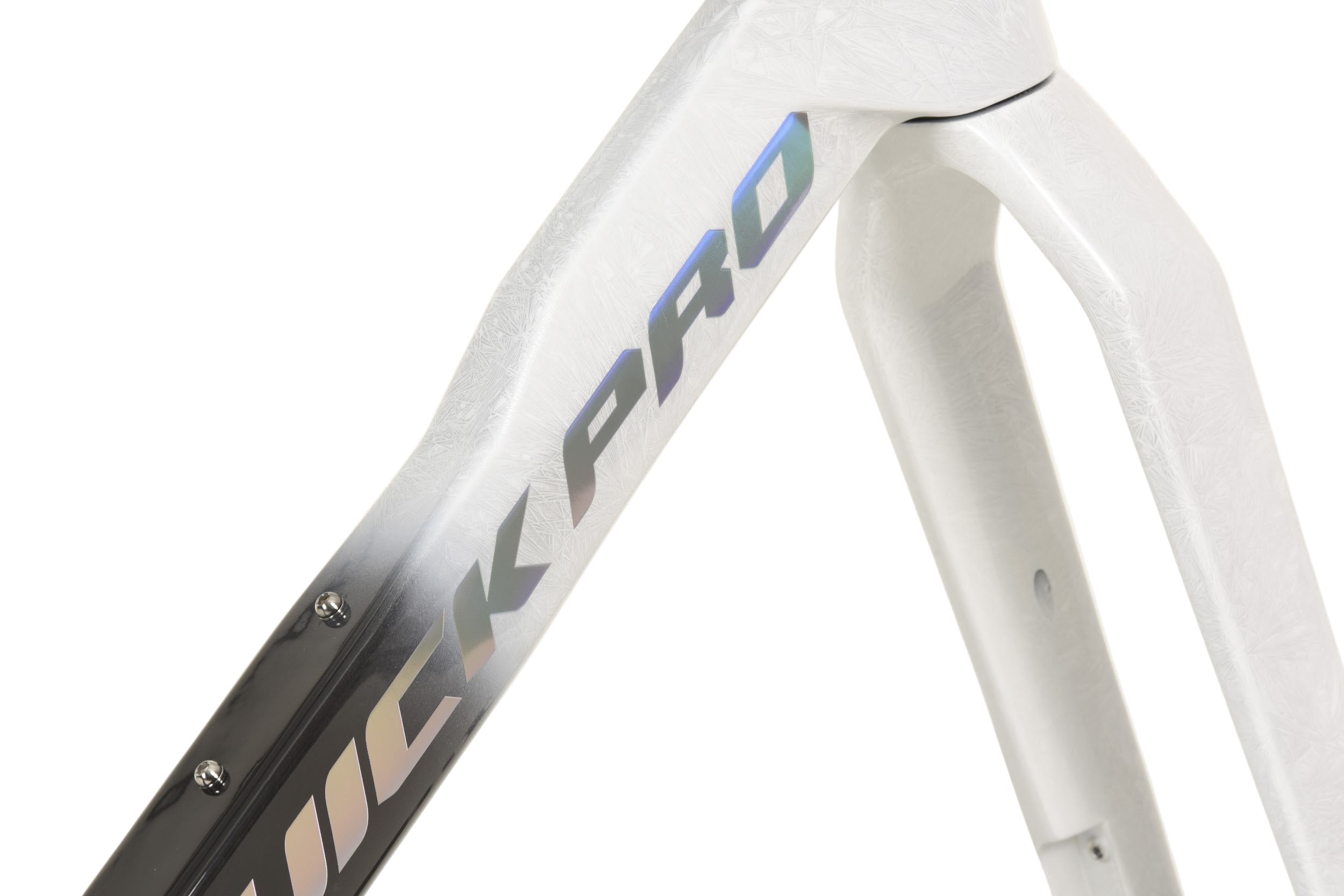

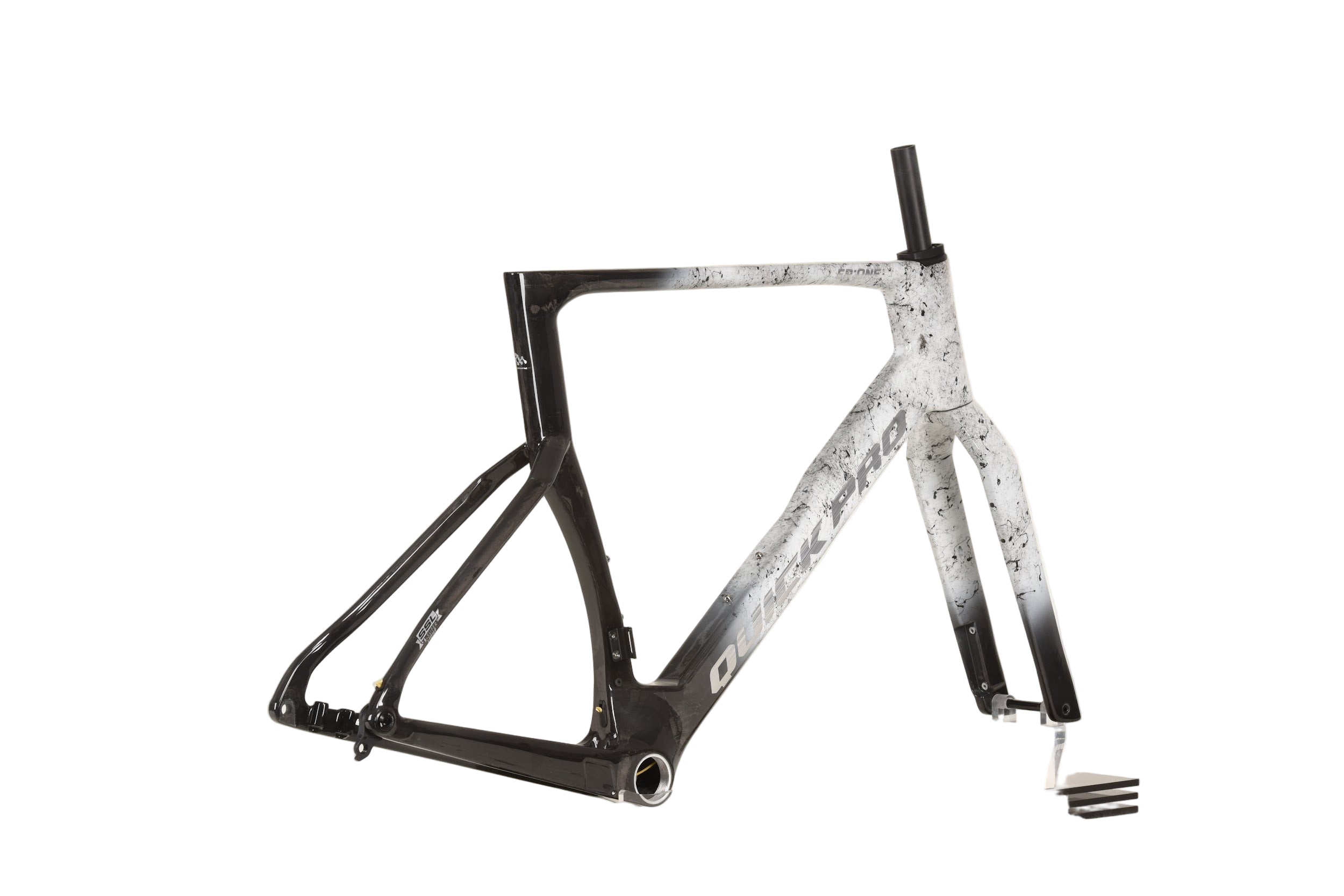

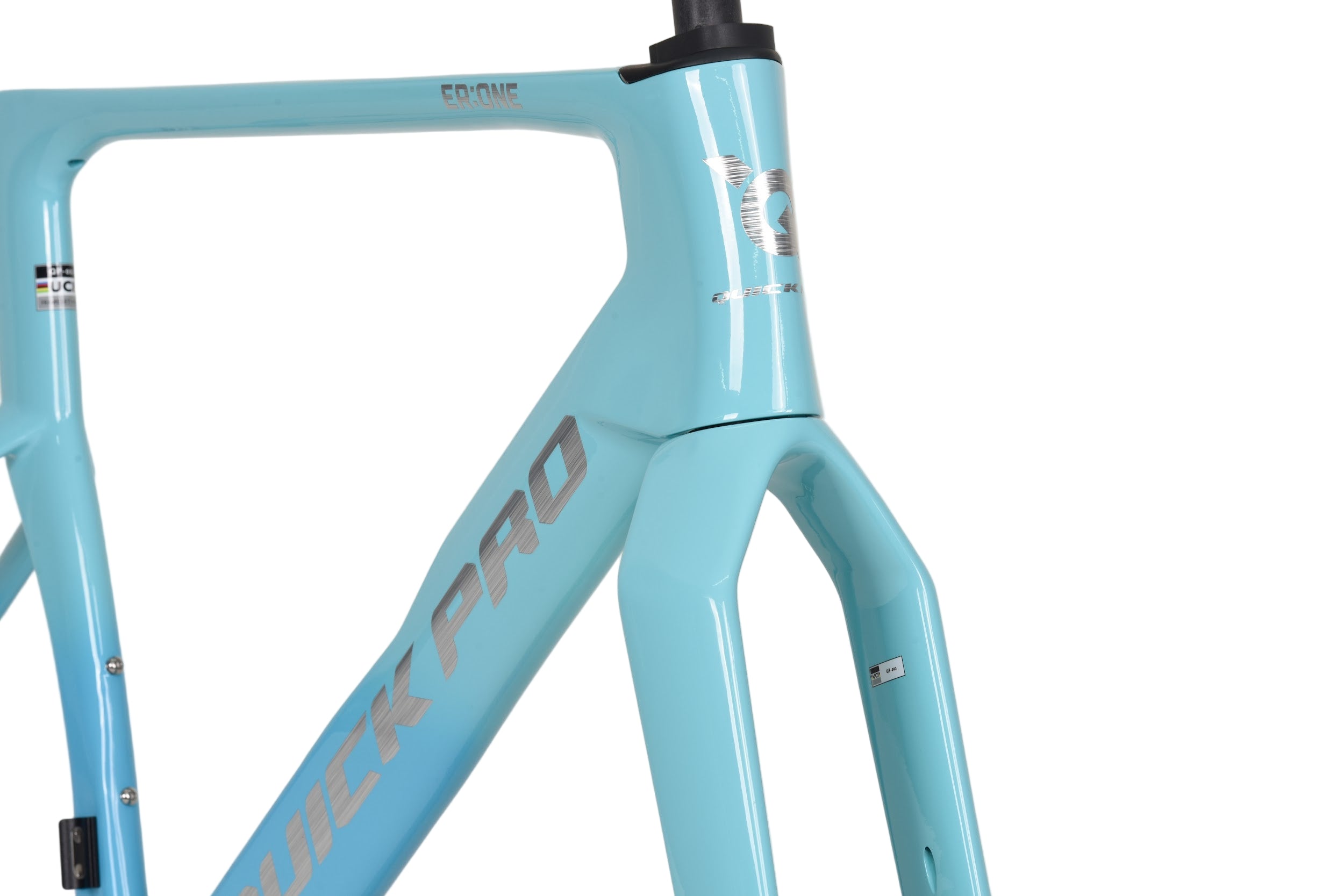

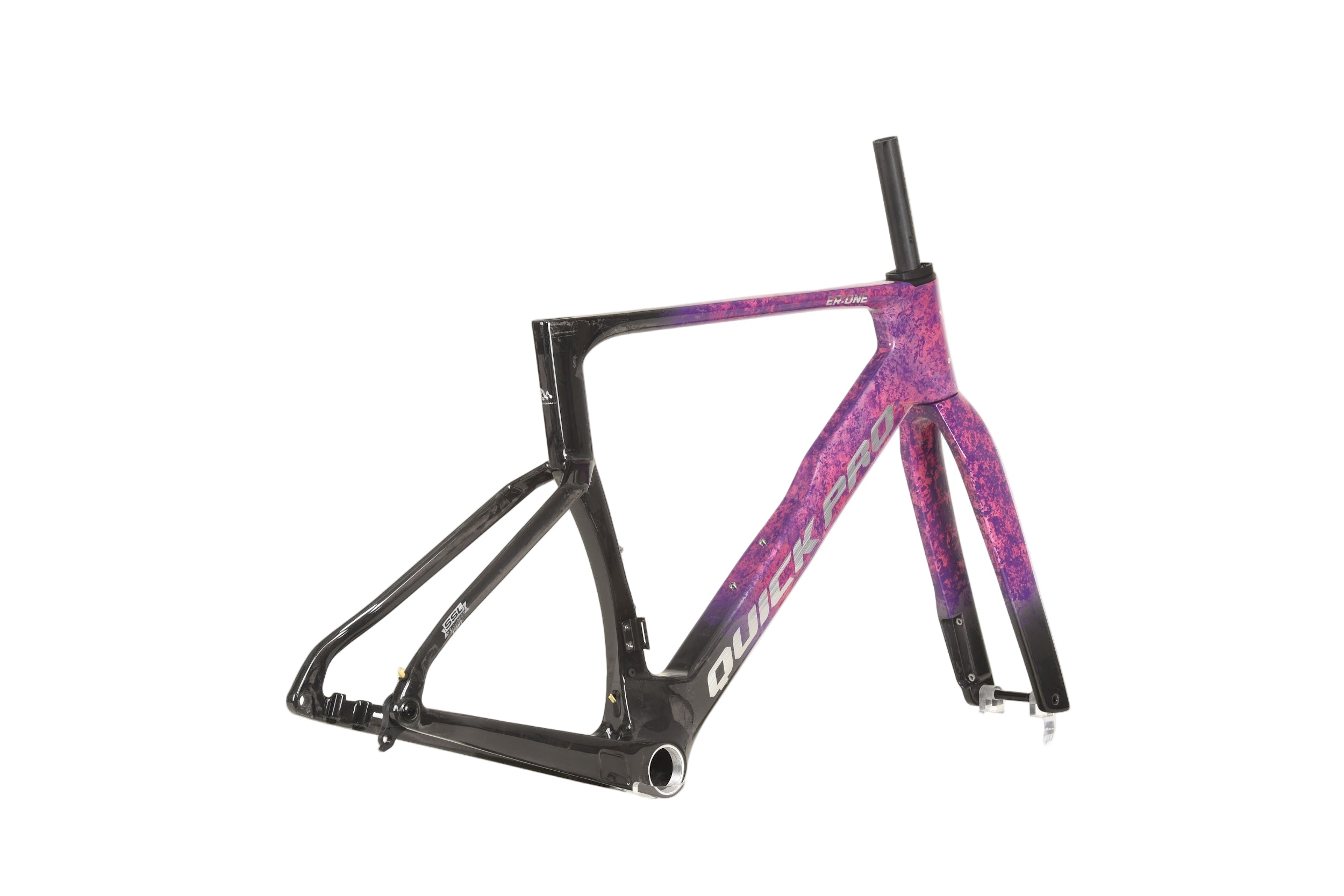

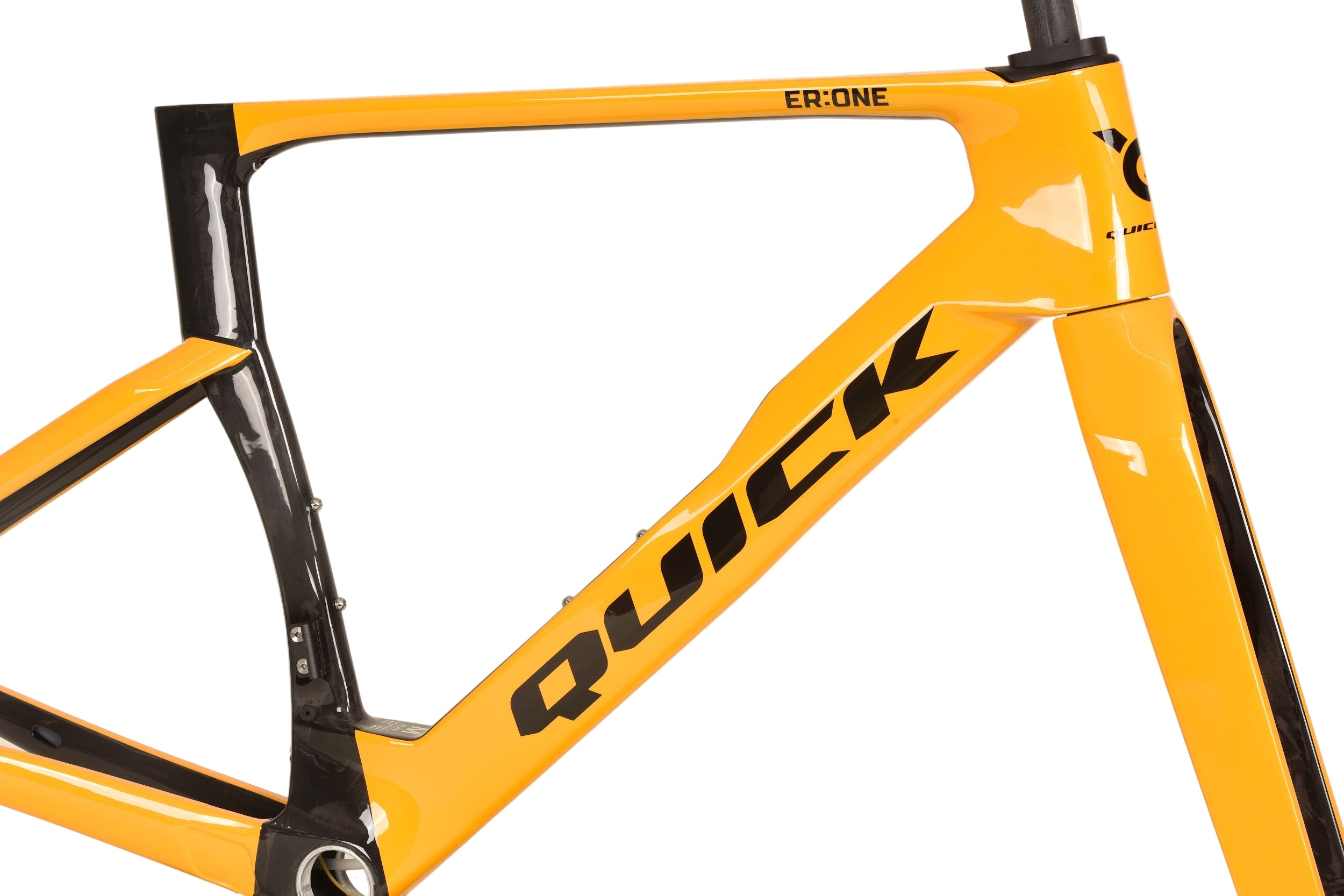

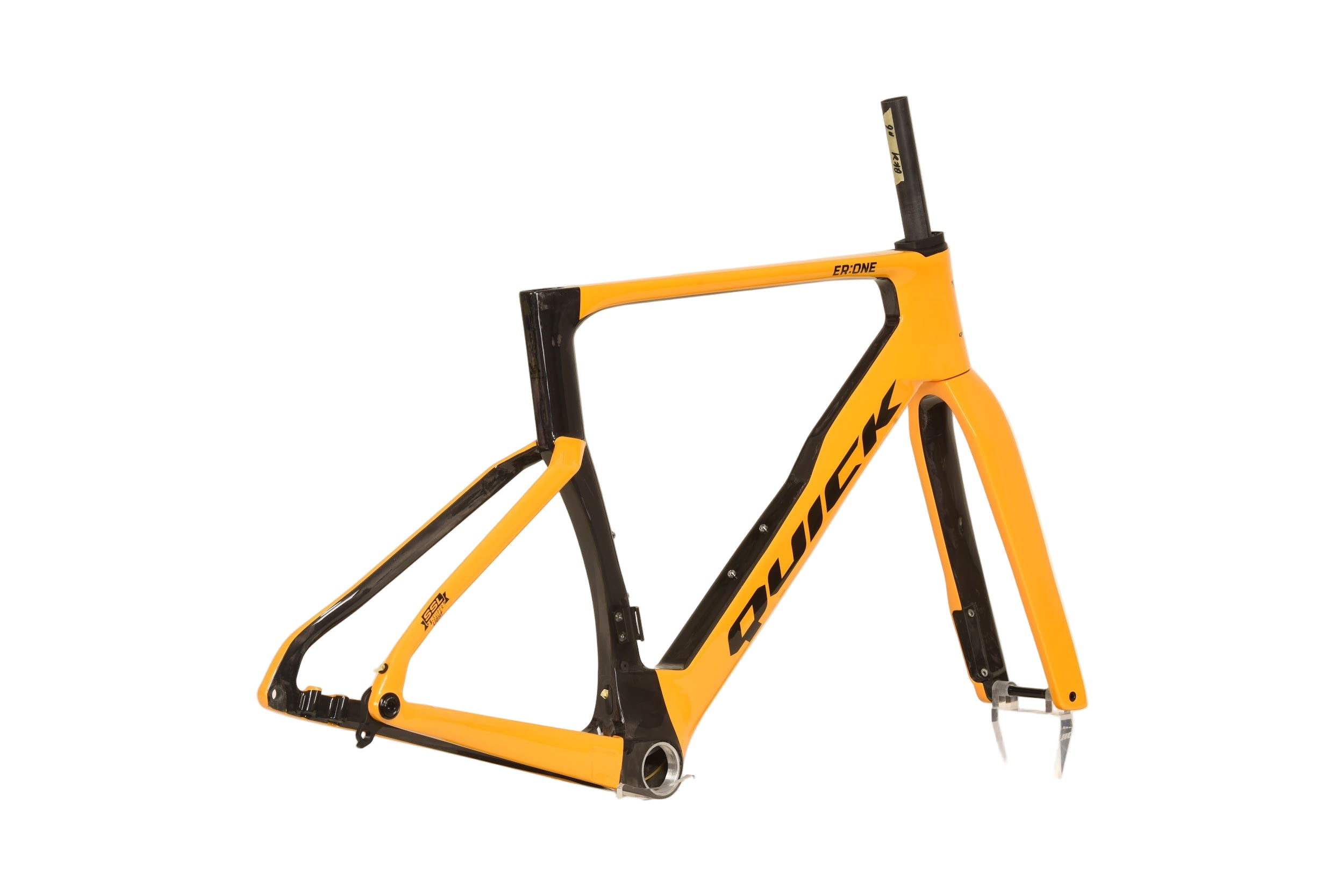

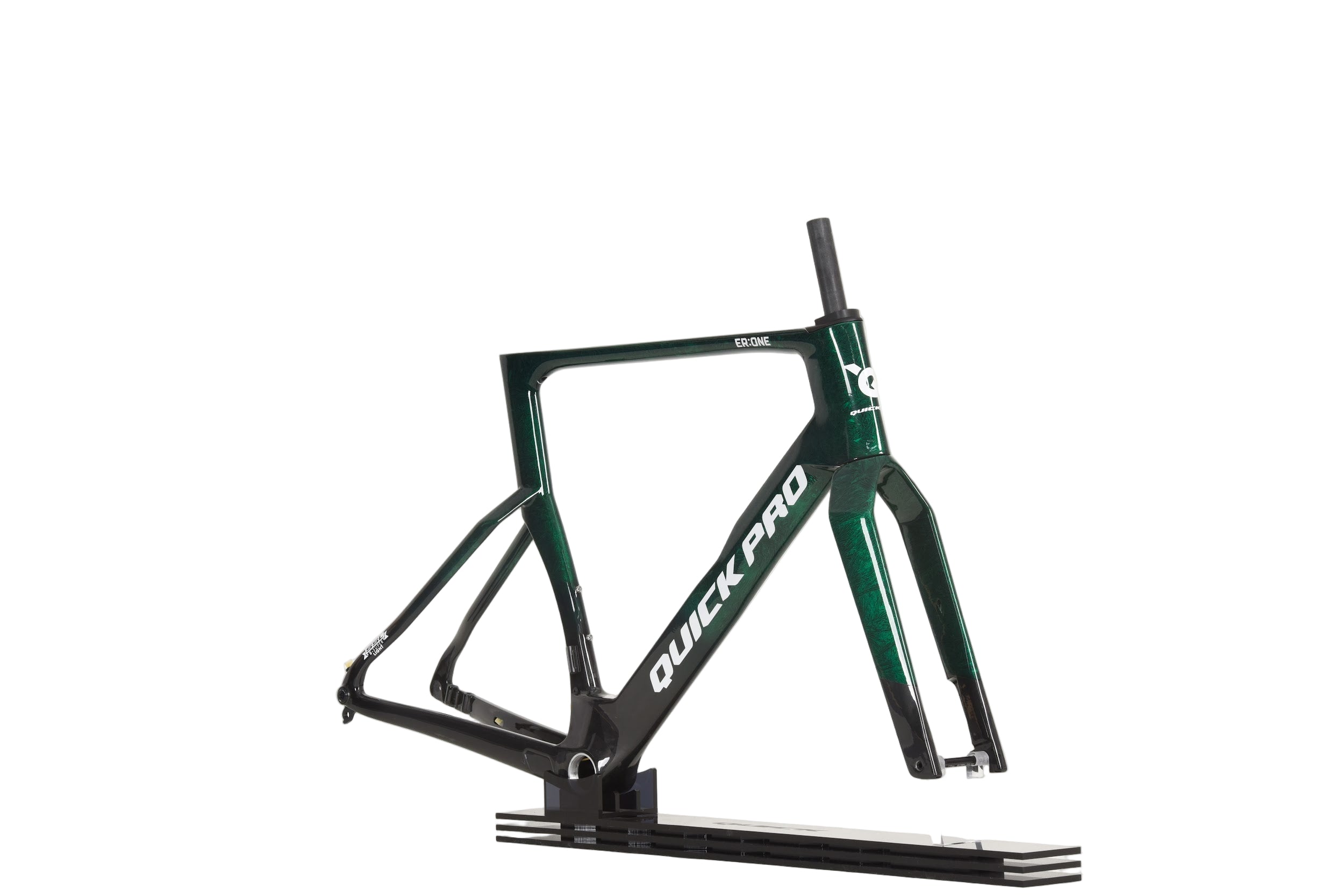

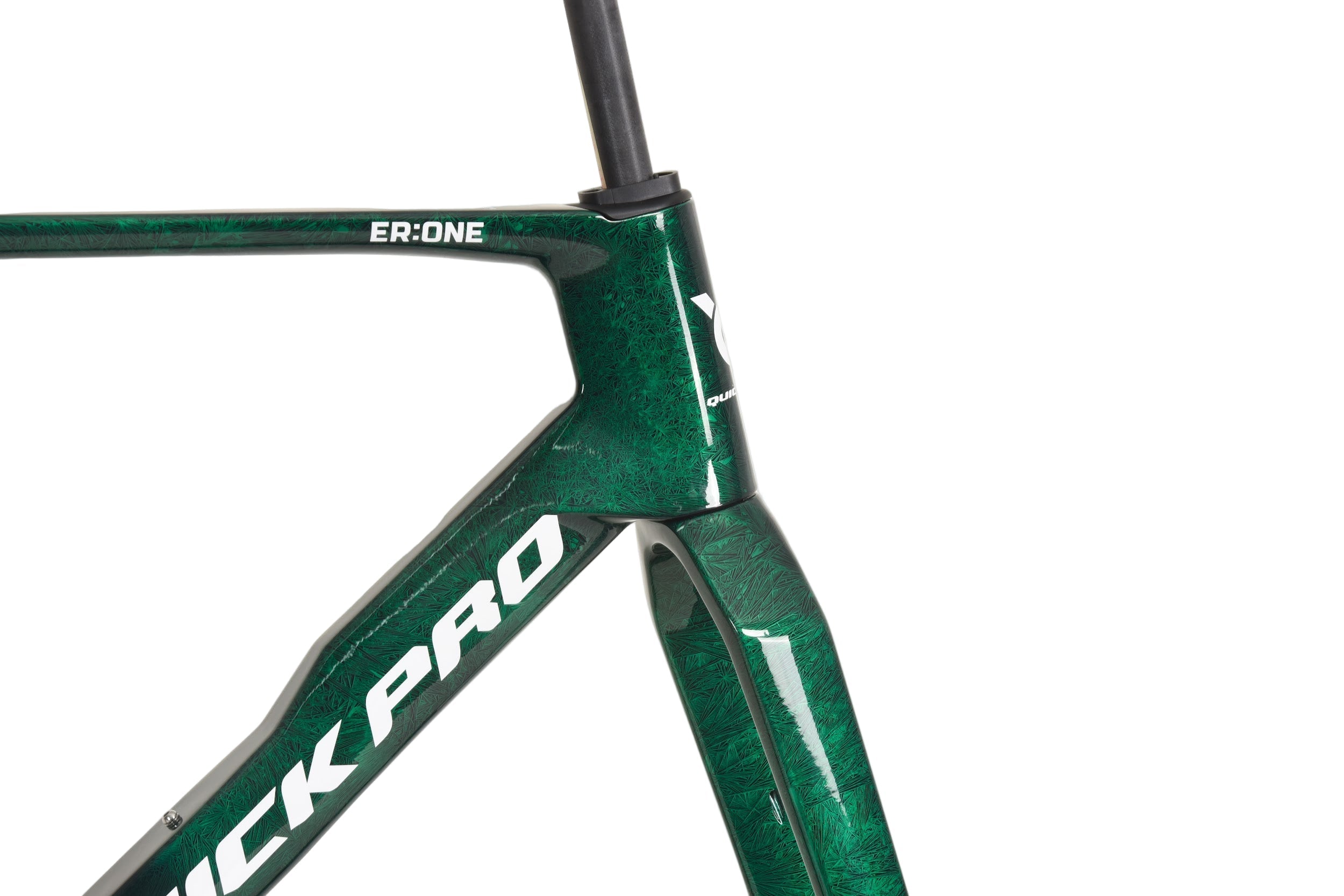

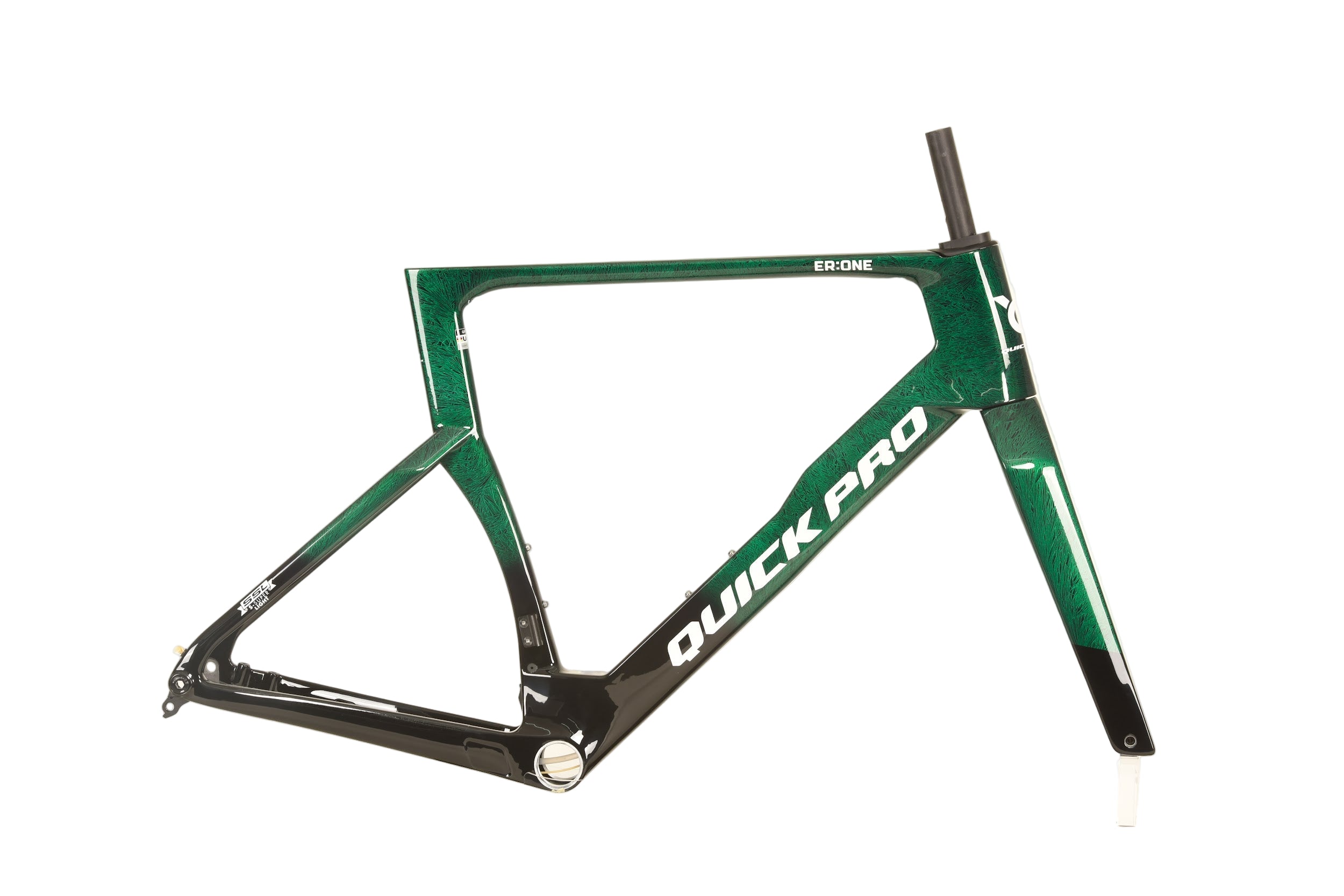

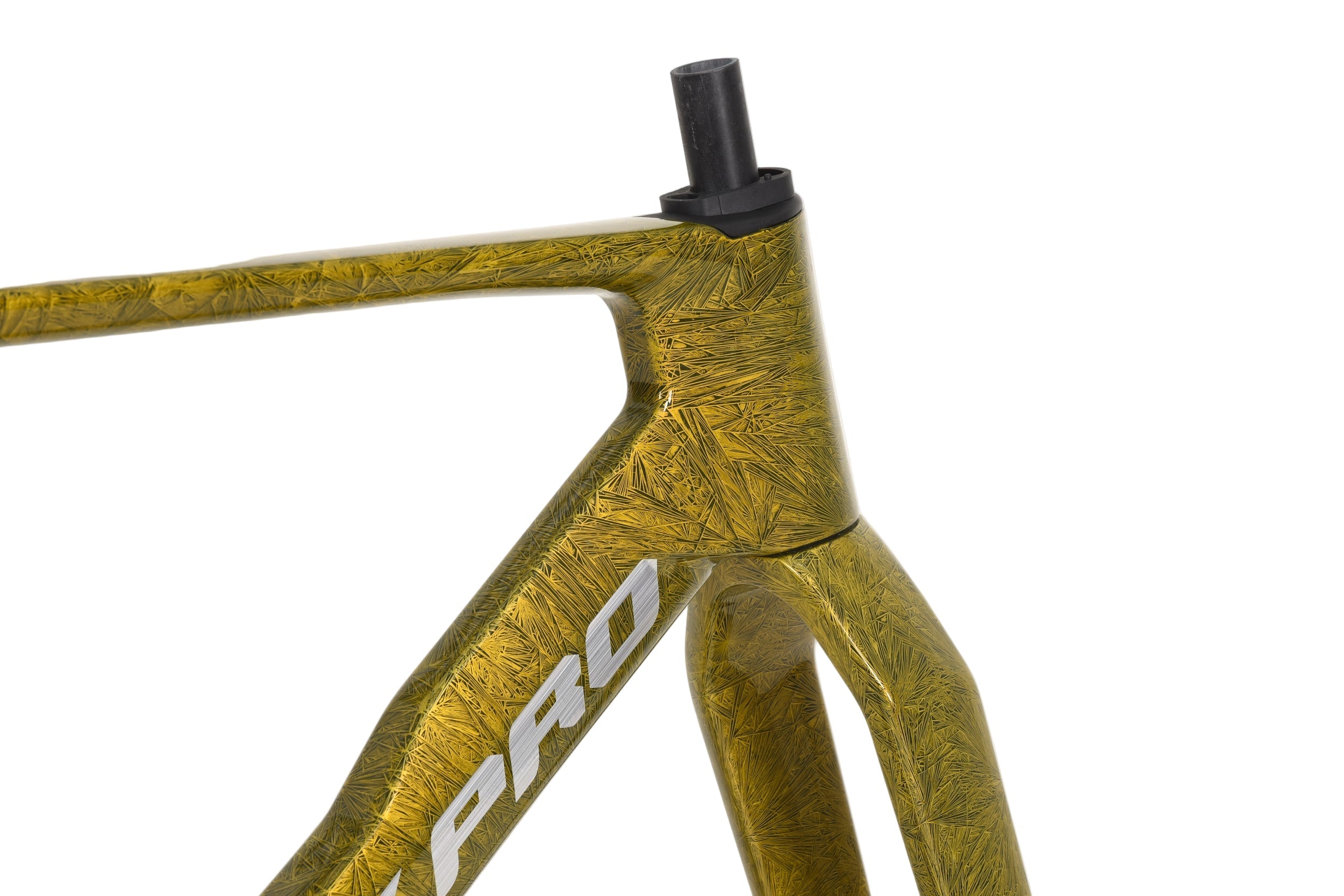

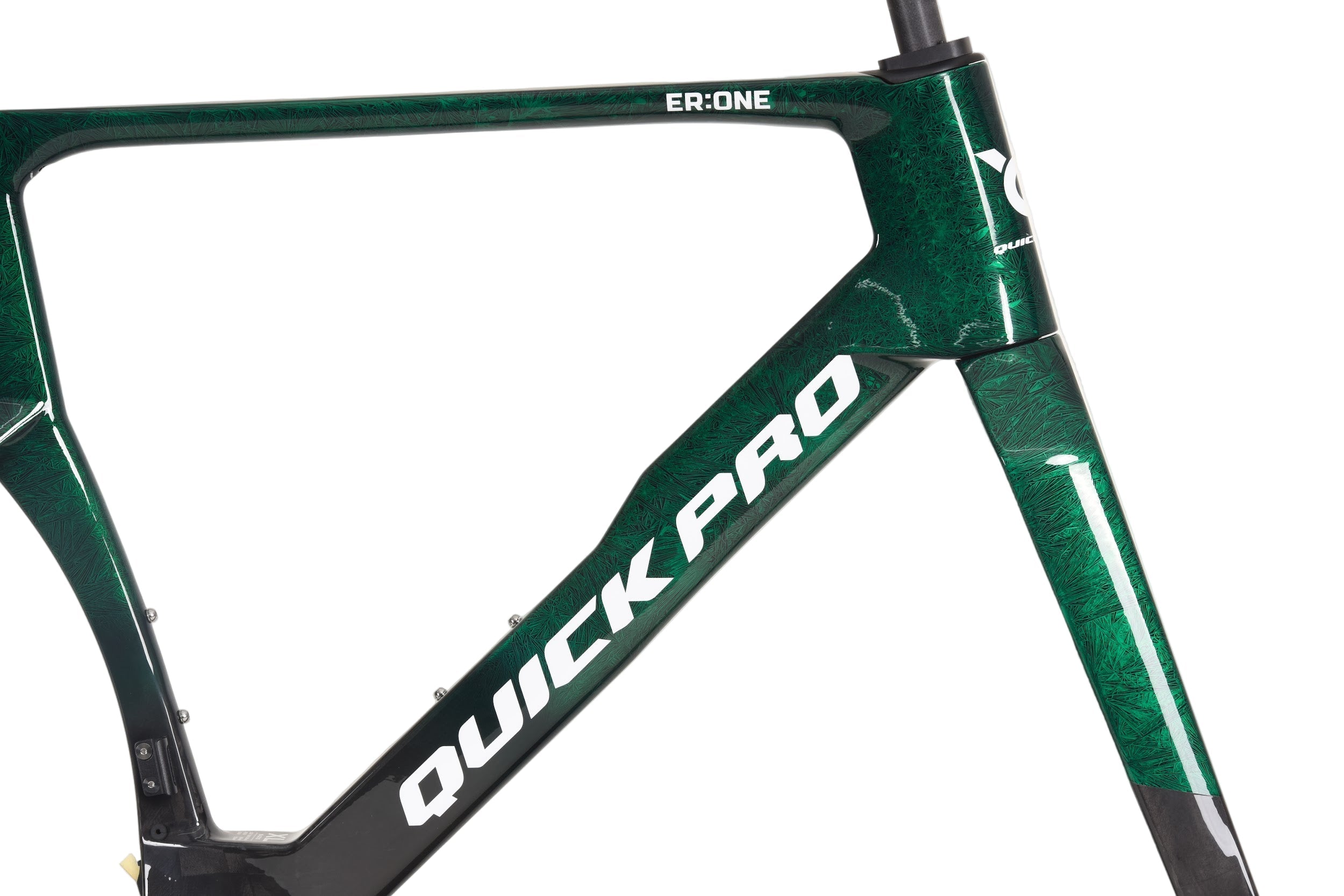

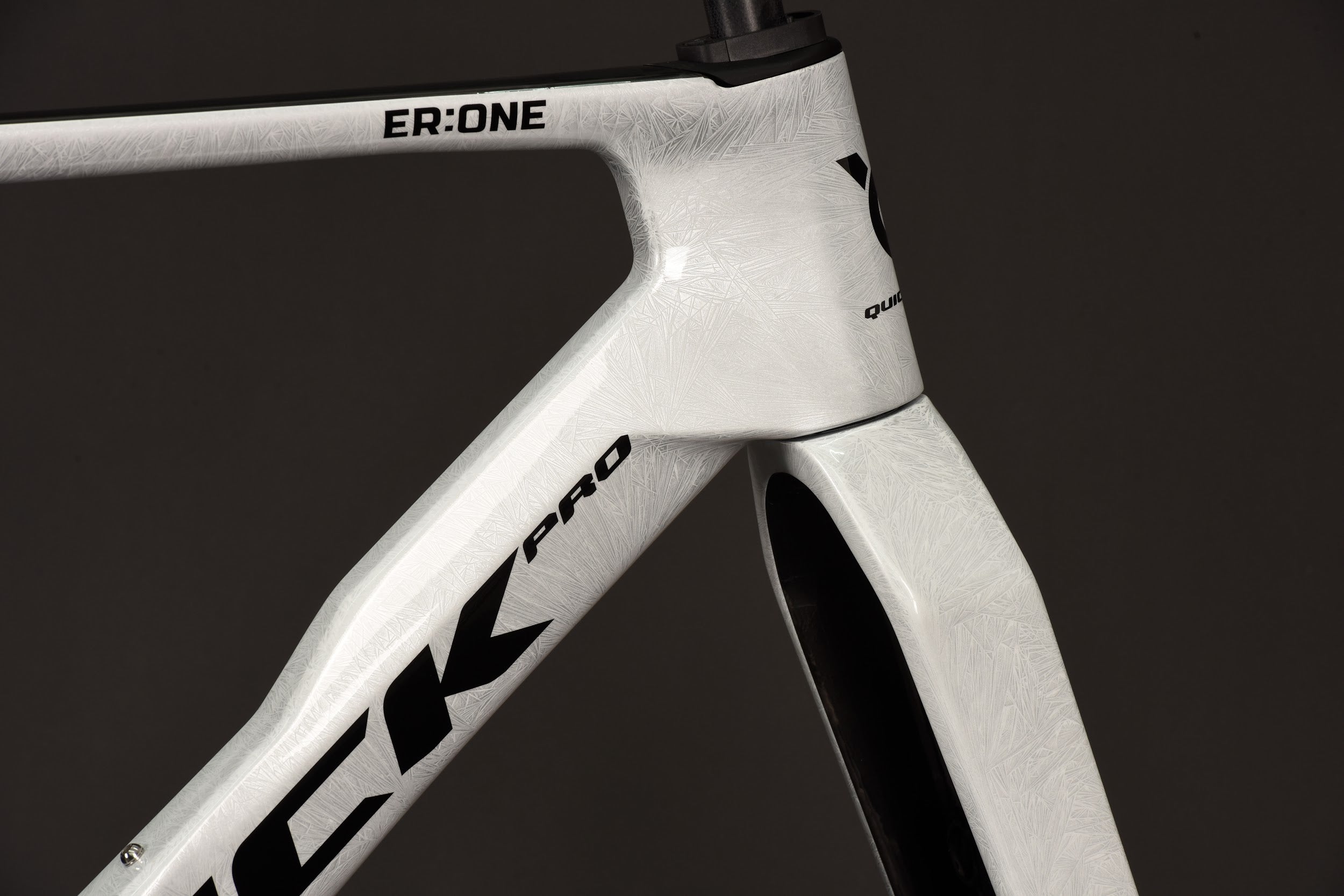

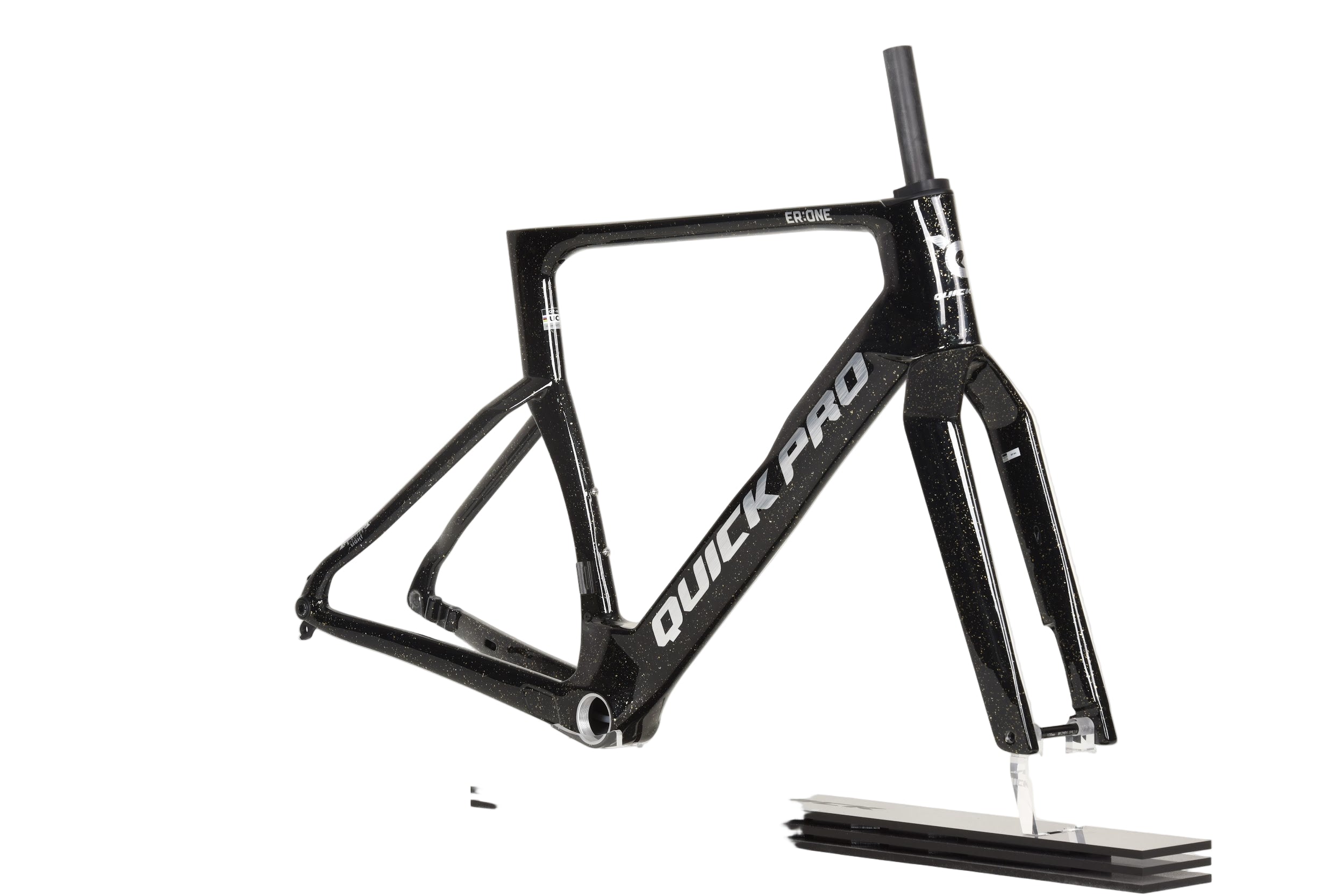

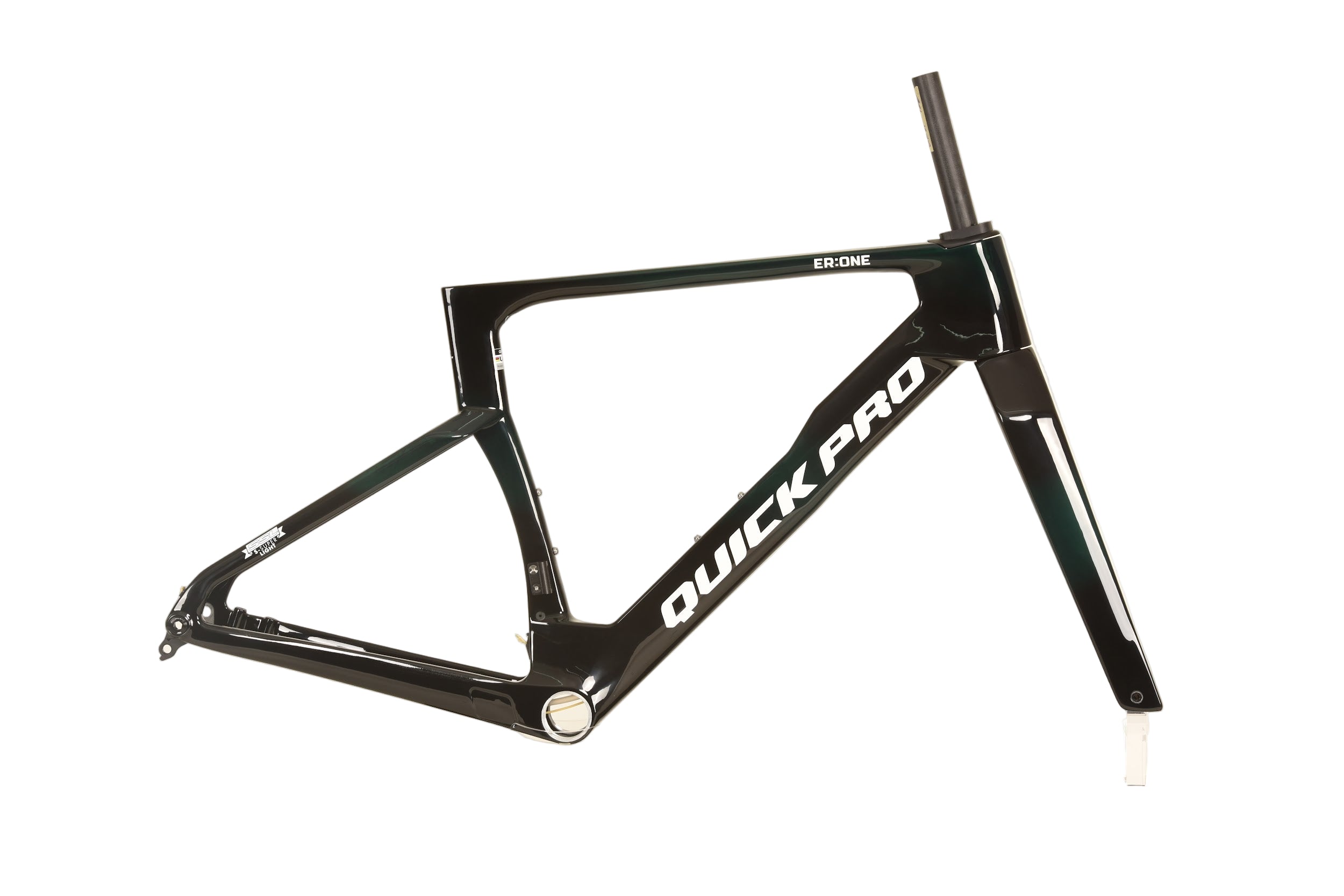

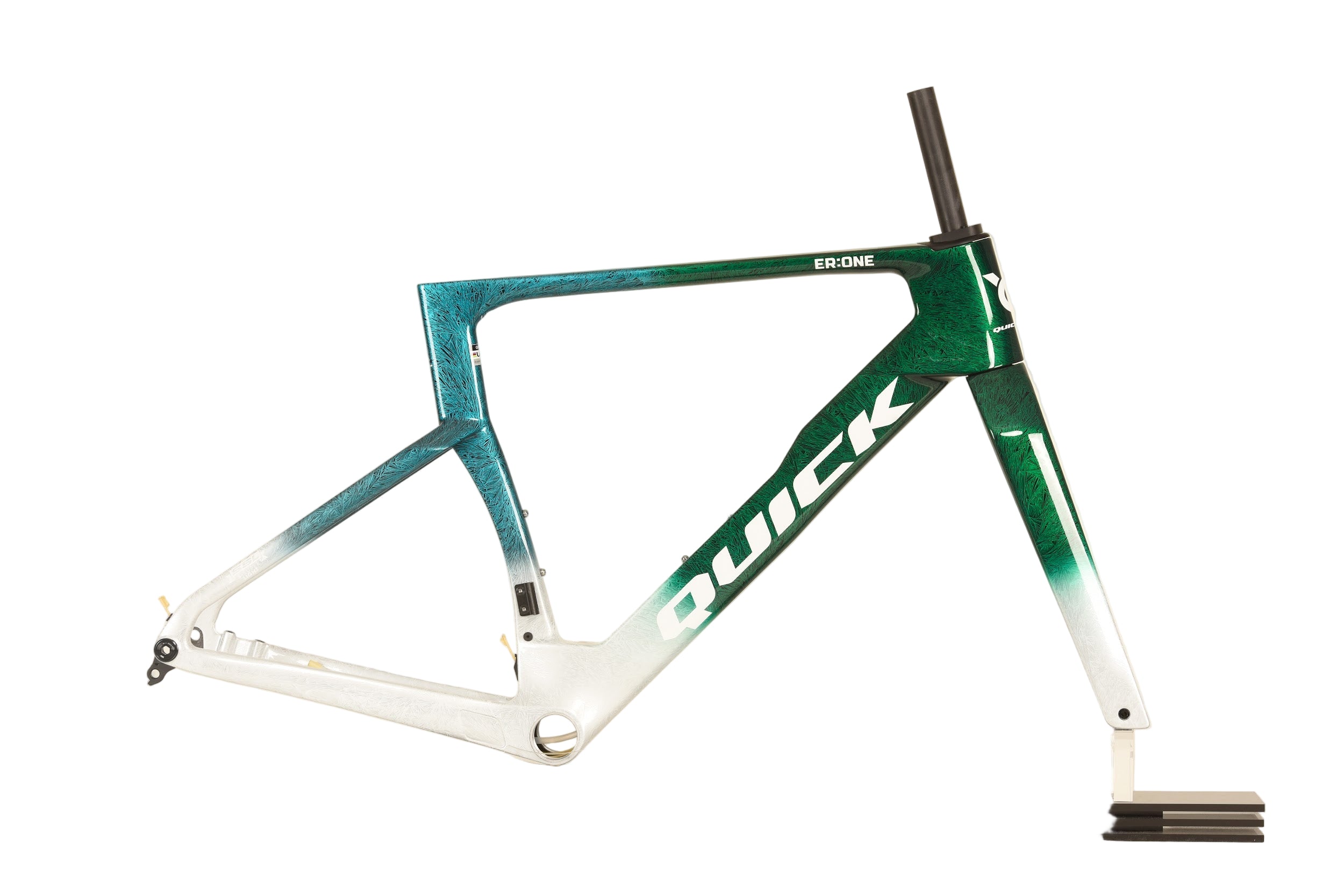

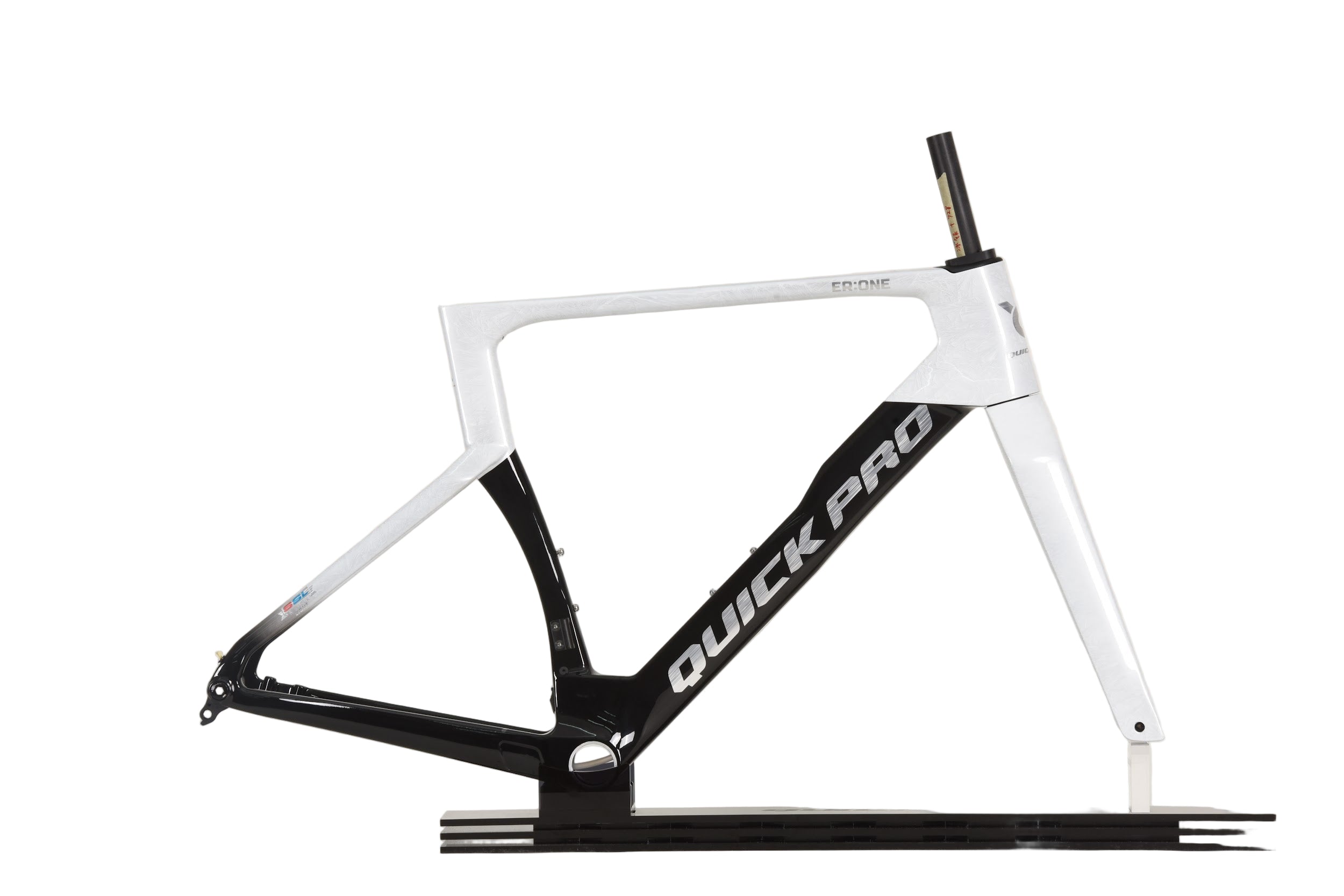

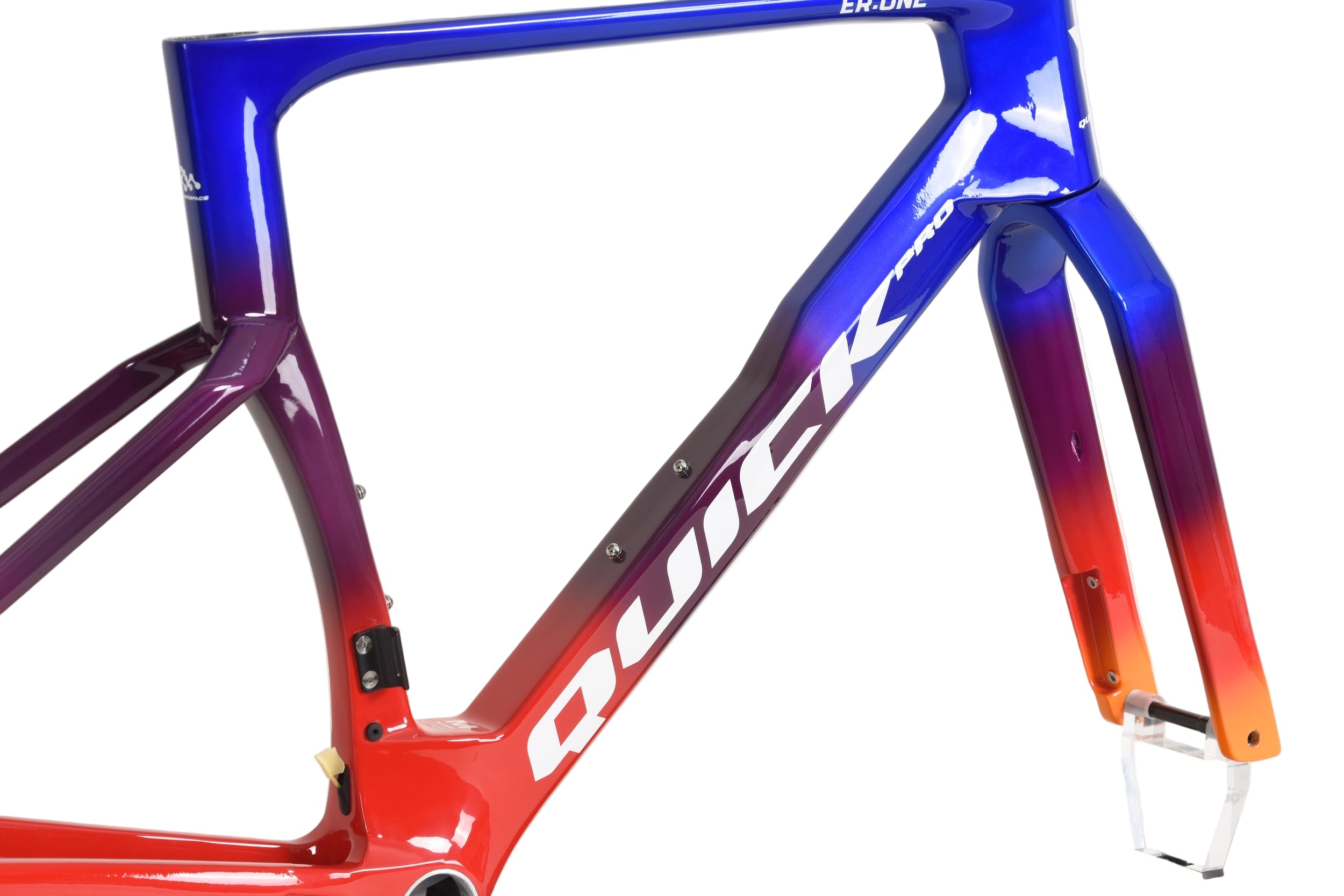

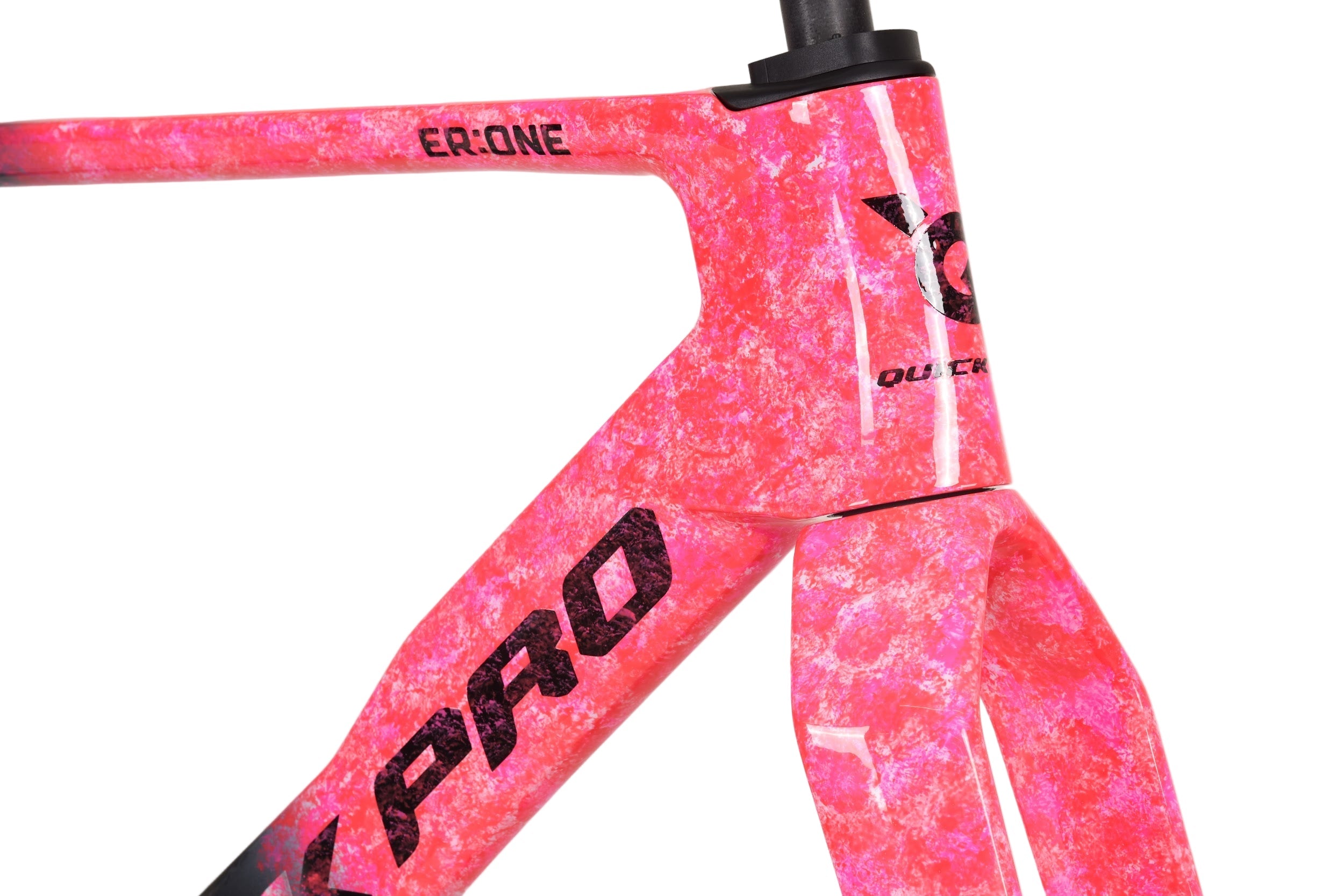

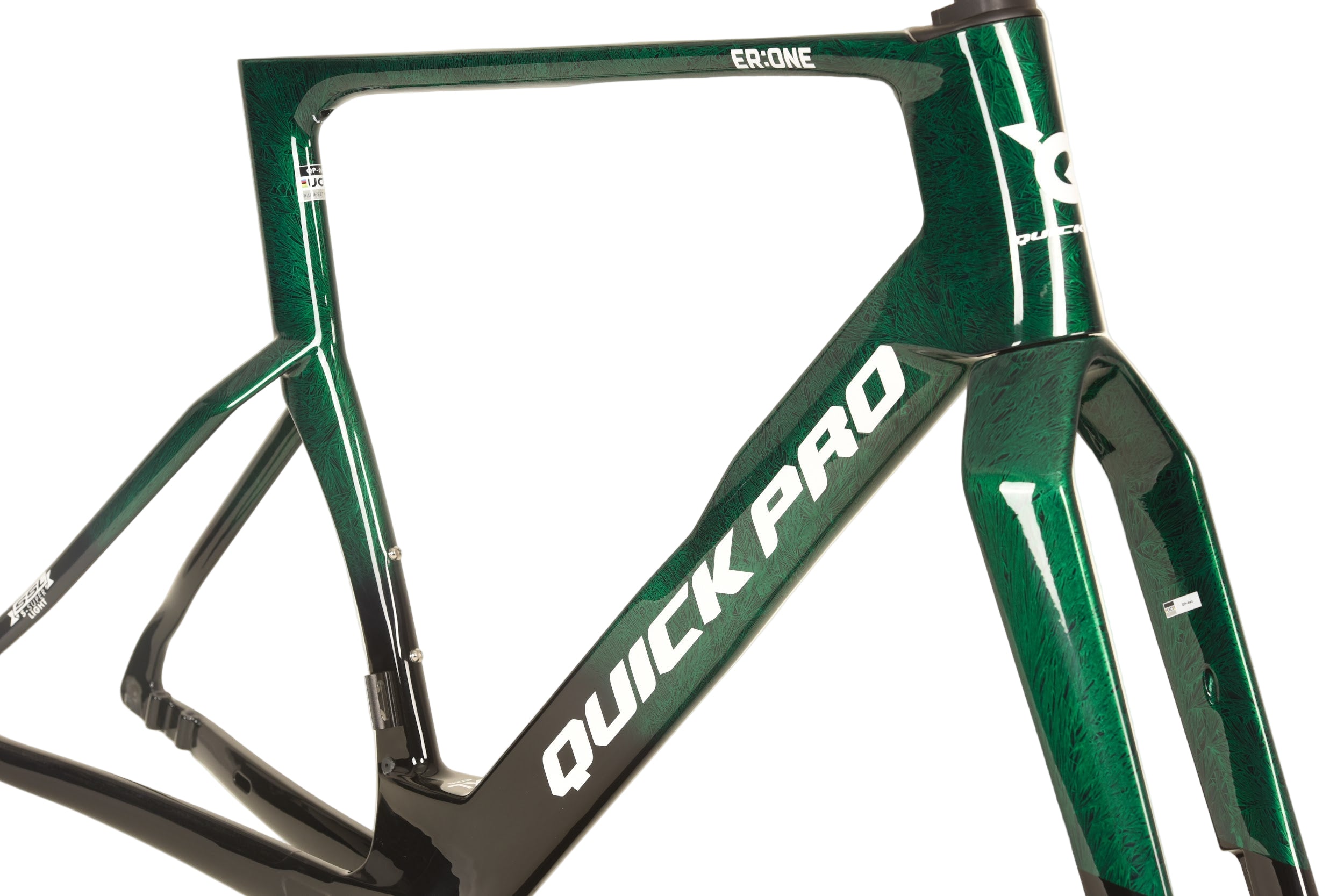

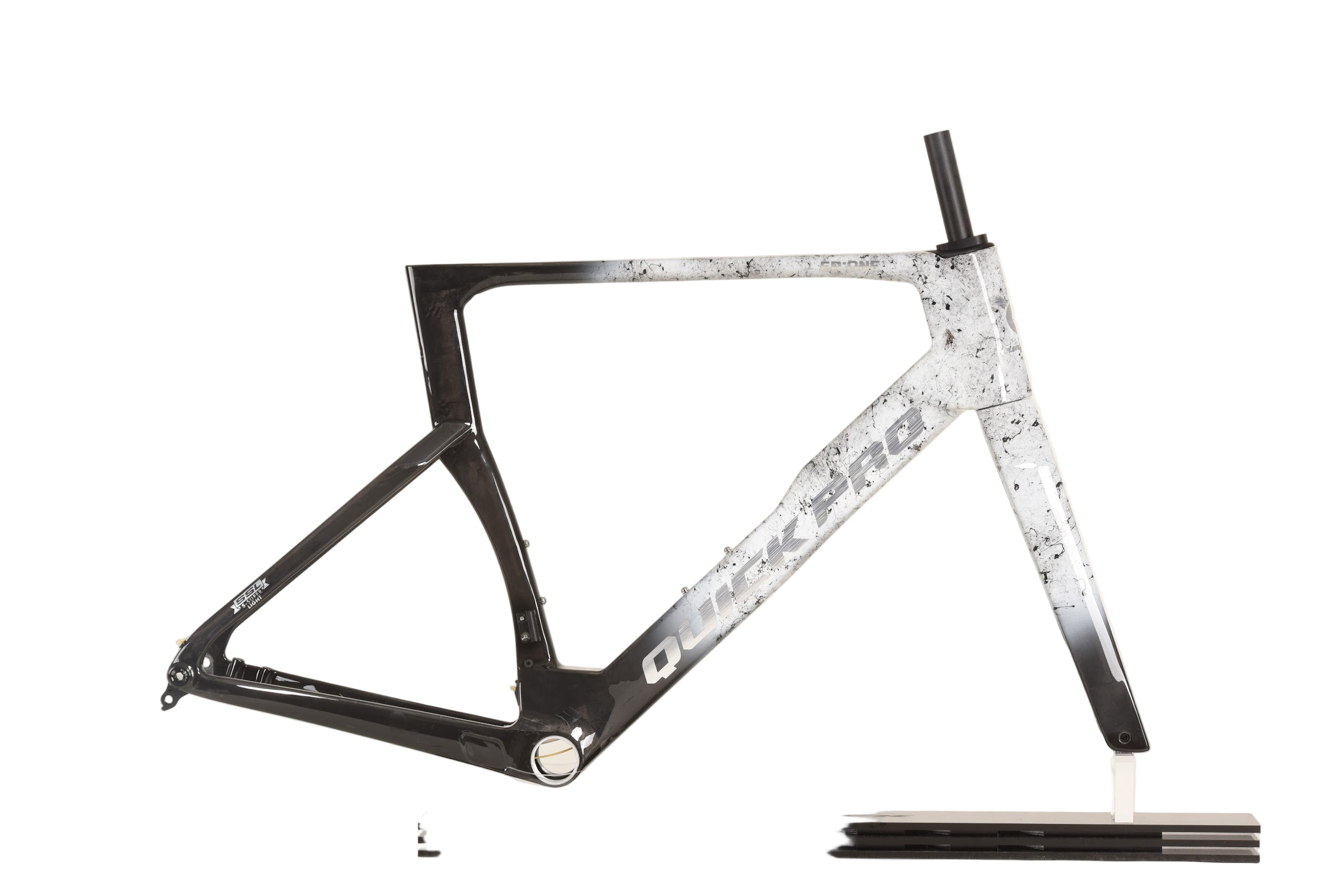

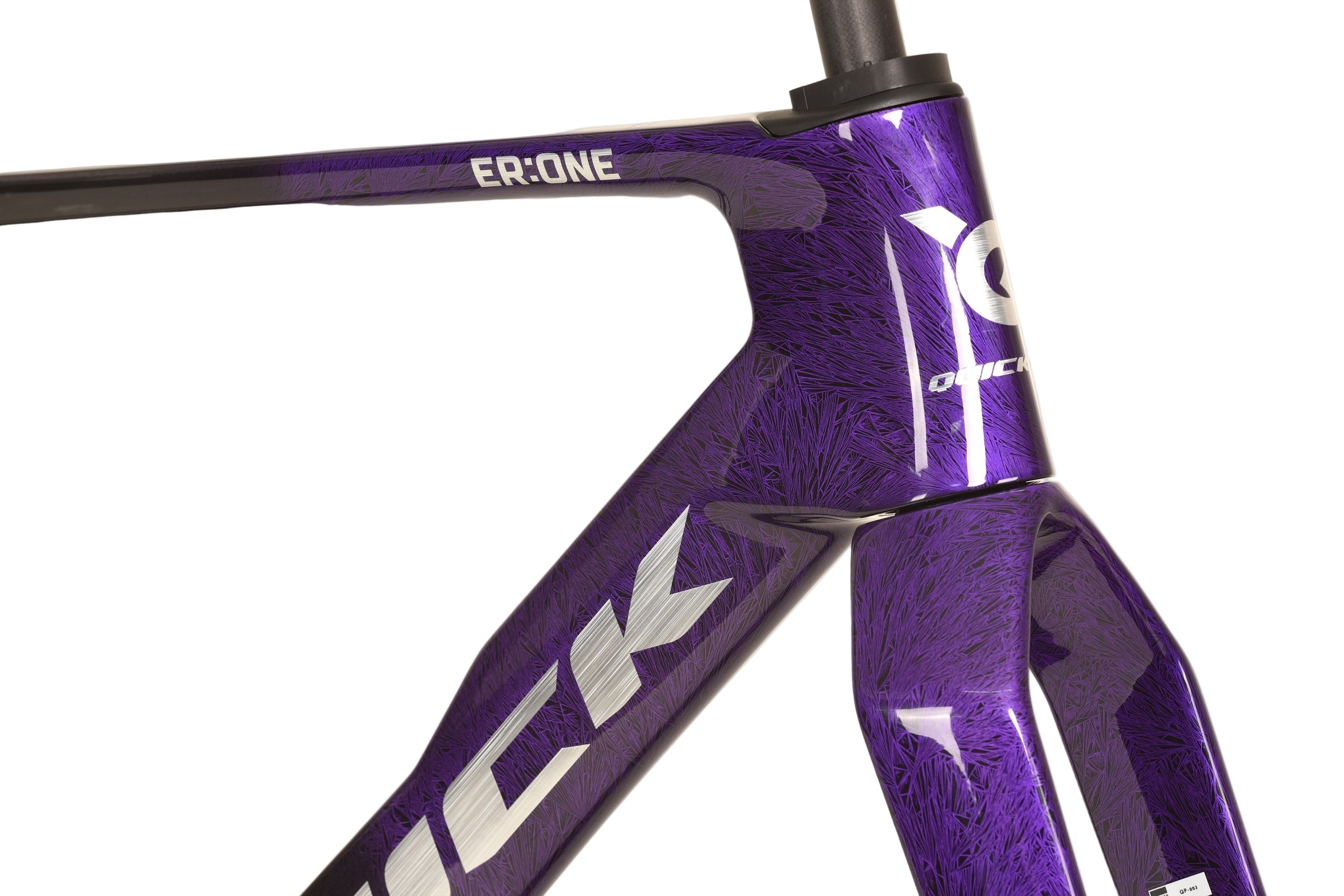

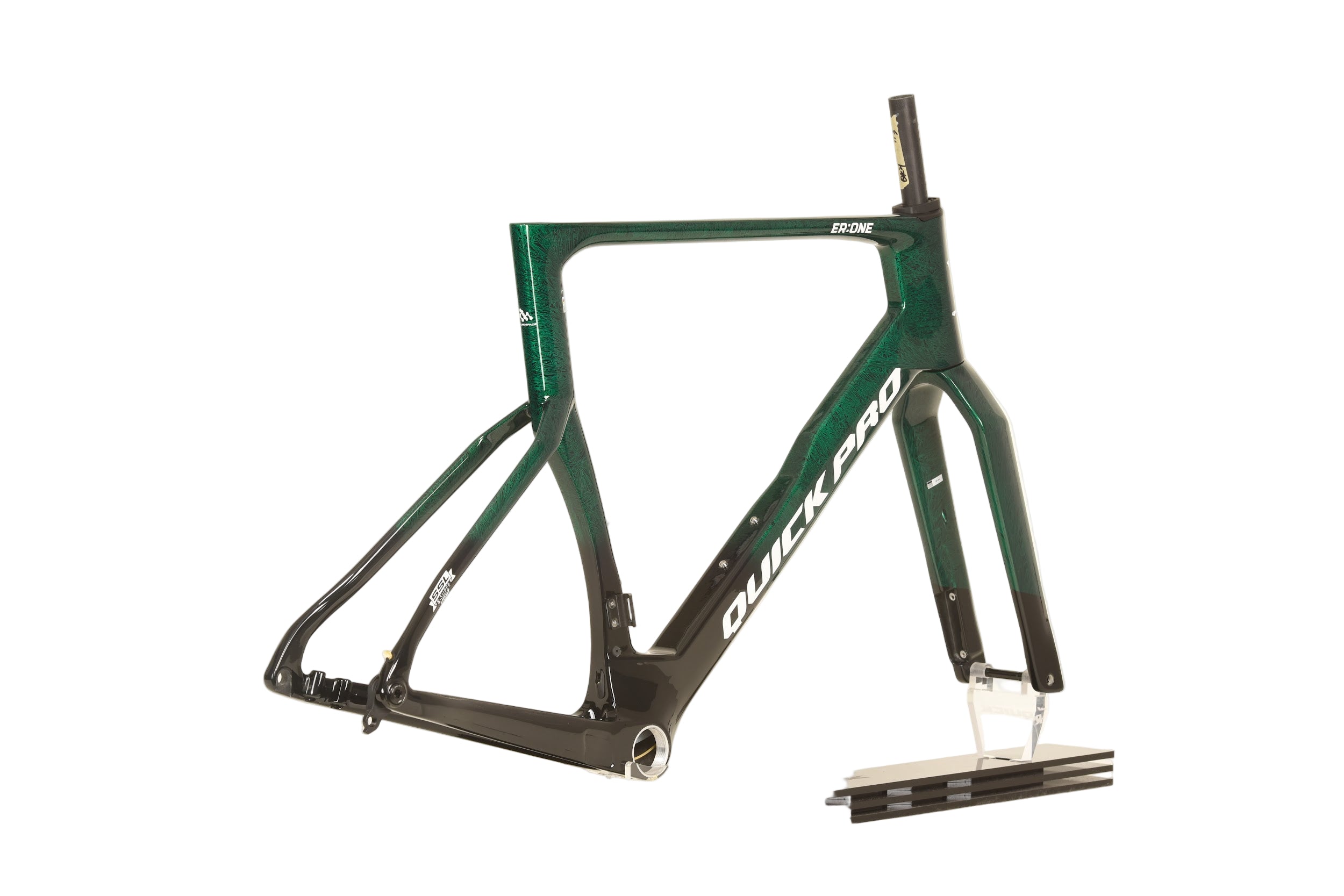

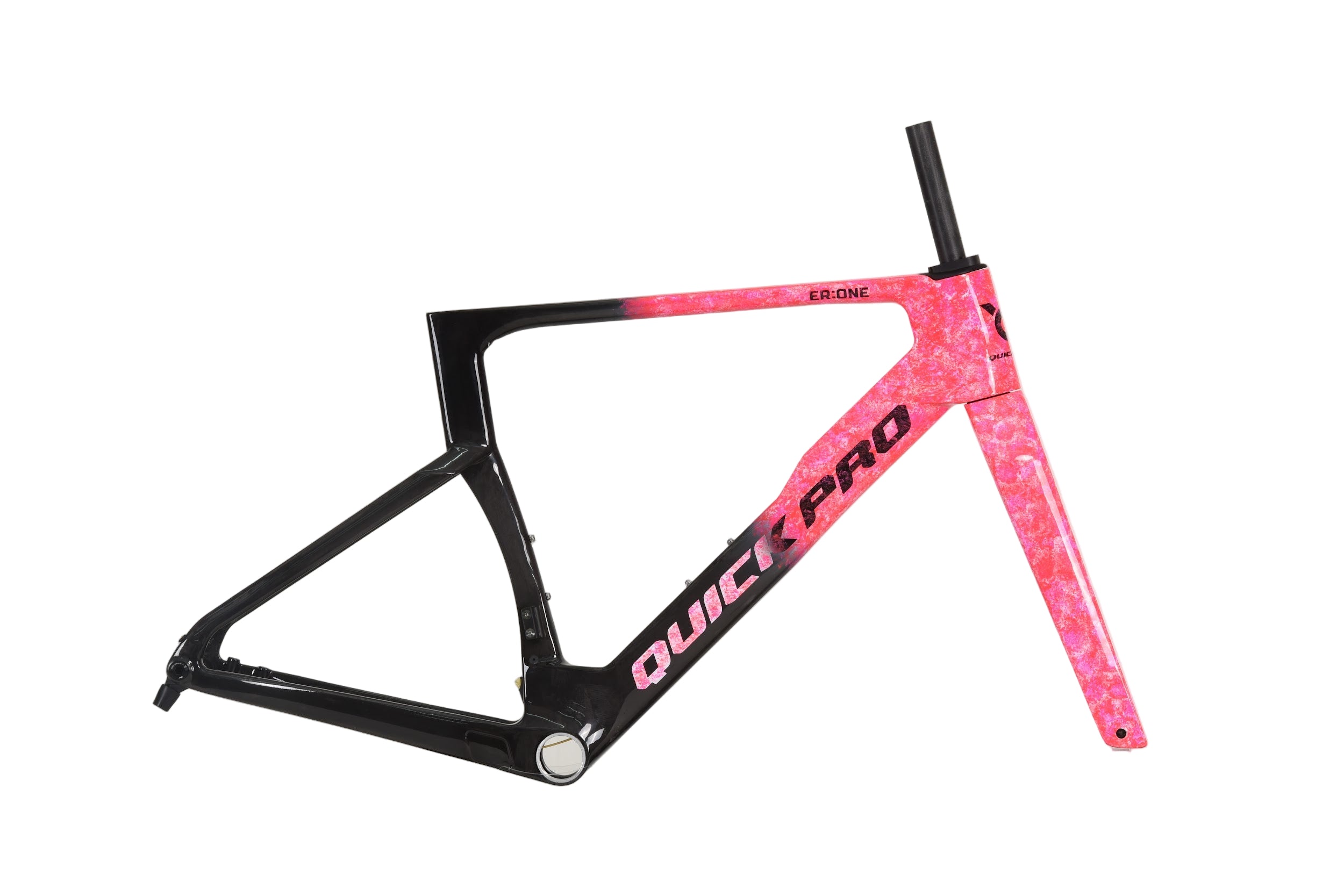

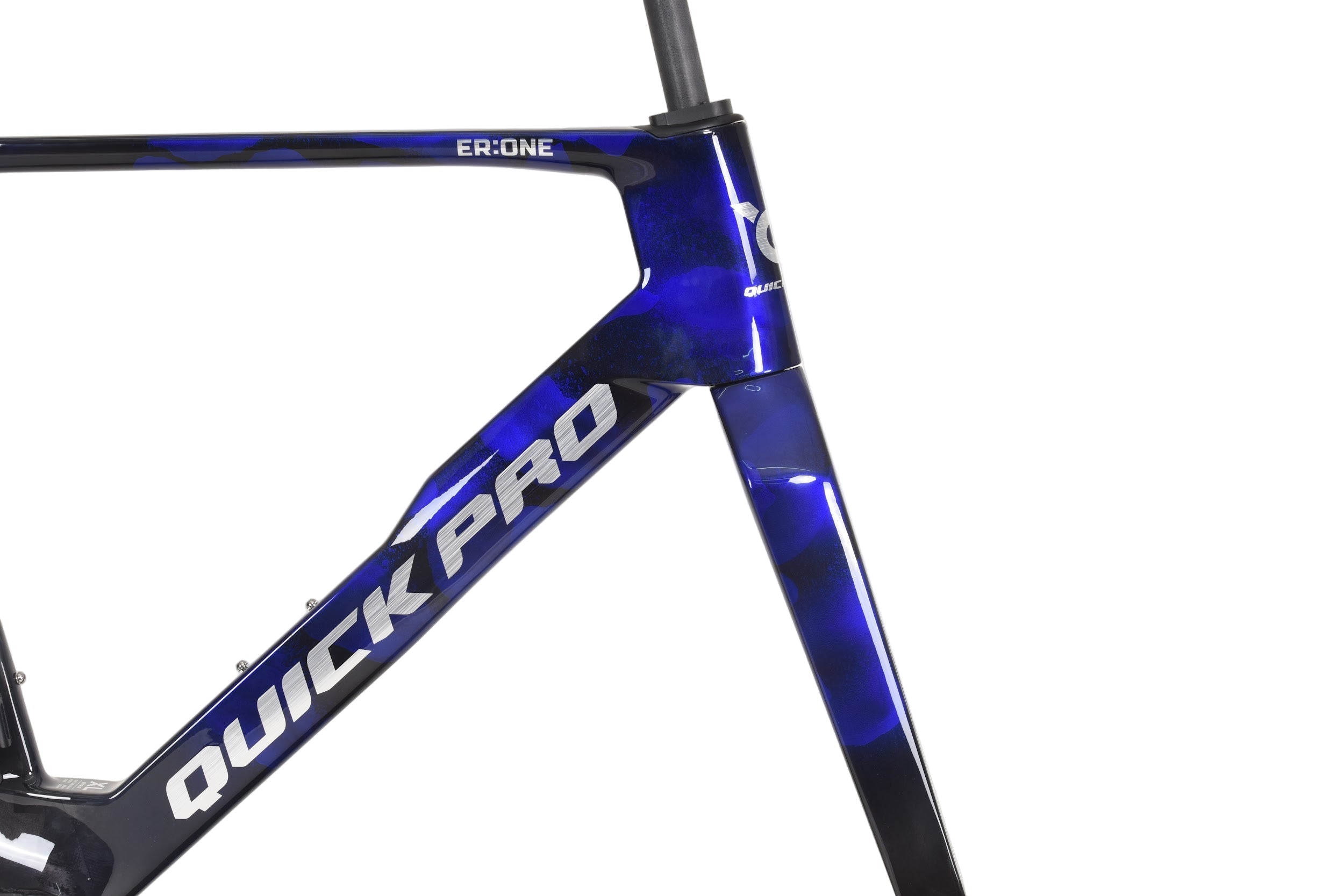

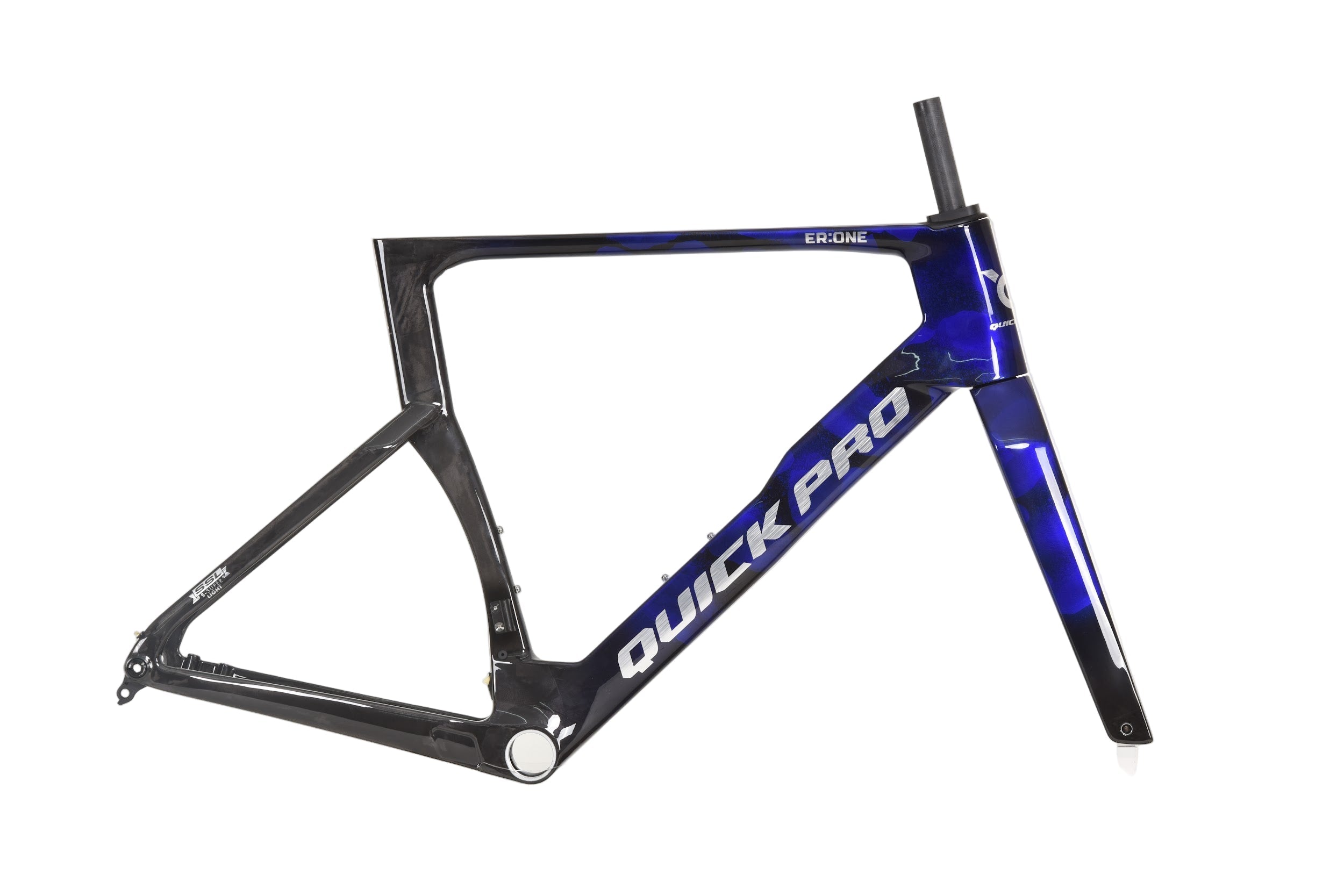

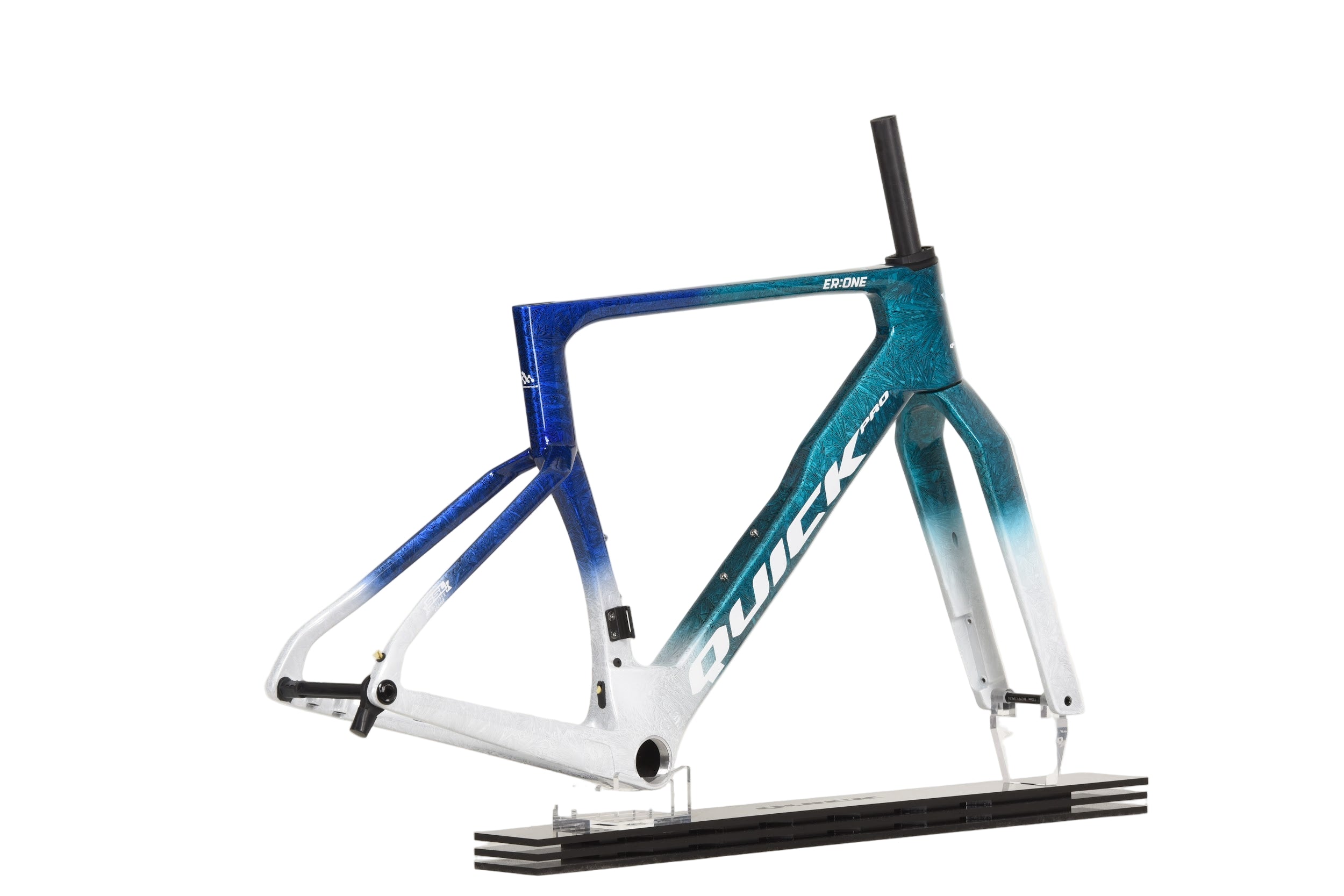

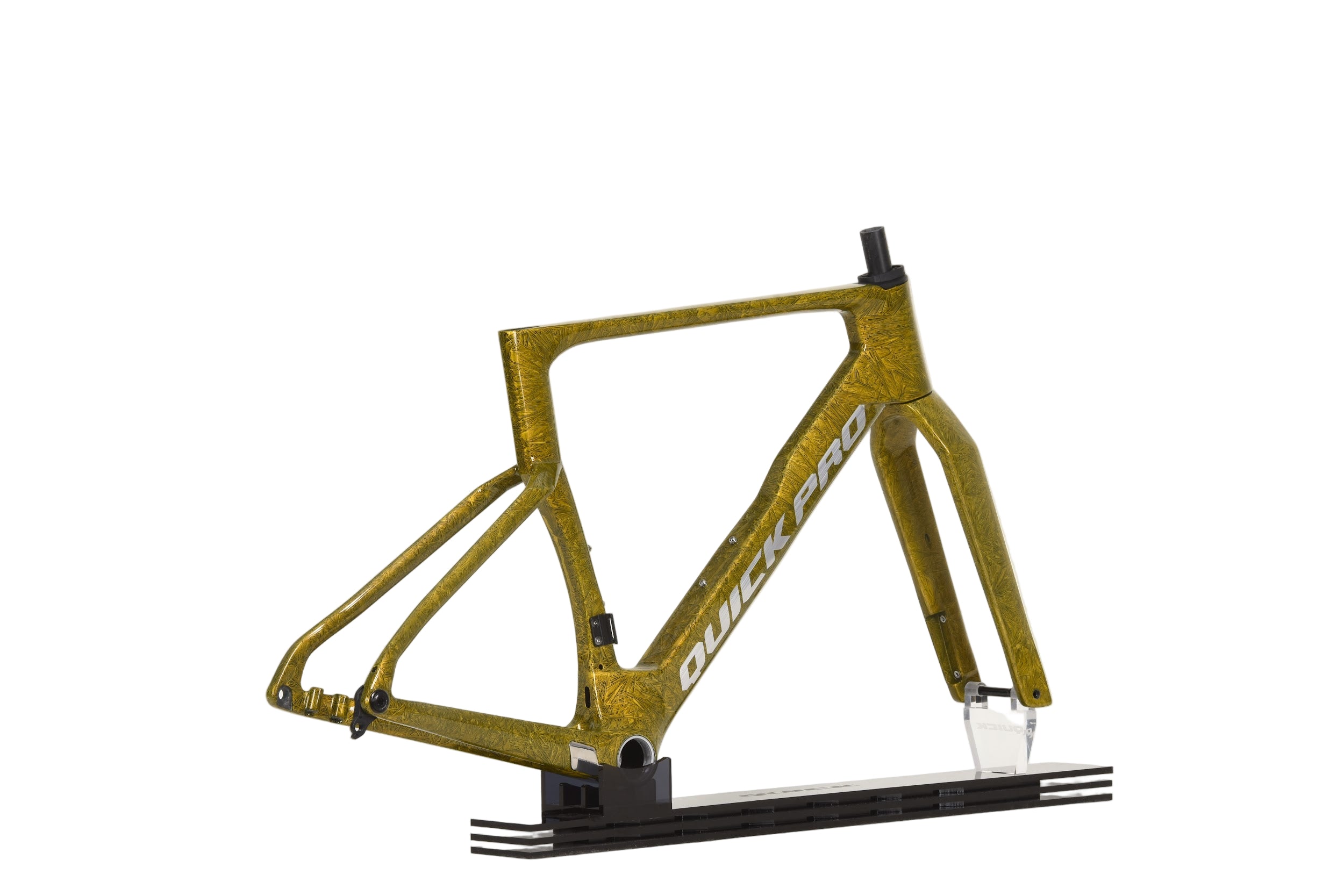

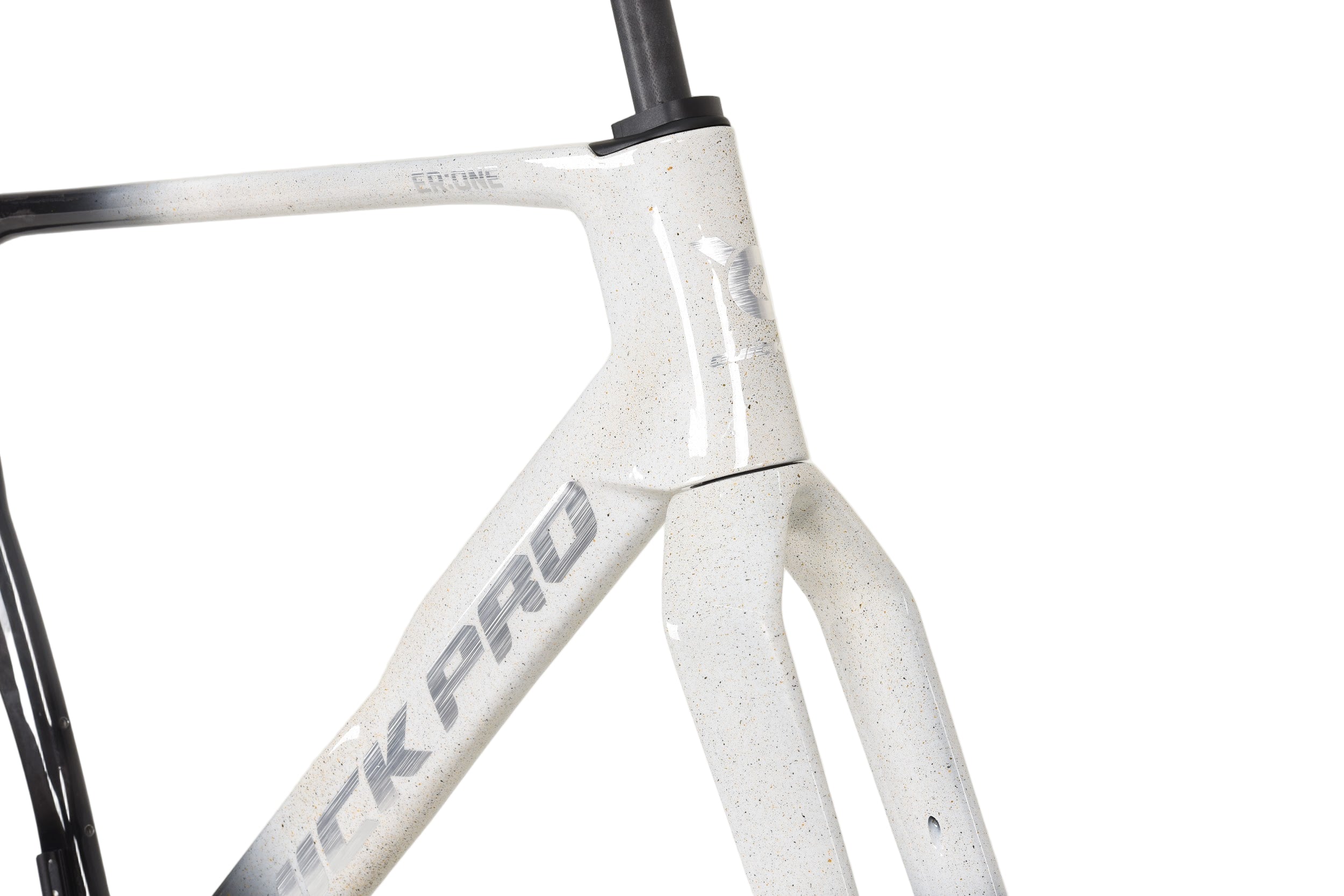

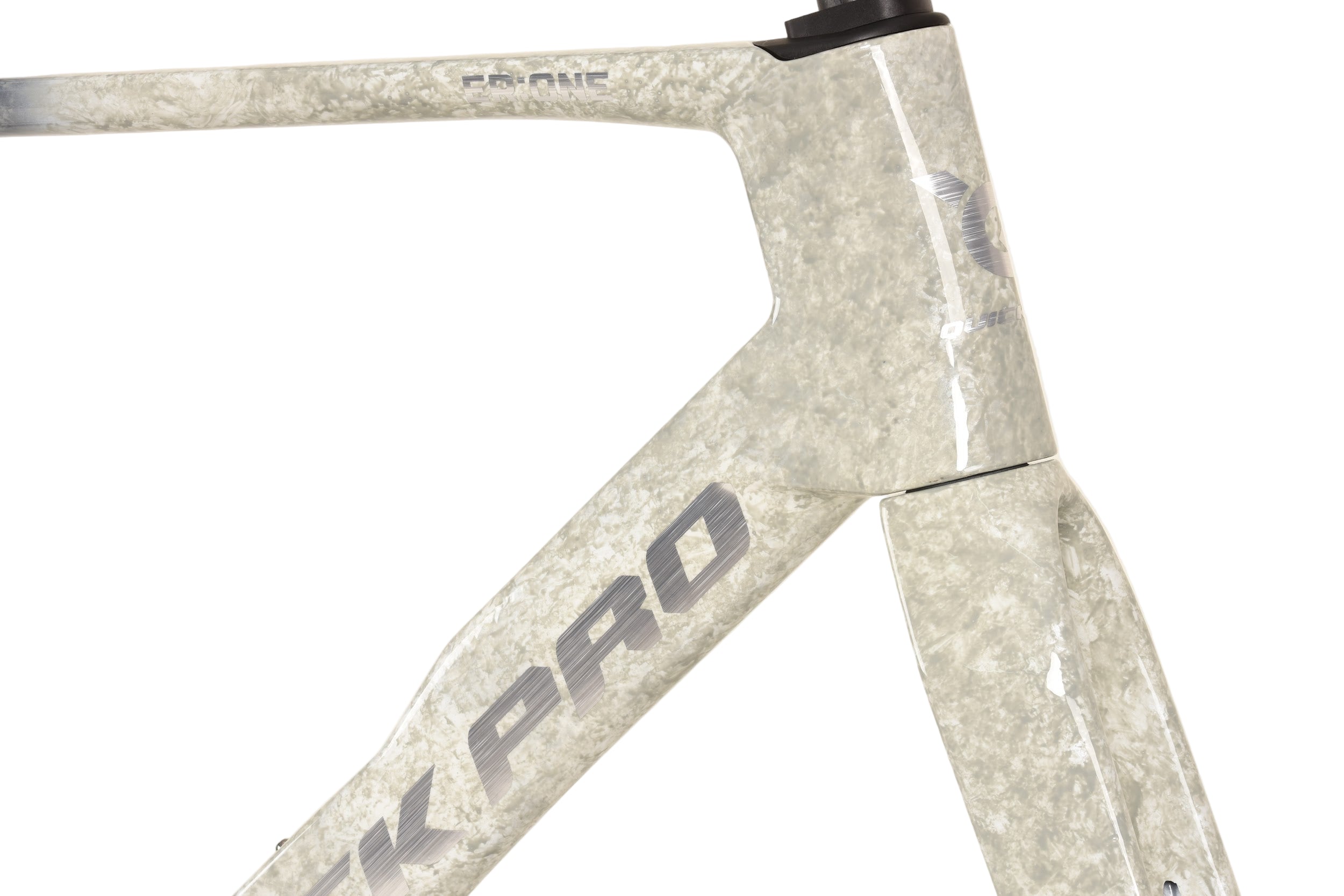

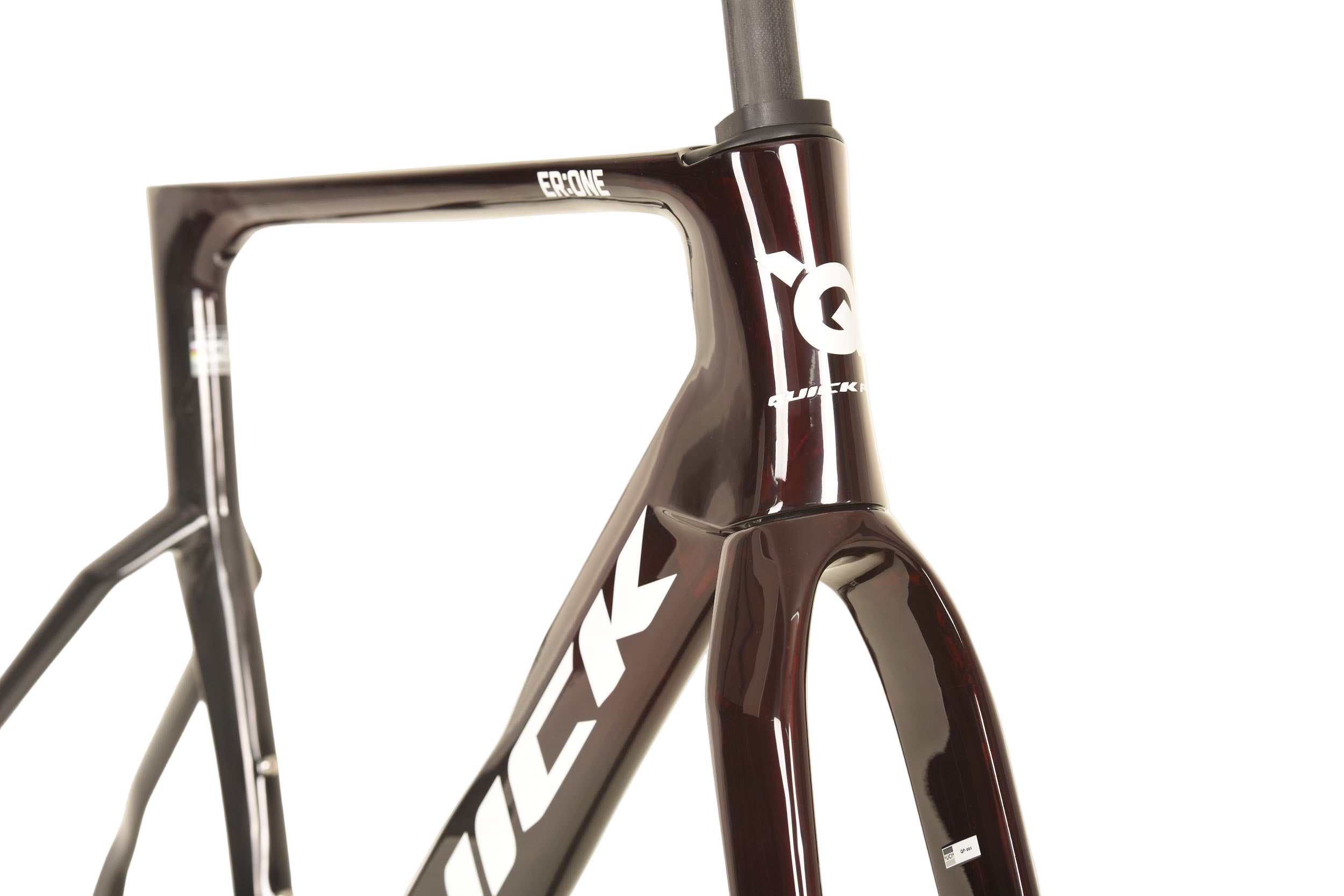

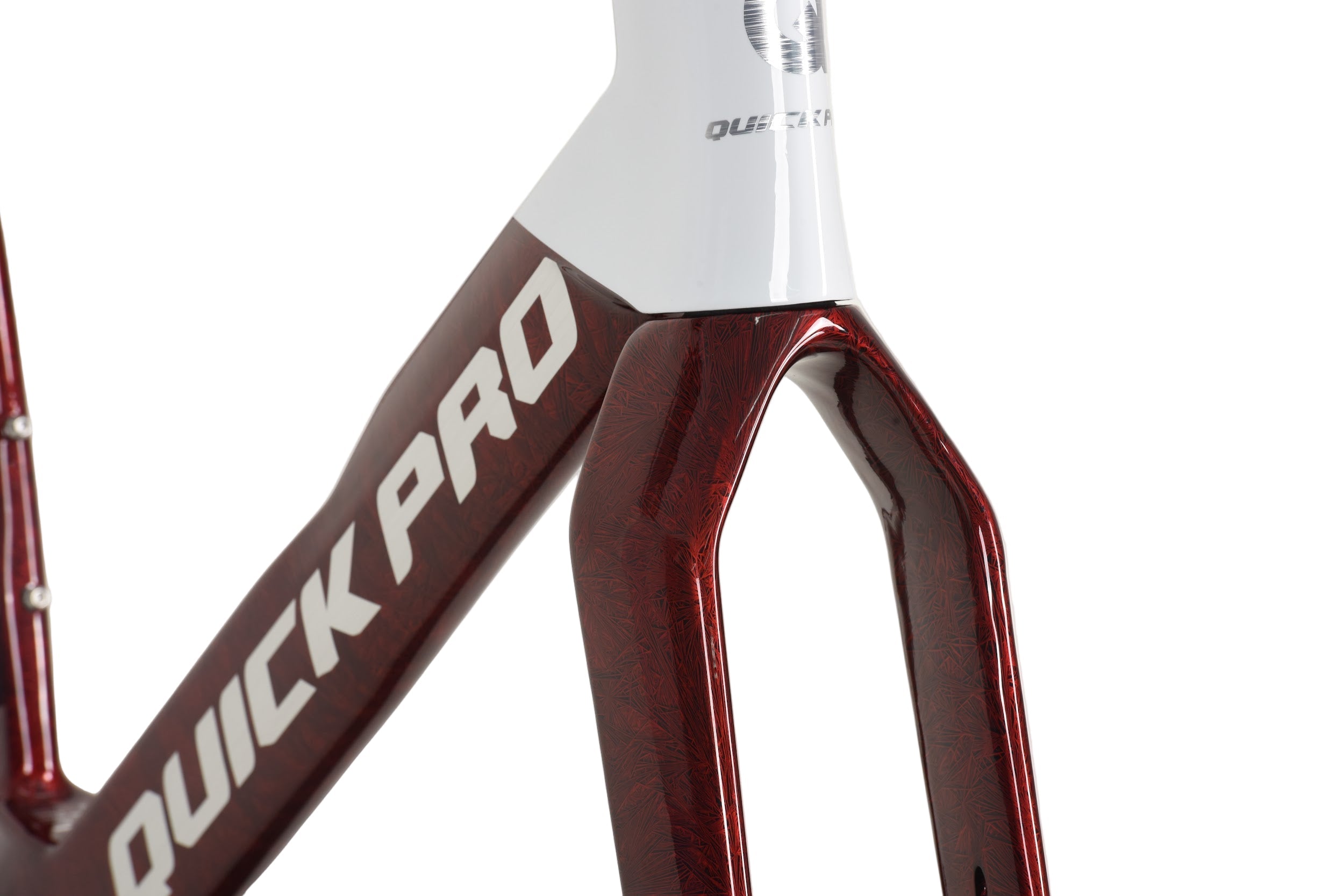

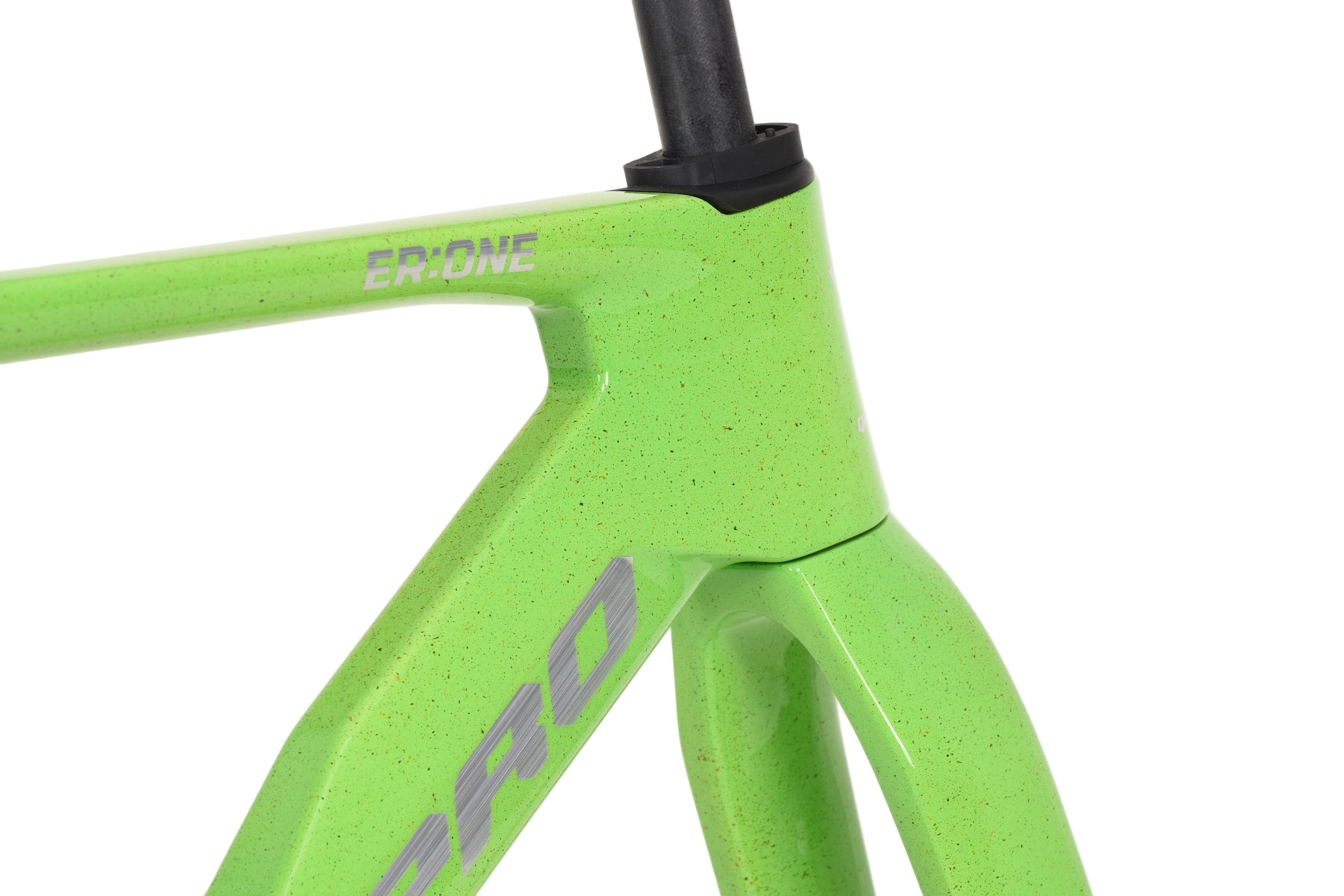

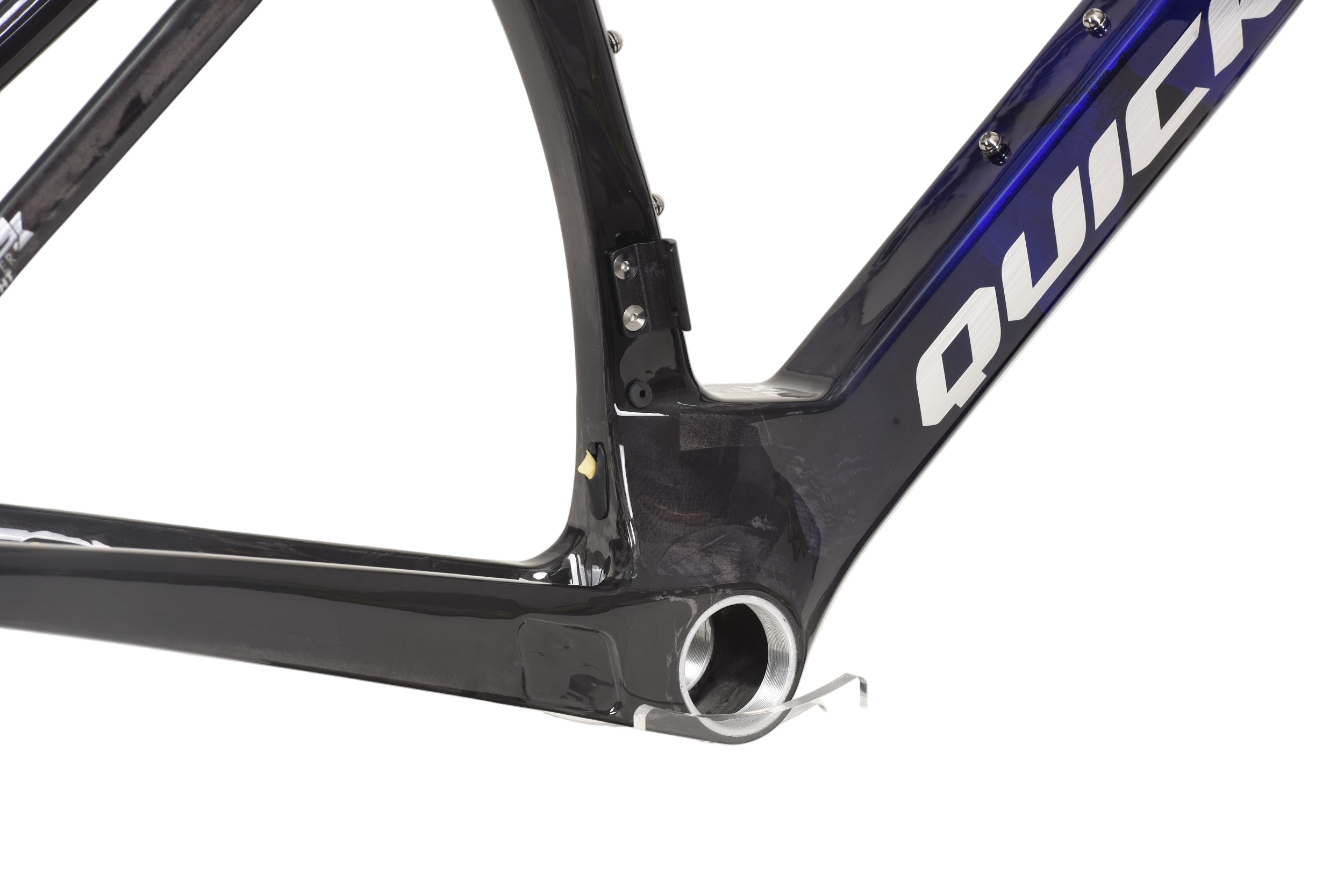

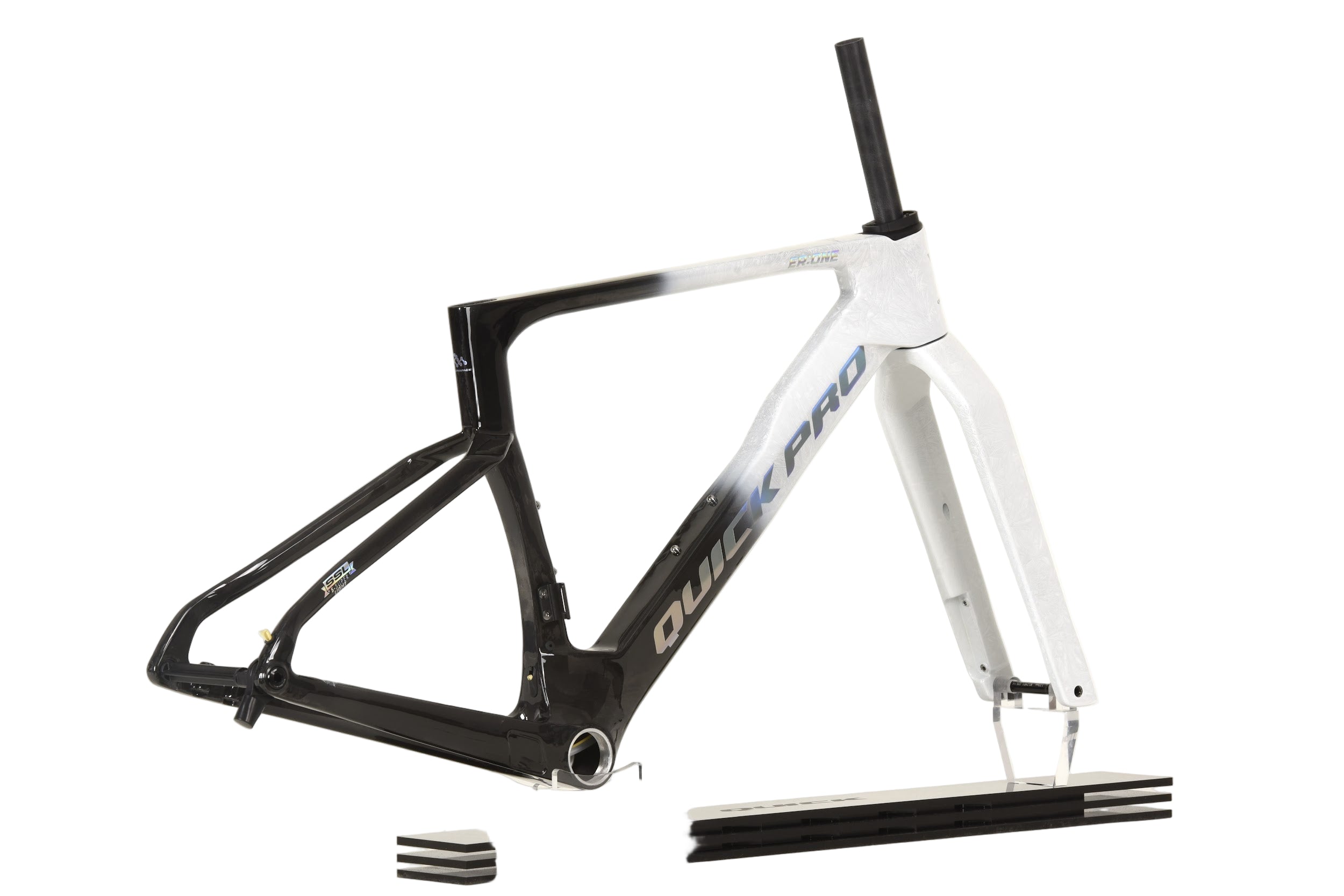

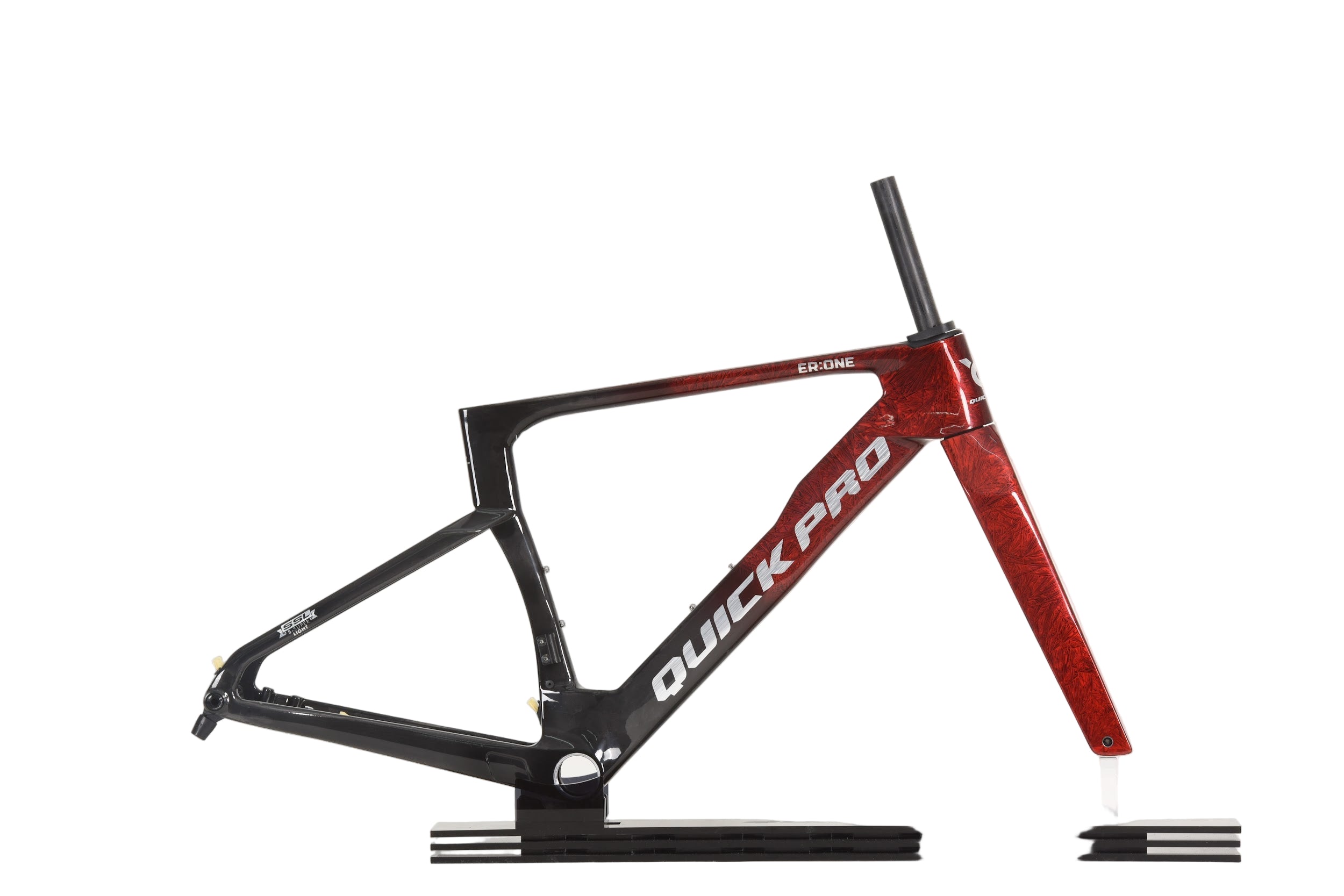

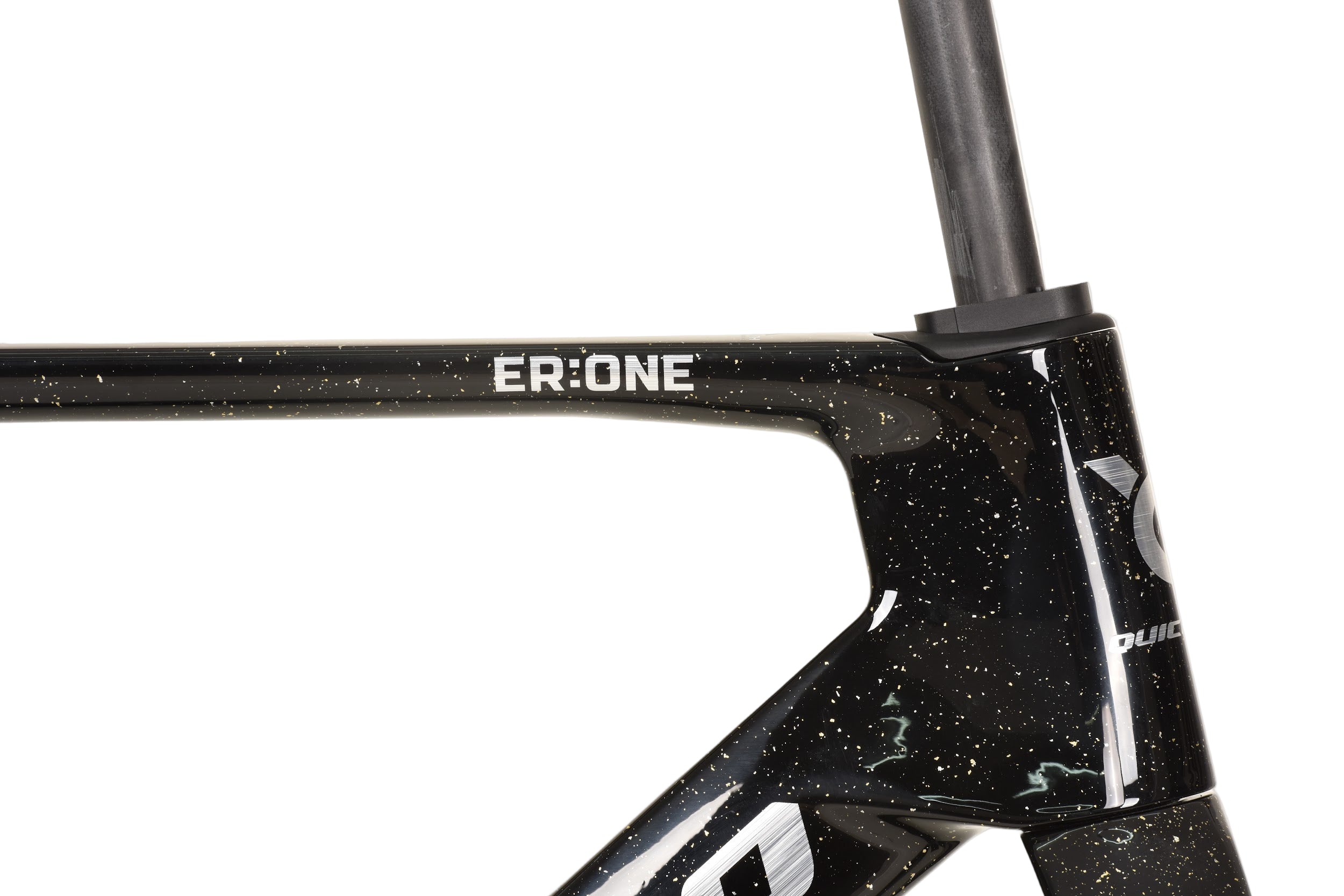

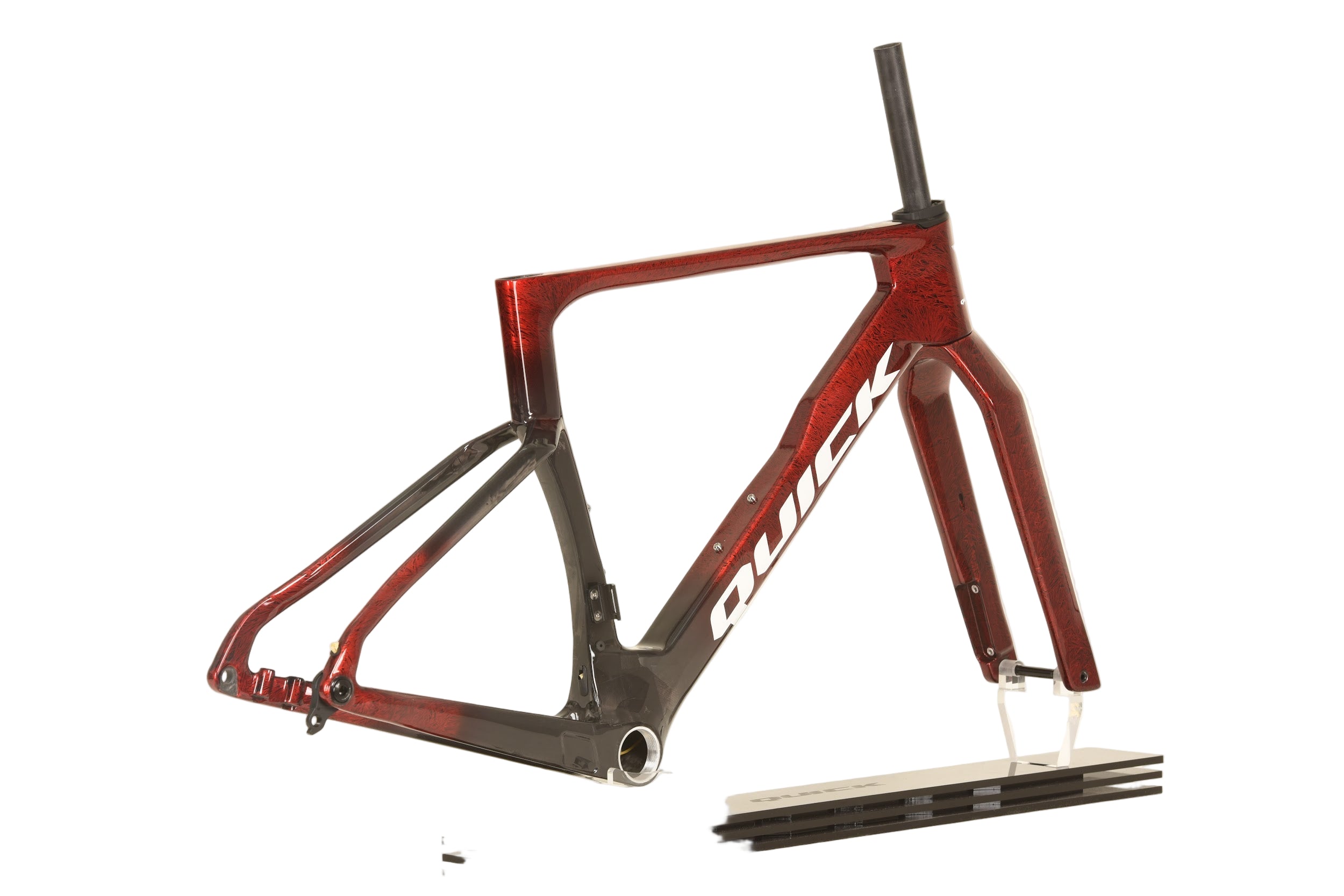

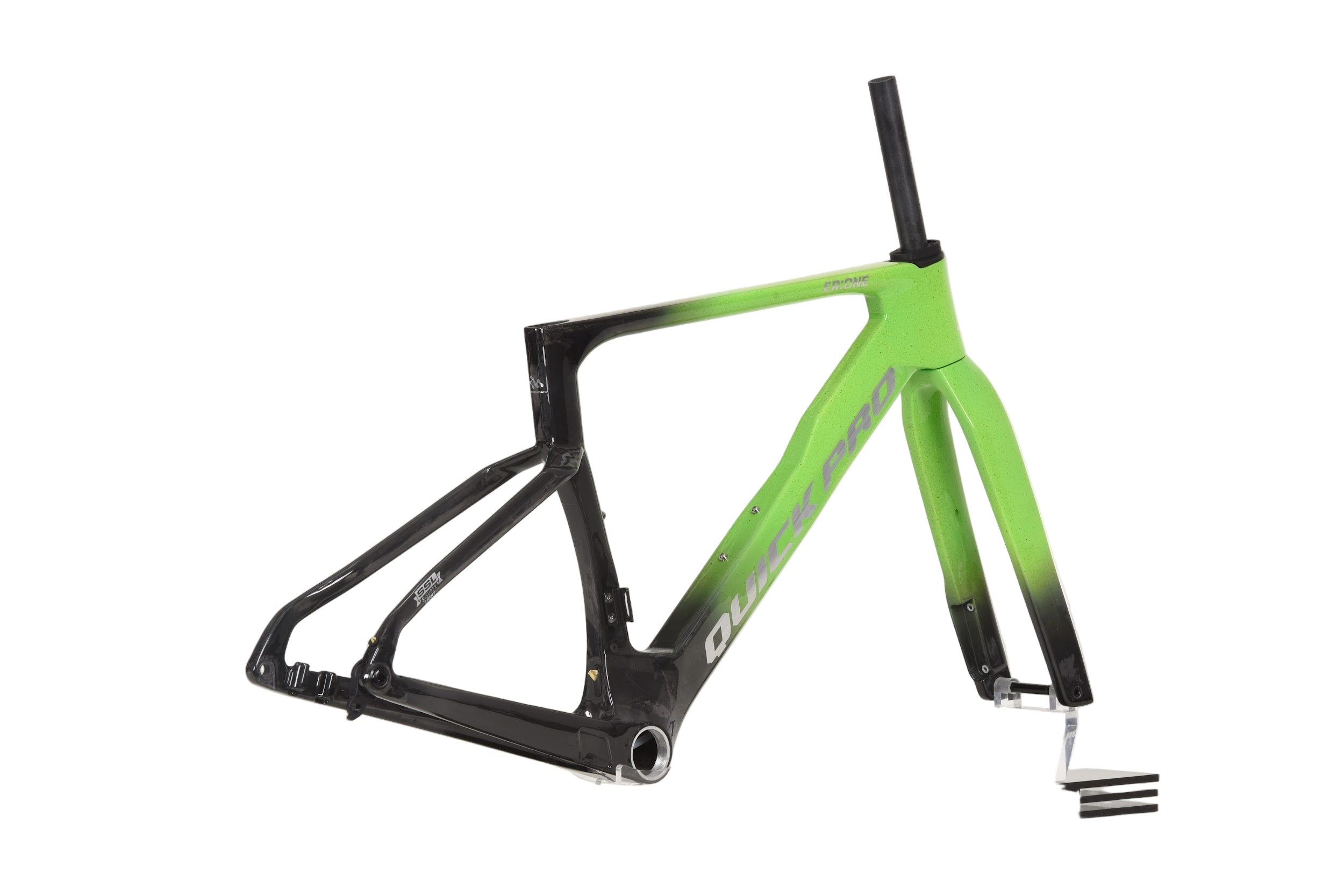

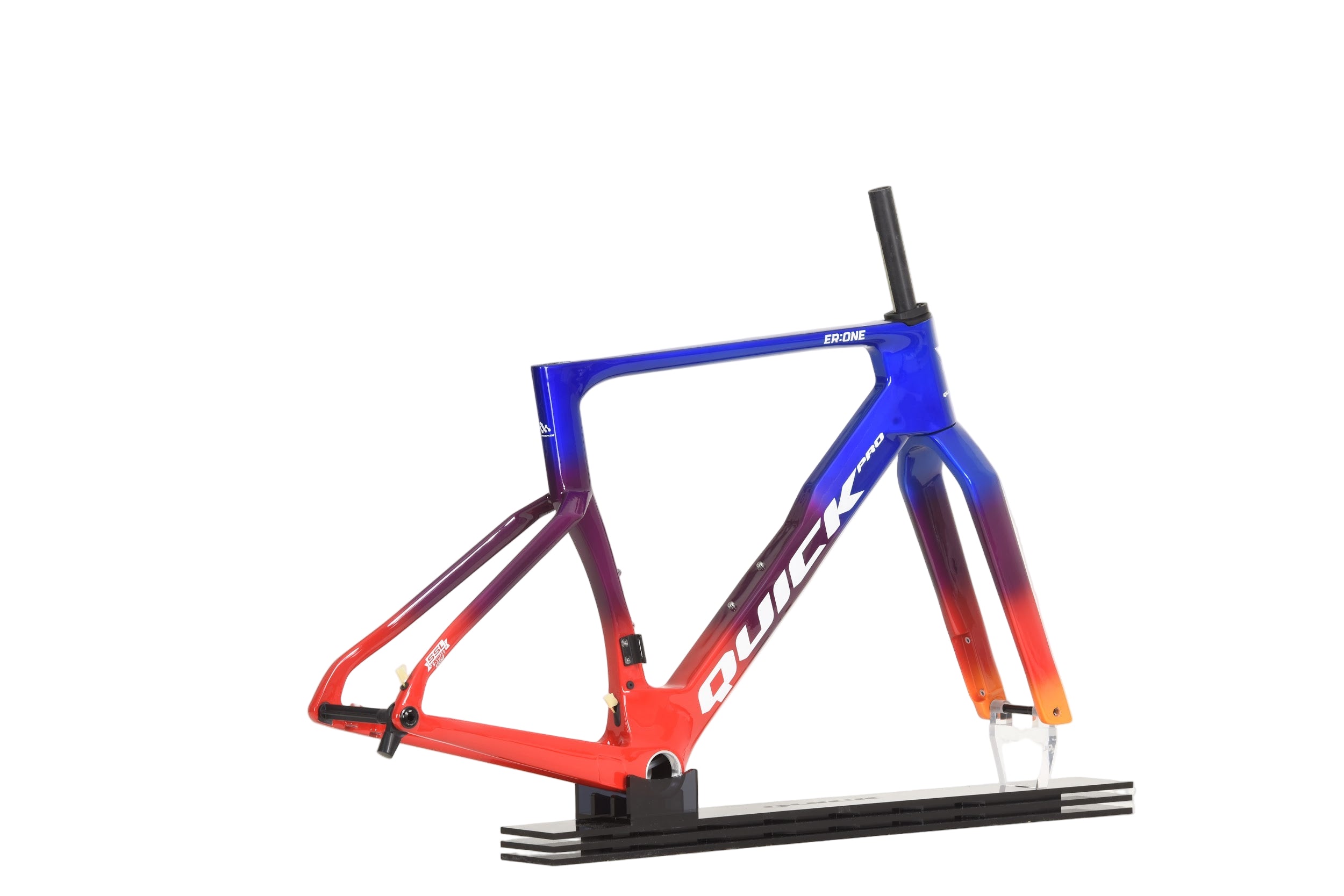

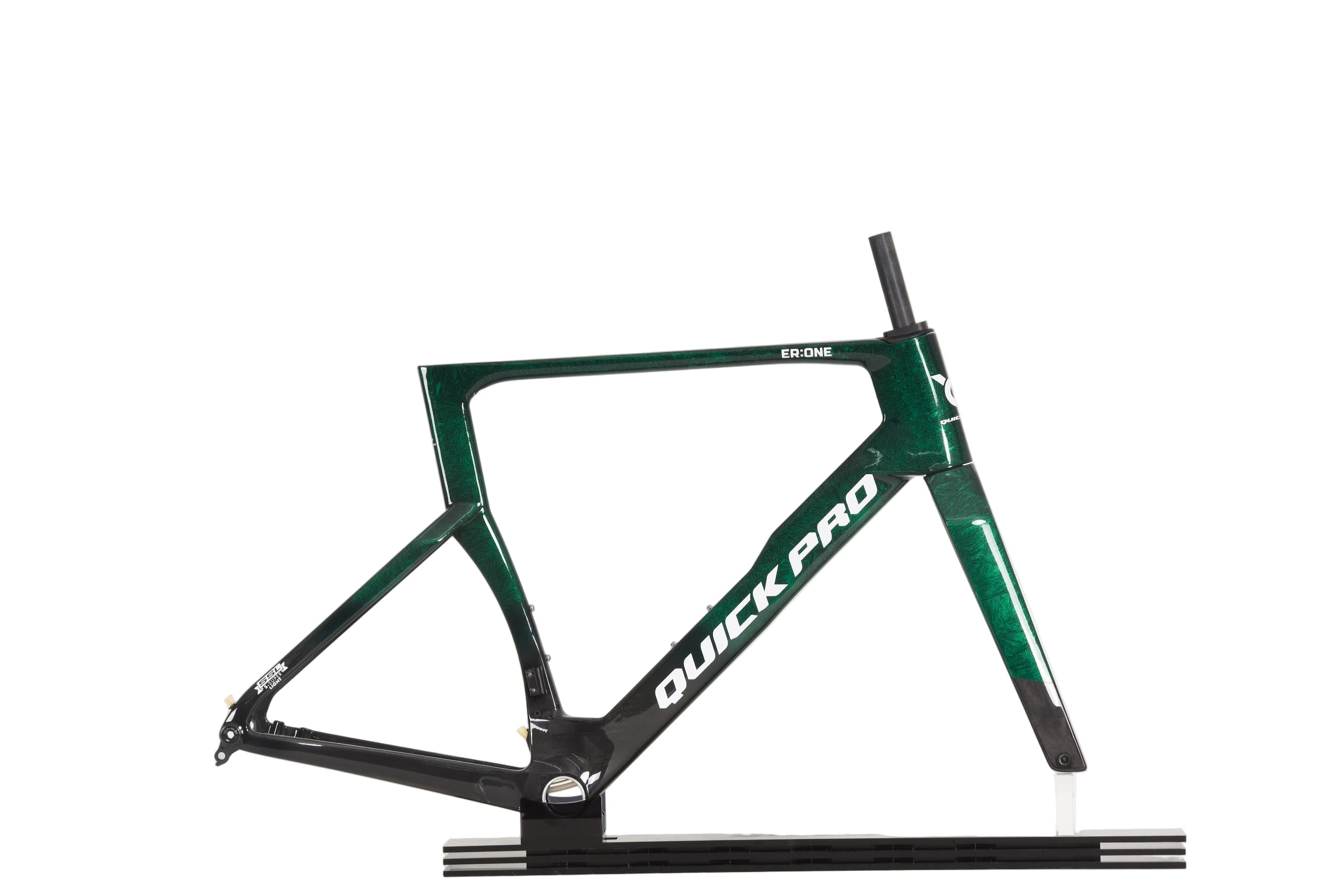

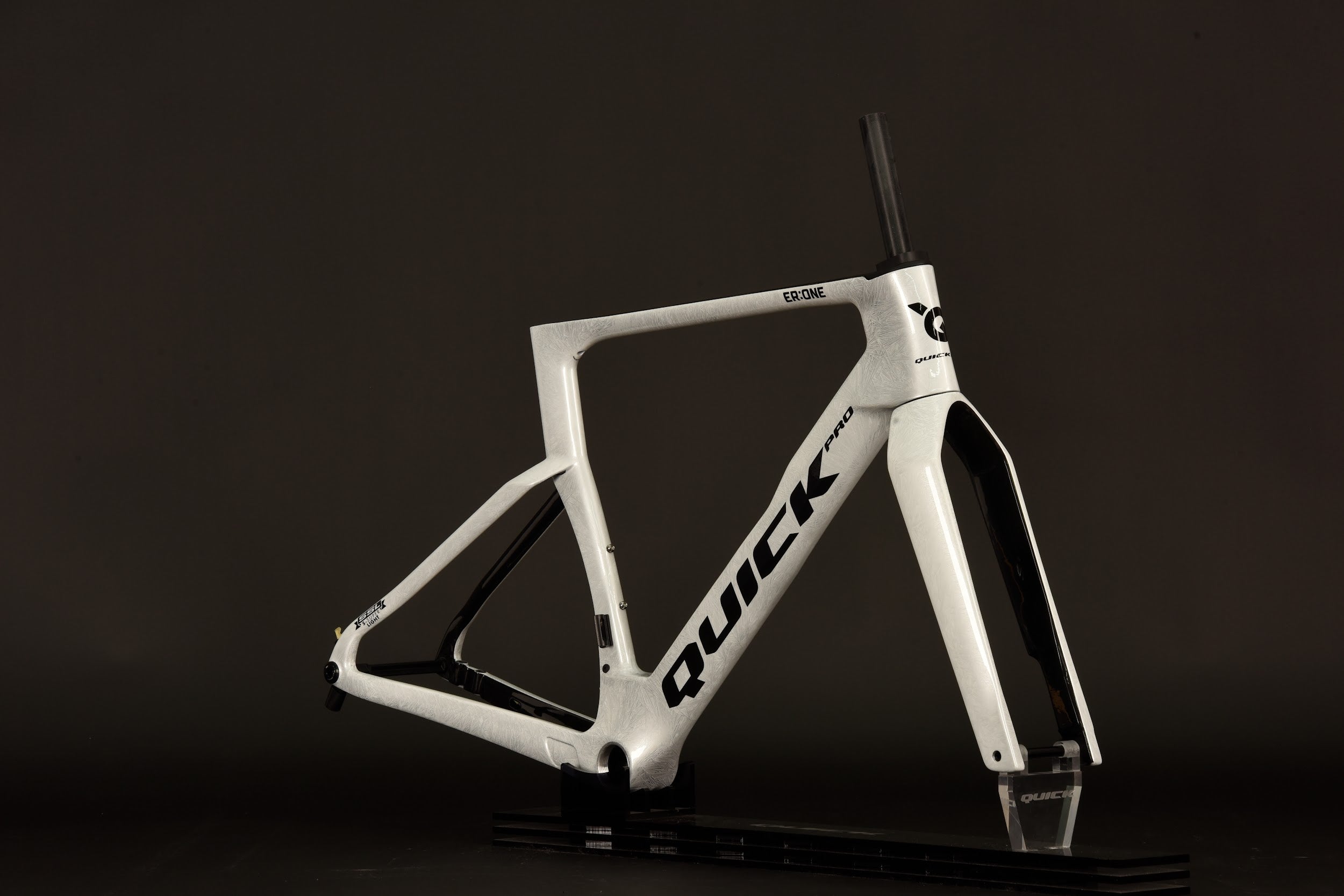

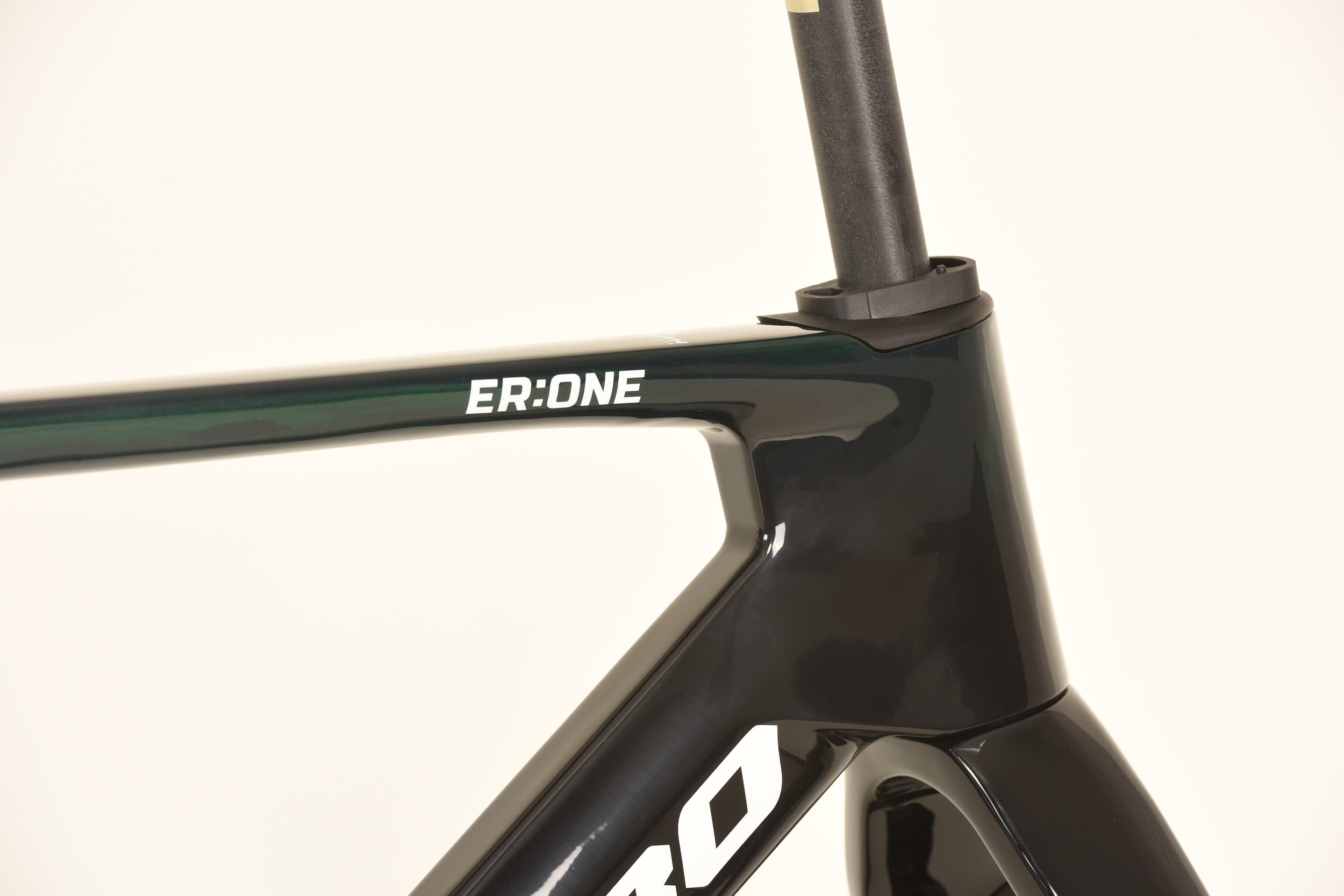

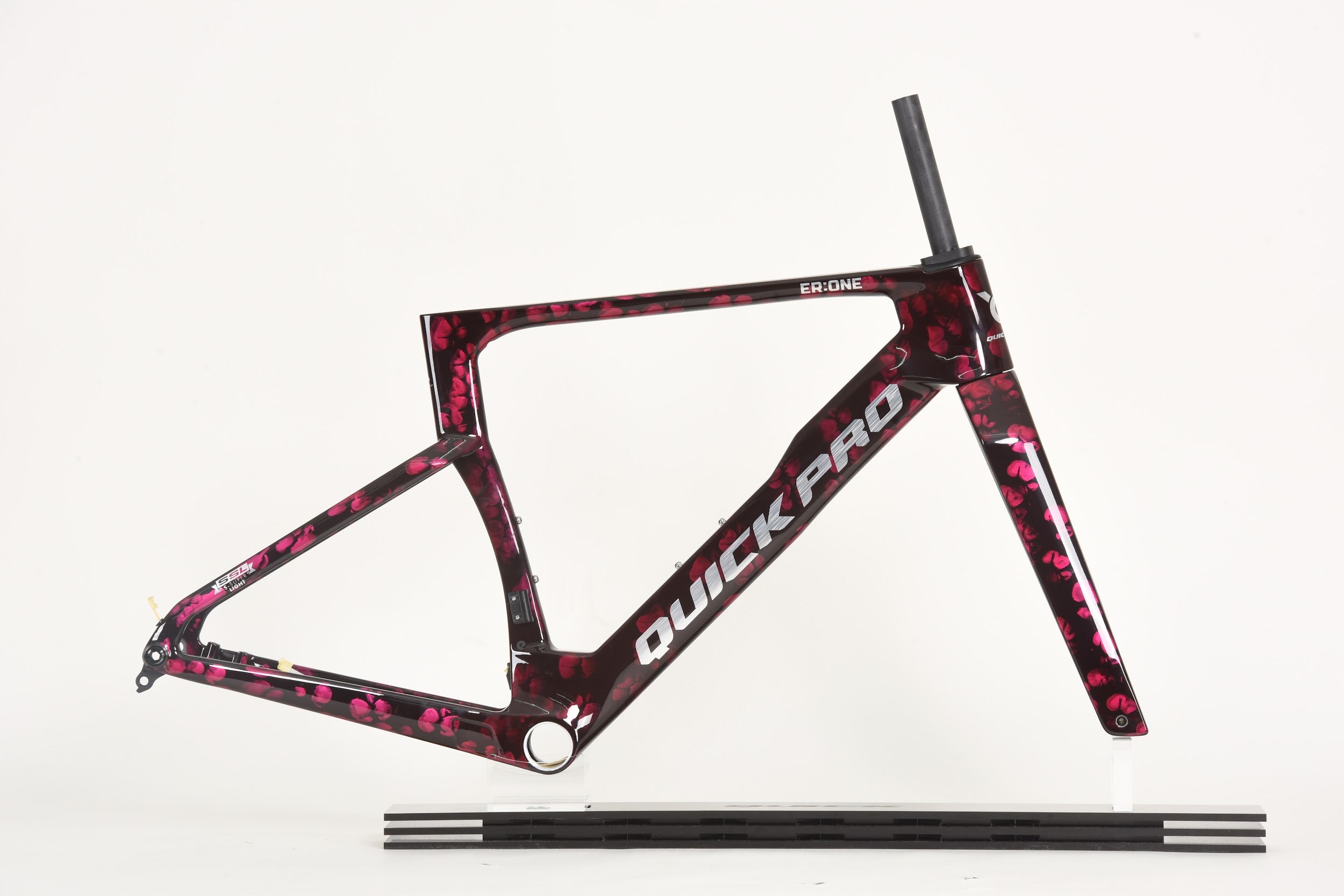

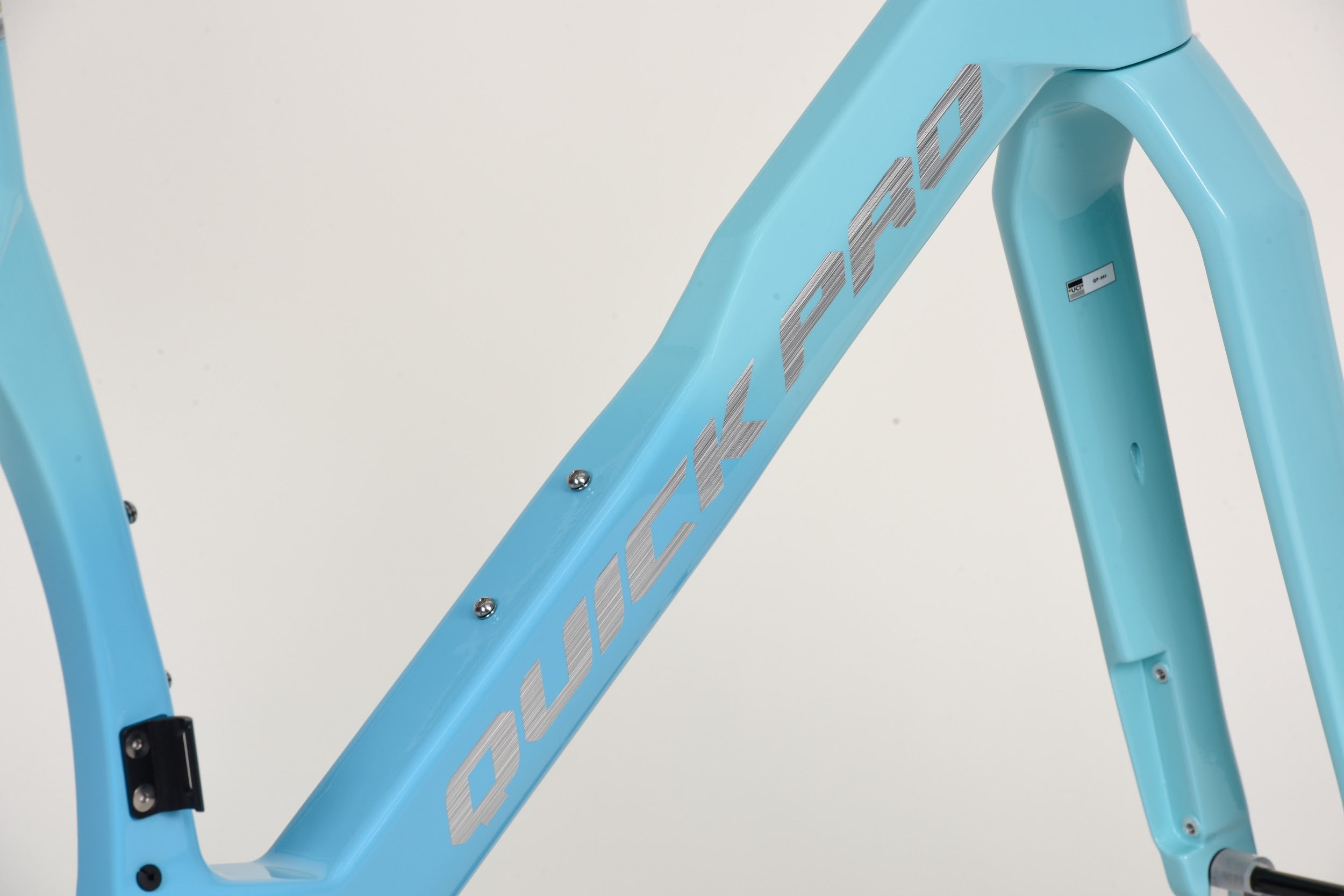

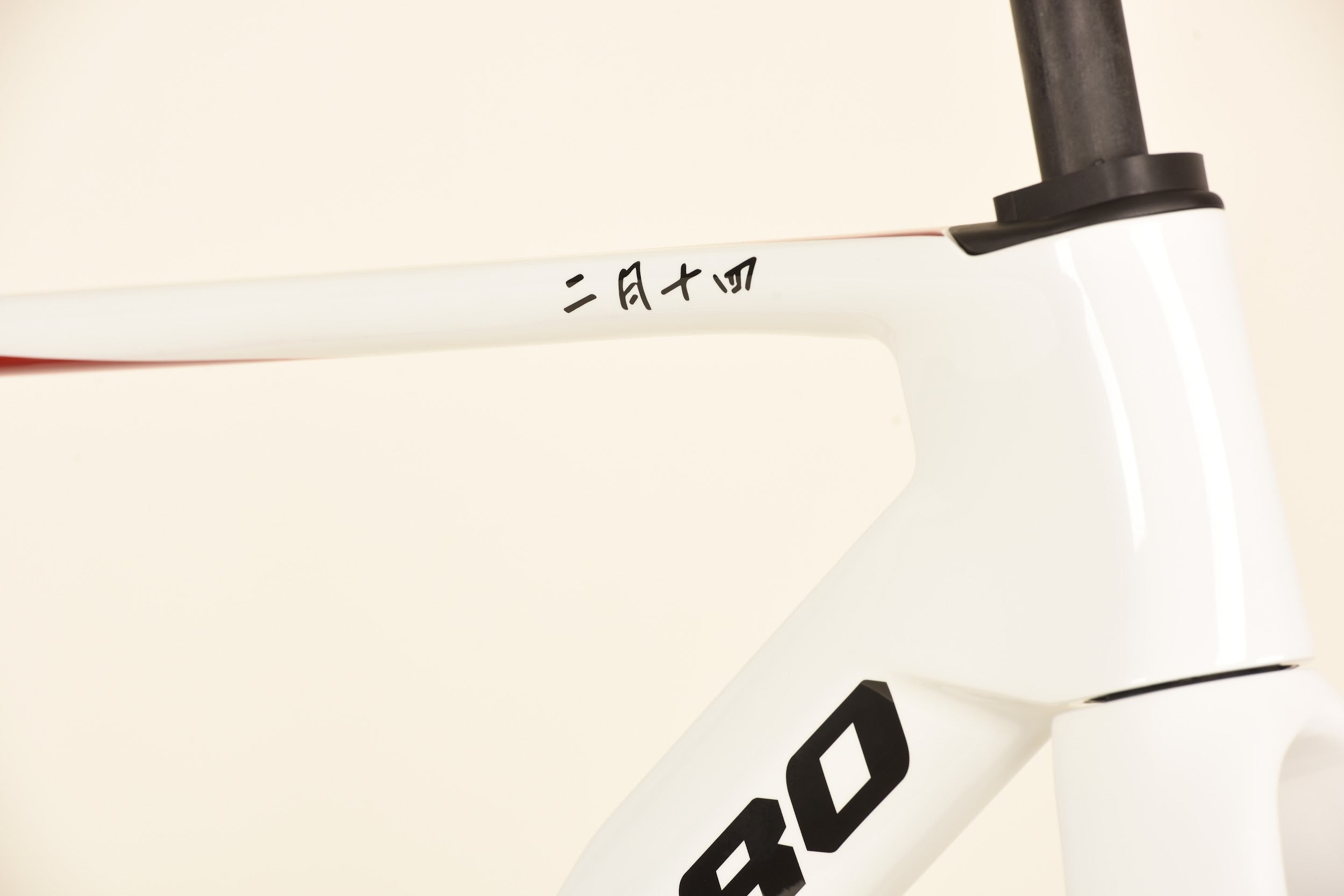

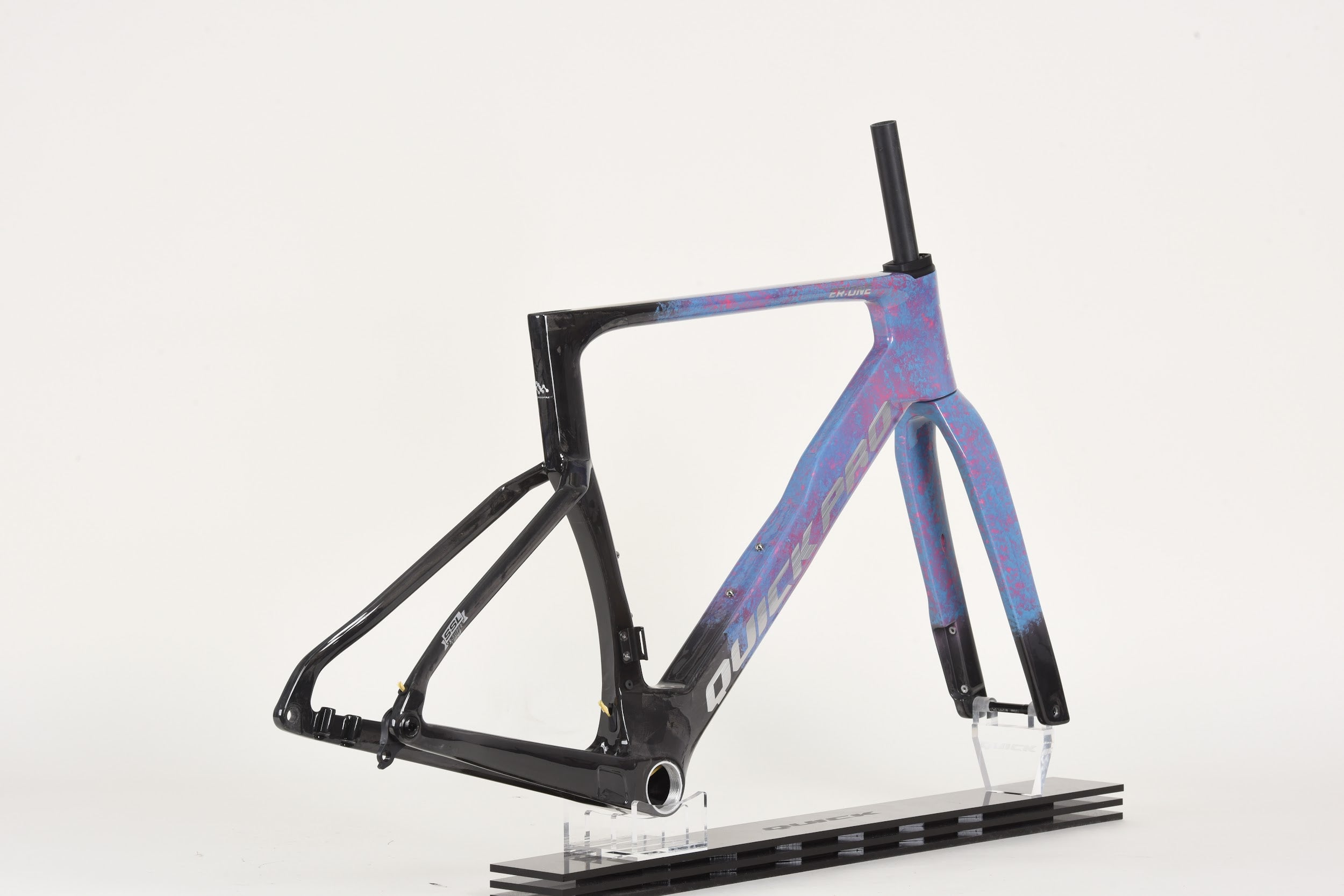

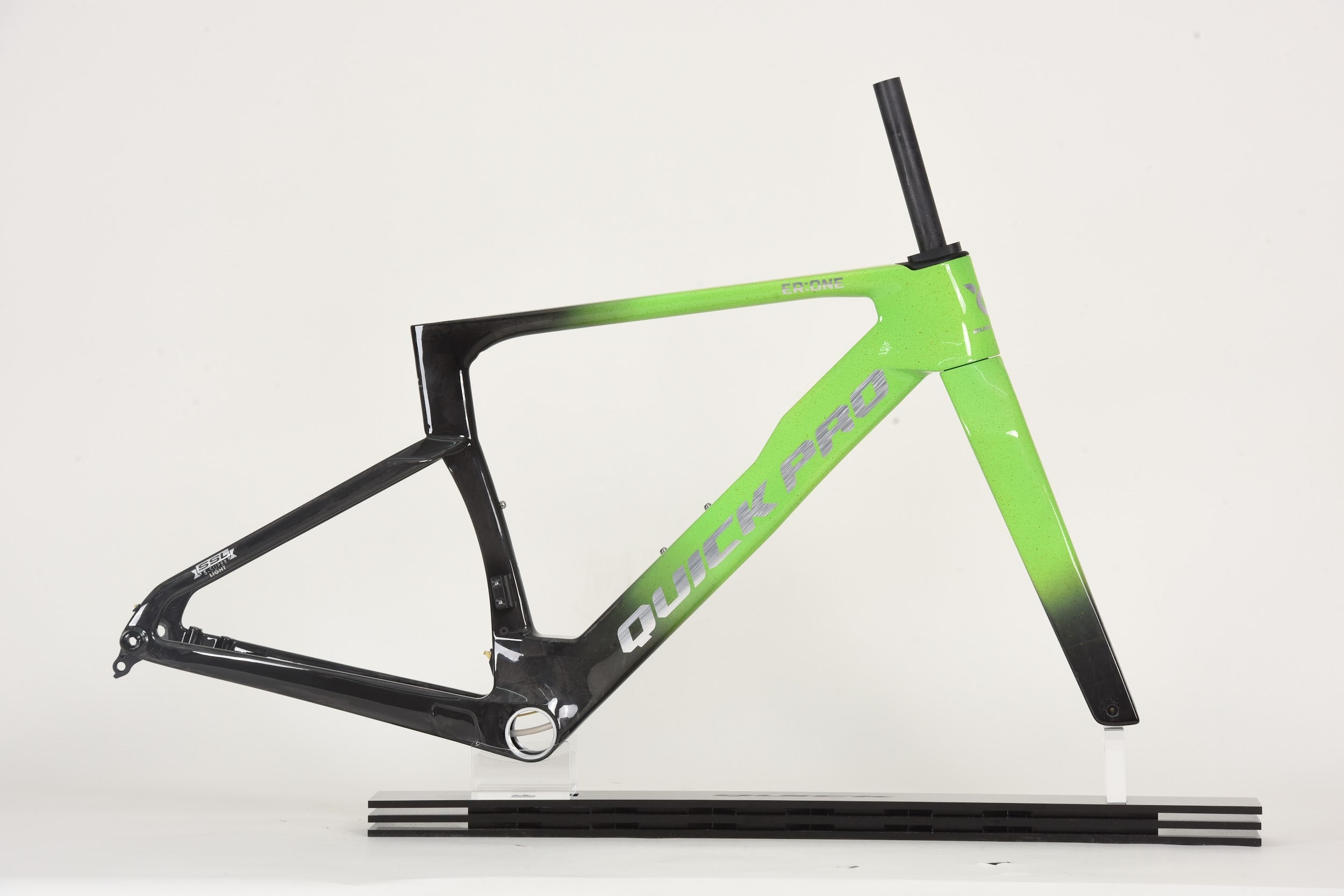

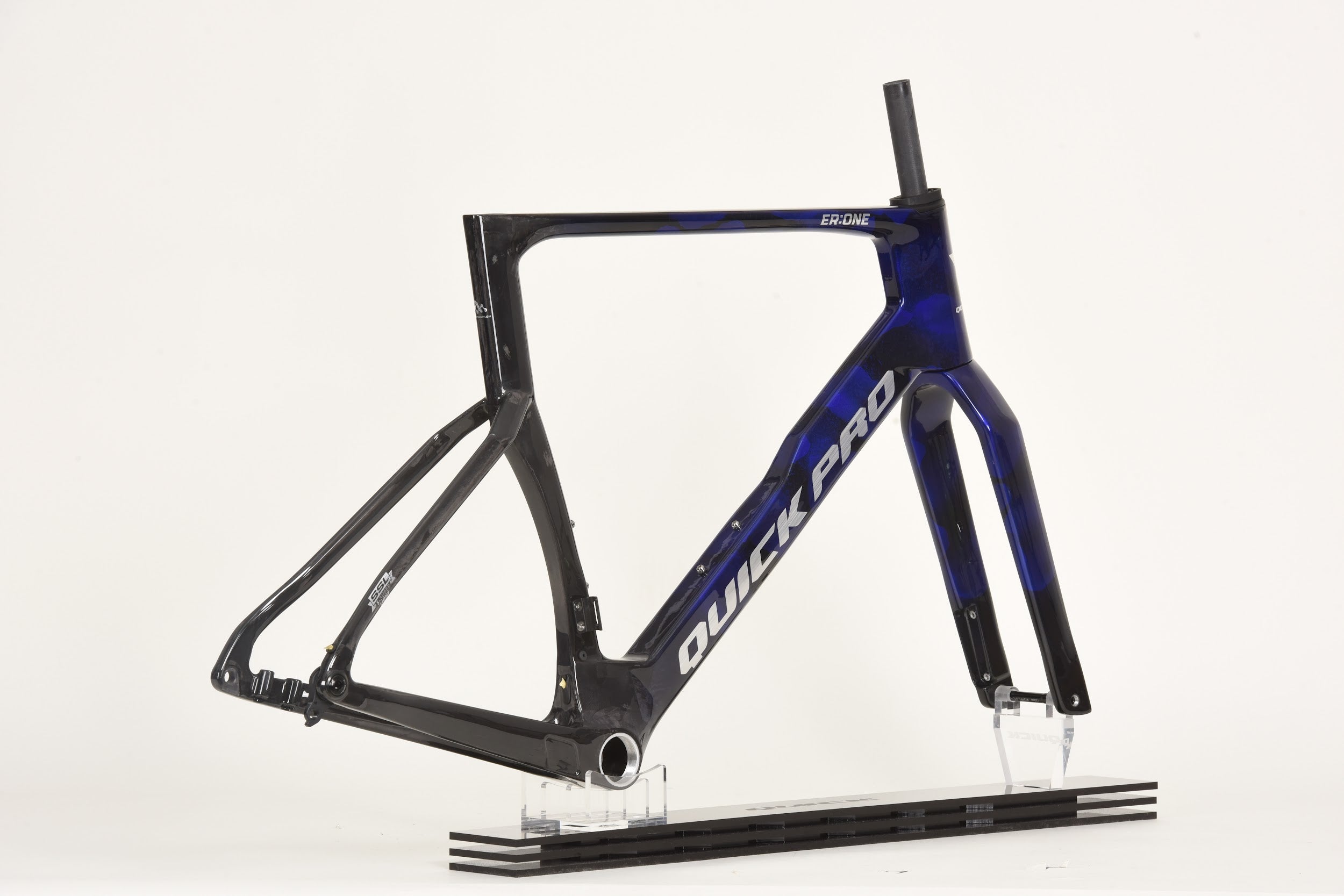

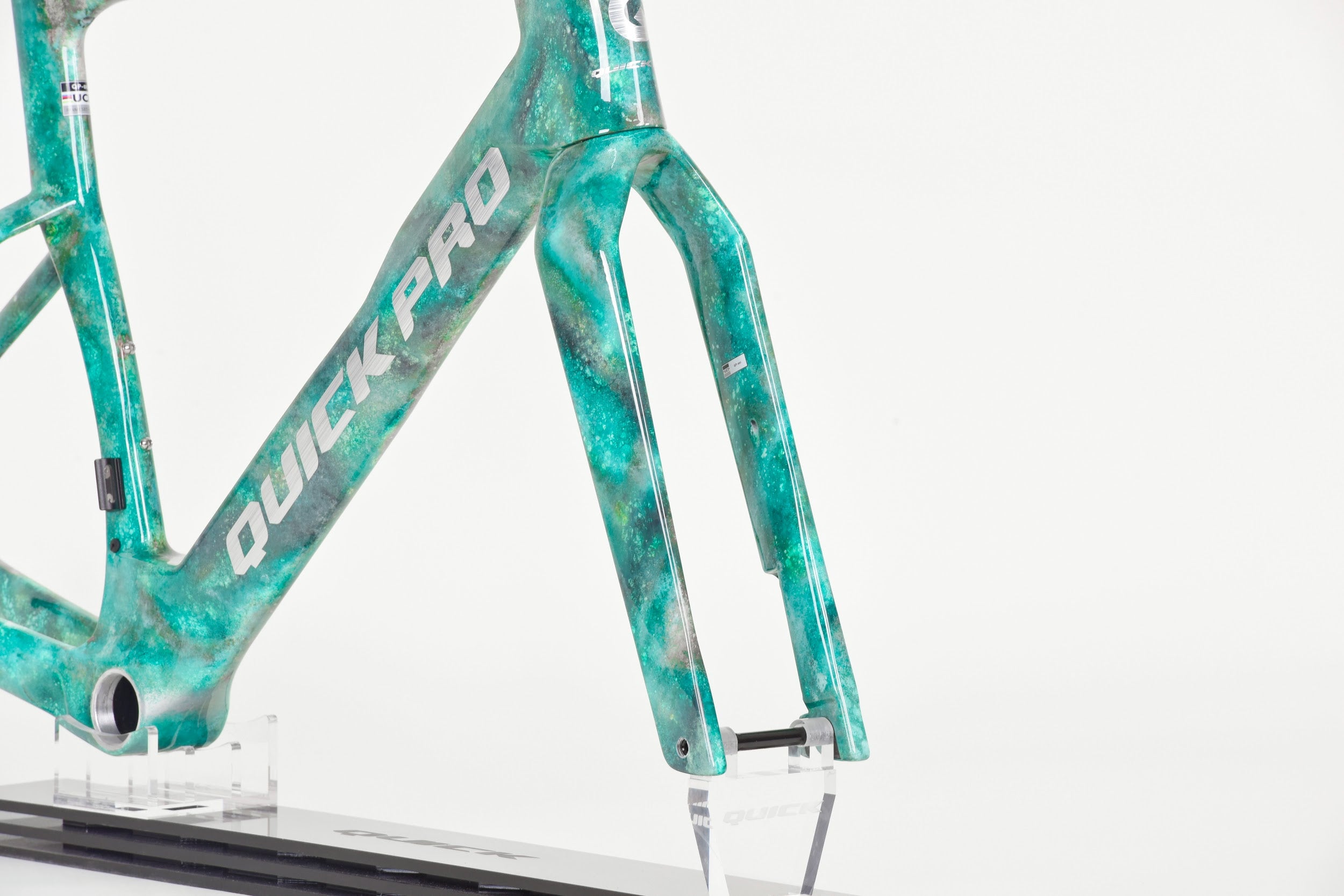

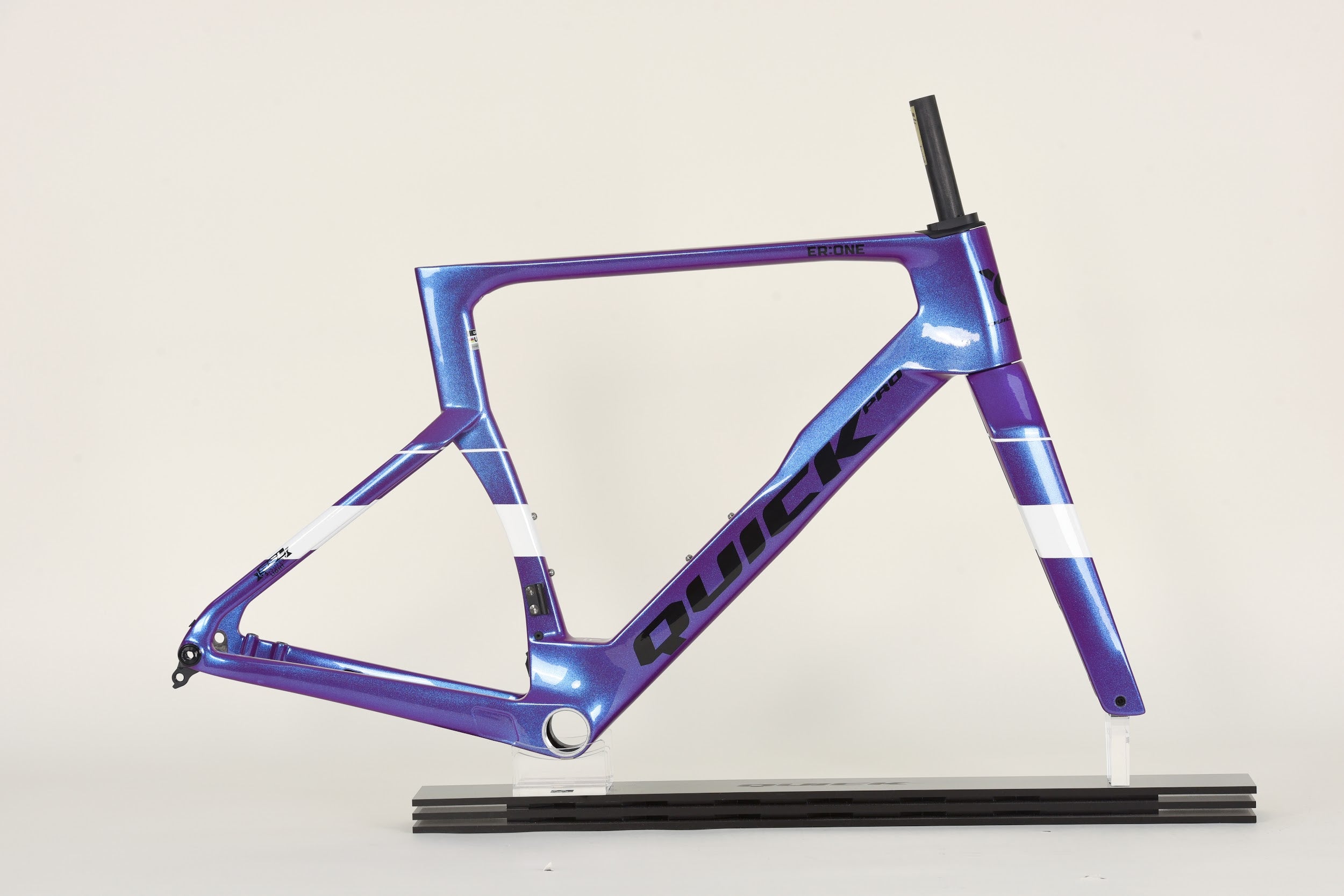

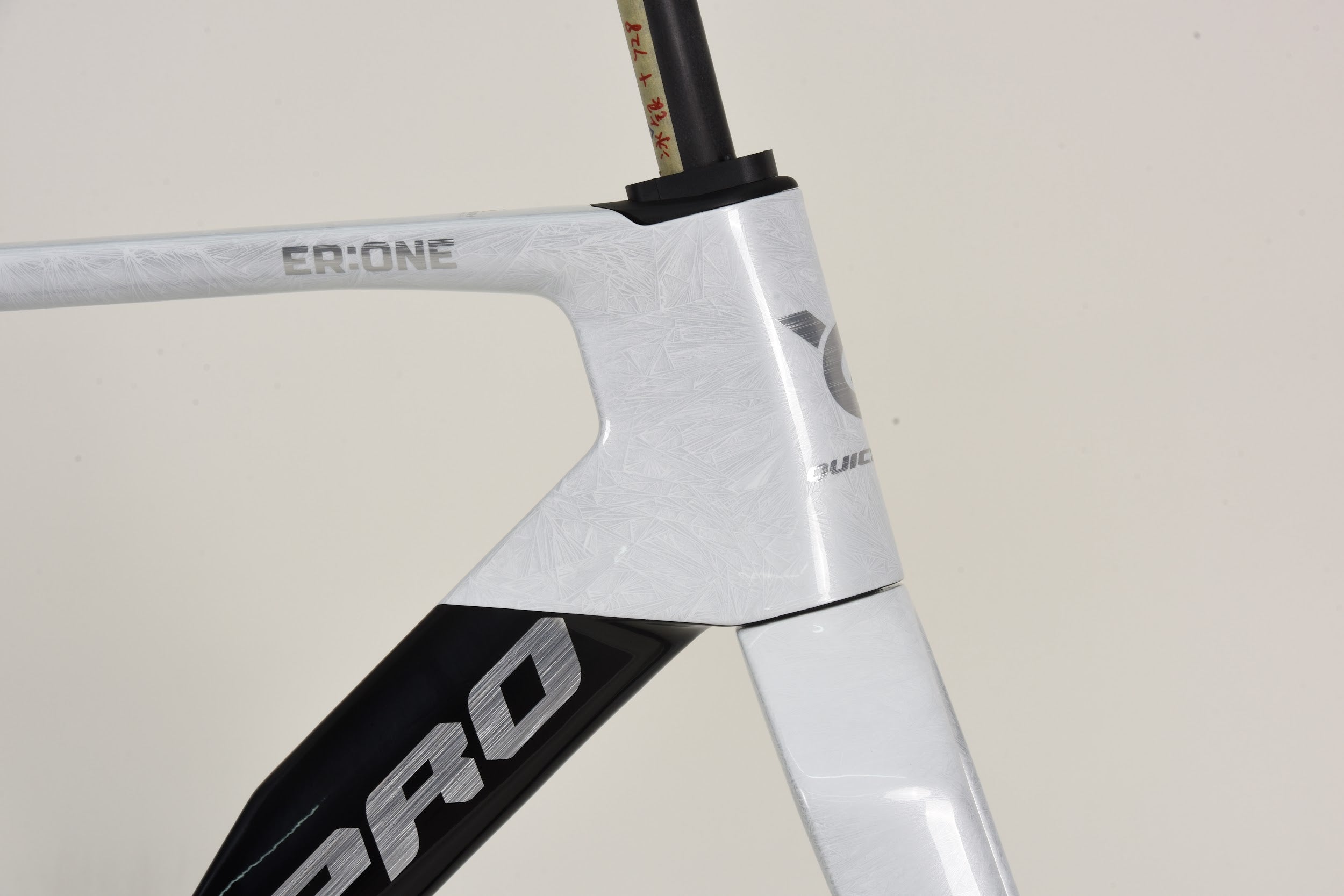

ER:ONE CUSTOM COLOR
Couldn't load pickup availability
-
Estimated Shipping:Aug 31 - Sep 04

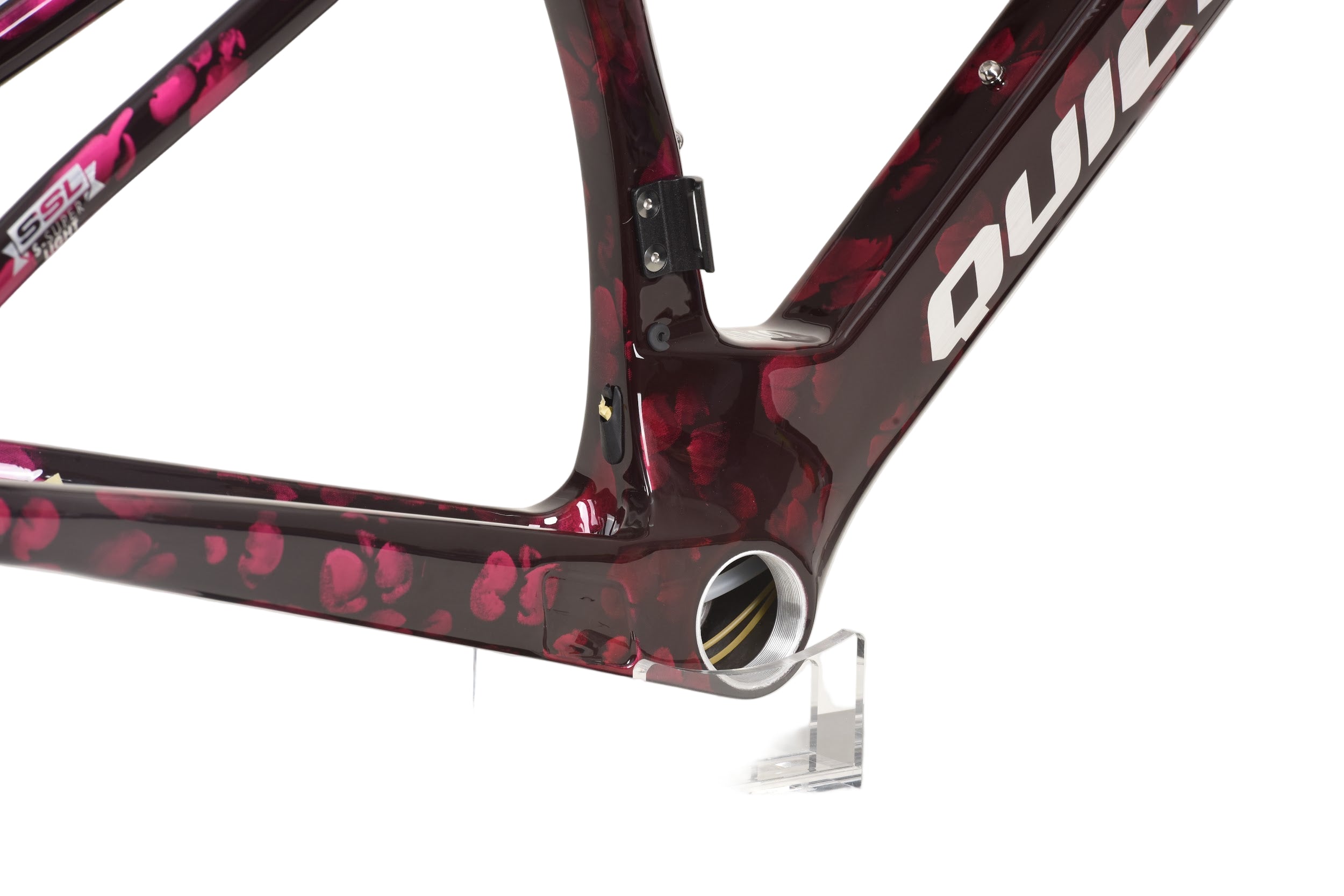

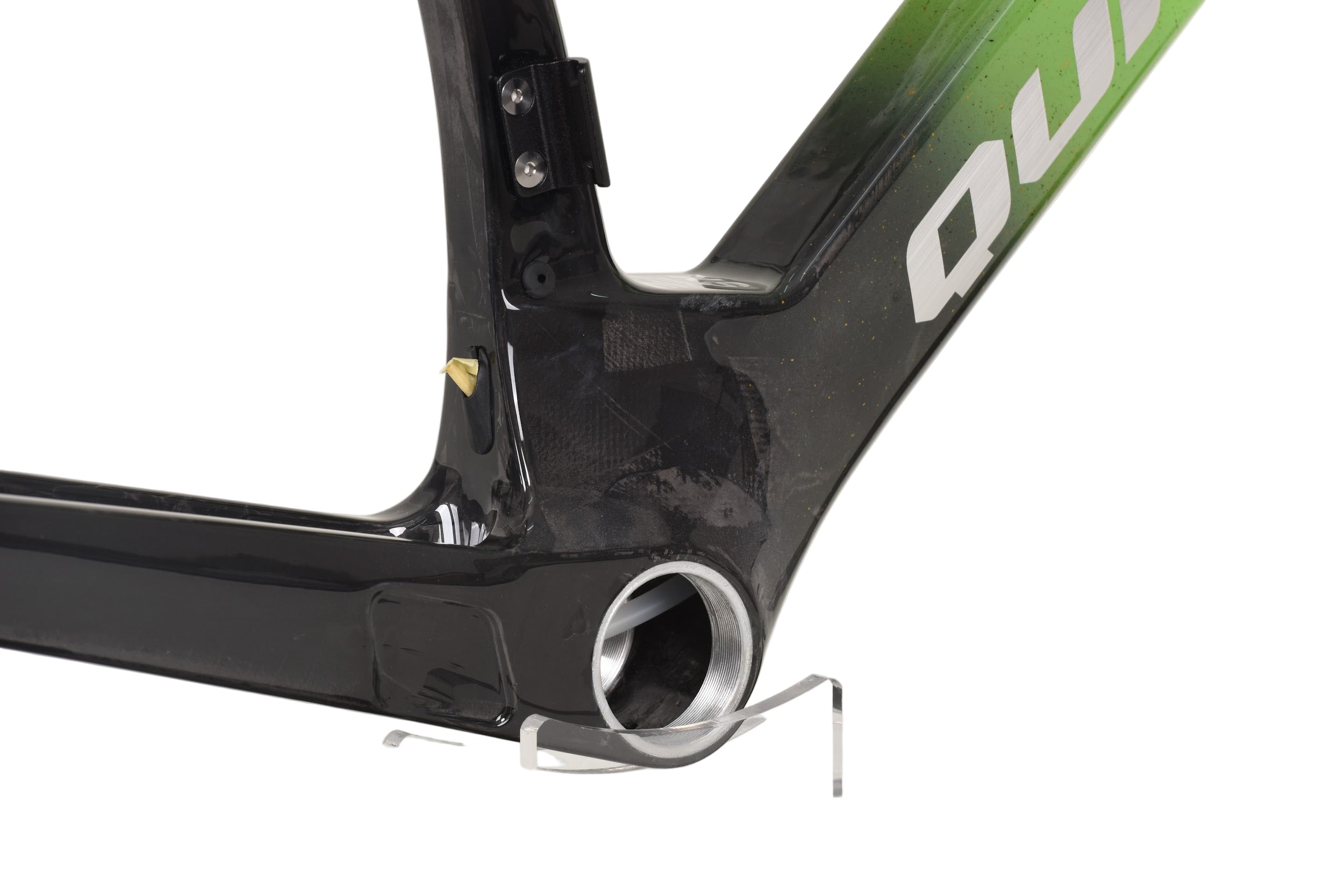

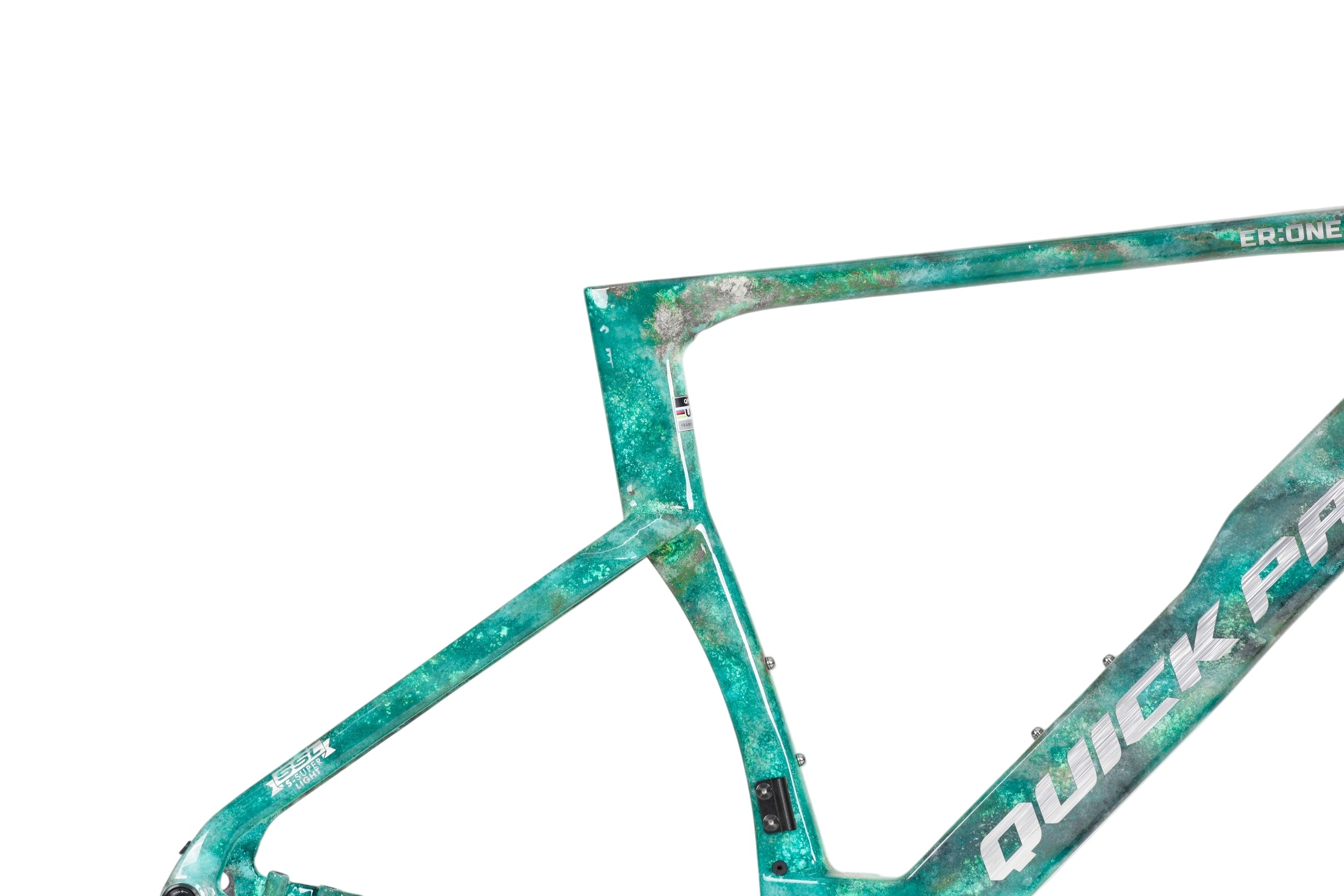

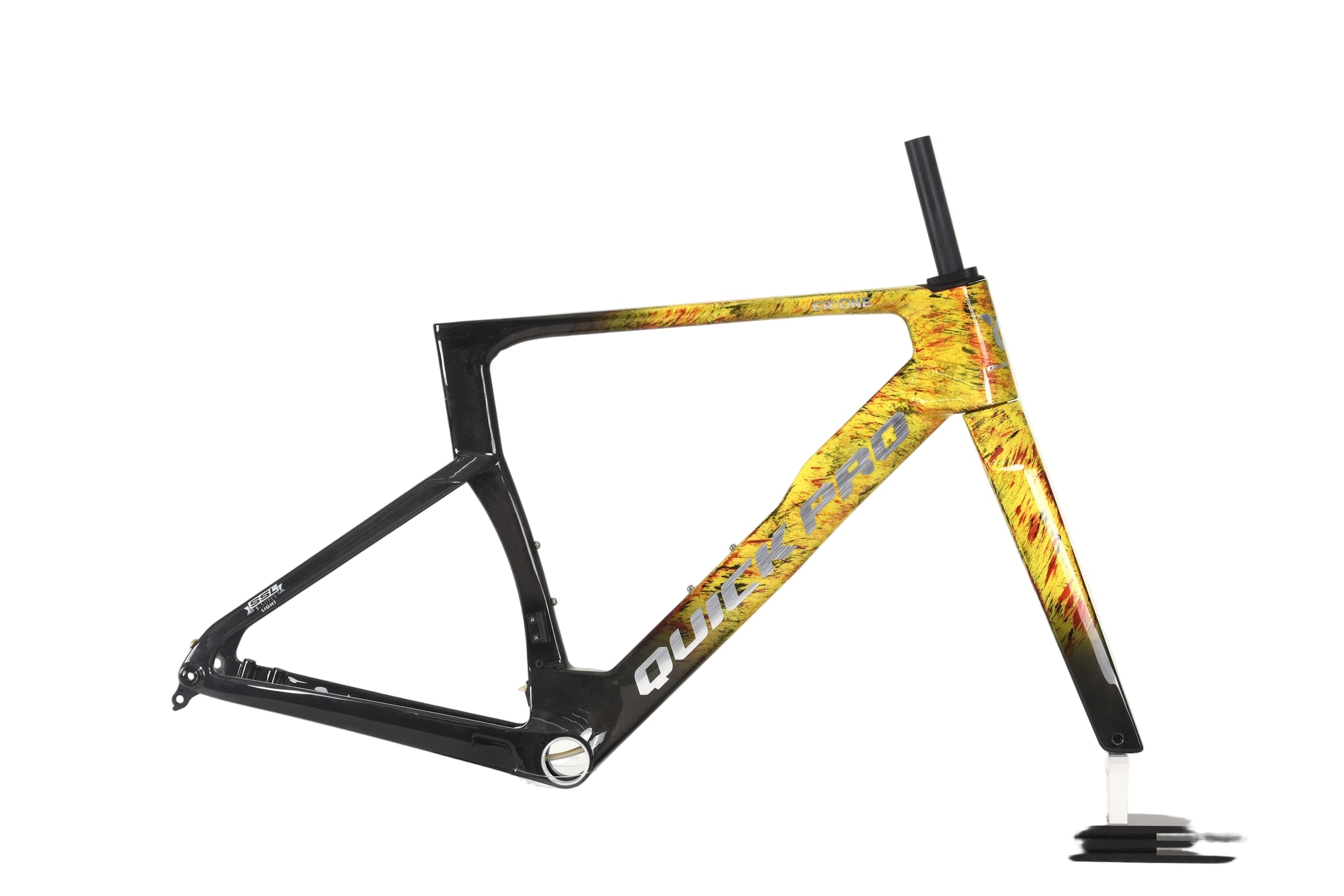

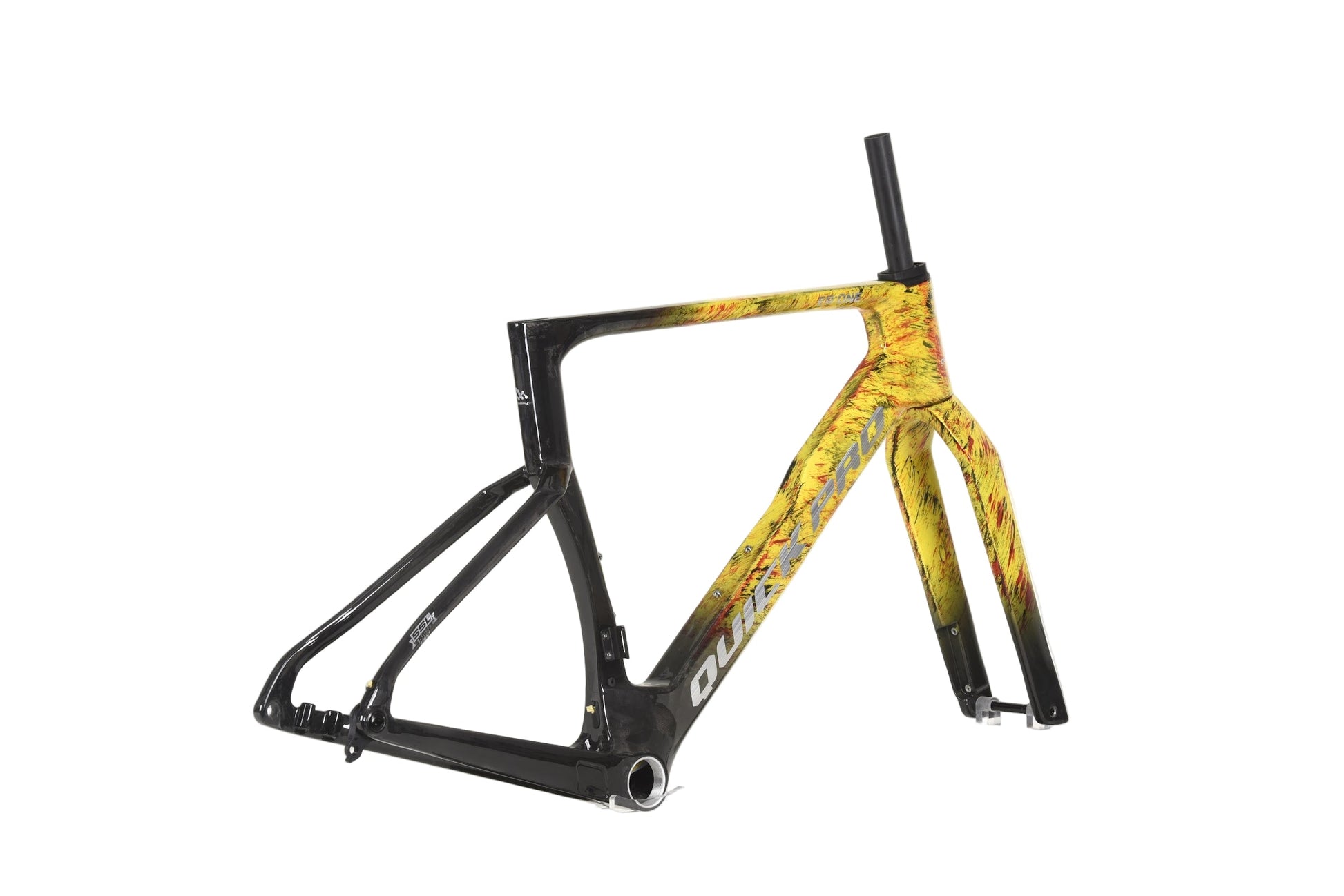

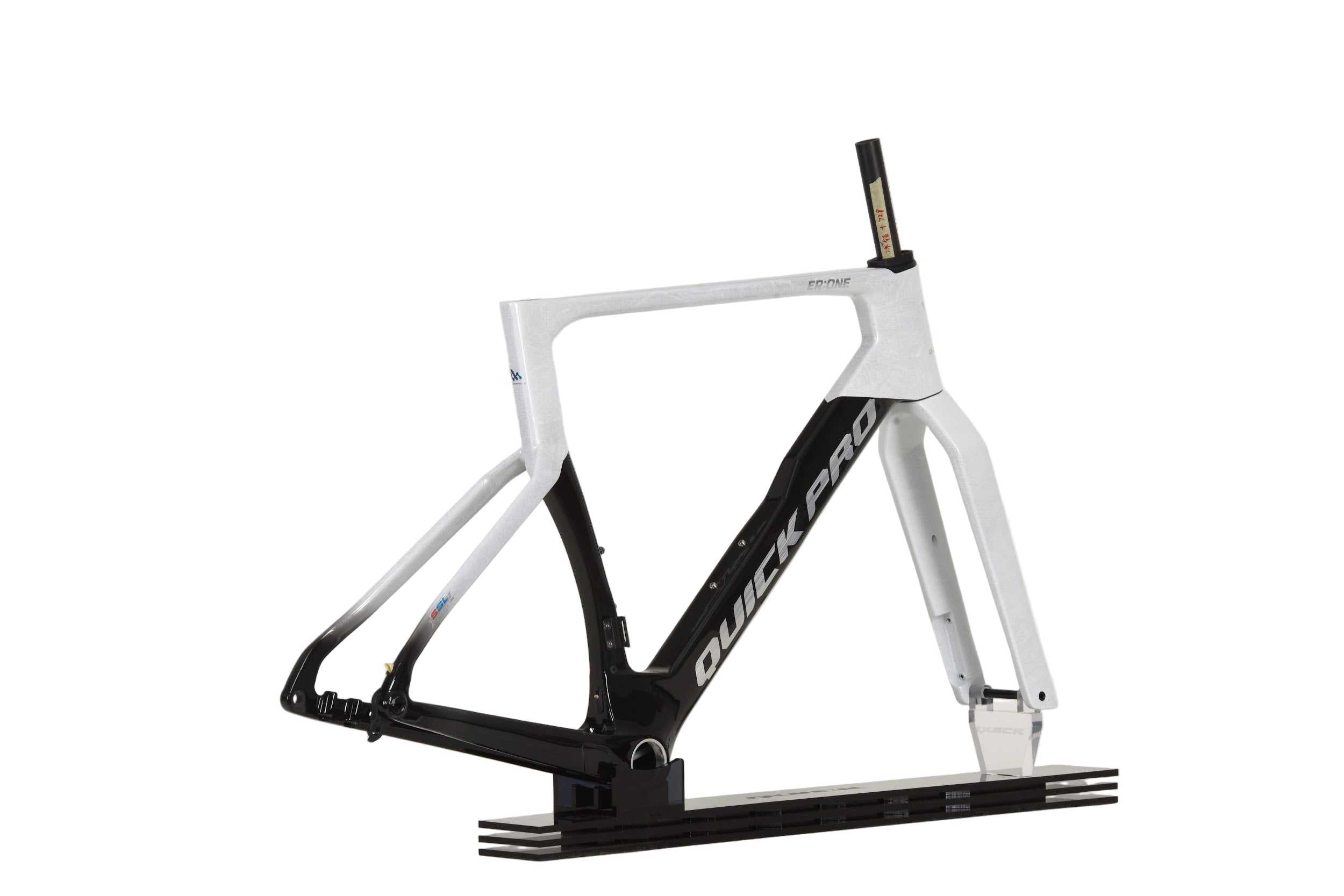

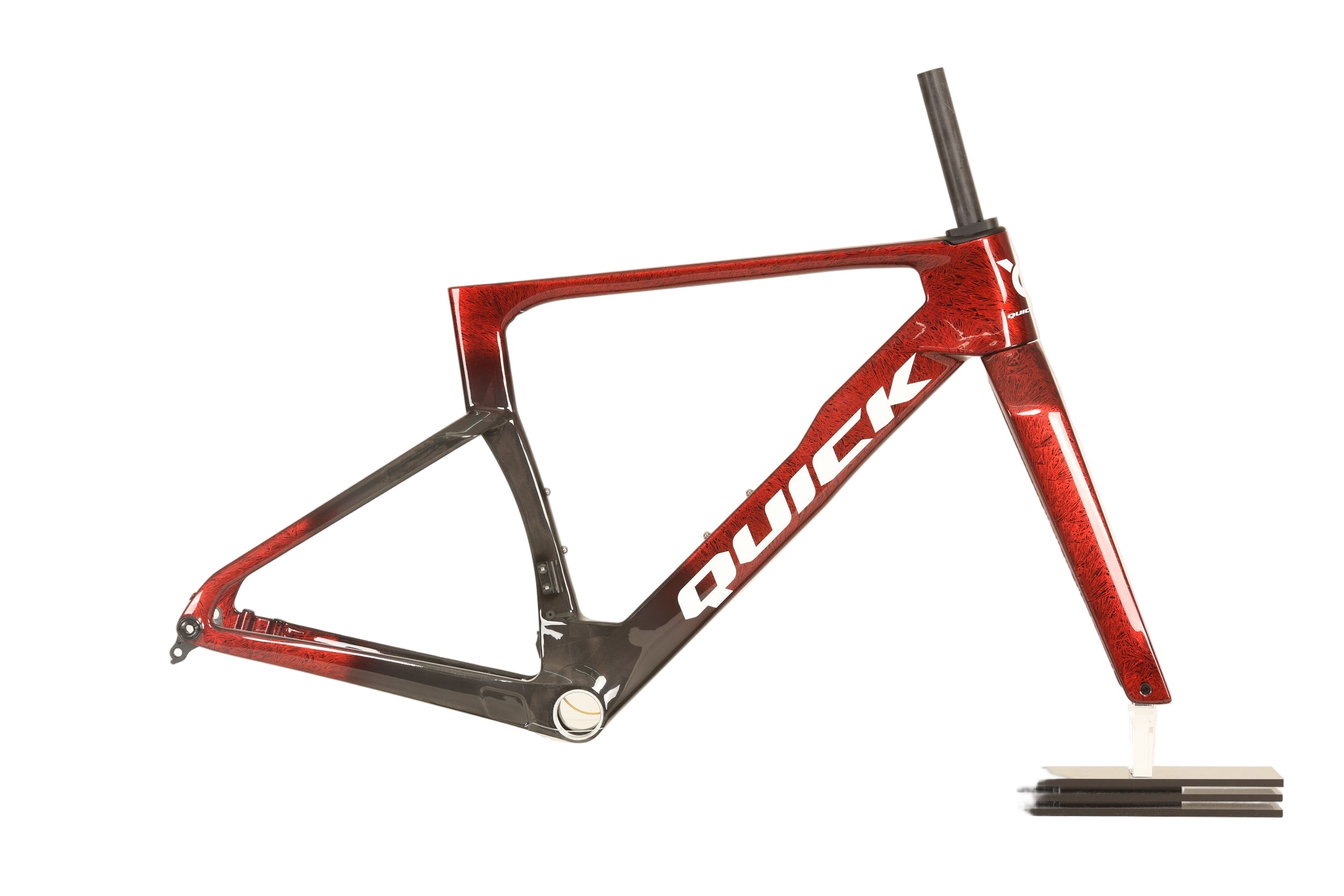

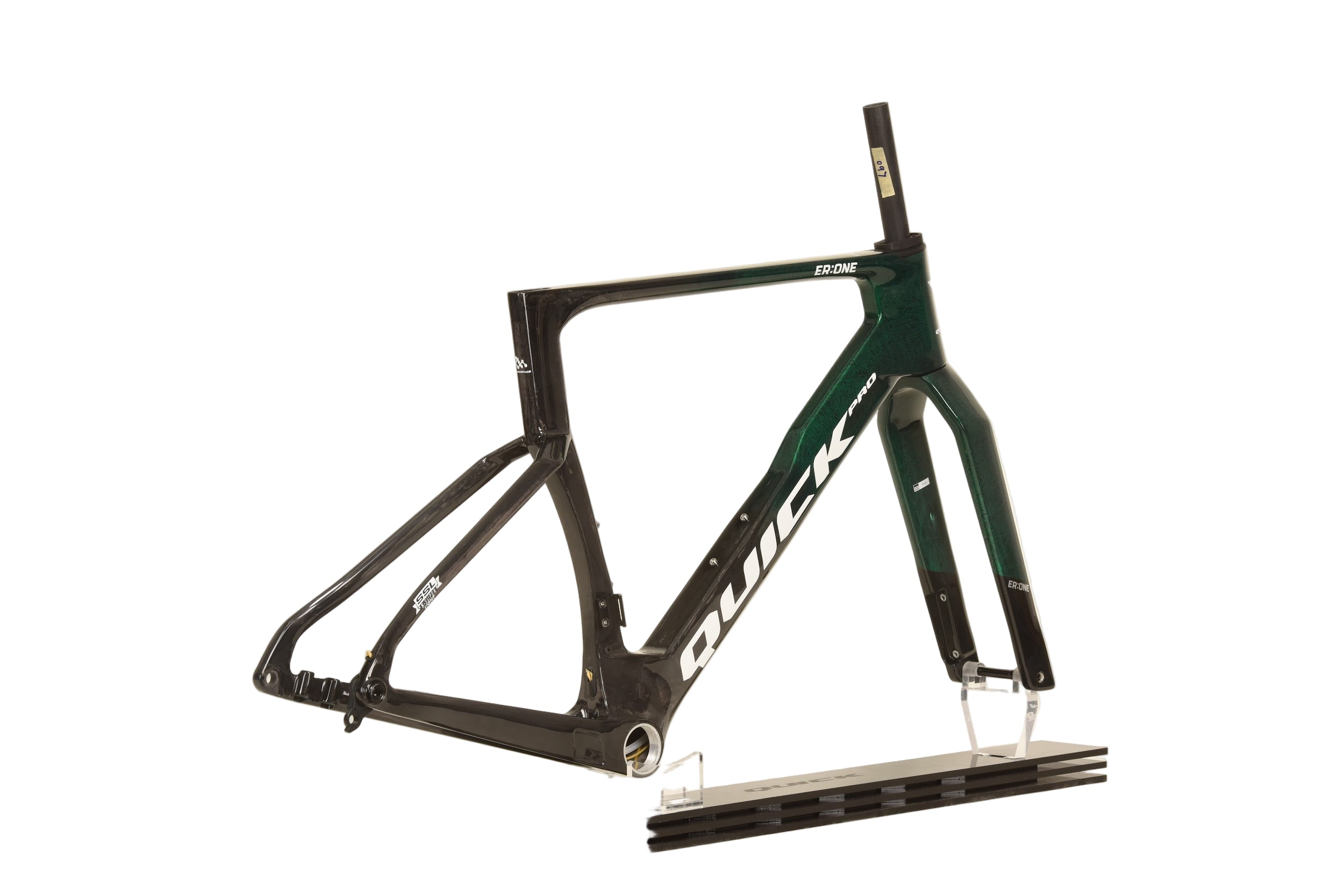

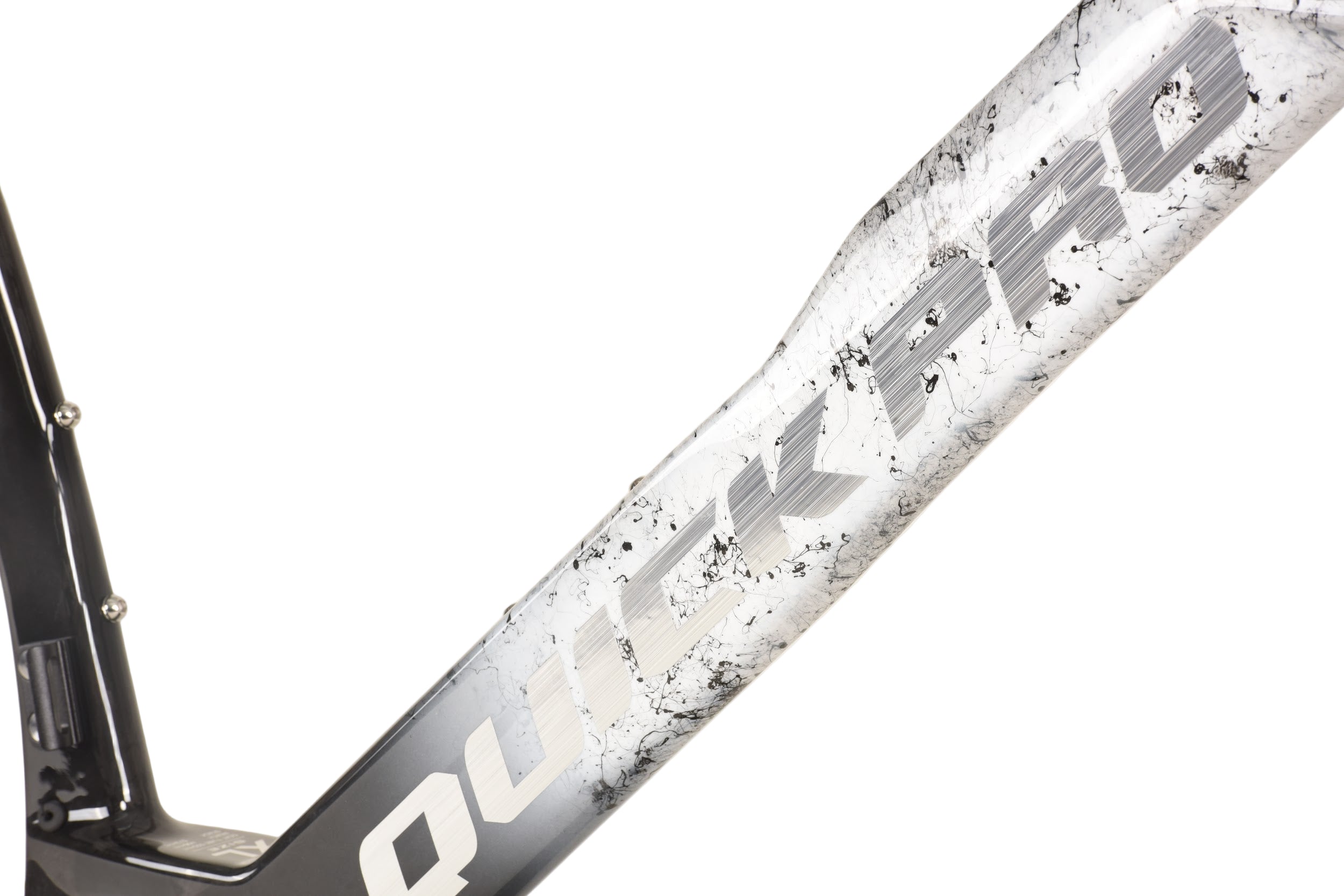

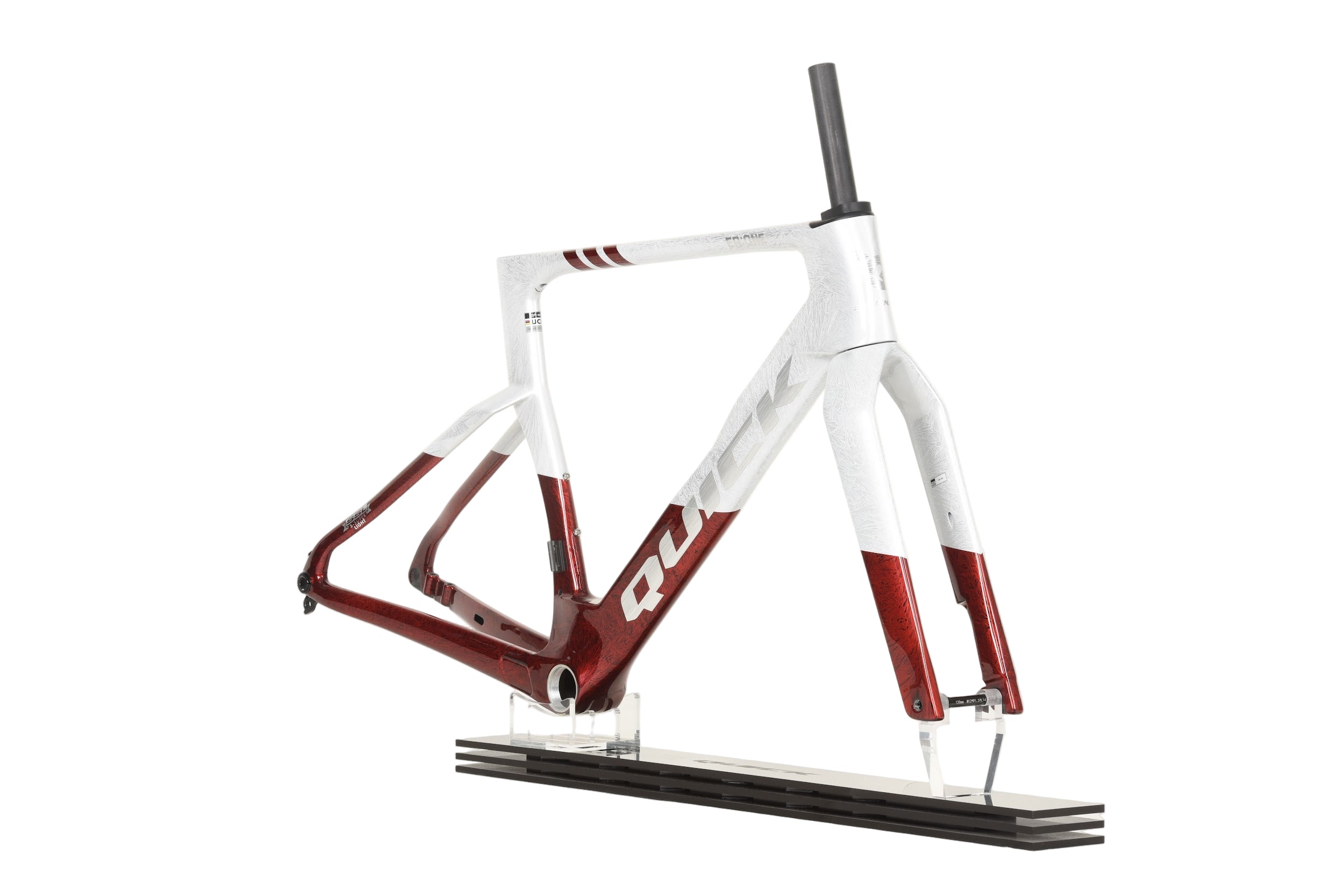

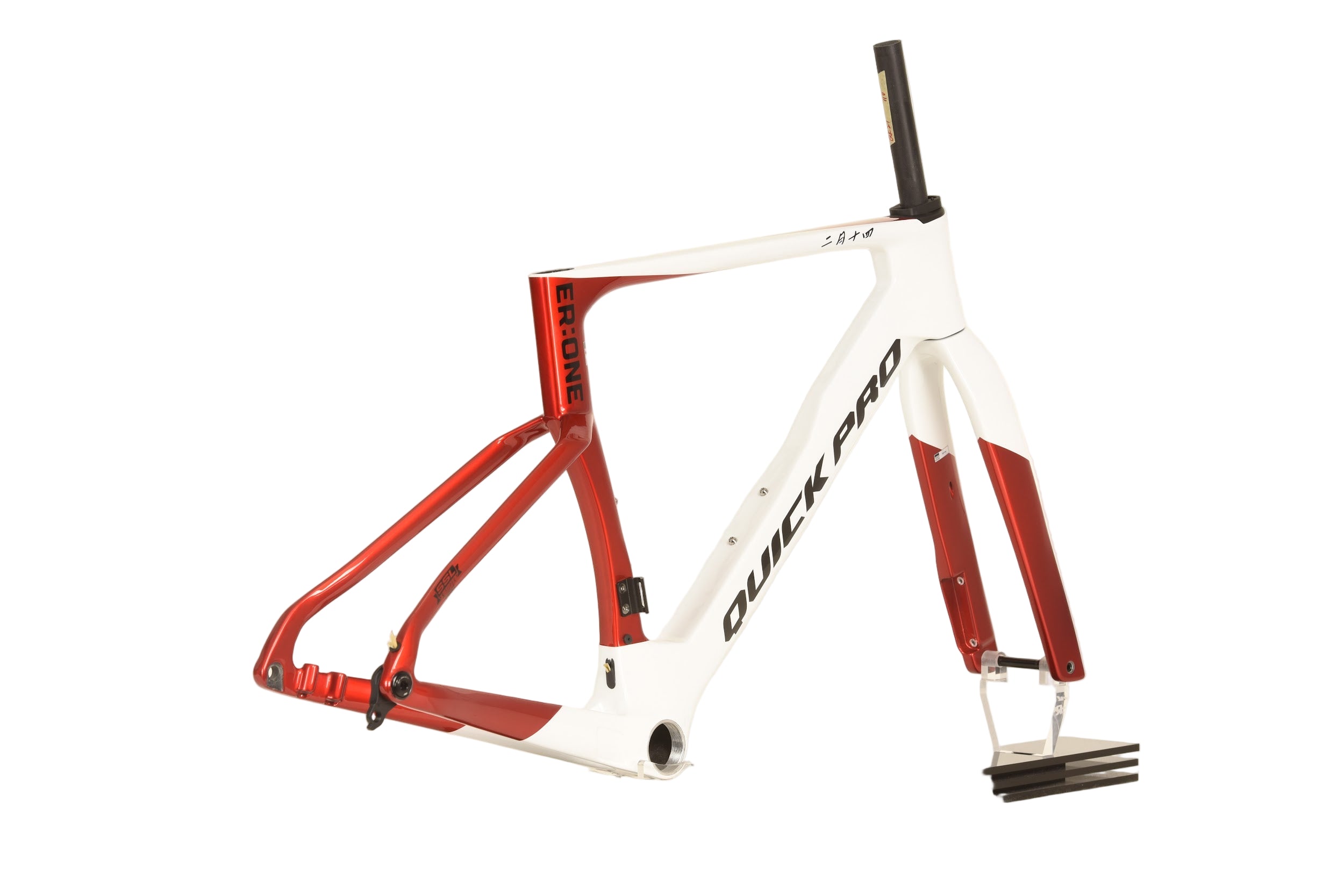

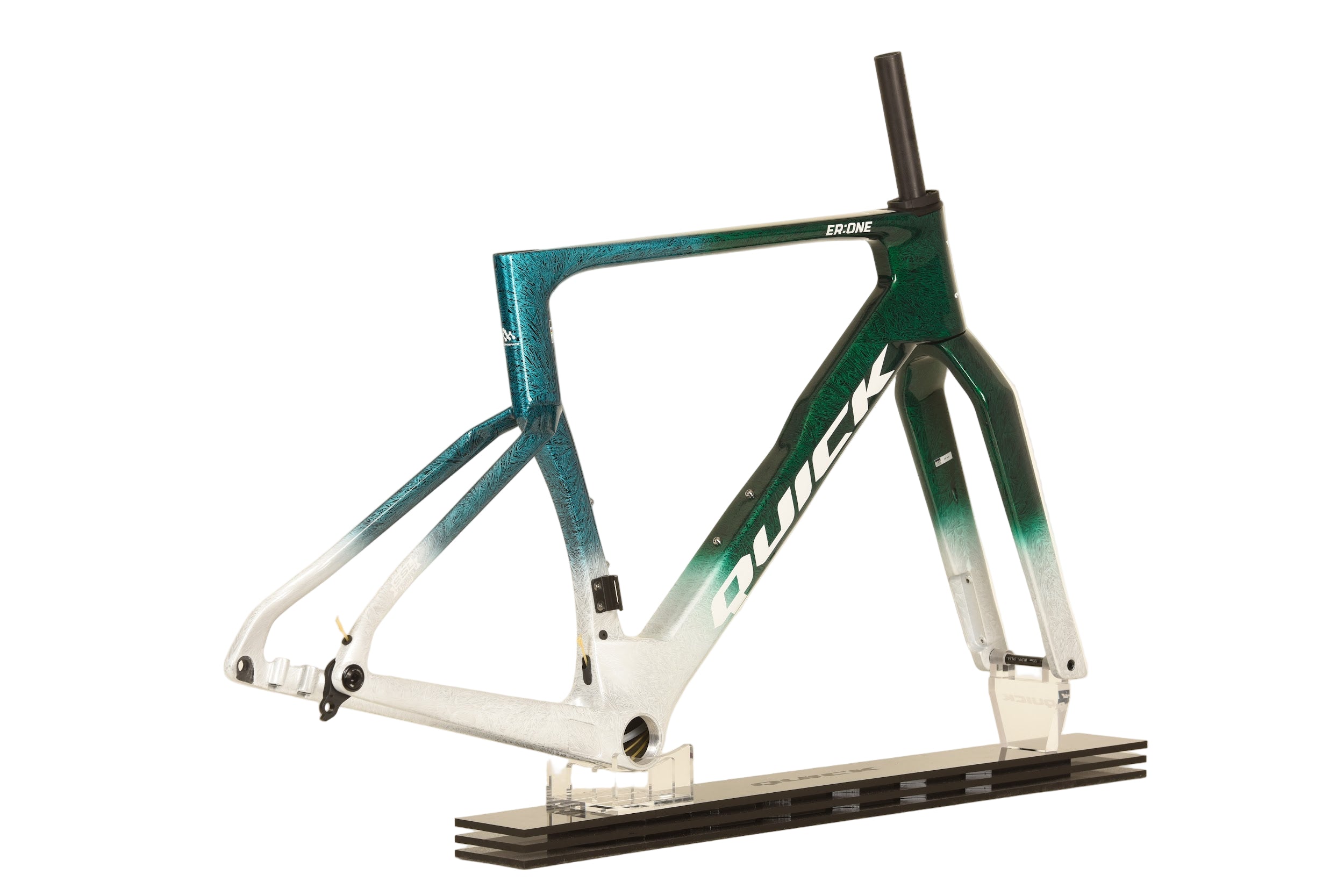

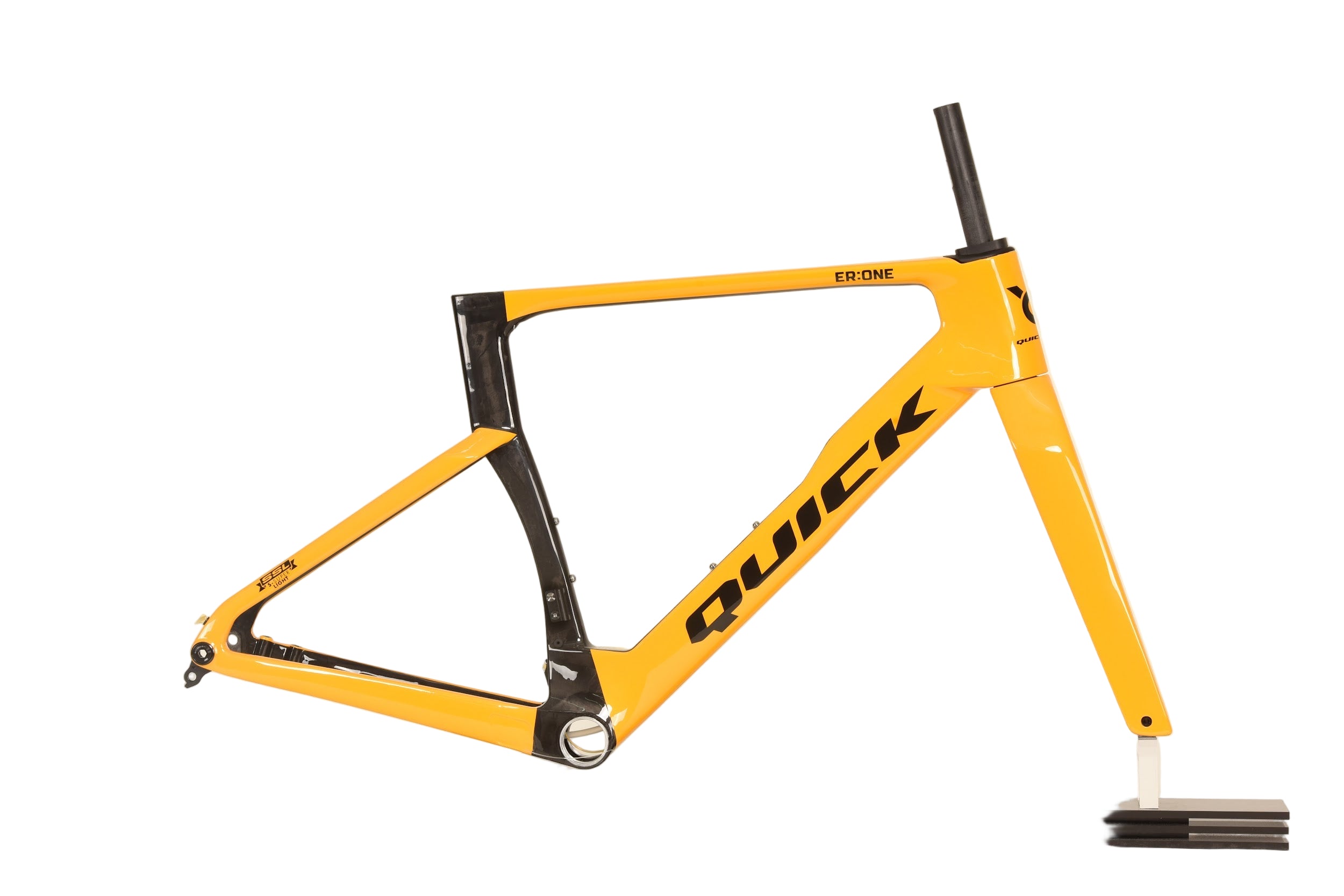

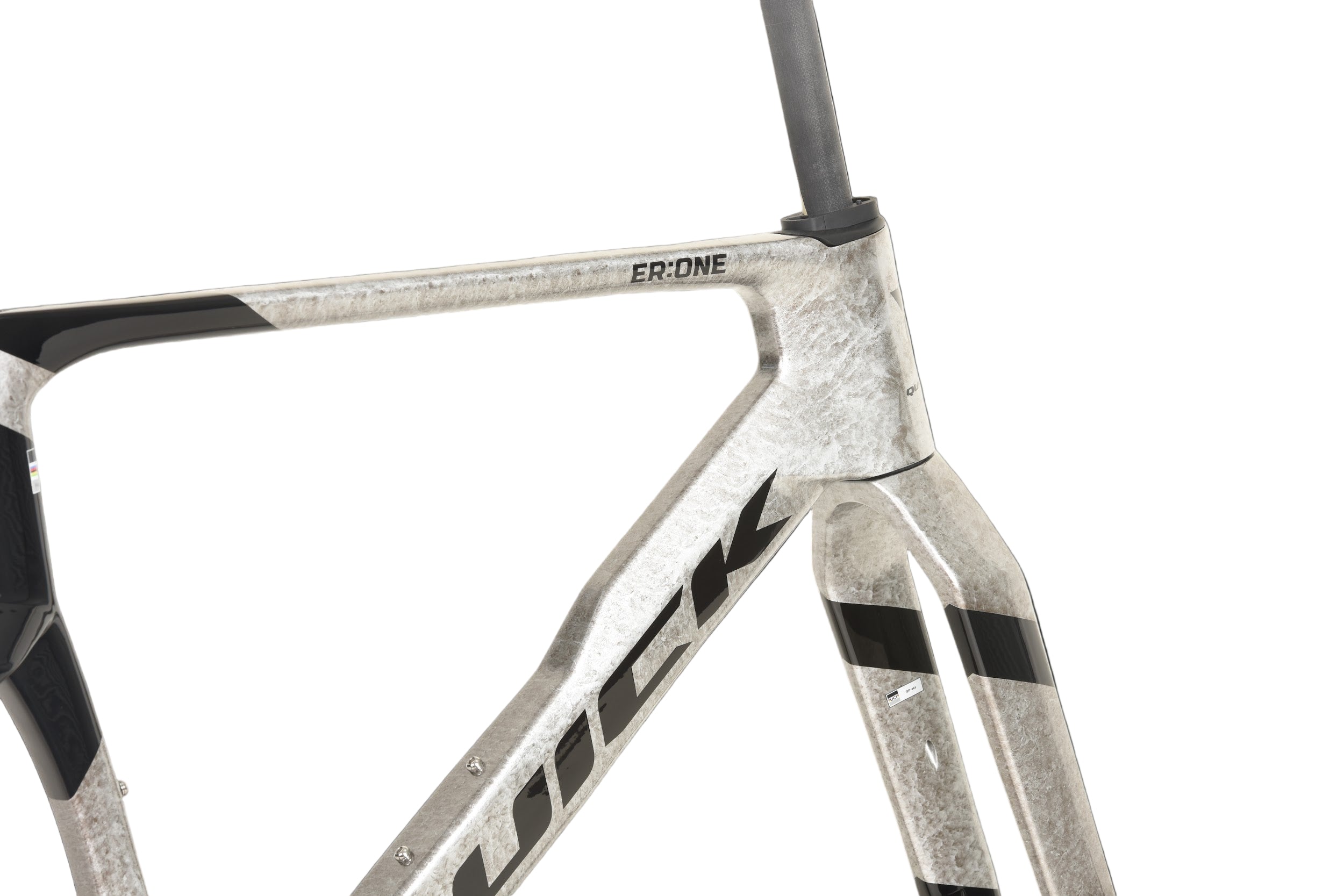

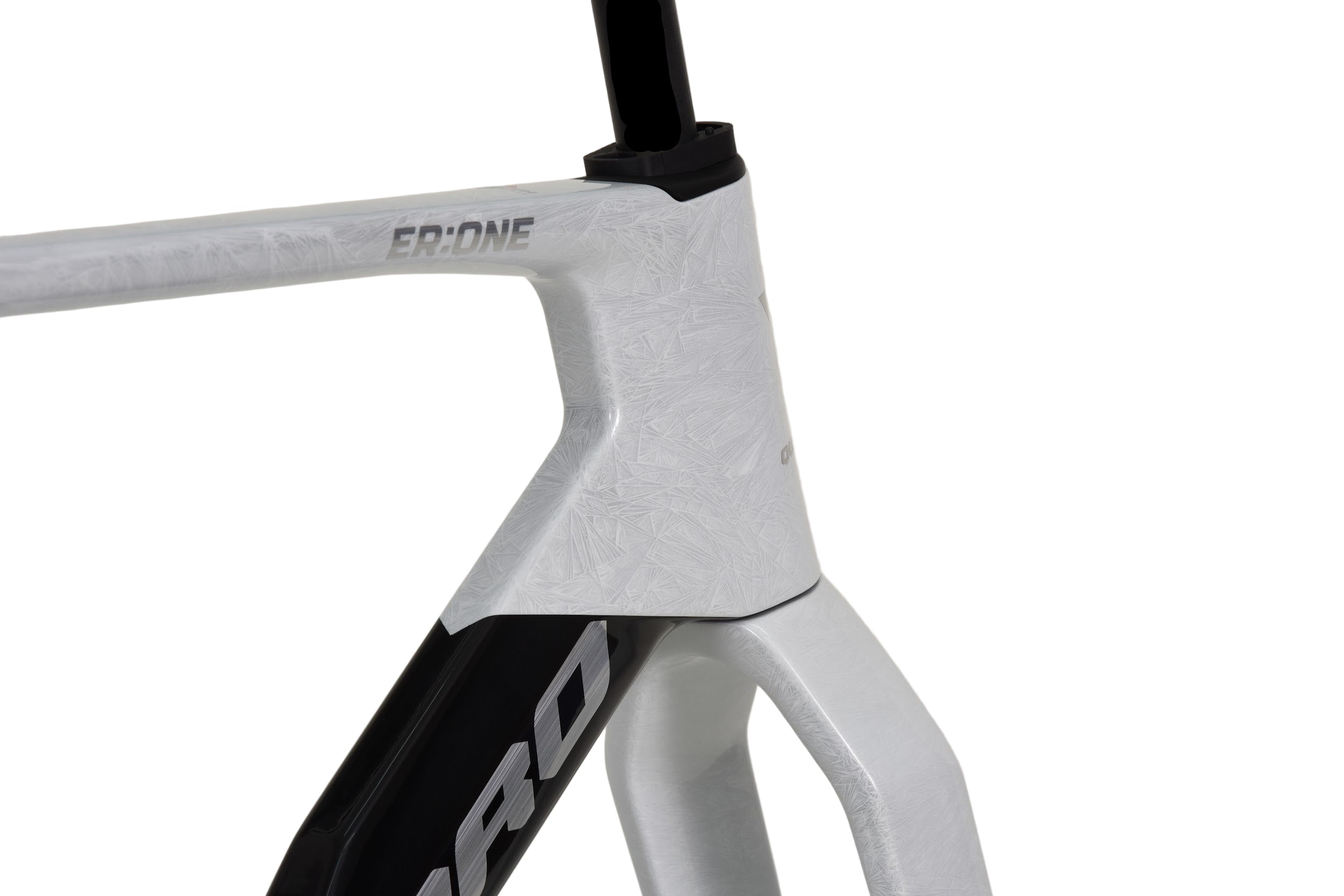

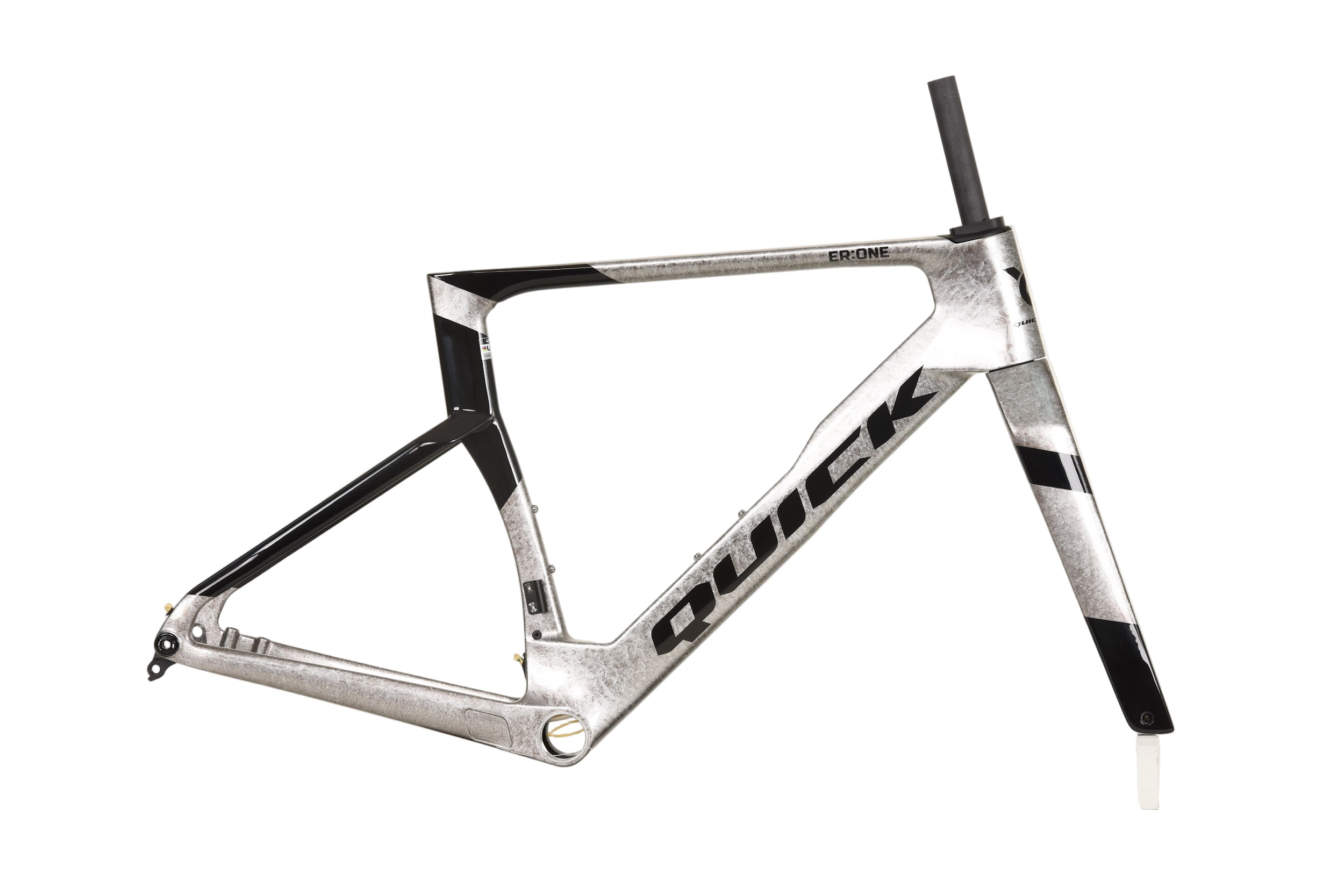

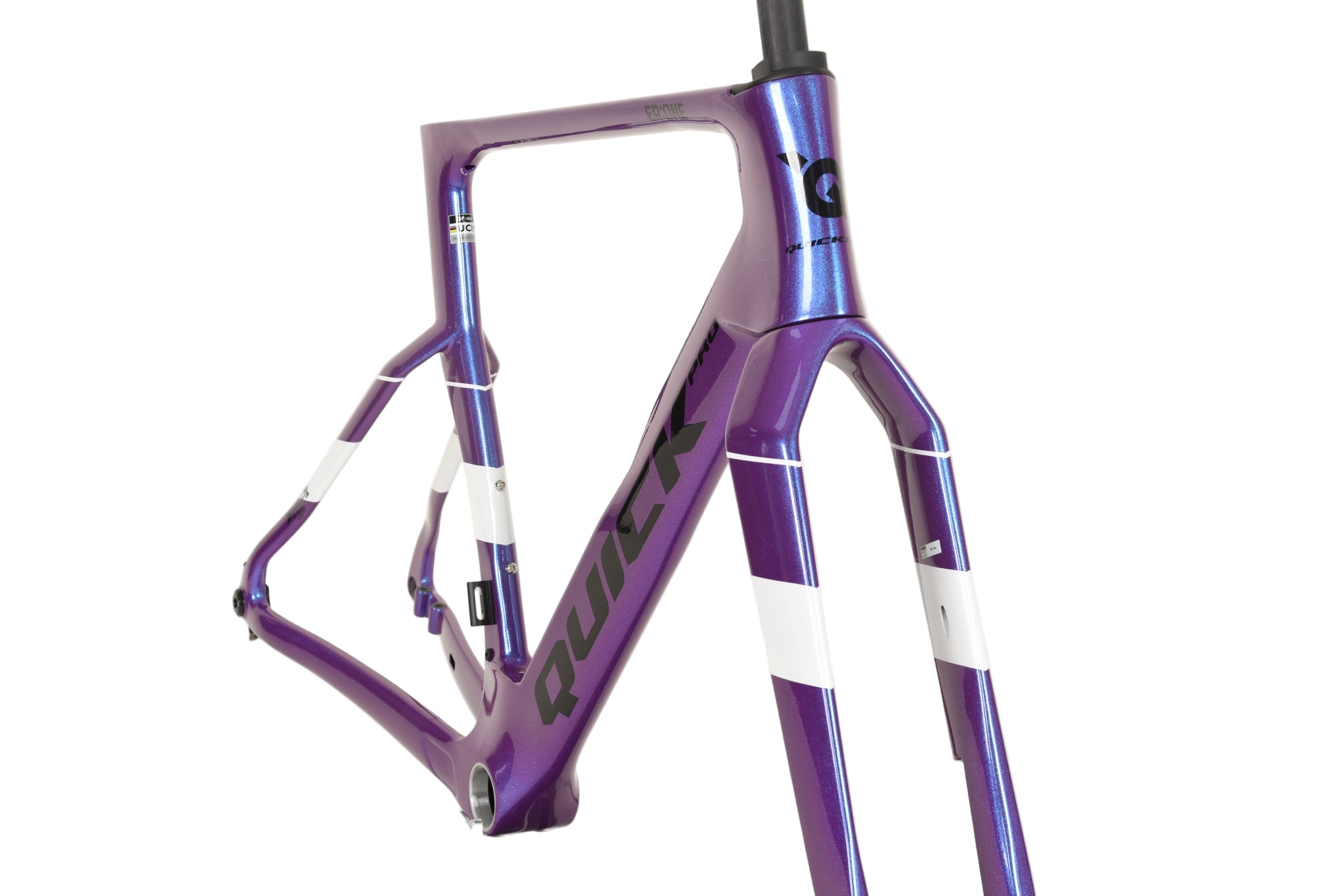

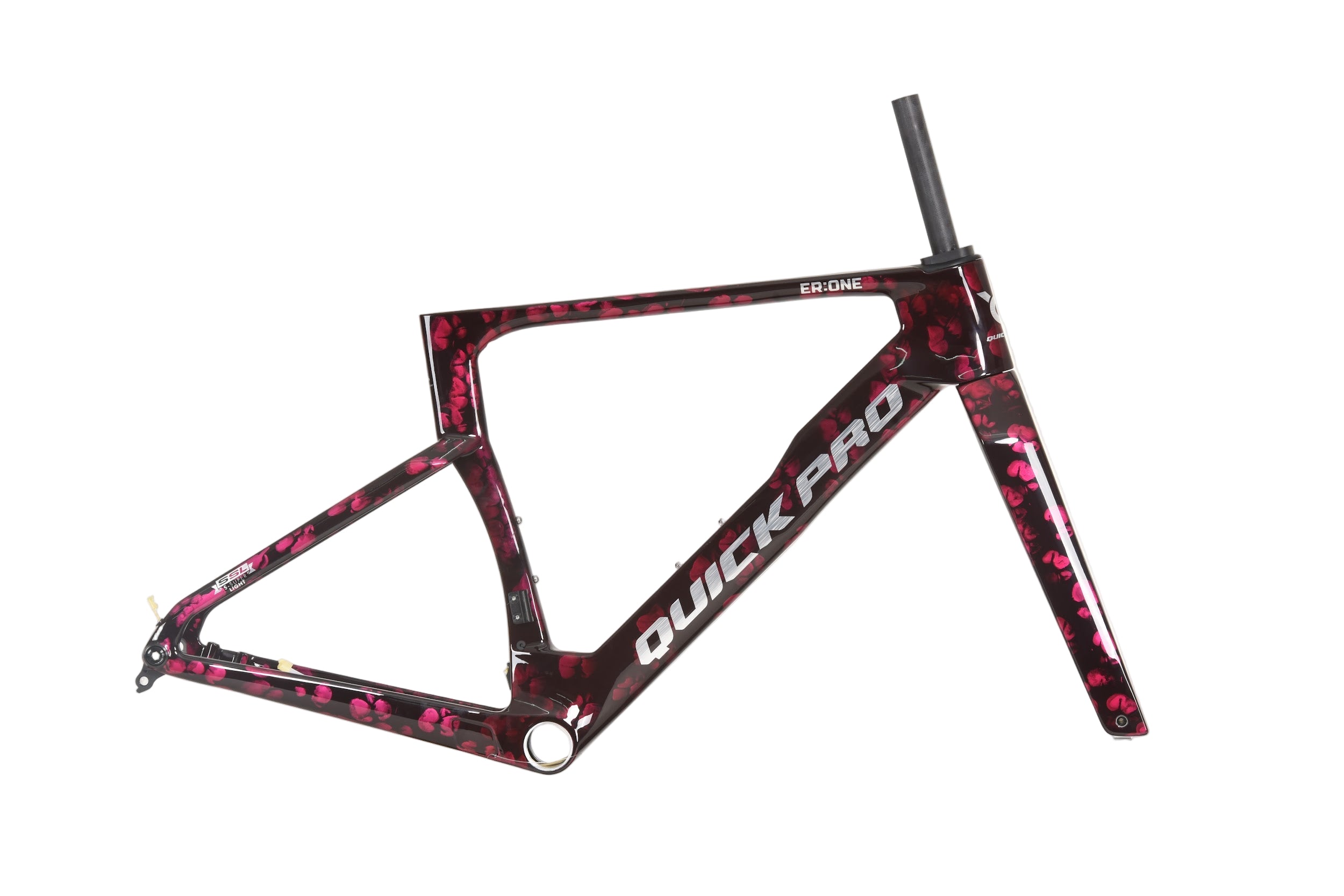

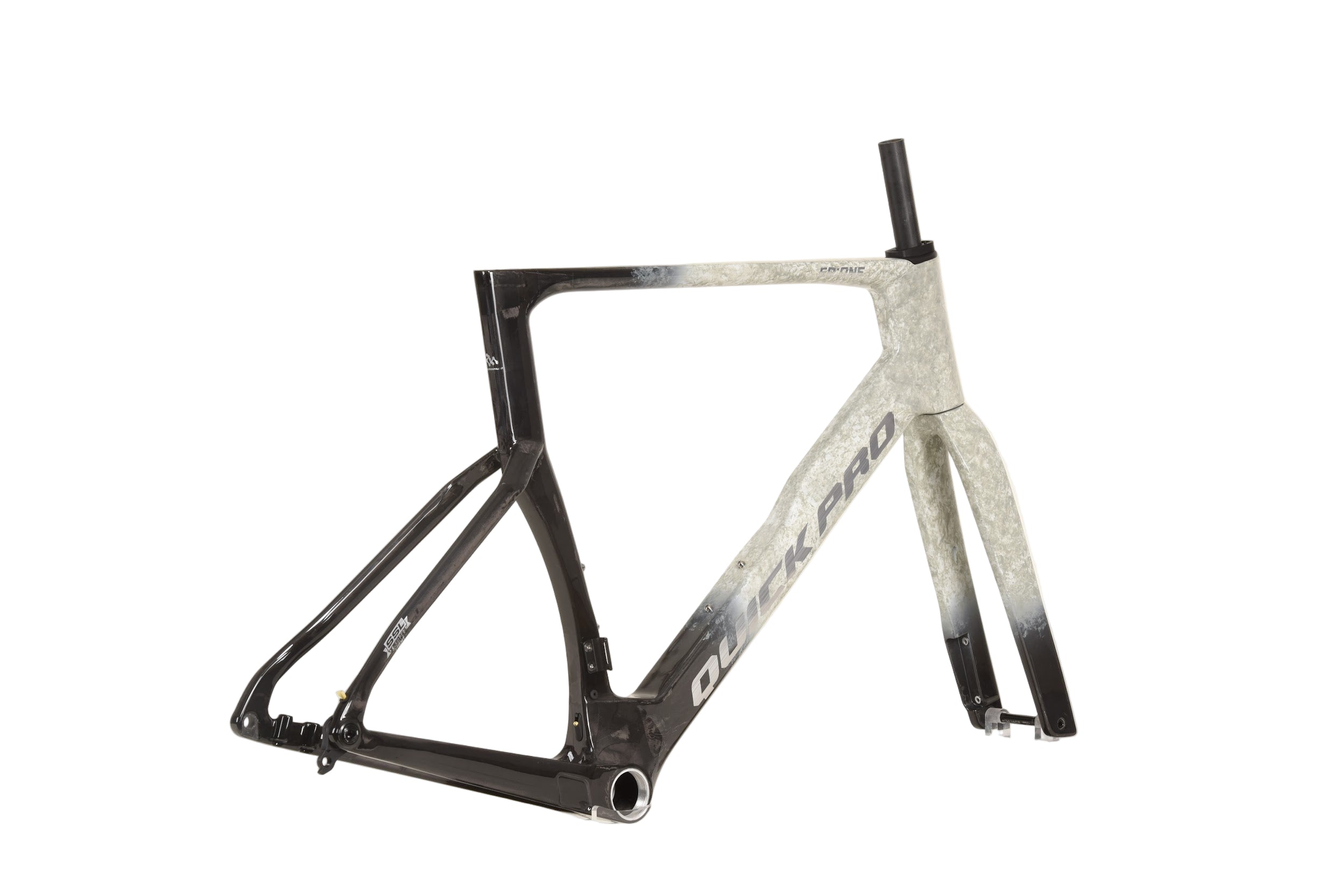

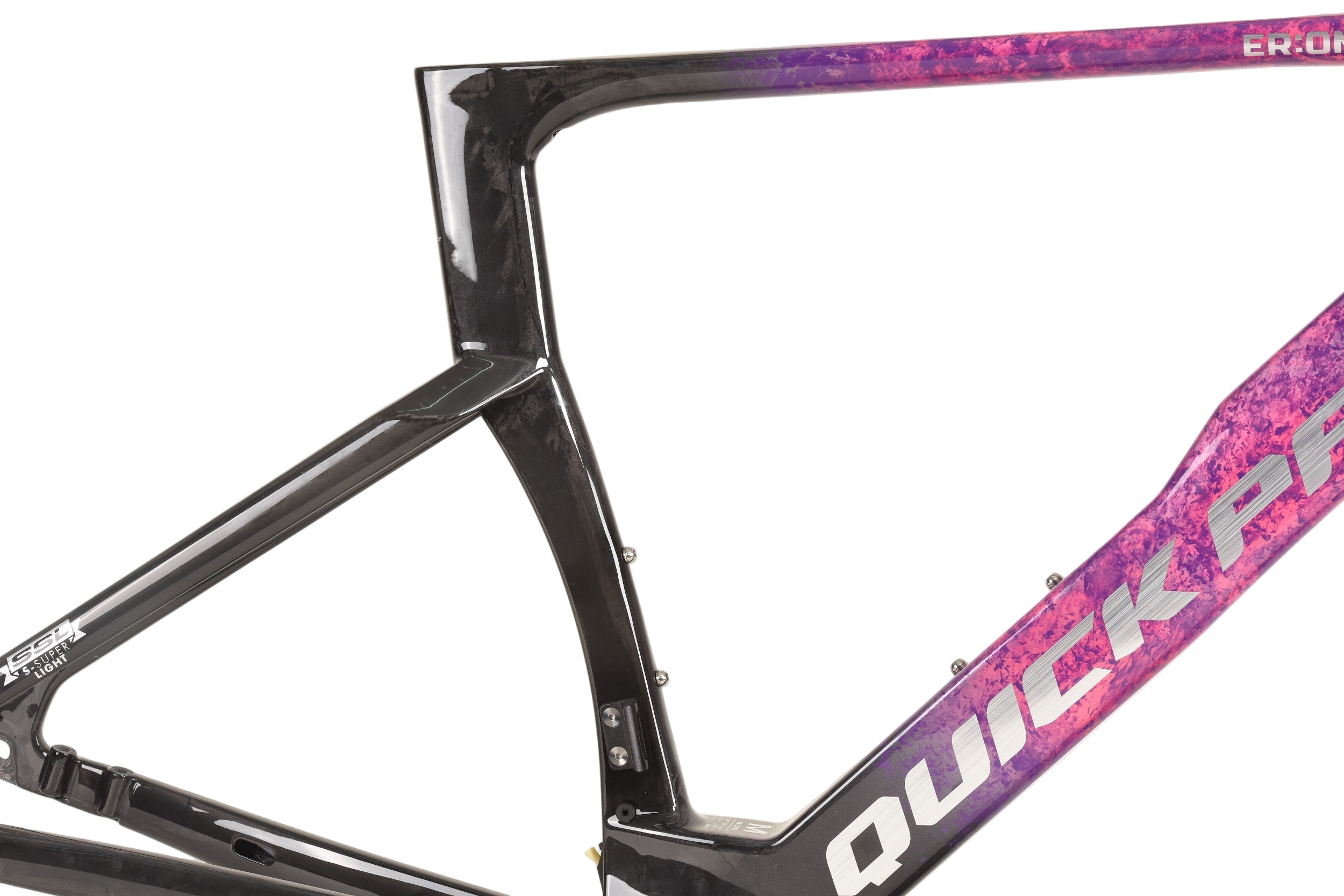

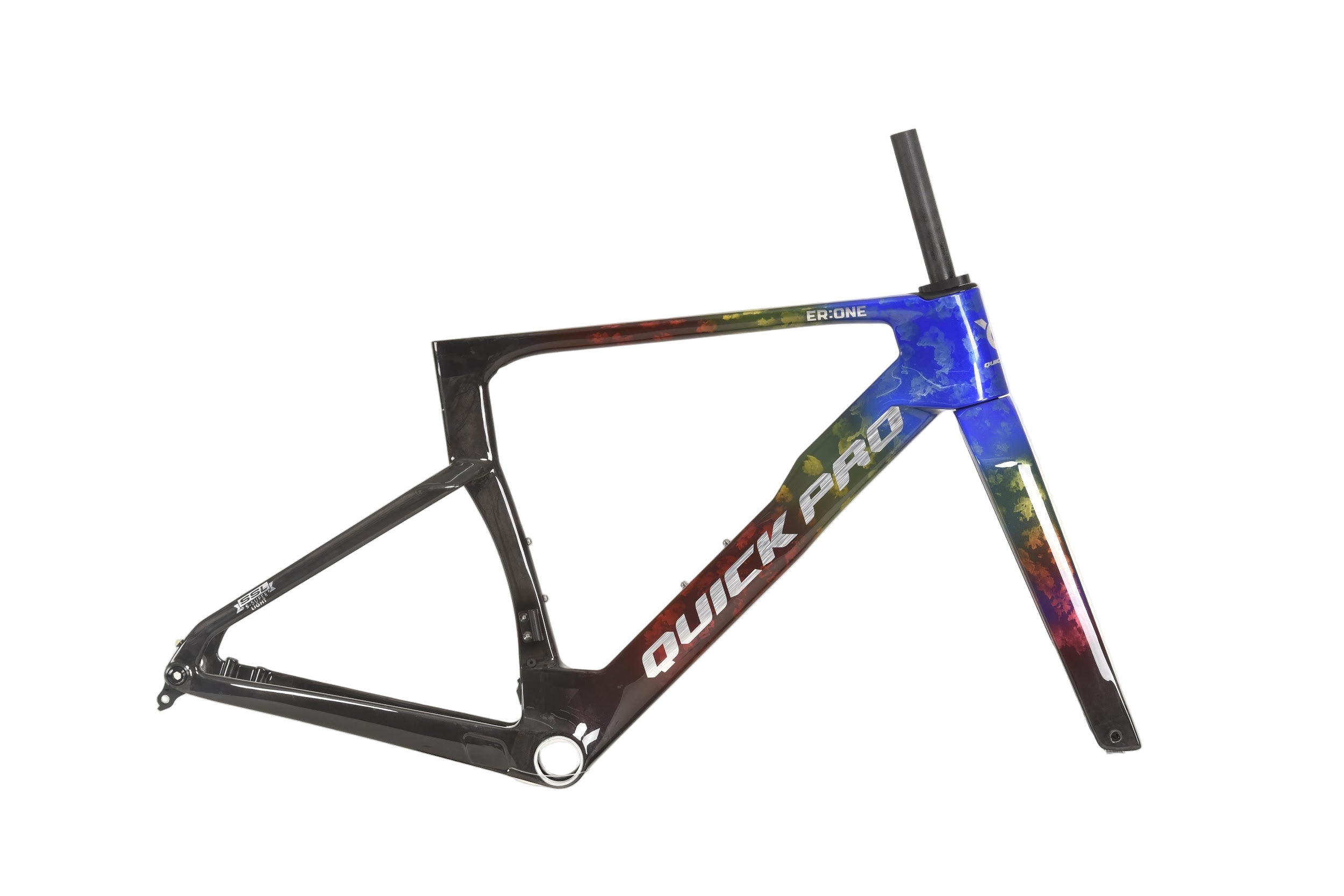

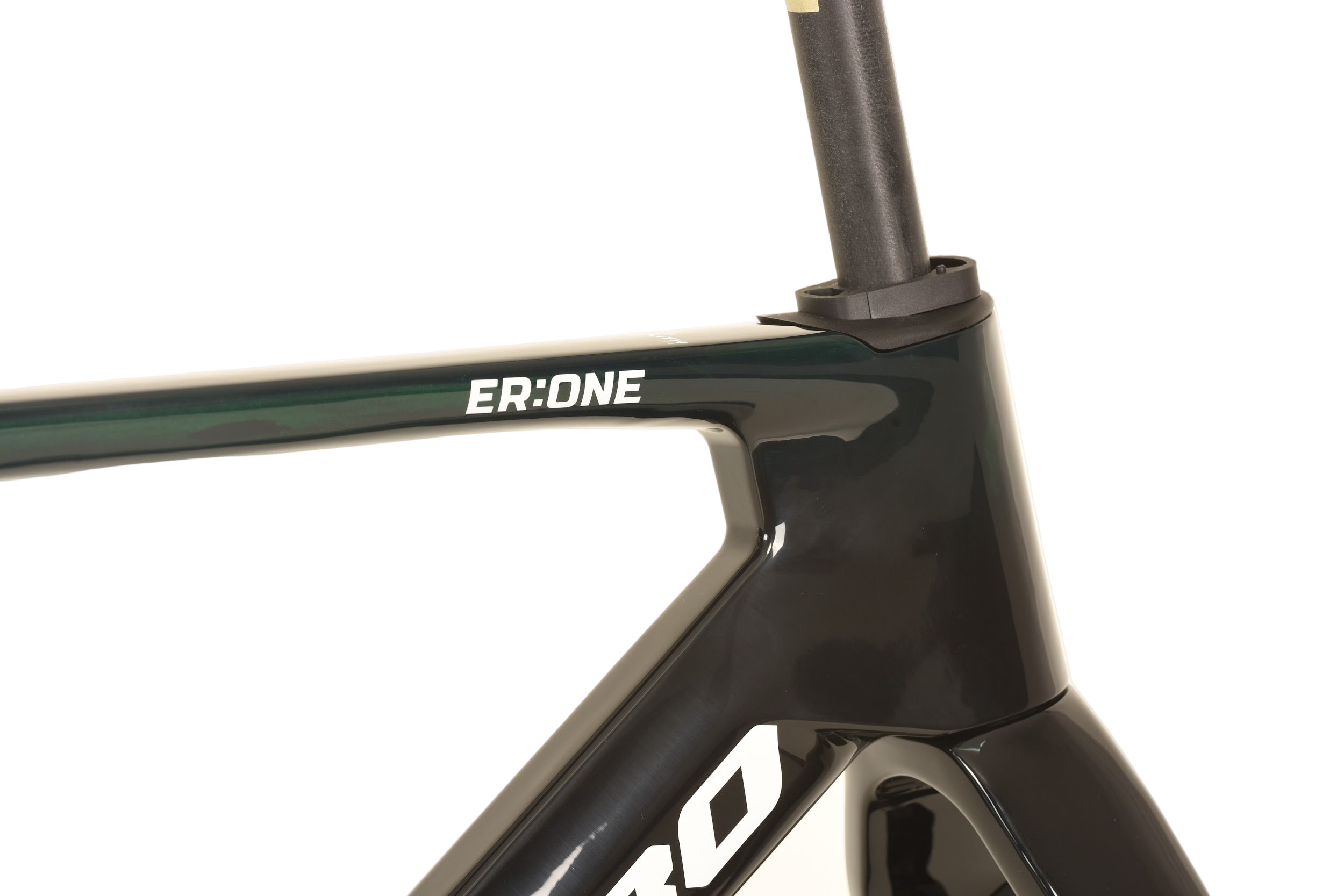

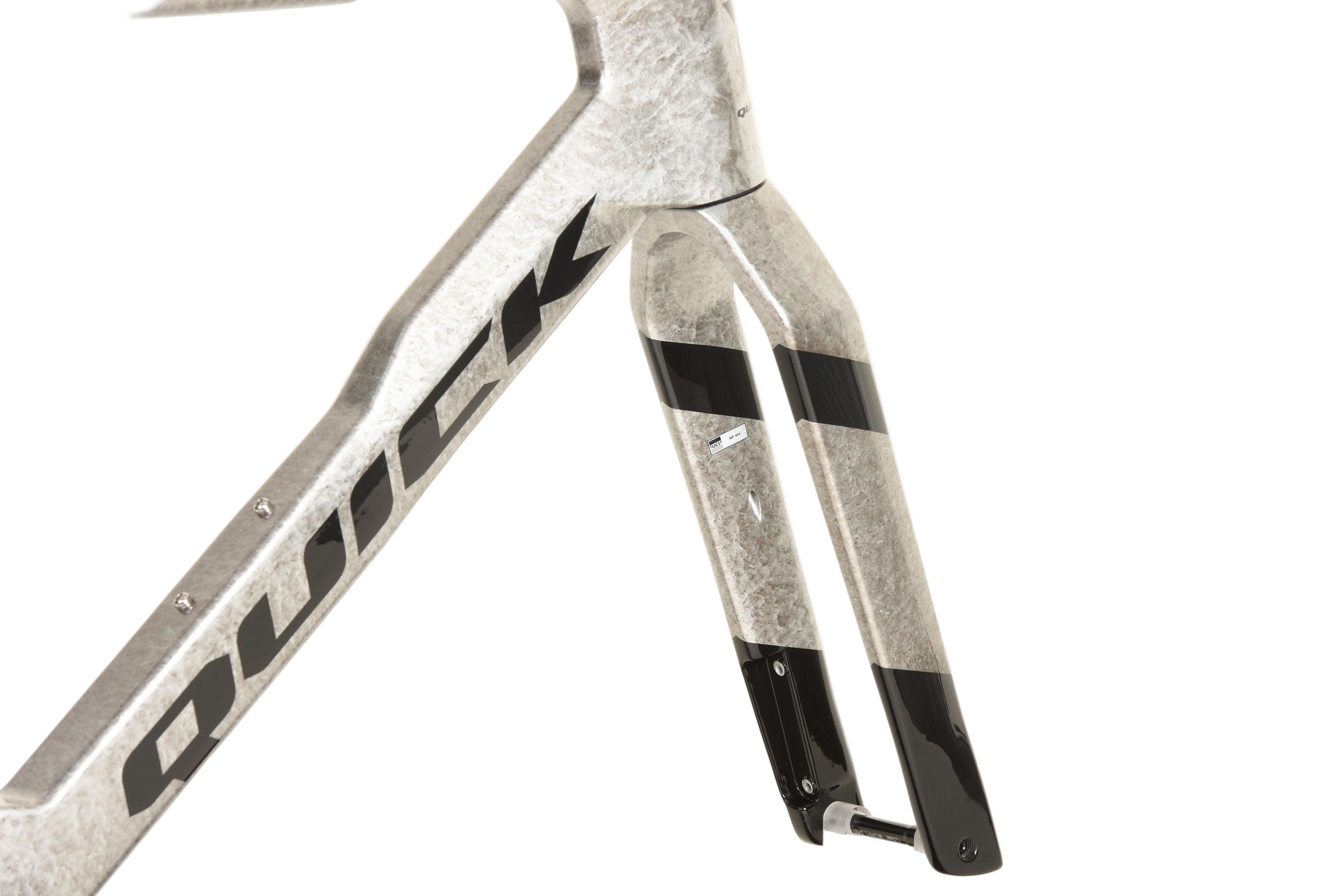

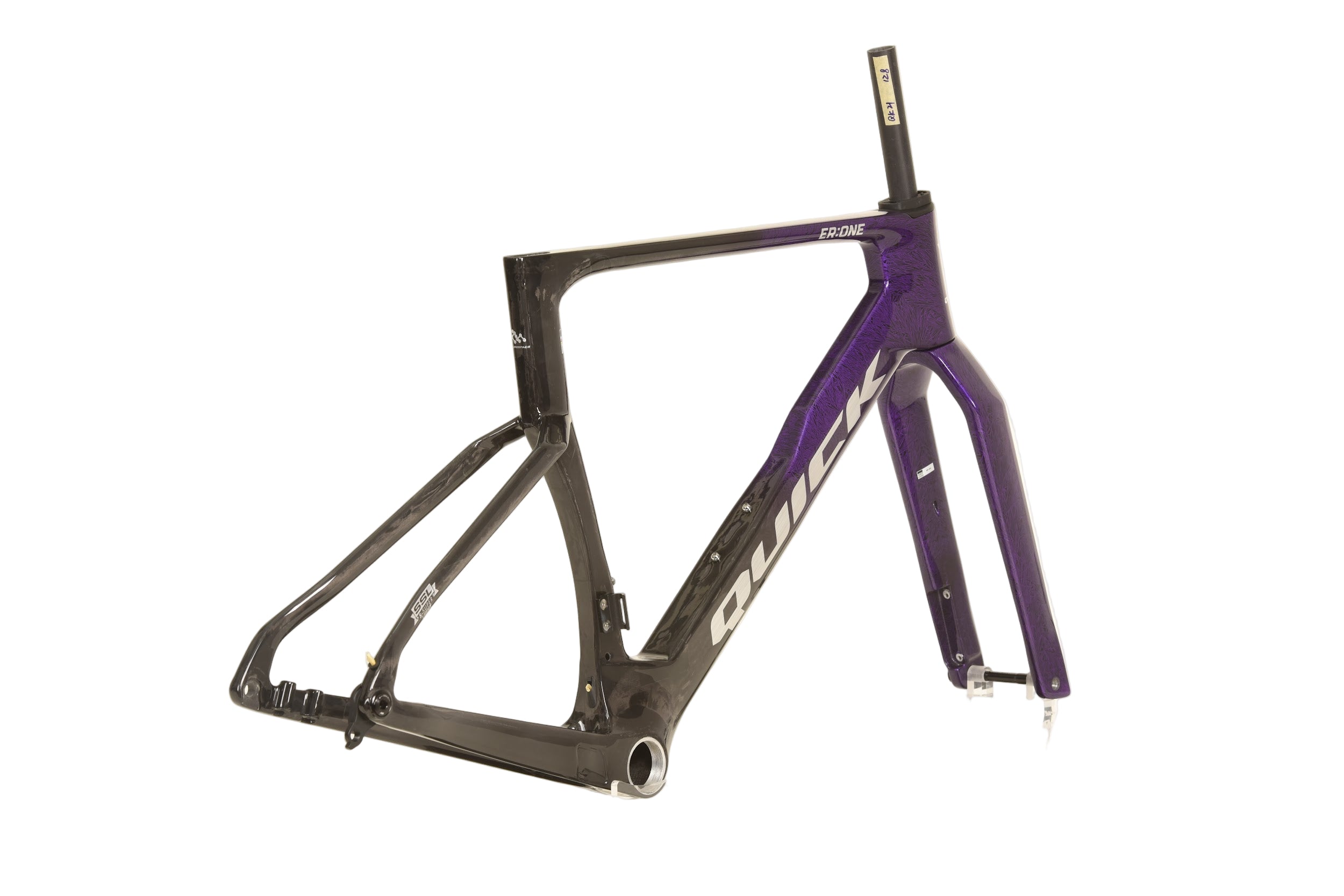

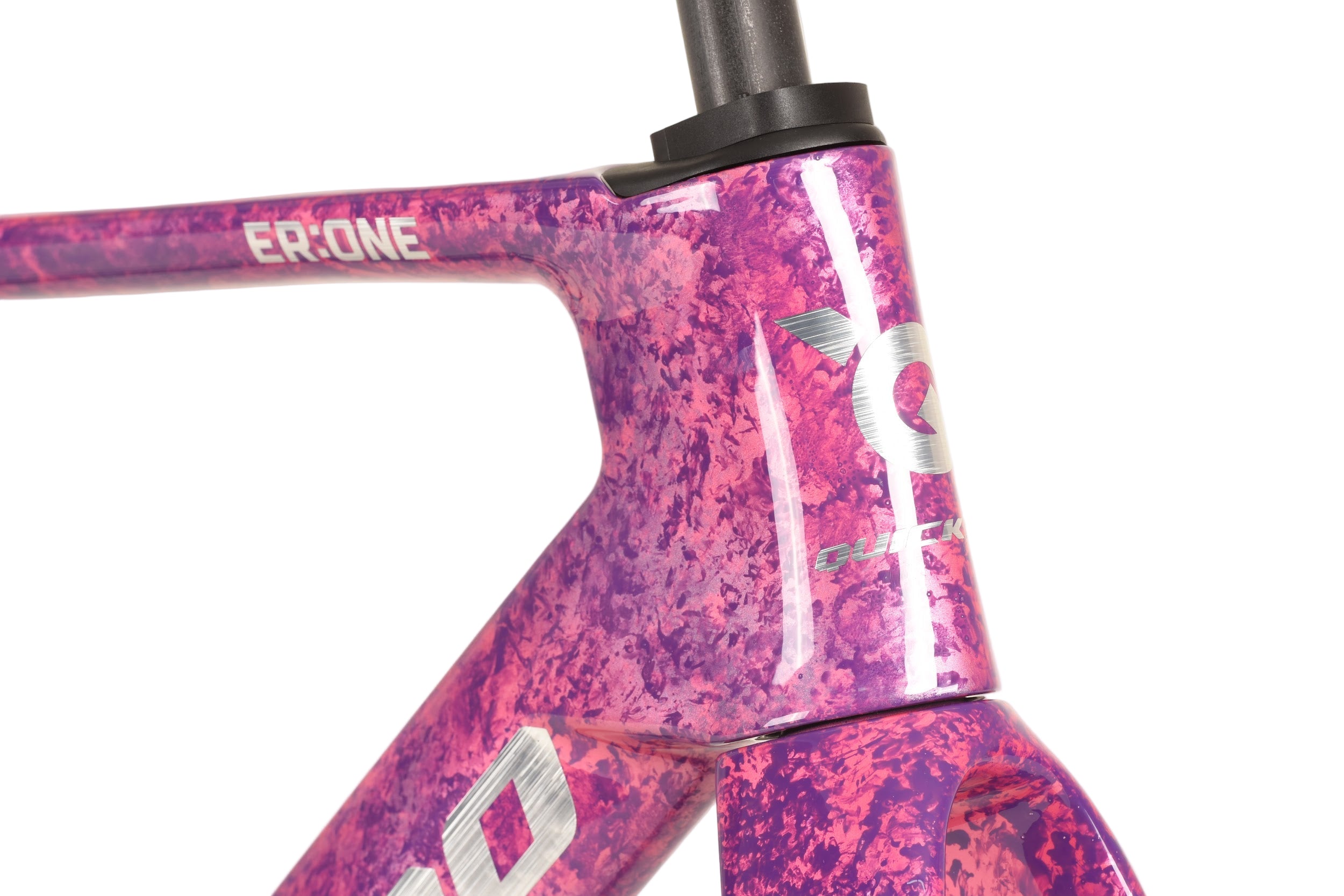

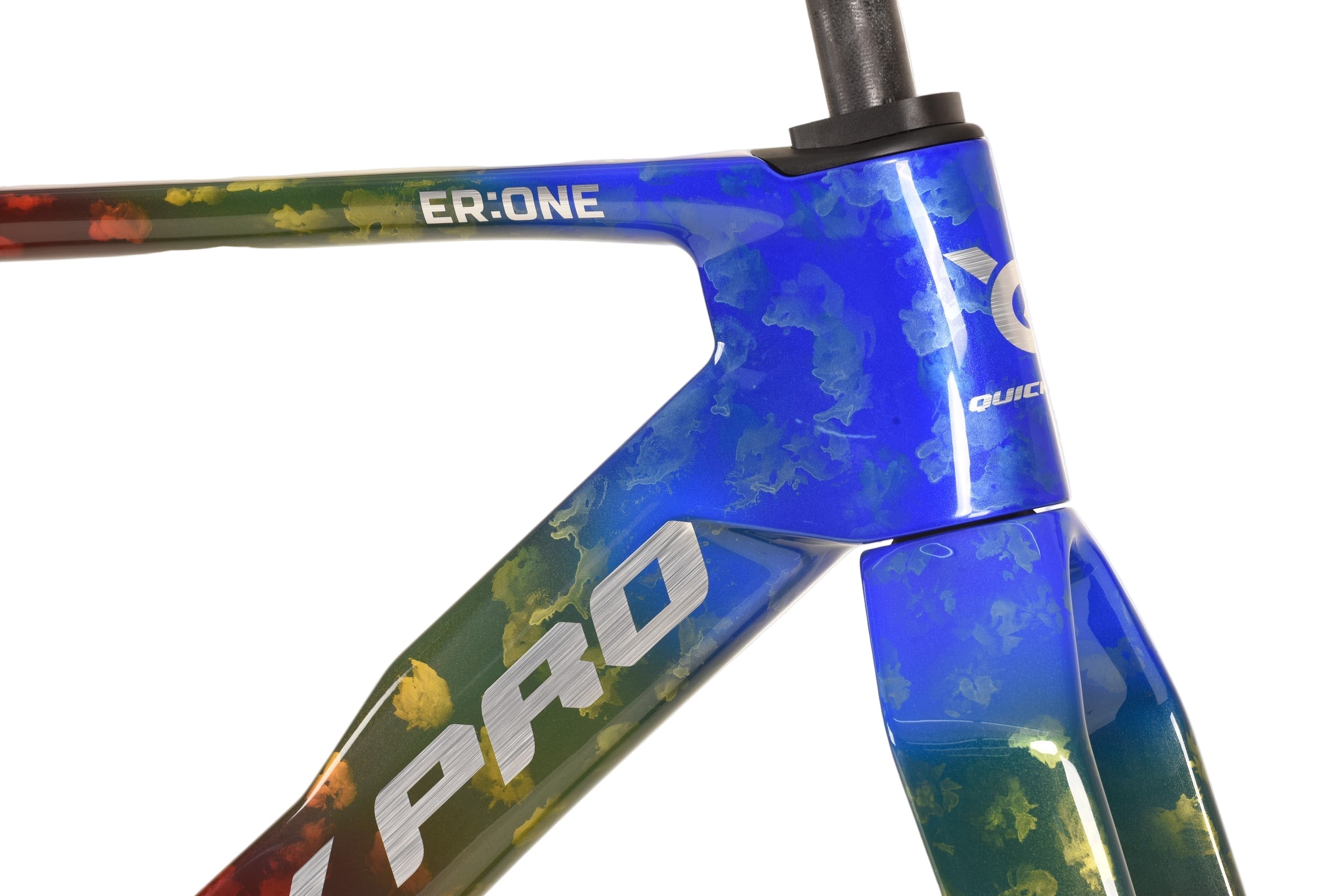

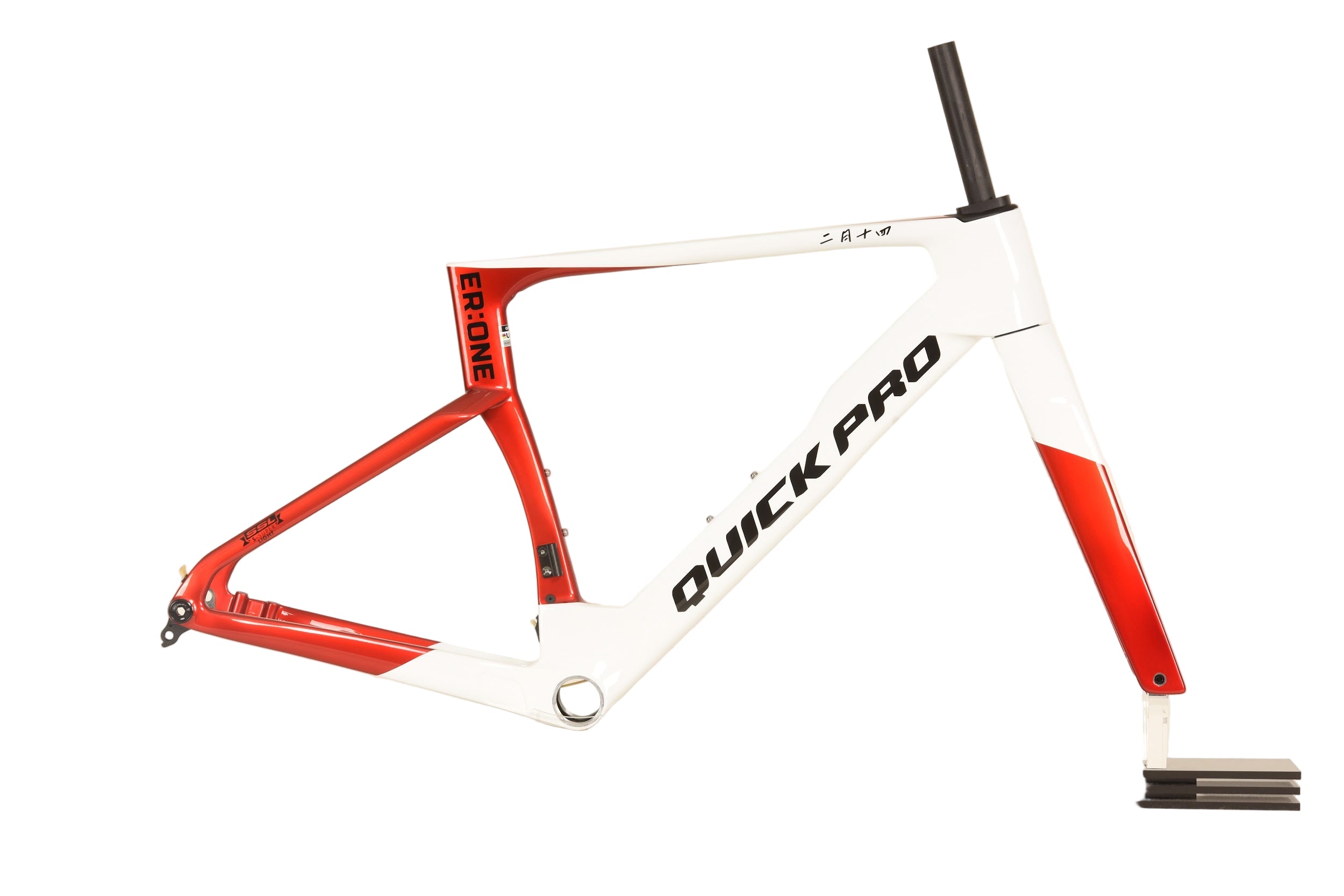

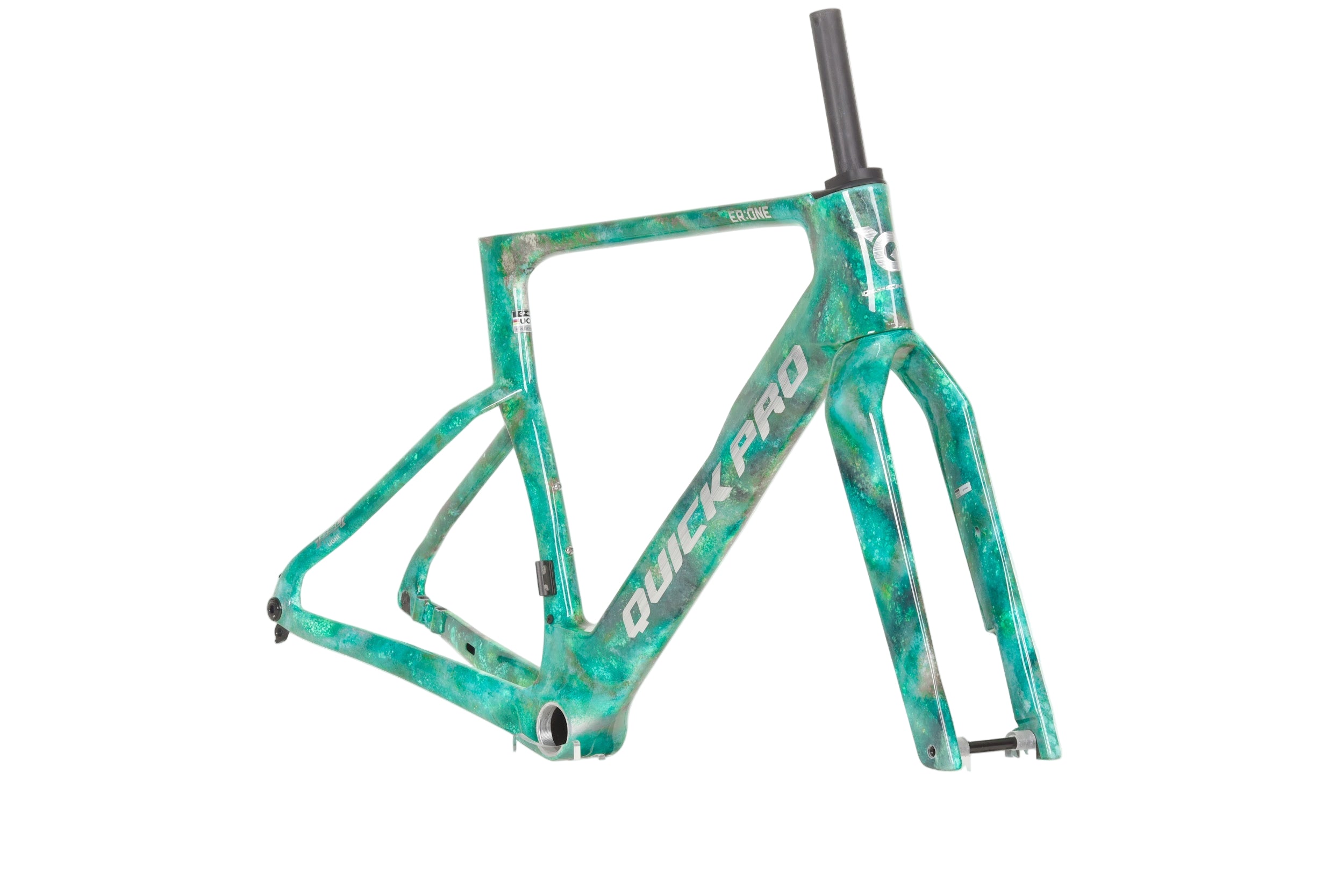

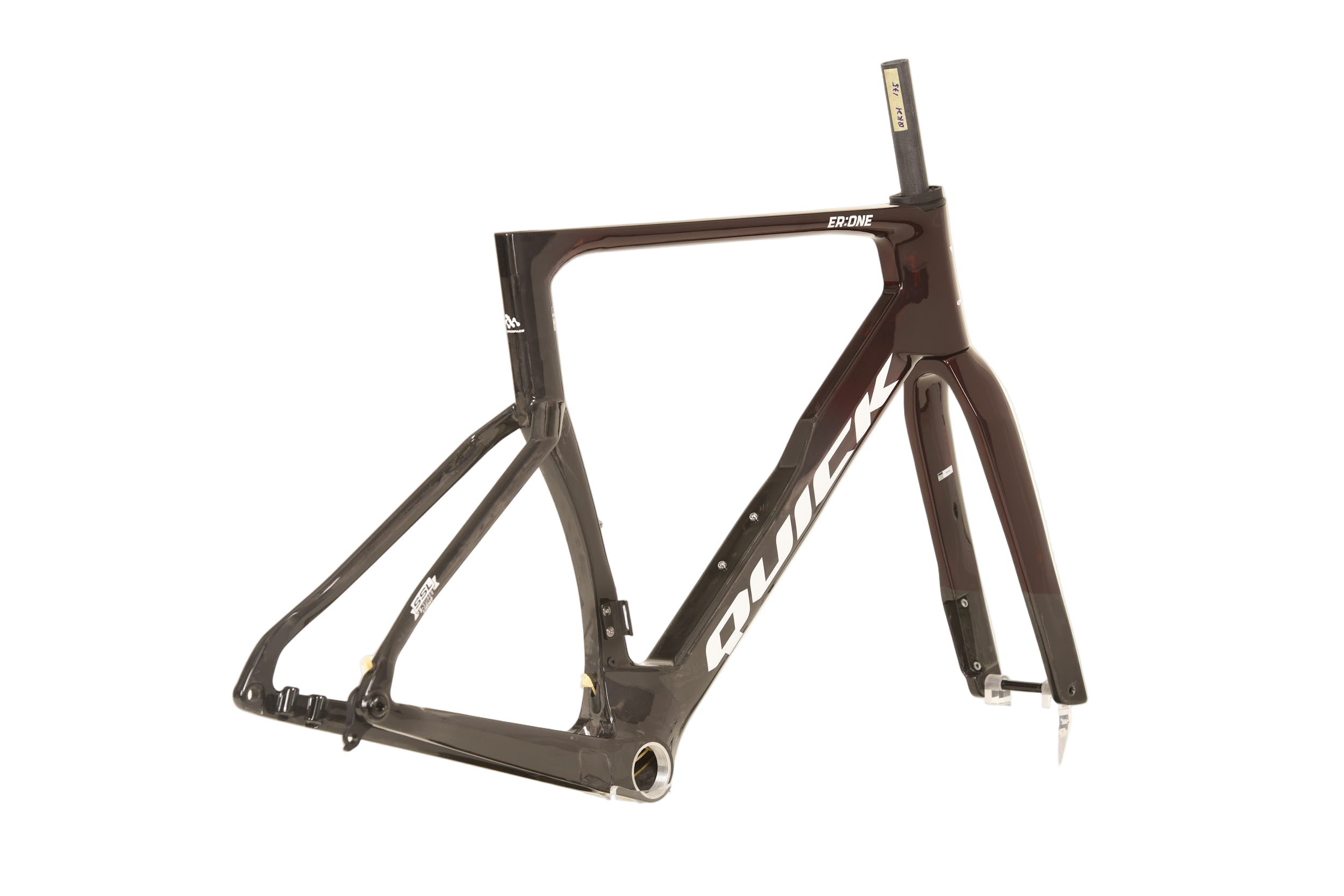

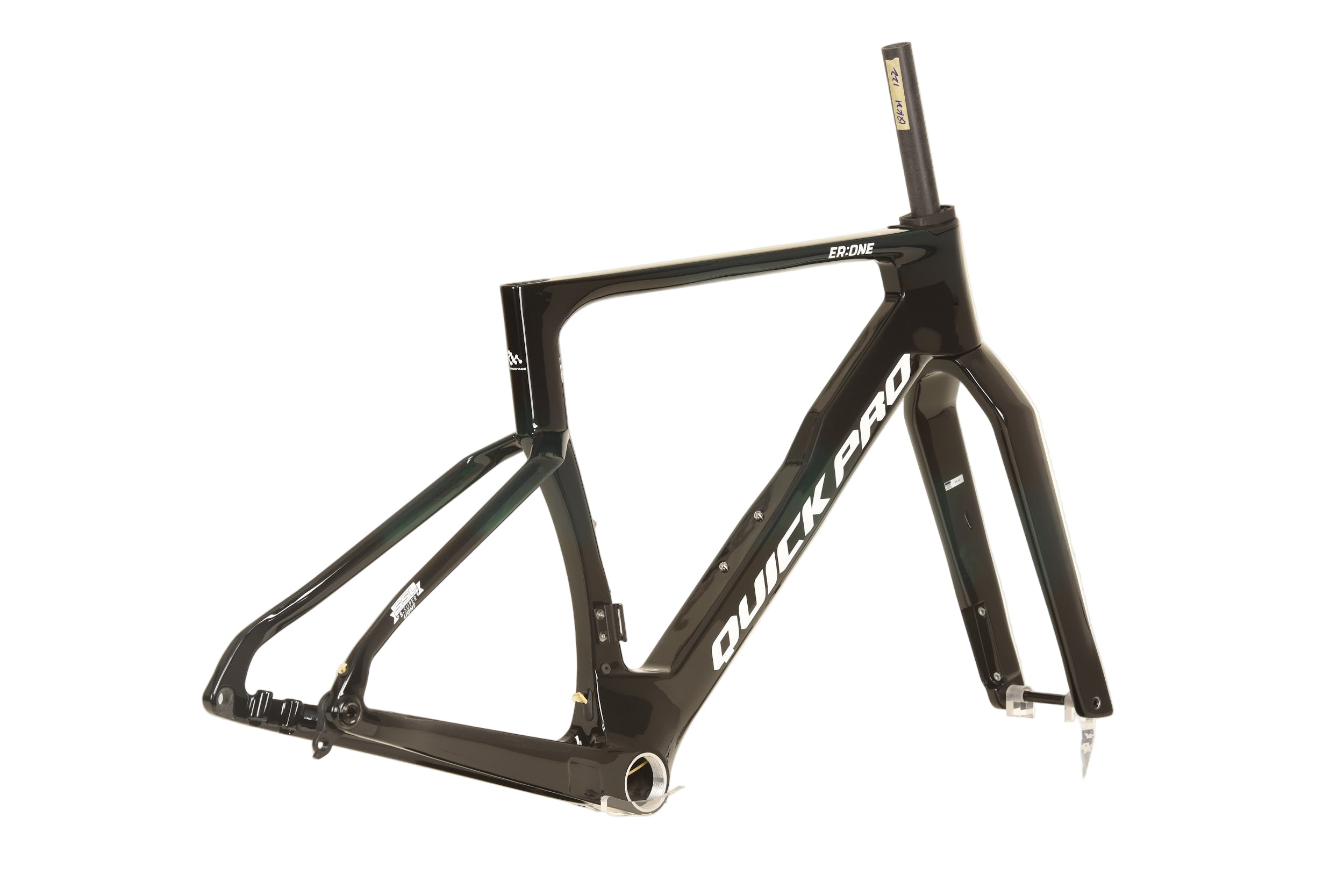

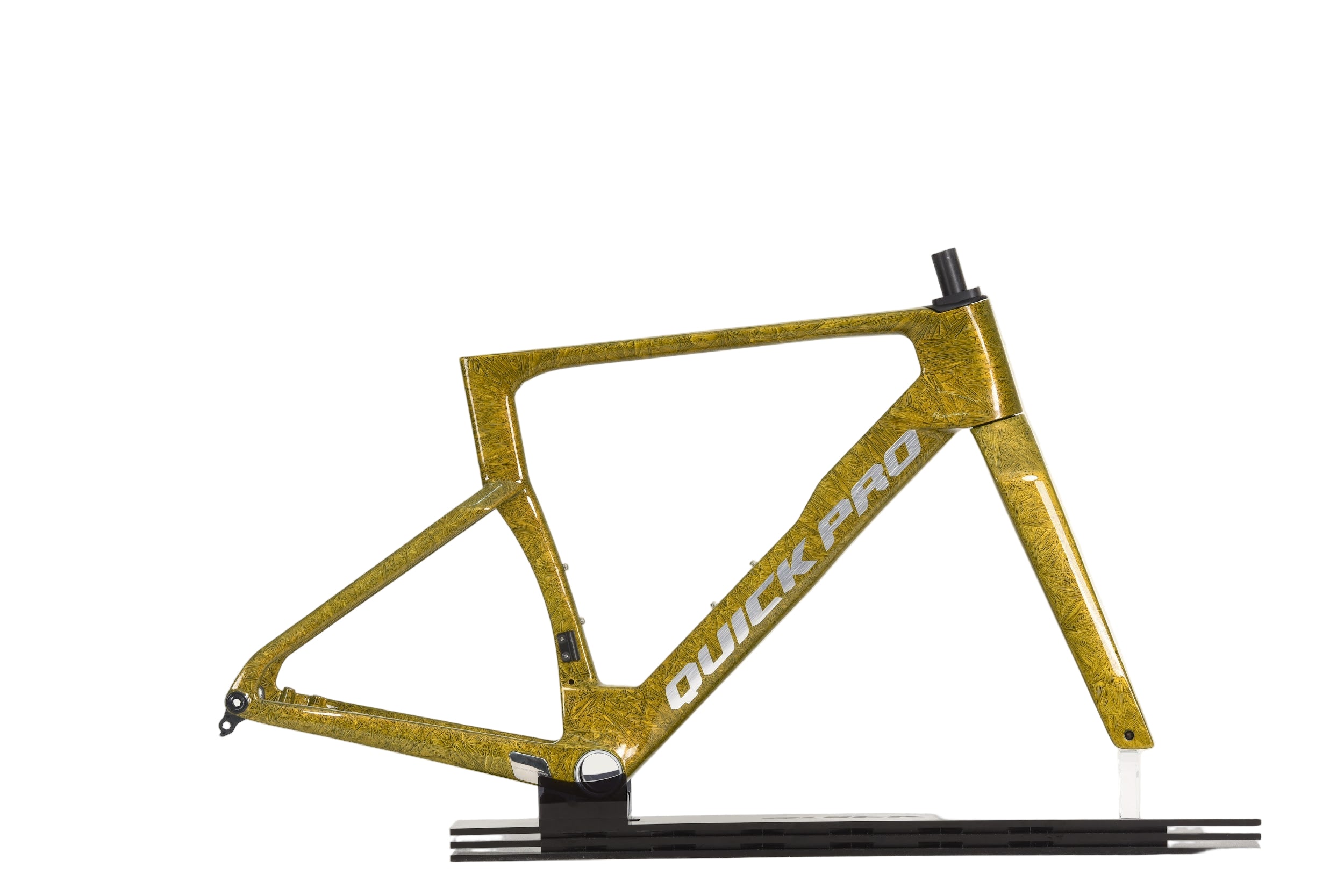

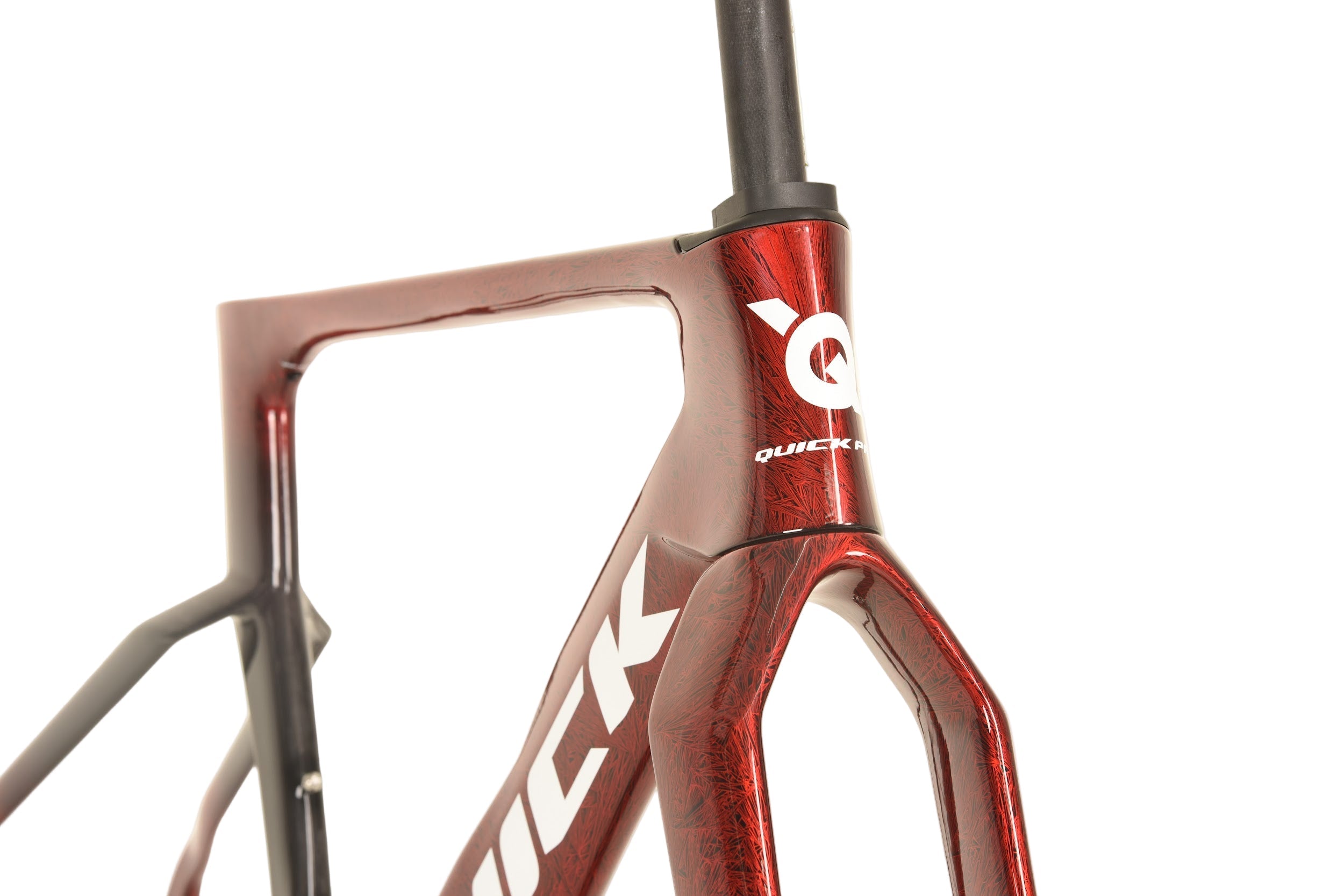

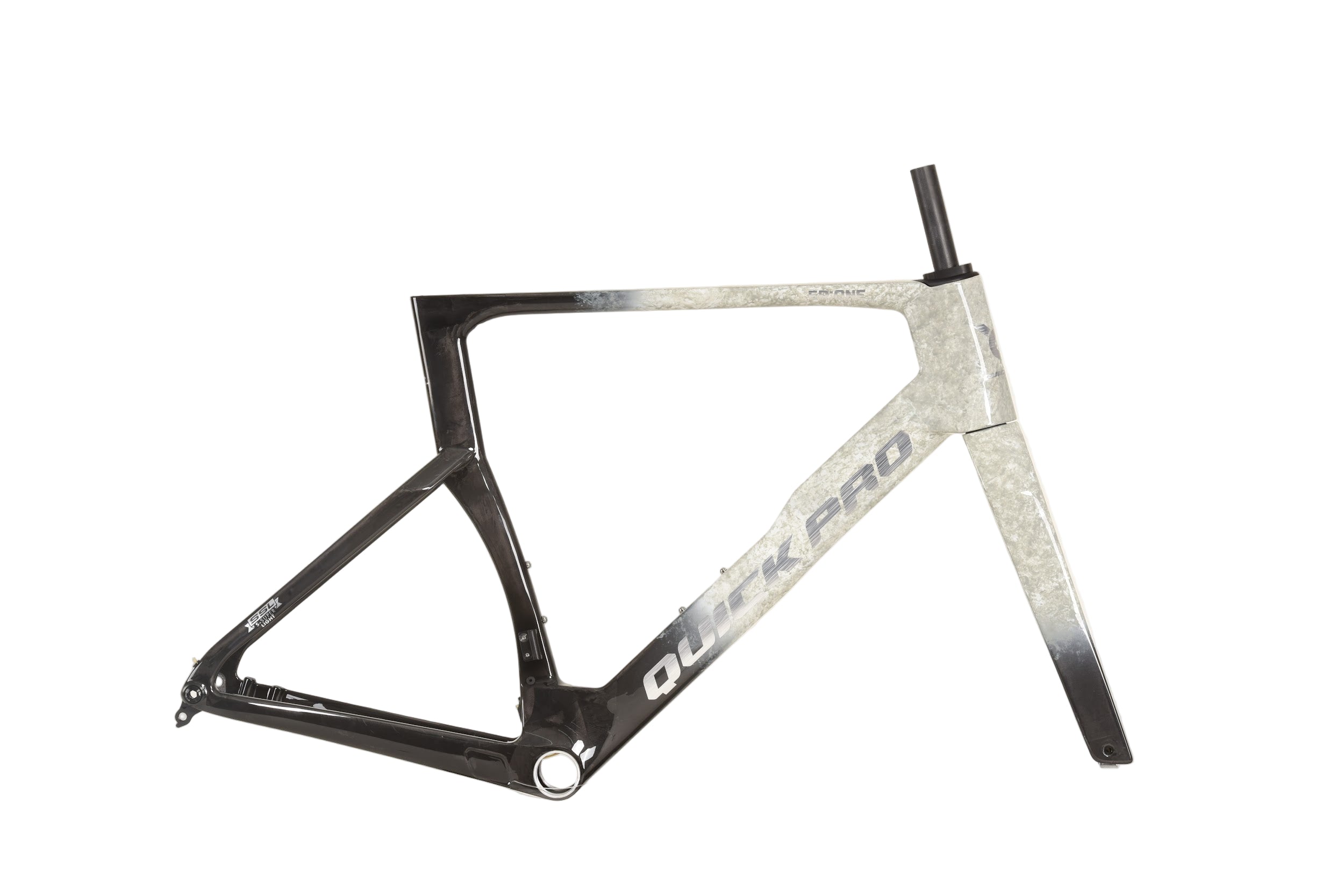

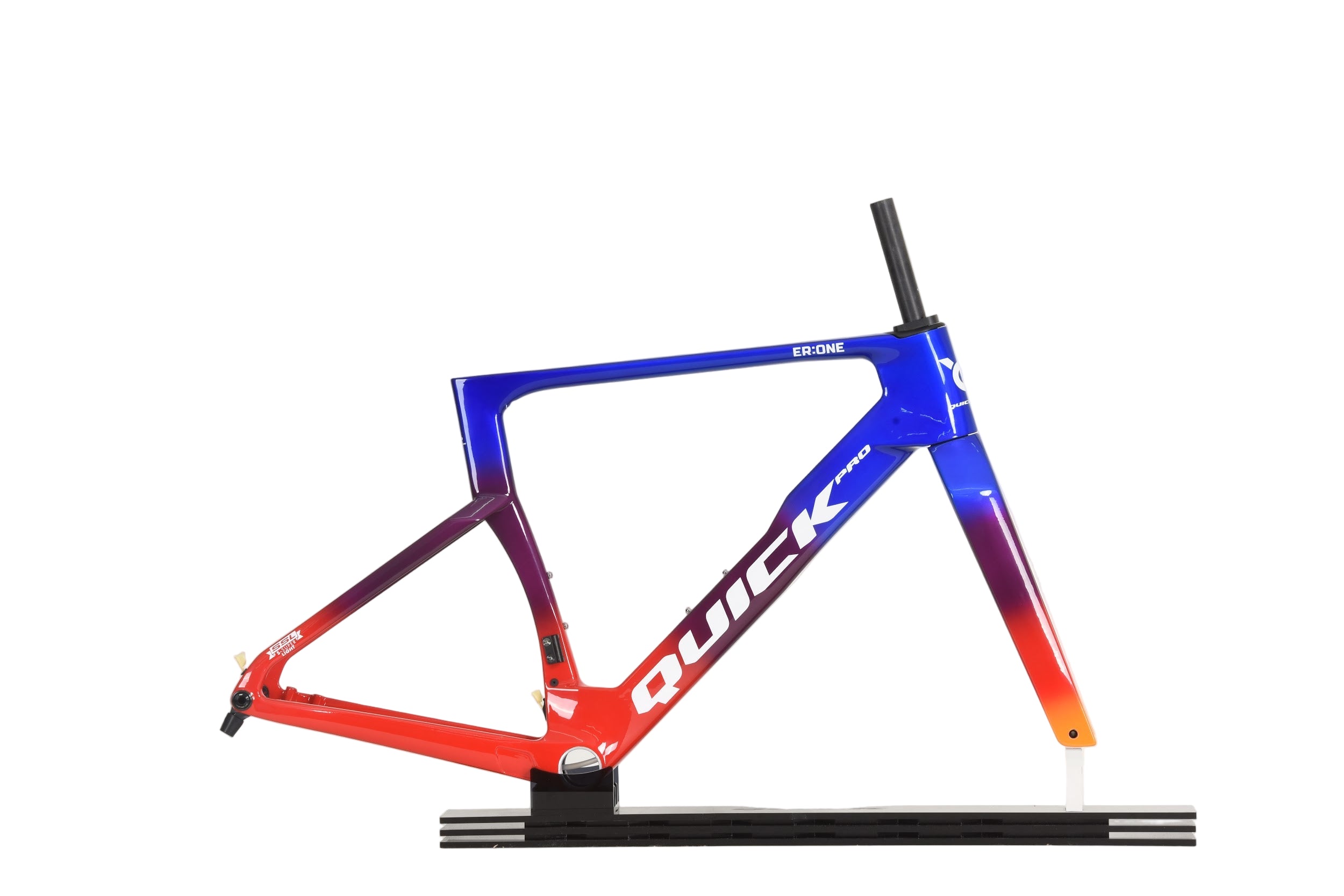

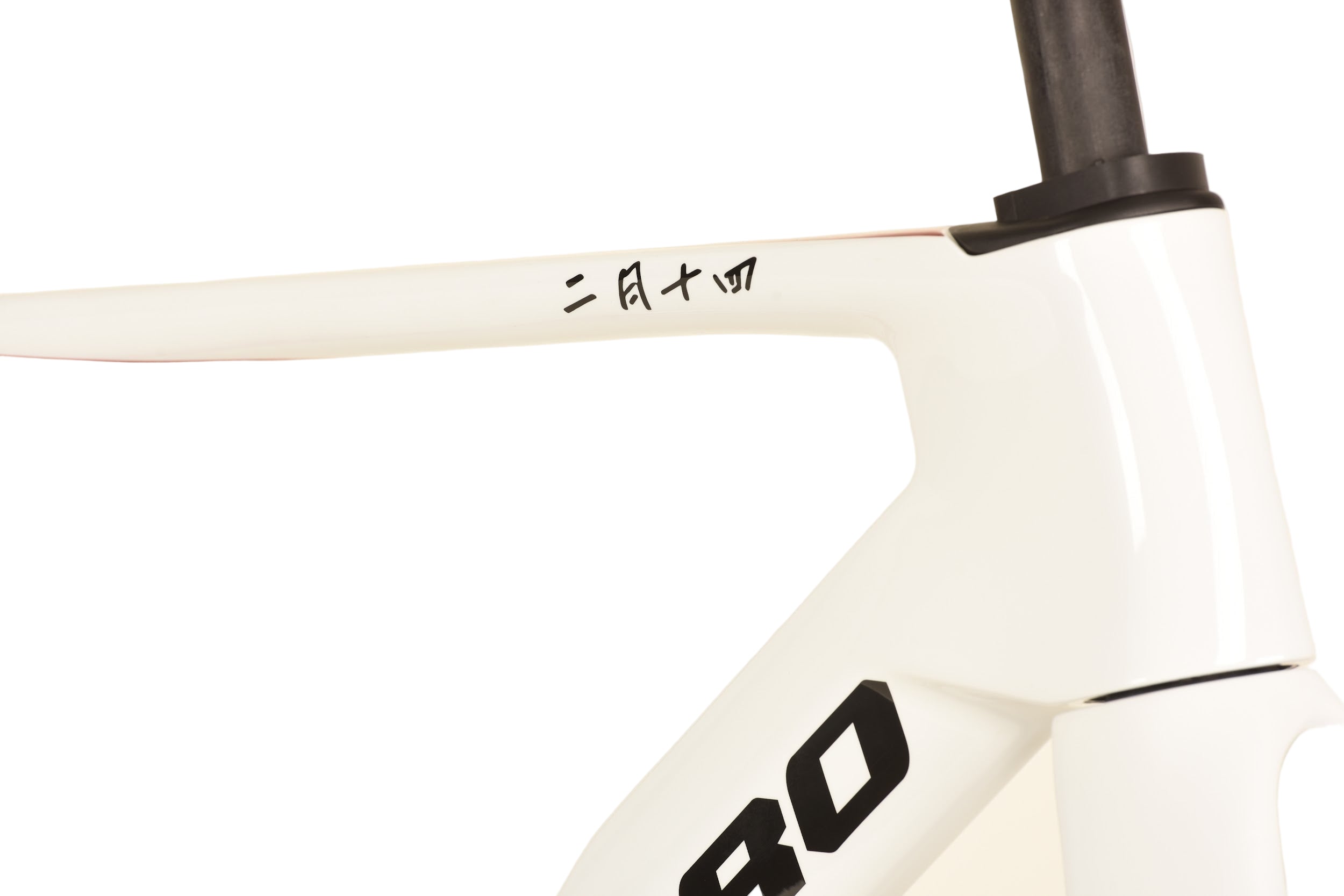

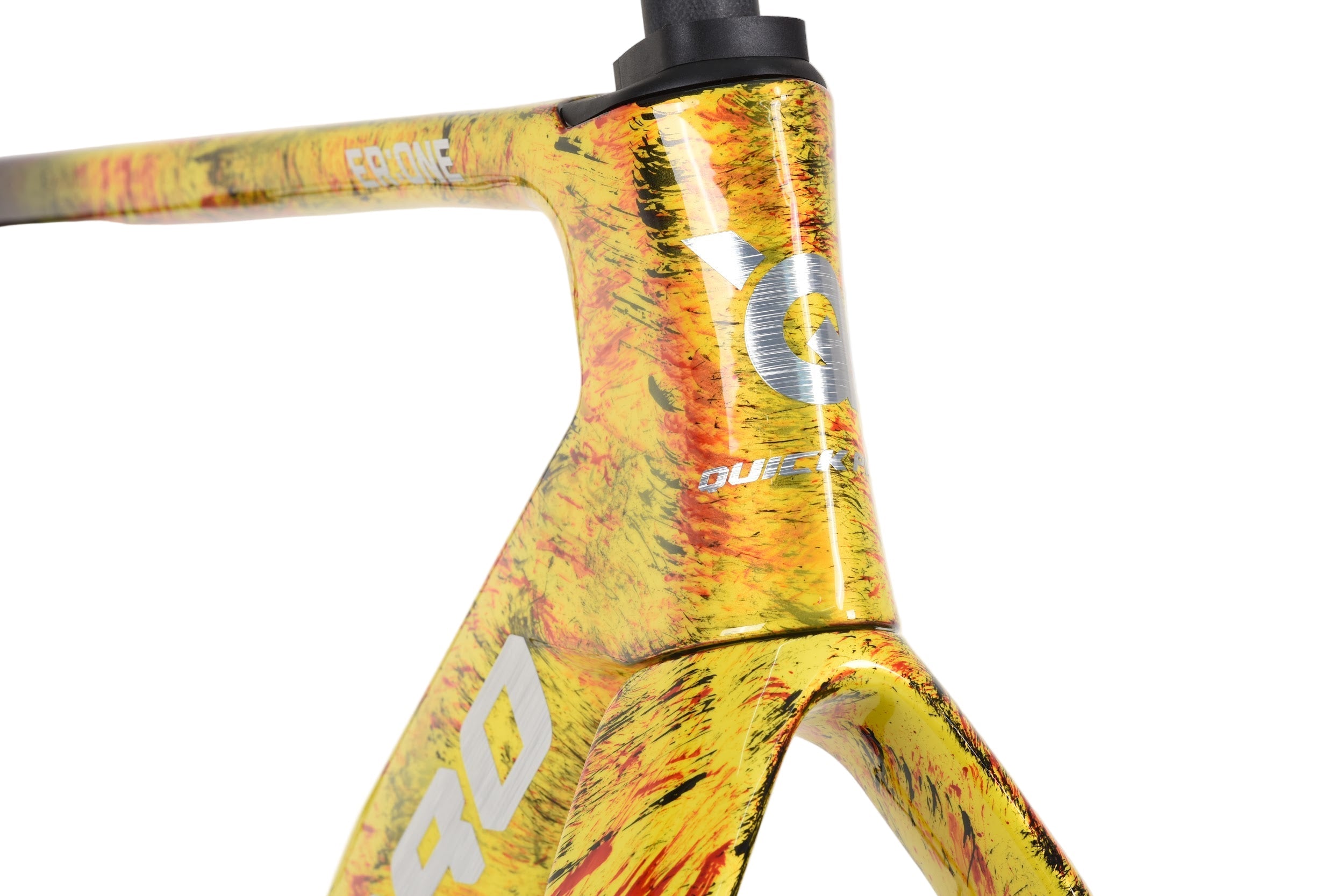

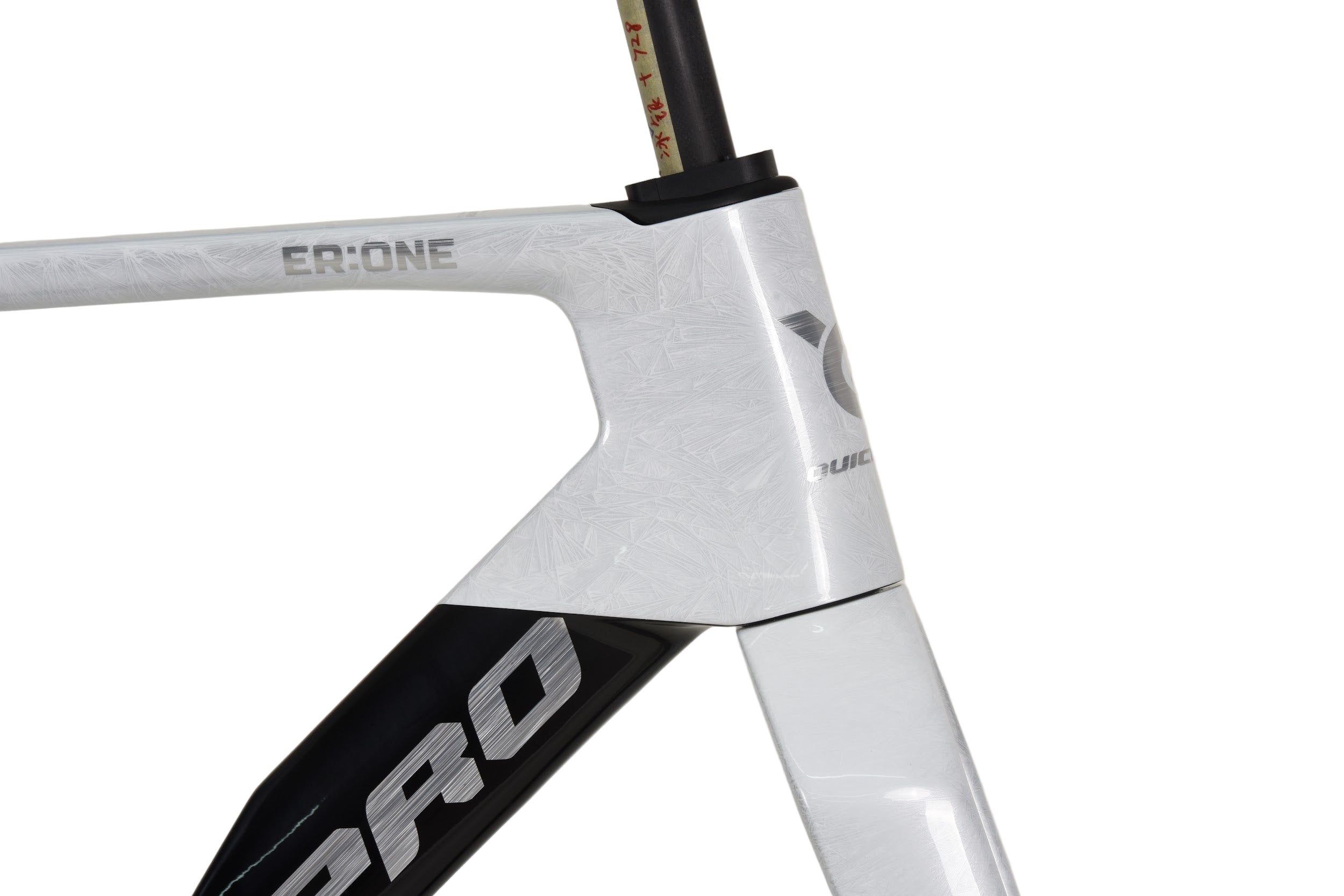

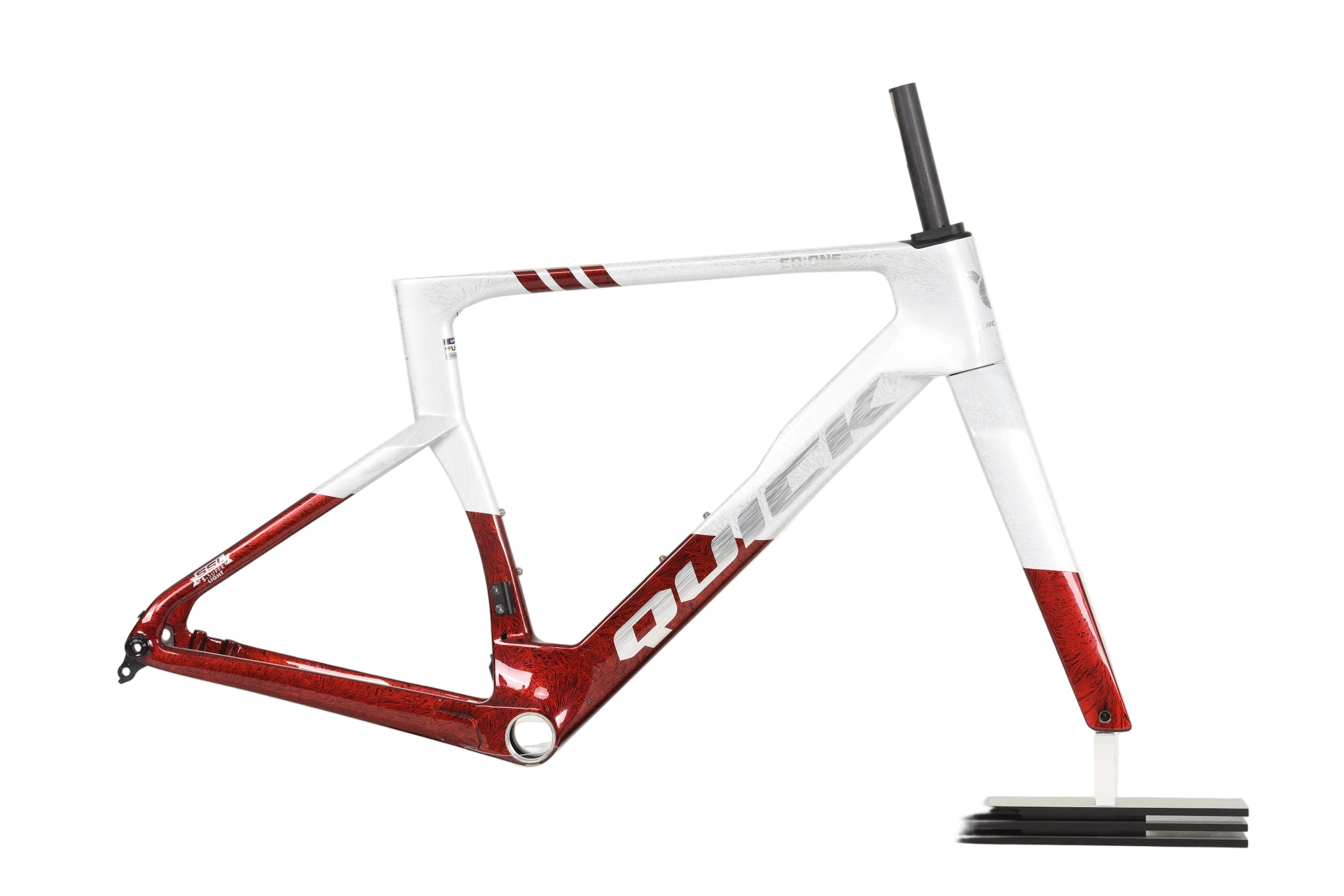

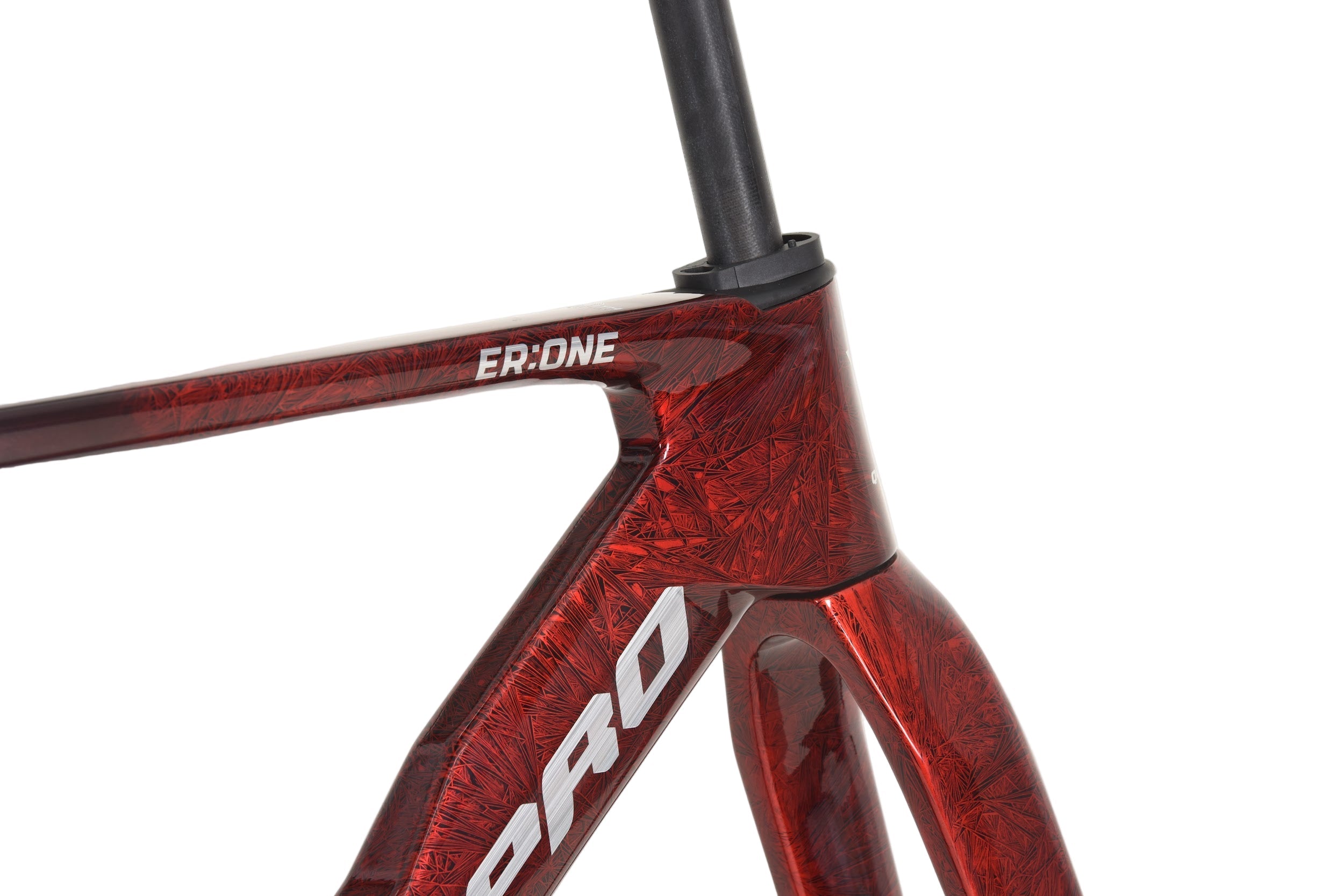

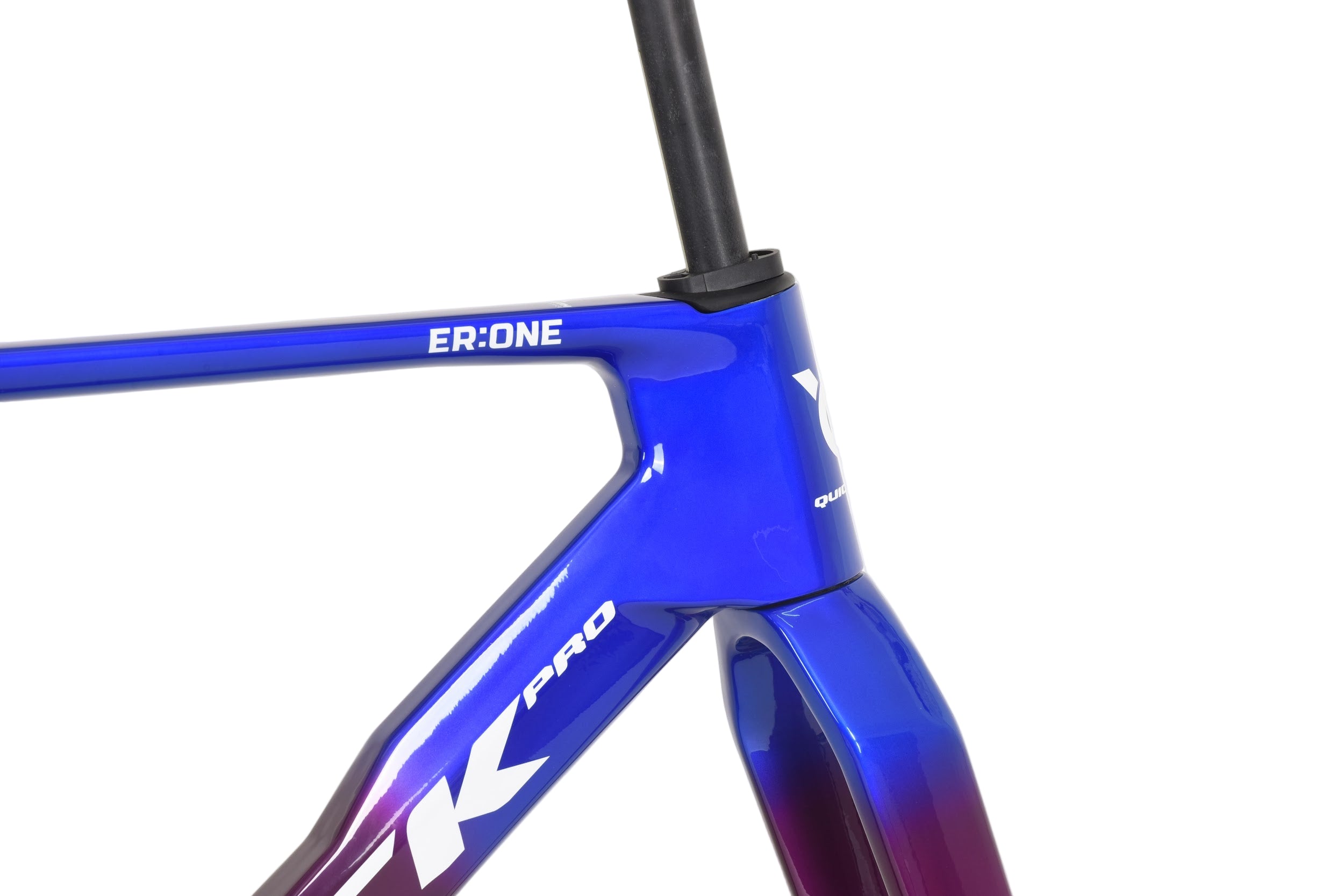

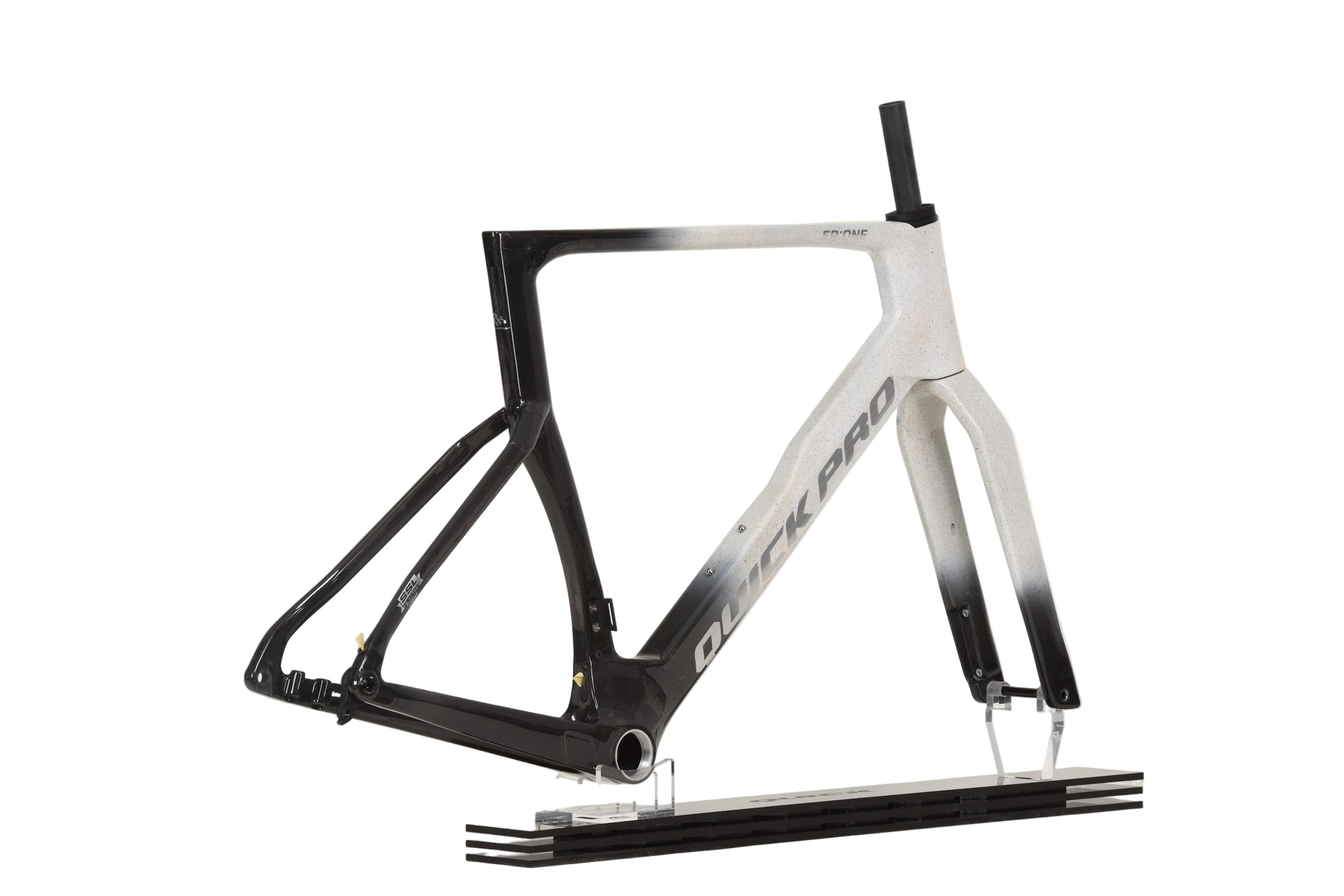

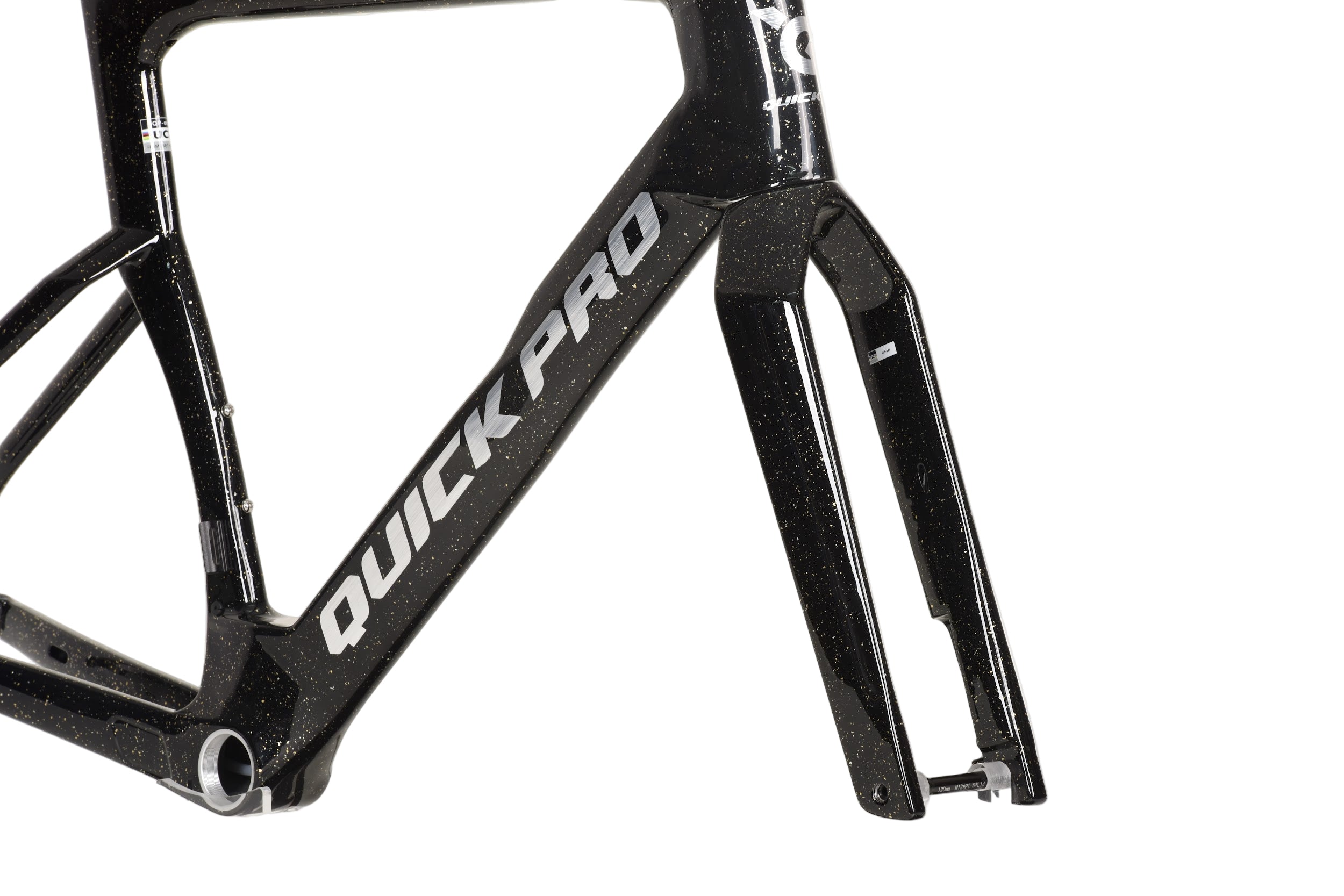

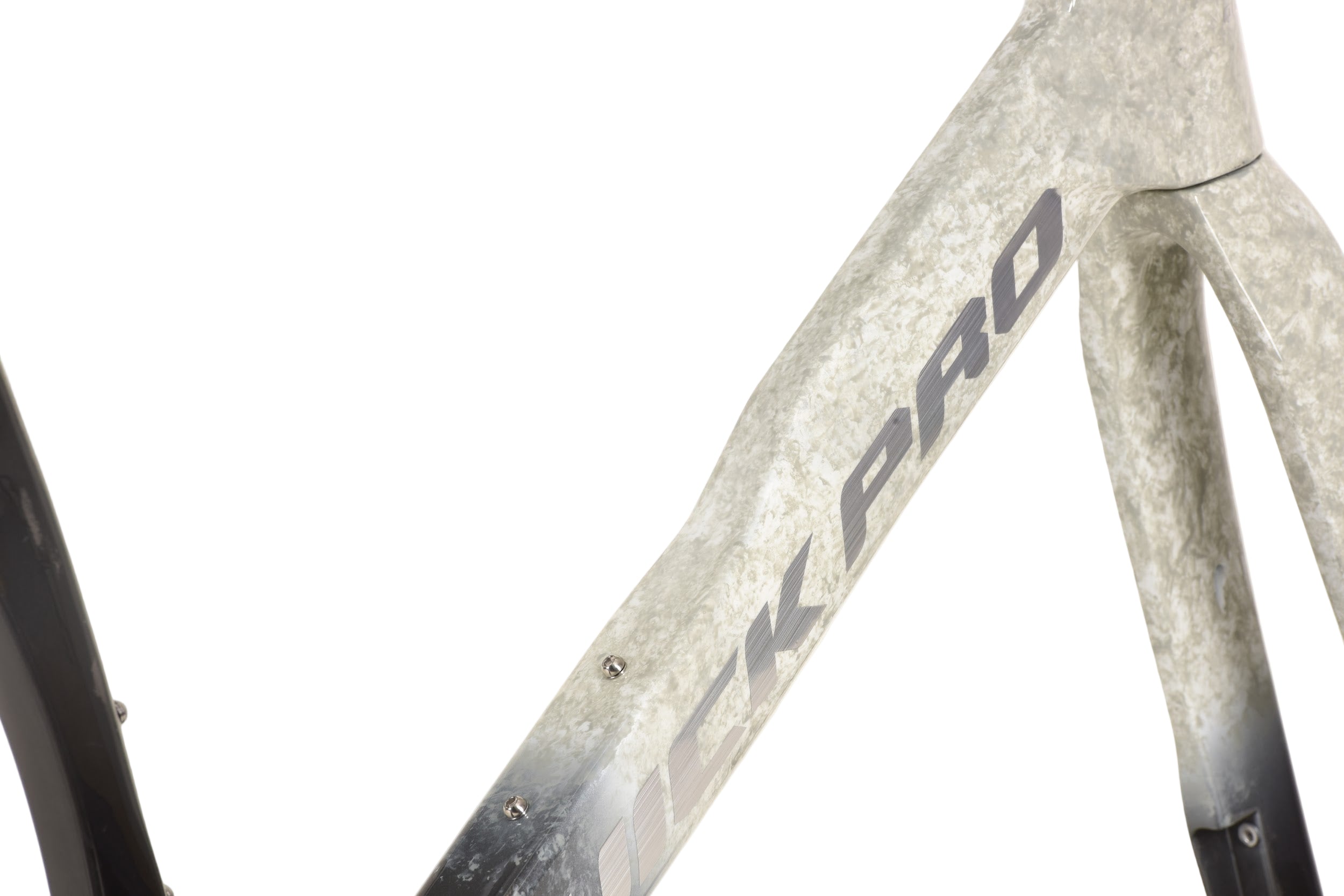

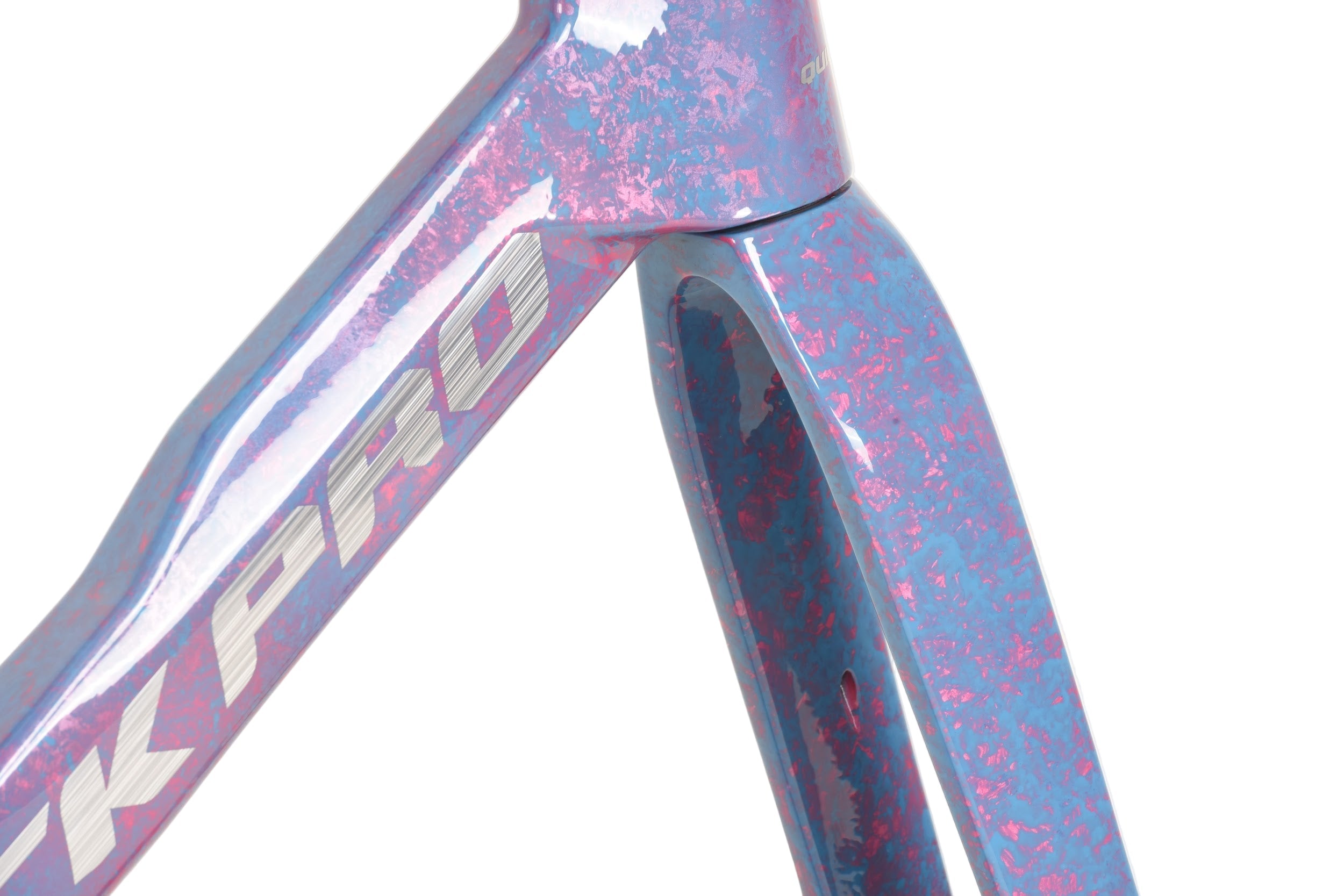

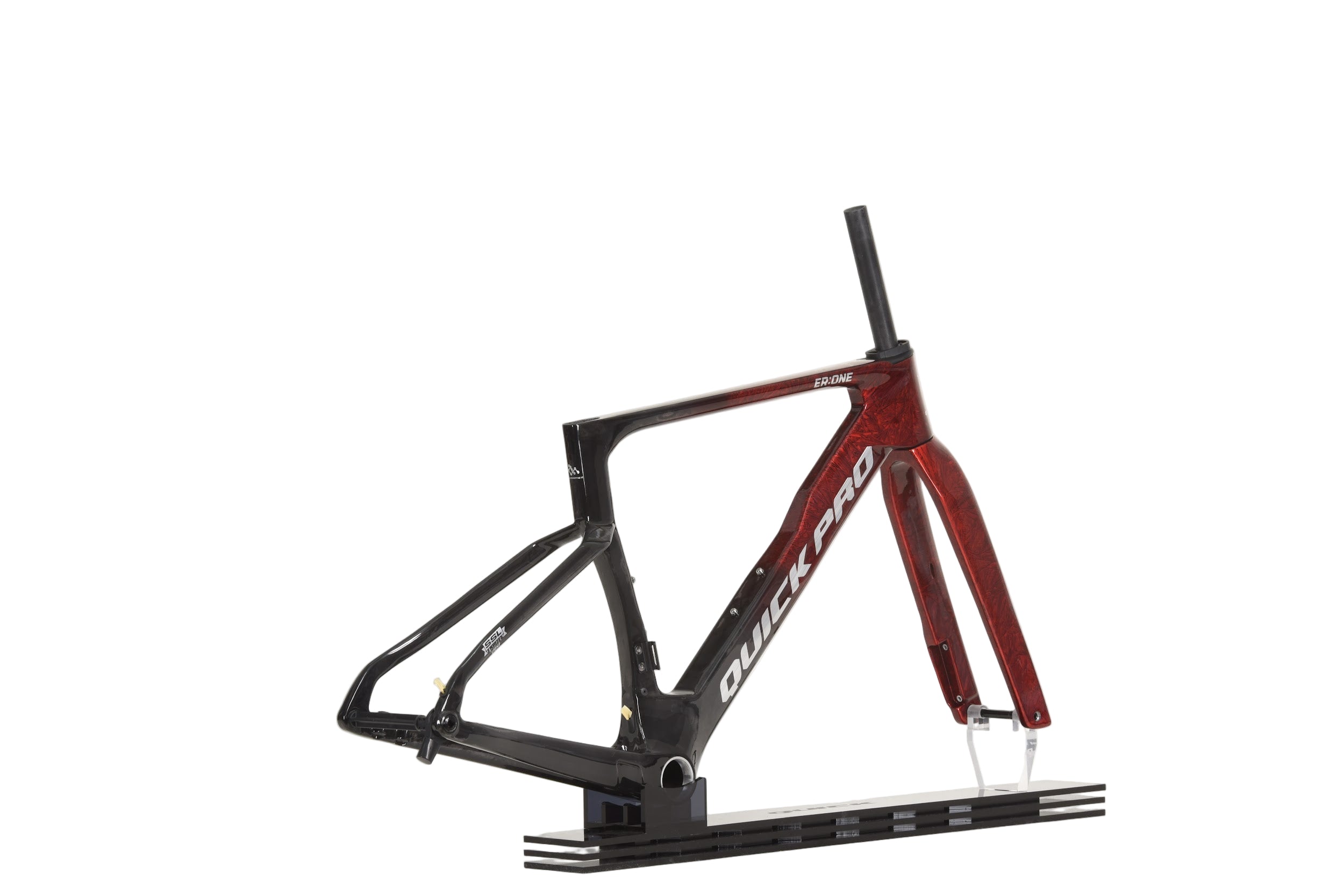

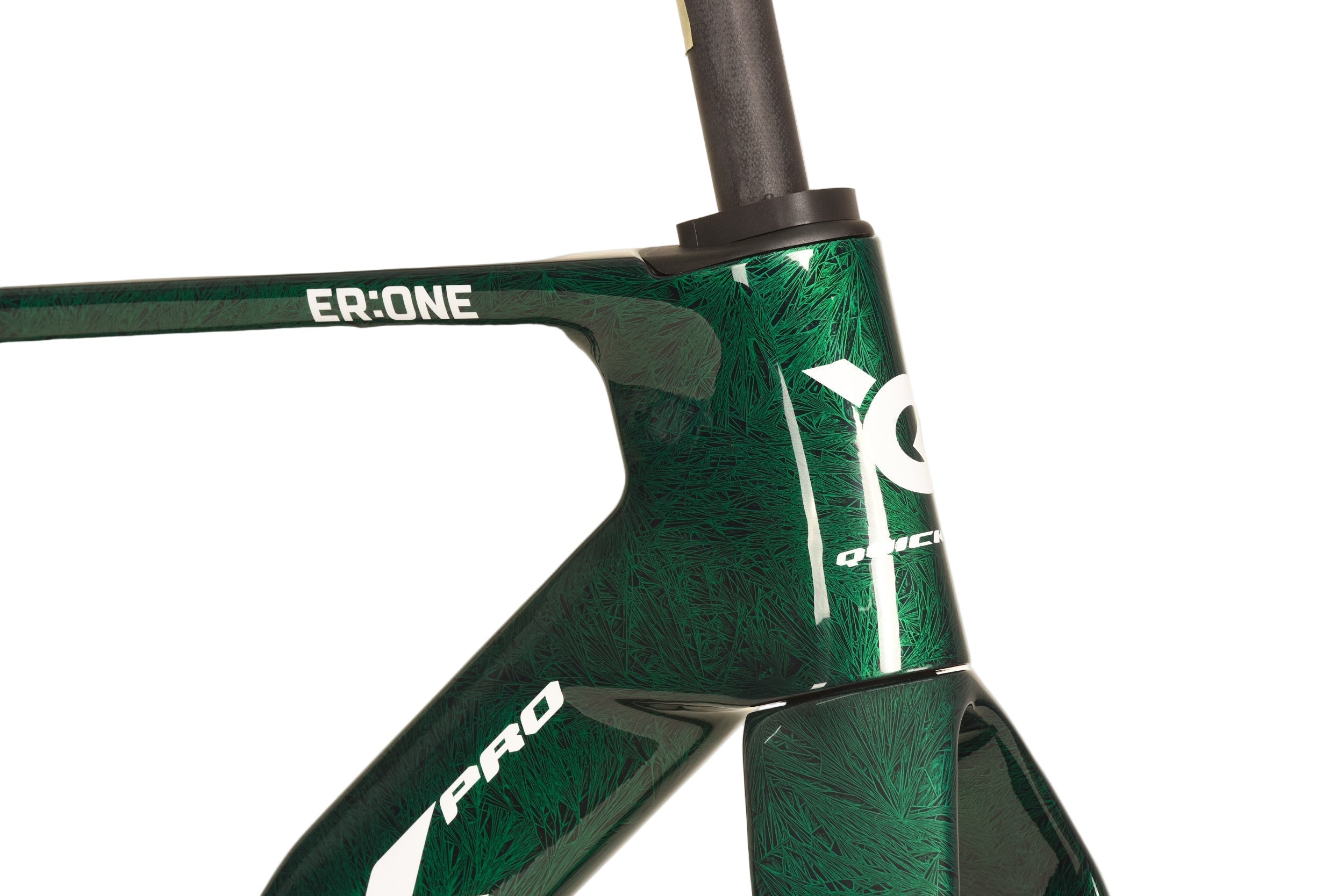

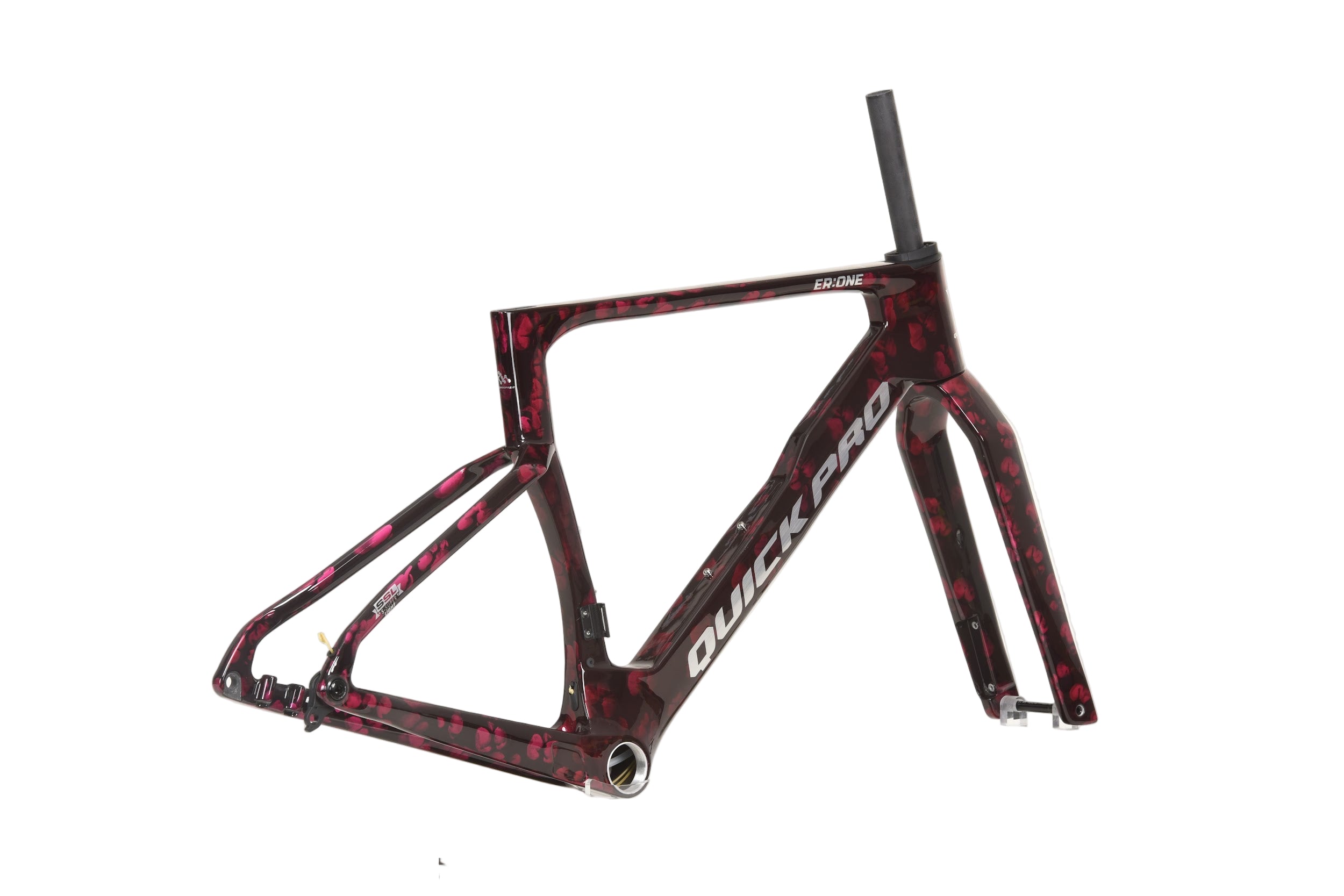

Custom Paint by Quick Pro — Your Bike, Your Identity

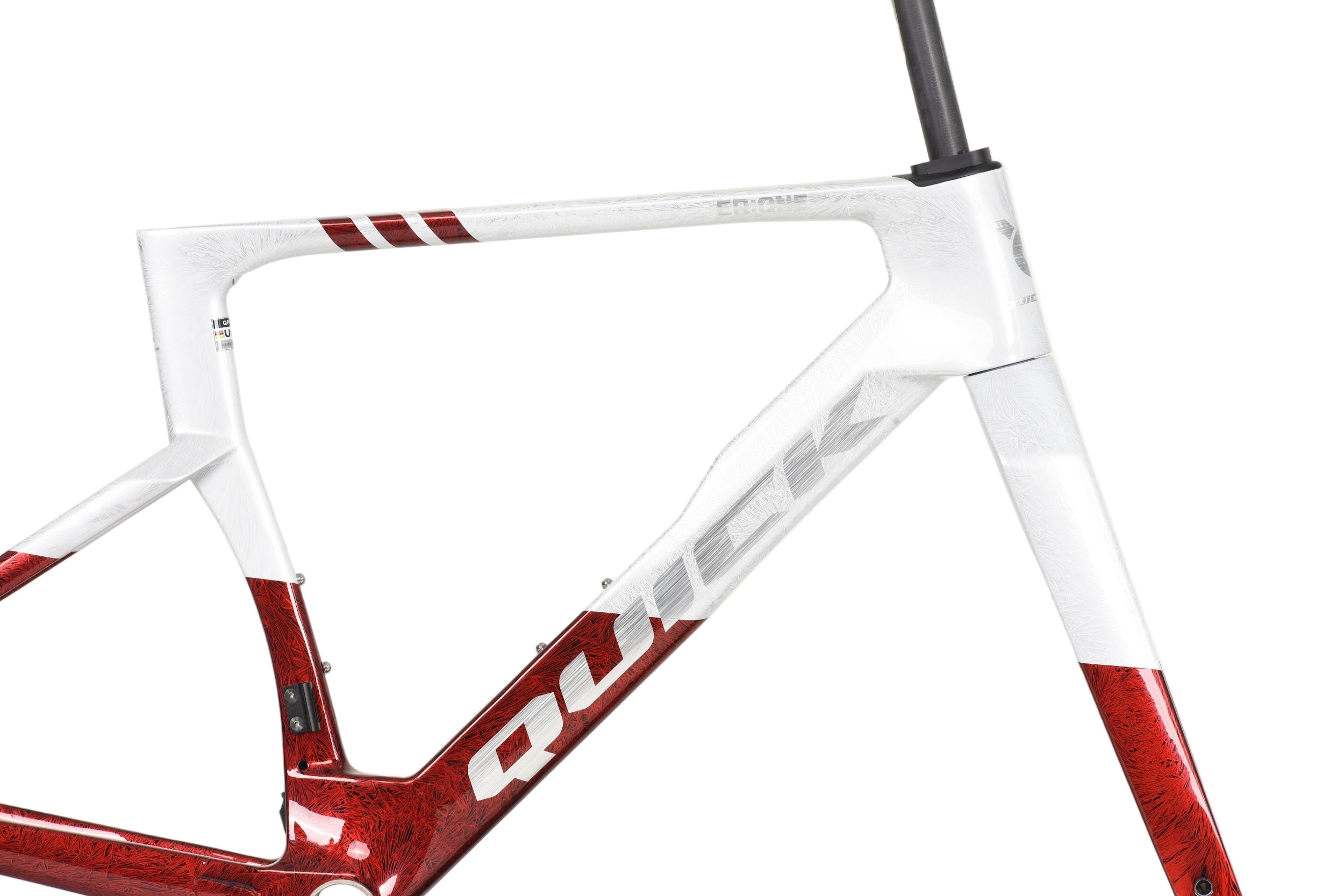

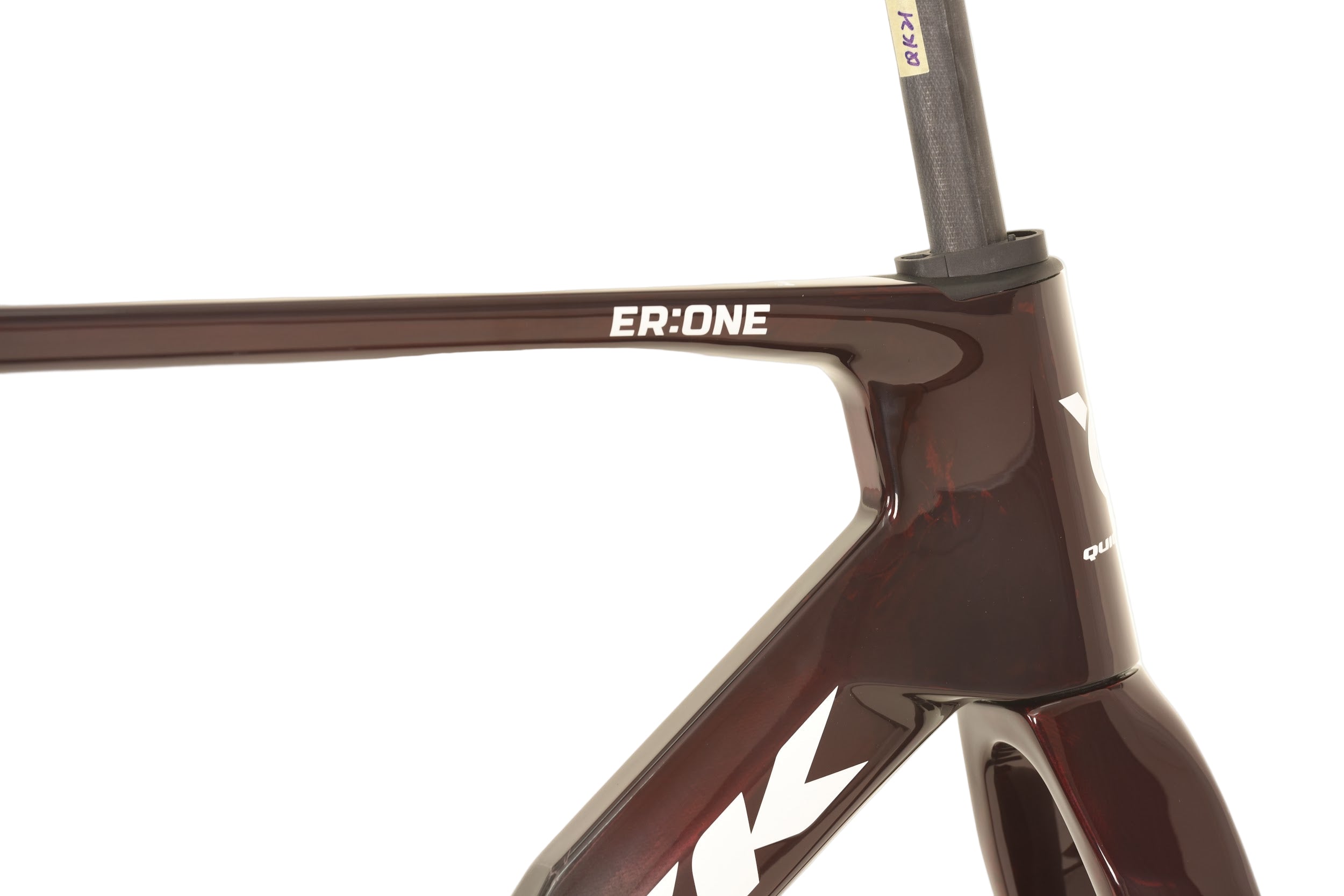

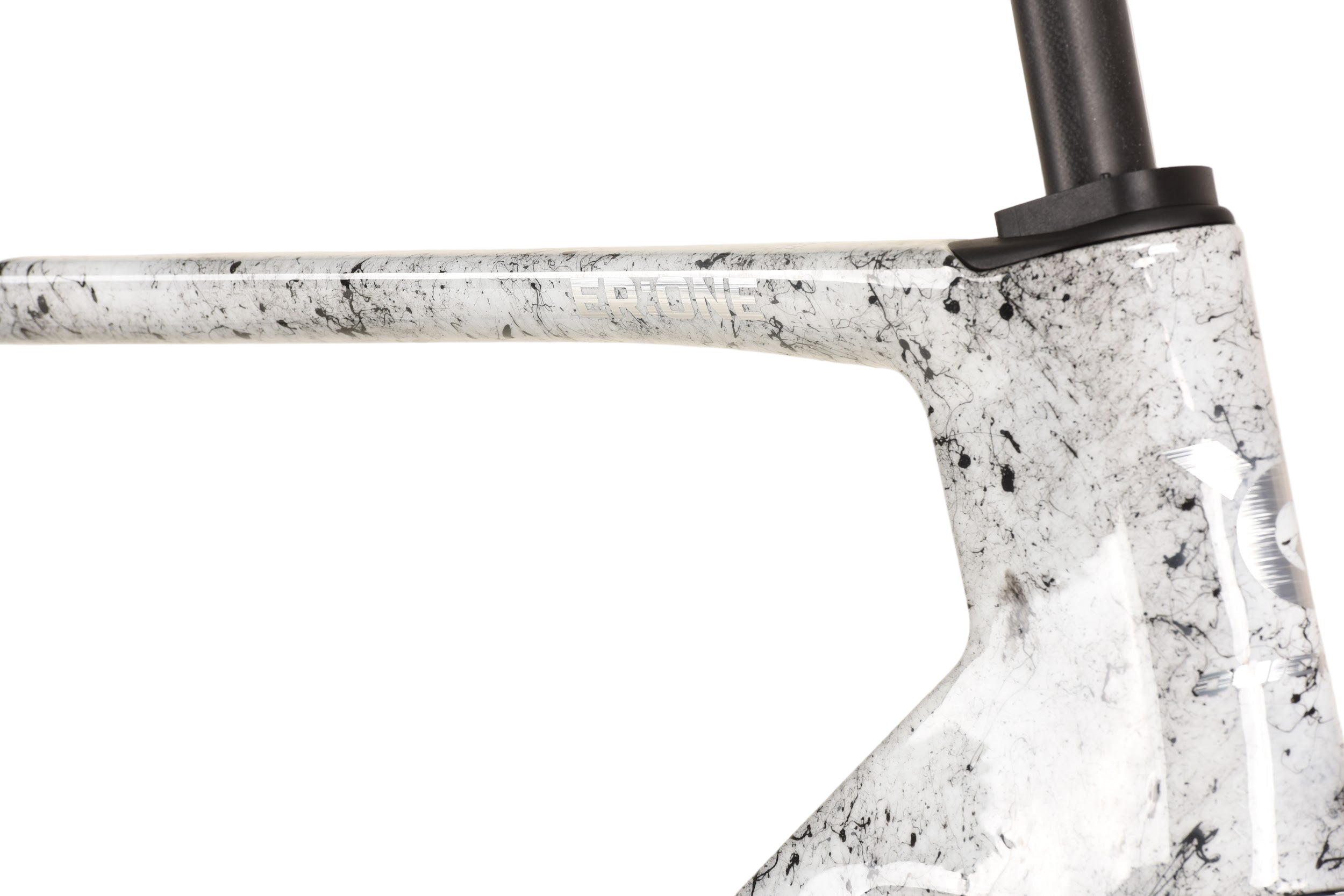

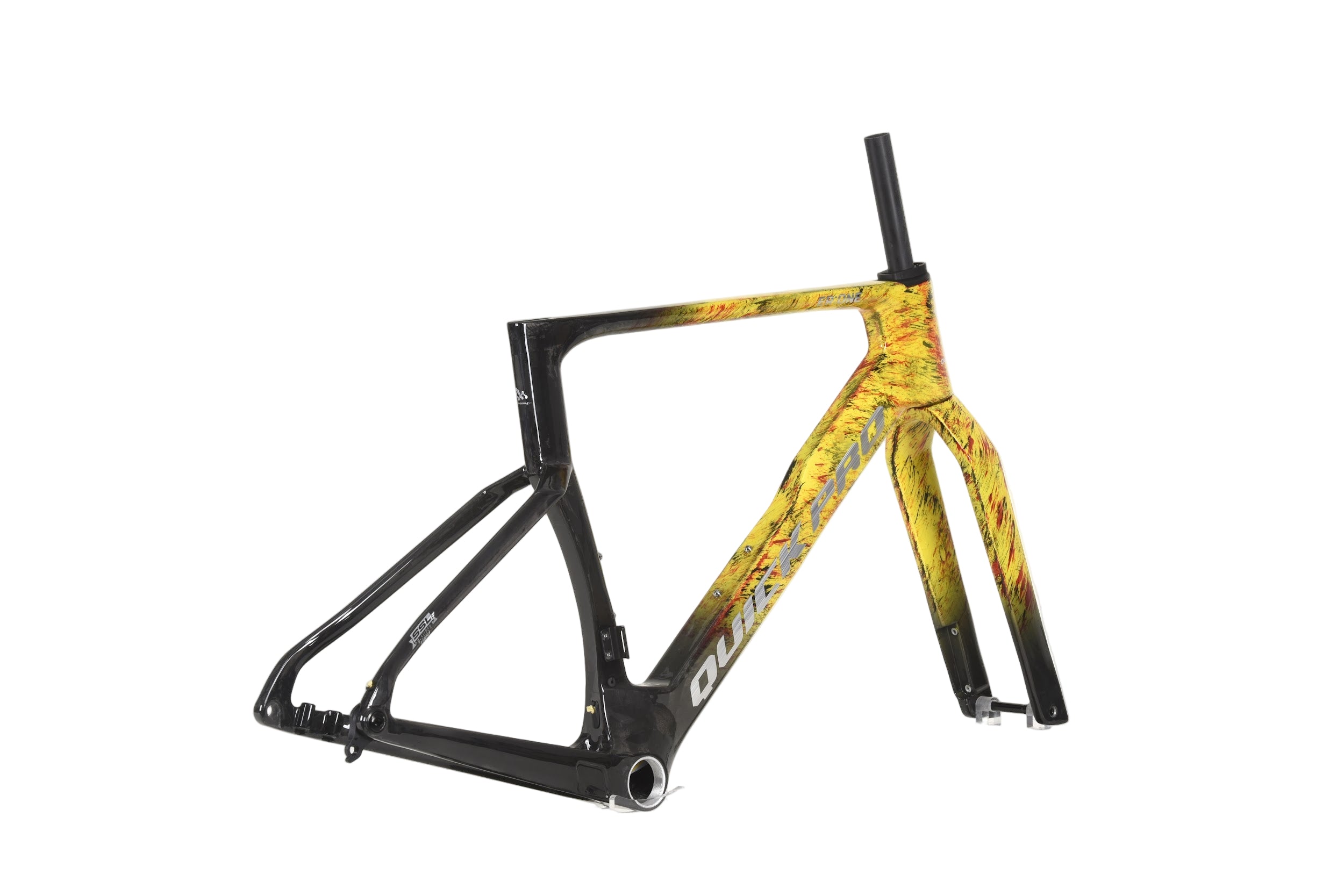

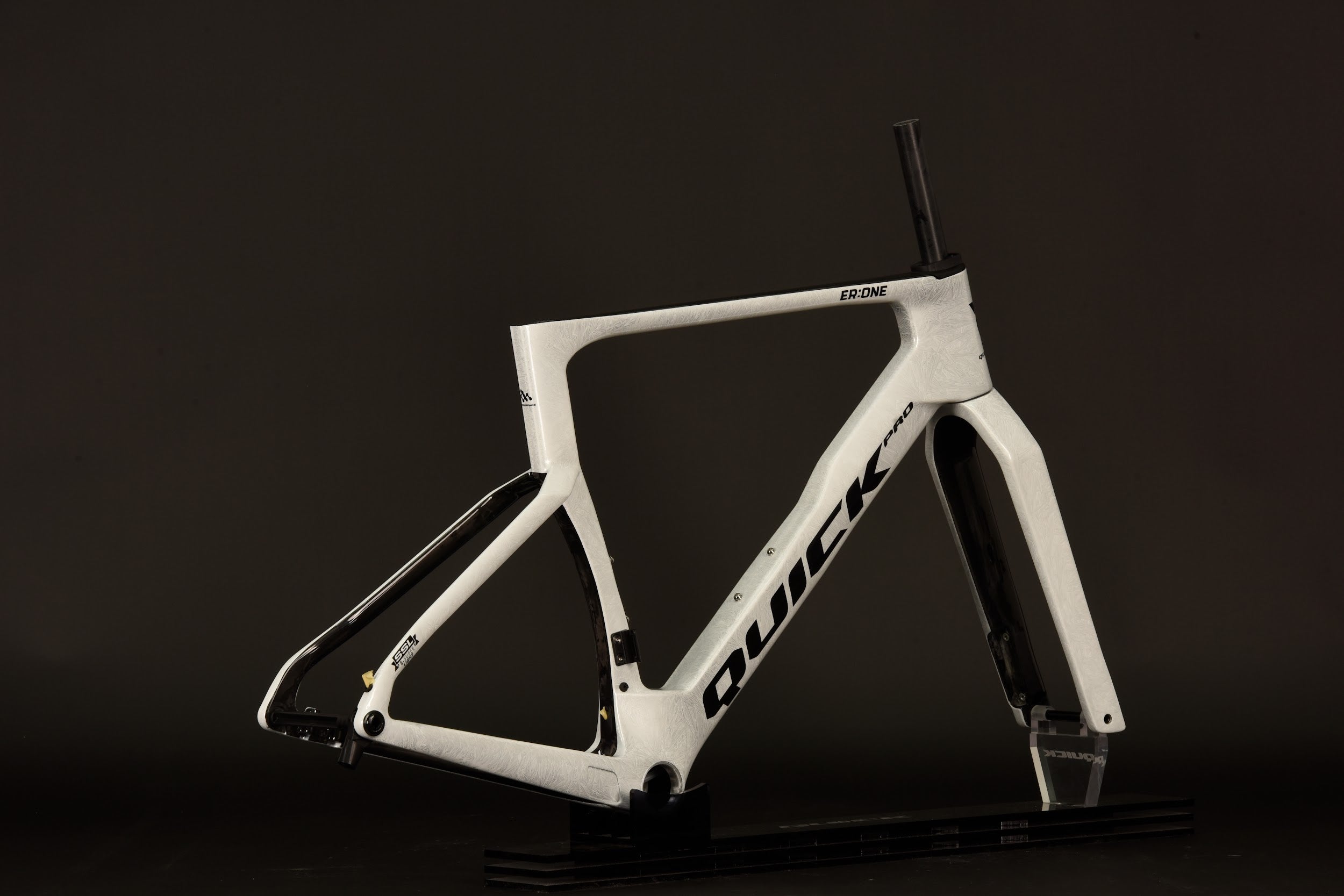

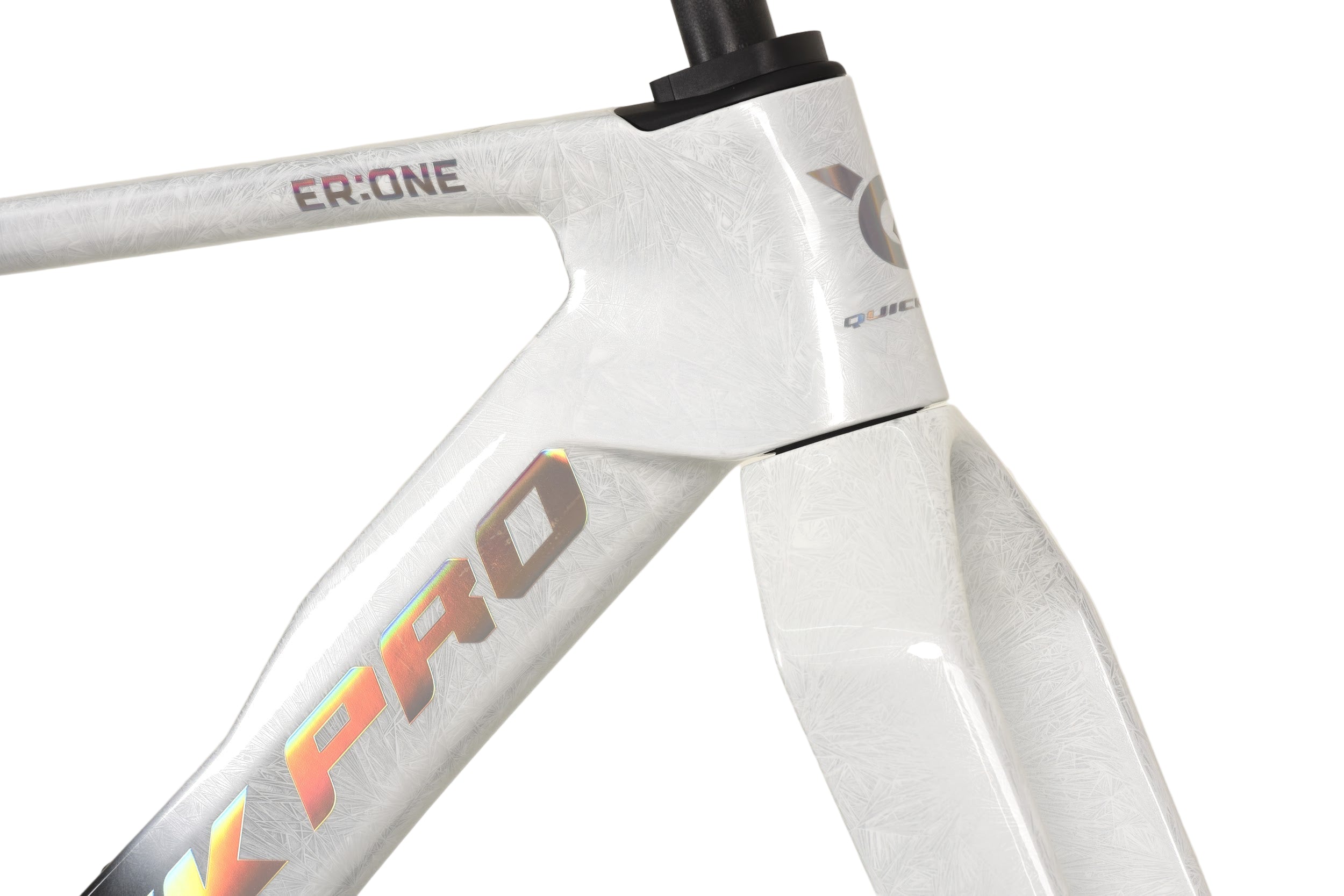

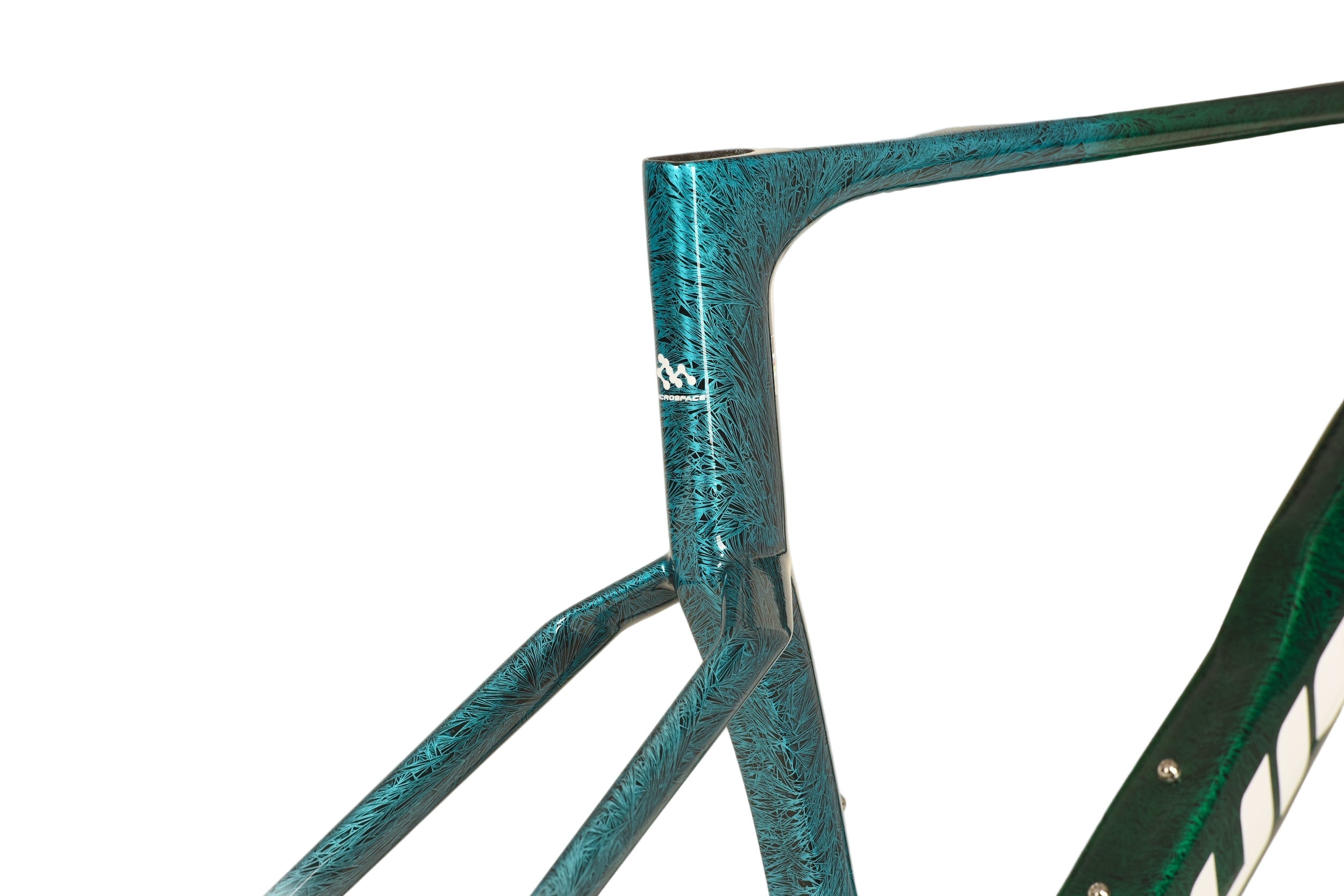

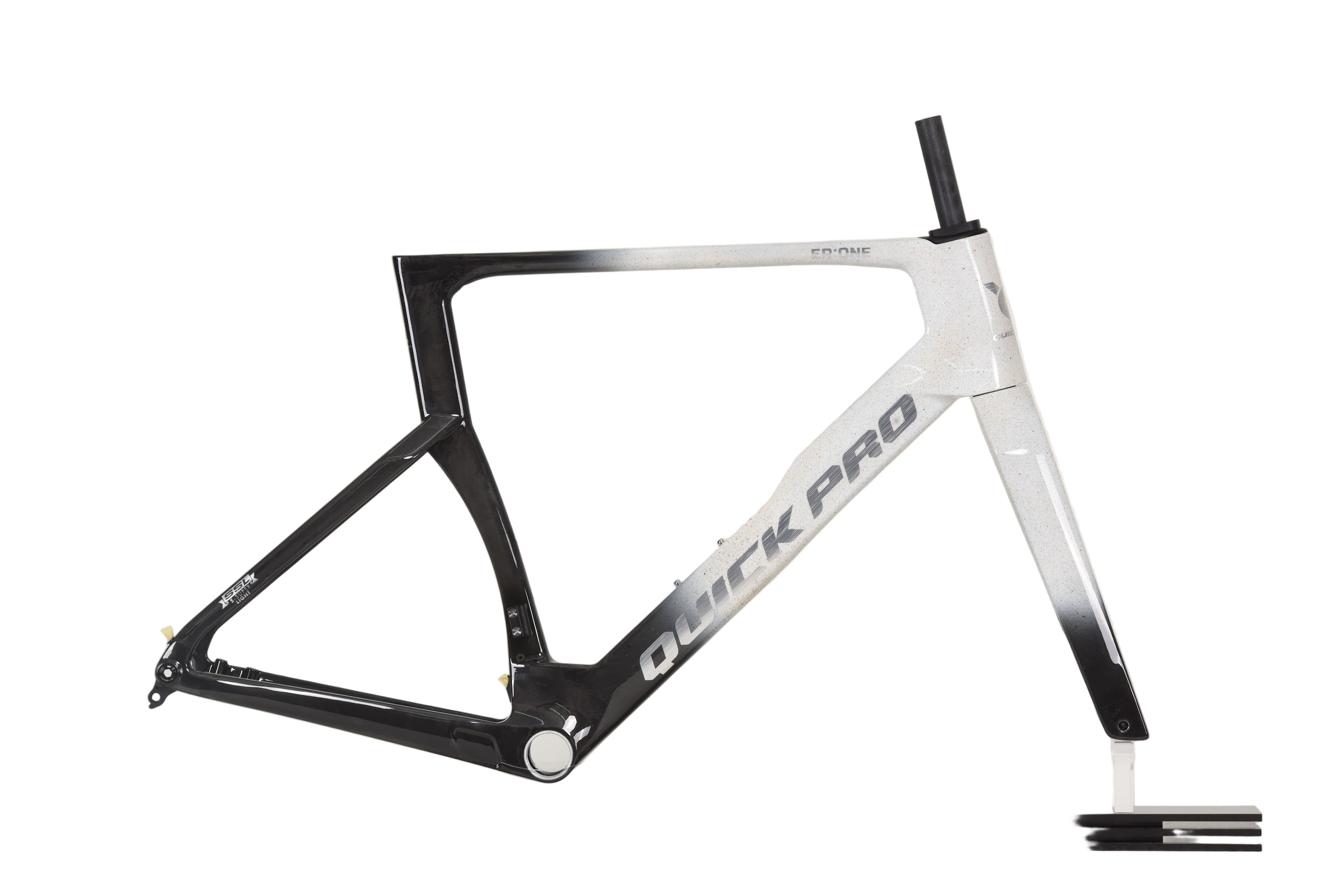

Stand out from the pack with Quick Pro’s custom paint program. Every frame can be personalized with your choice — from deep metallics to vibrant fades — all hand-painted by our master craftsmen. Each coat is precision-sprayed, UV-sealed, and polished to perfection, turning your bike into a true reflection of your style. Whether you want a bold statement or a subtle signature, Quick Pro makes every ride uniquely yours.
ER:ONE CUSTOM COLOR
Meet the ER:ONE
Precision engineered for speed, built to win.
Discover what makes the ER:ONE a race-proven machine.
-
UCI Approved Race Bike
-
Aerodynamic design
-
The official bike of
Quick Continental Team -
Advanced material – built with premium Toray T1100 and M56 high grade carbon fibers
-
Customisable componentry.
Your bike, your way -
Lightweight integrated handlebar
Find Your ER:One Fit
Rider Size Guide
Use your rider height
to find your ideal
ER:One frame size.
Frame Size
Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| XS / 430 | SM / 460 | MD / 490 | LG / 520 | XL / 550 | XXL / 584 | ||
|---|---|---|---|---|---|---|---|
| A | Frame Size / Seat Tube Length (mm) | 430 | 460 | 490 | 520 | 550 | 584 |
| B | Effective Top Tube Length (mm) | 515 | 525 | 540 | 558 | 575 | 596 |
| C | Seat Tube Angle (°) | 75.0 | 74.5 | 74.0 | 73.5 | 73.5 | 73.0 |
| D | Head Tube Angle (°) | 70.0 | 71.0 | 72.0 | 73.0 | 73.0 | 73.5 |
| E | Head Tube Length (mm) | 105 | 118 | 132 | 148 | 165 | 185 |
| F | Chainstay Length (mm) | 408 | 408 | 408 | 408 | 408 | 408 |
| G | Wheelbase (mm) | 985 | 985 | 987 | 991 | 1008 | 1019 |
| H | Fork Offset / Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| I | Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| J | Fork Length (mm) | 373 | 373 | 373 | 373 | 373 | 373 |
| K | Standover Height (mm) | 746 | 762 | 779 | 797 | 813 | 846 |
| L | Stack-to-Reach Ratio (STR) | 1.32 | 1.36 | 1.39 | 1.40 | 1.40 | 1.42 |
| — | Reach (mm) | 380 | 381 | 386 | 393 | 406 | 415 |
| — | Stack (mm) | 505 | 521 | 538 | 556 | 572 | 593 |
