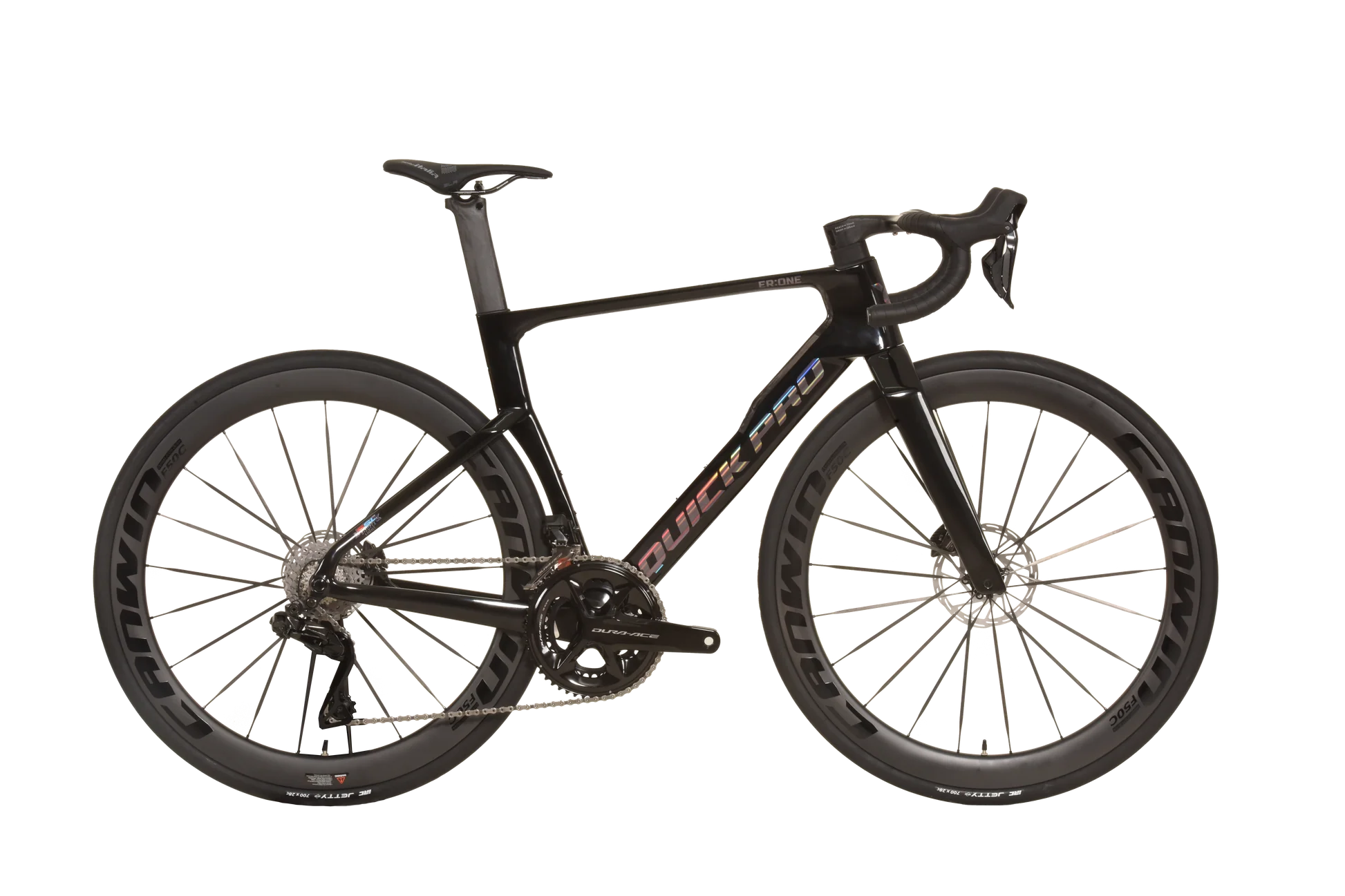

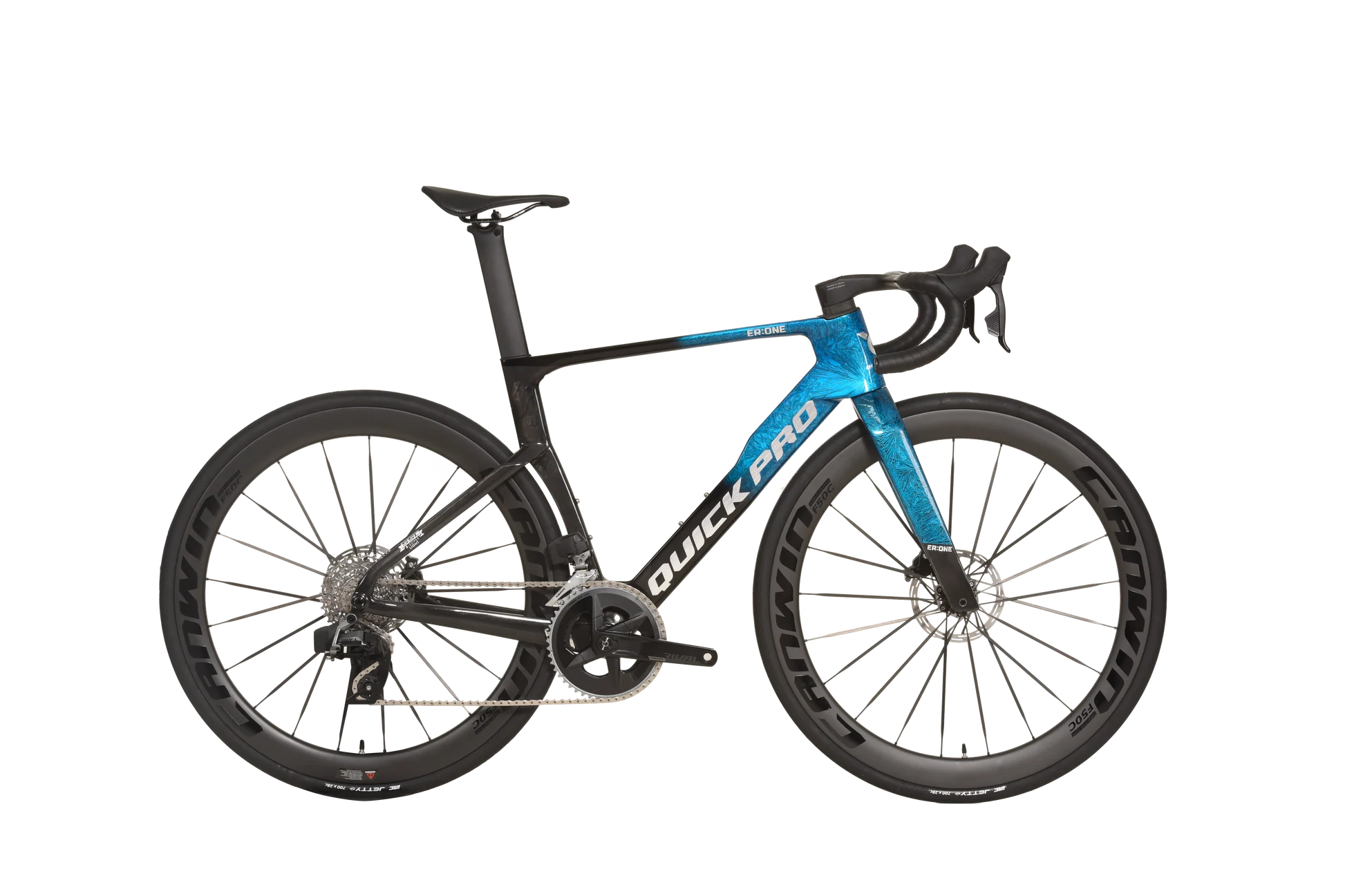

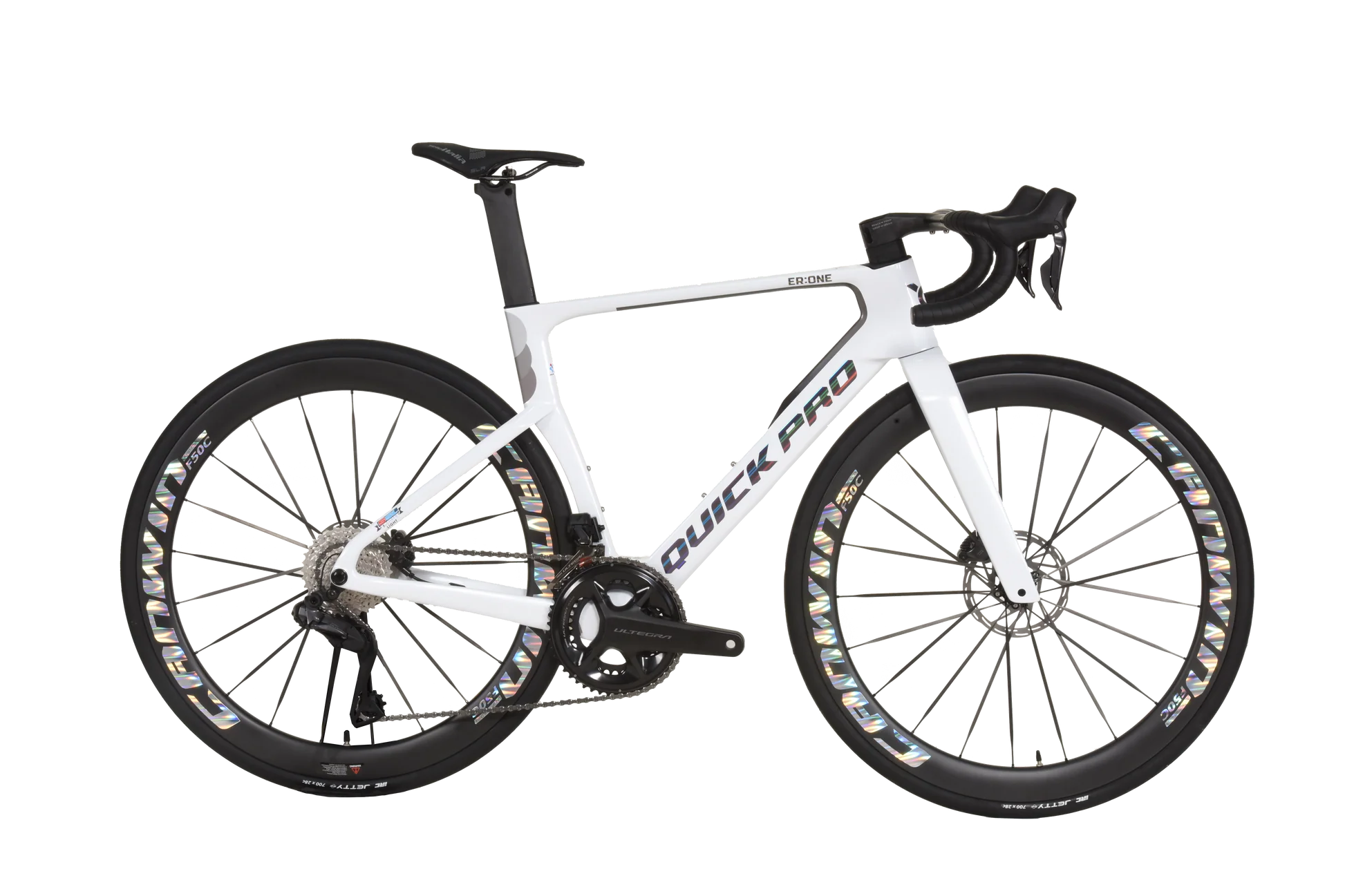

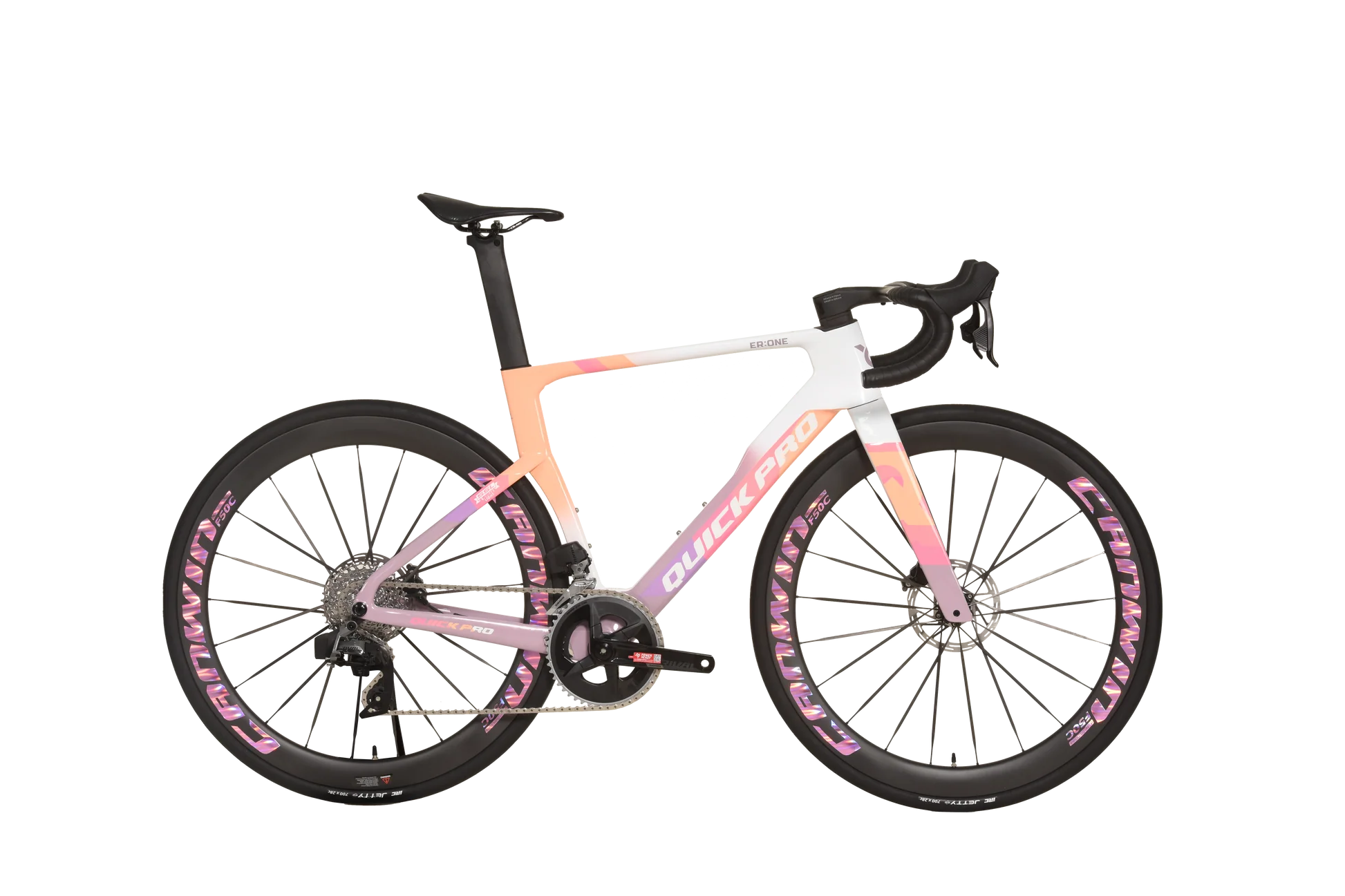

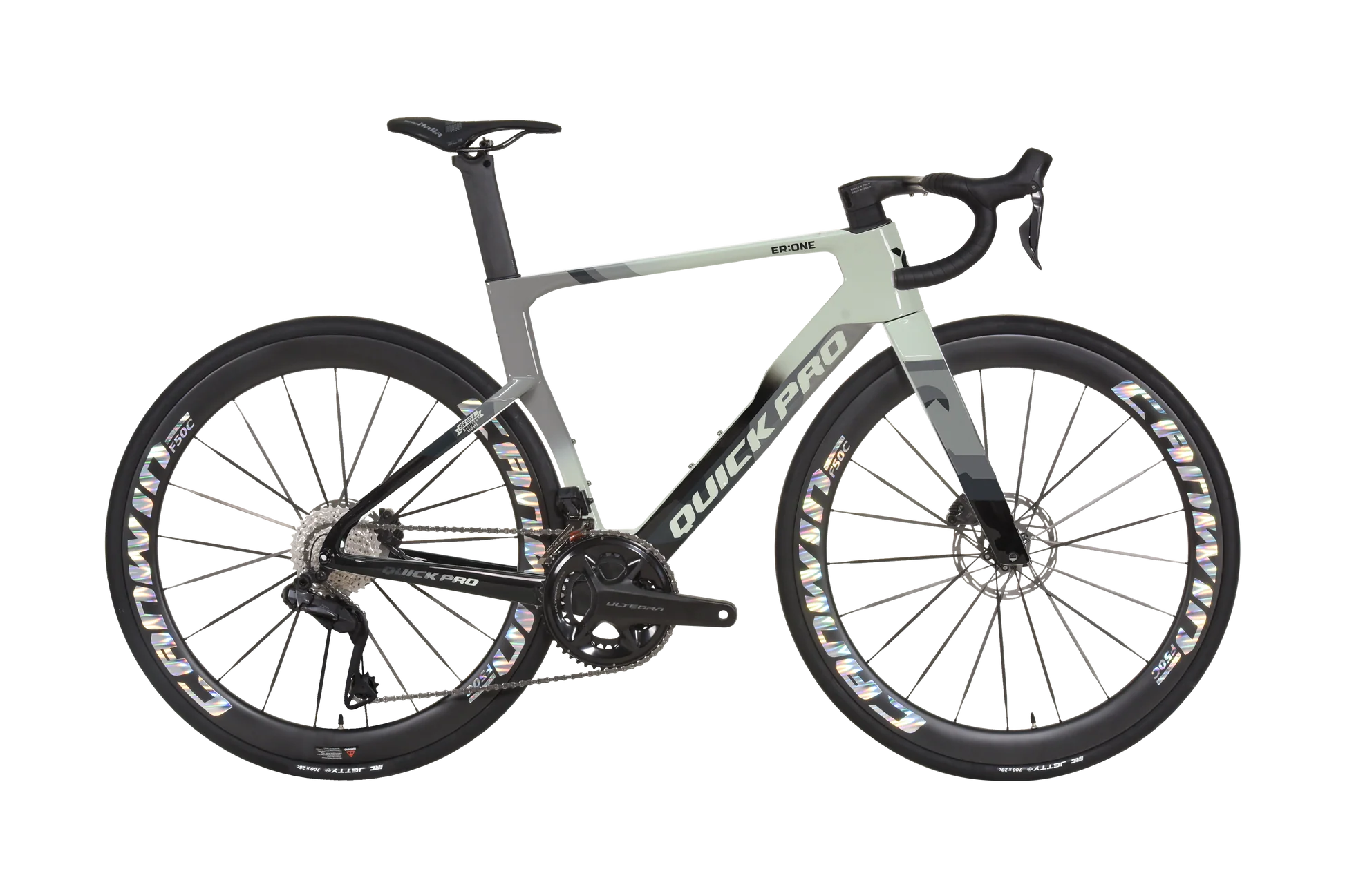

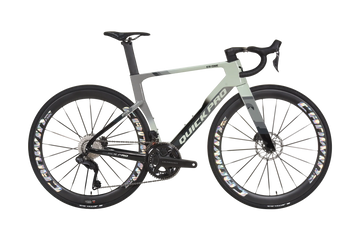

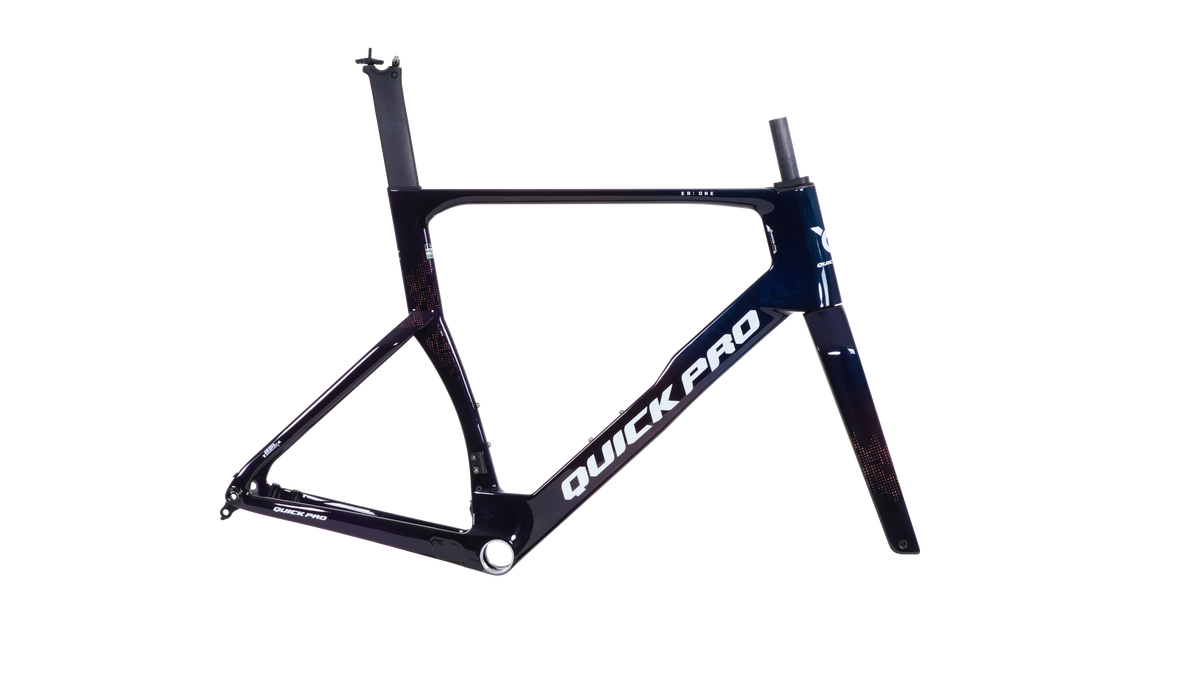

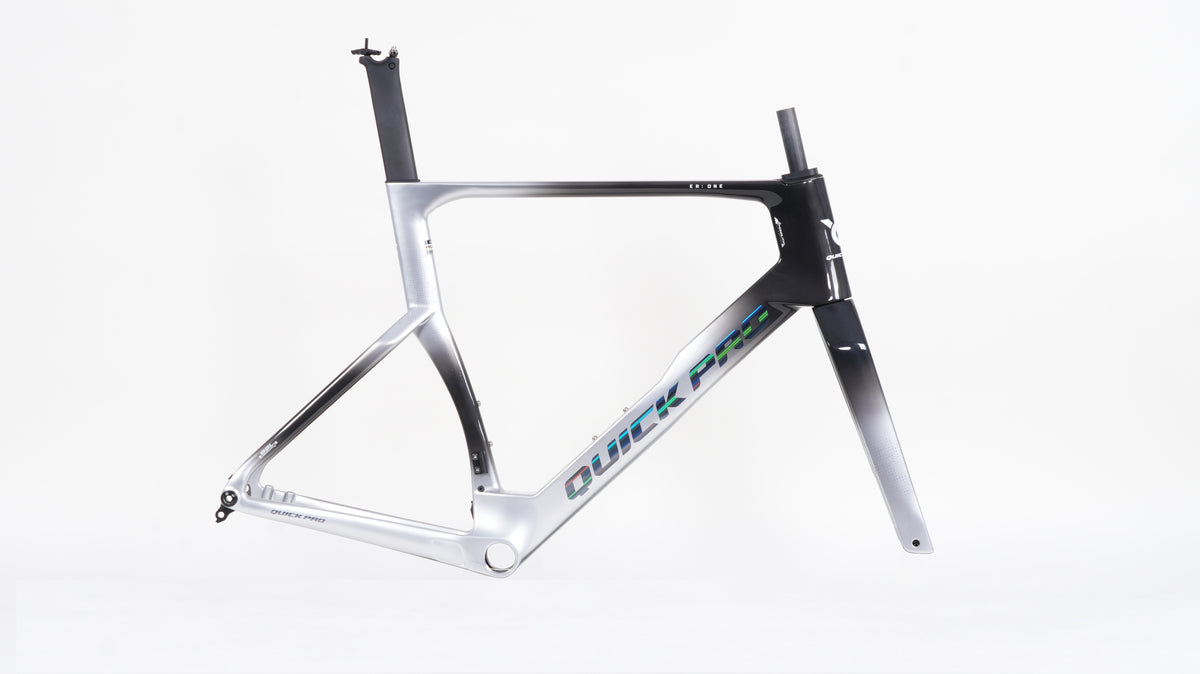

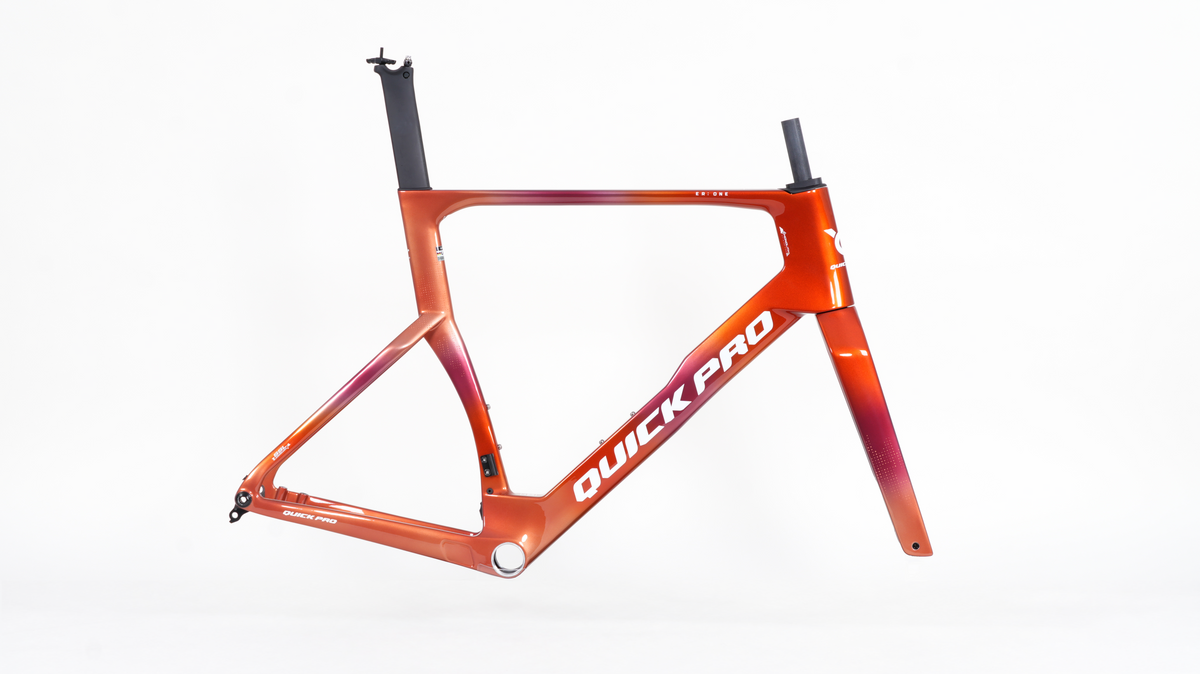

ER:ONE SRAM RED AXS 2x12
Regular price
$9,199.00 AUD
Sale price
$9,199.00 AUD
Regular price
Unit price
-
Estimated Shipping:Jun 11 - Jun 15
Why this bike
Key Features
Key Specifications
-
FRAME
-
BRAKES
-
DRIVETRAIN
Size & Fit

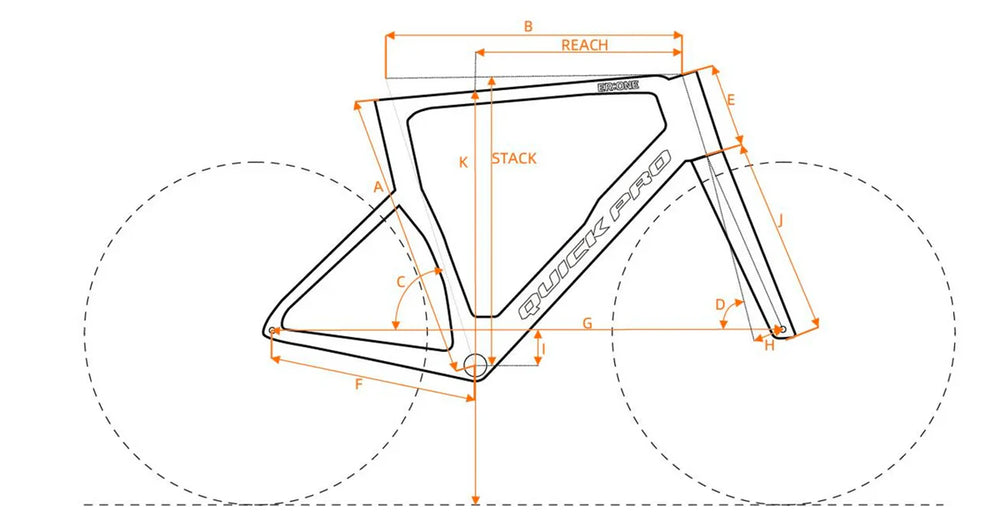

| Ref | Specification | XS / 430 | S / 460 | M / 490 | L / 520 | XL / 550 | XXL / 584 |
|---|---|---|---|---|---|---|---|
| A | Frame Size / Seat Tube Length (mm) | 430 | 460 | 490 | 520 | 550 | 584 |
| B | Effective Top Tube Length (mm) | 515 | 525 | 540 | 558 | 575 | 596 |
| C | Seat Tube Angle (°) | 75.0 | 74.5 | 74.0 | 73.5 | 73.5 | 73.0 |
| D | Head Tube Angle (°) | 70.0 | 71.0 | 72.0 | 73.0 | 73.0 | 73.5 |
| E | Head Tube Length (mm) | 105 | 118 | 132 | 148 | 165 | 185 |
| F | Chainstay Length (mm) | 408 | 408 | 408 | 408 | 408 | 408 |
| G | Wheelbase (mm) | 985 | 985 | 987 | 991 | 1008 | 1019 |
| H | Fork Offset / Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| I | Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| J | Fork Length (mm) | 373 | 373 | 373 | 373 | 373 | 373 |
| K | Standover Height (mm) | 746 | 762 | 779 | 797 | 813 | 846 |
| — | Stack-to-Reach Ratio (STR) | 1.32 | 1.36 | 1.39 | 1.40 | 1.40 | 1.42 |
| — | Reach (mm) | 380 | 381 | 386 | 393 | 406 | 415 |
| — | Stack (mm) | 505 | 521 | 538 | 556 | 572 | 593 |
Geometry & Size Guide
ER:ONE SRAM RED AXS 2x12
