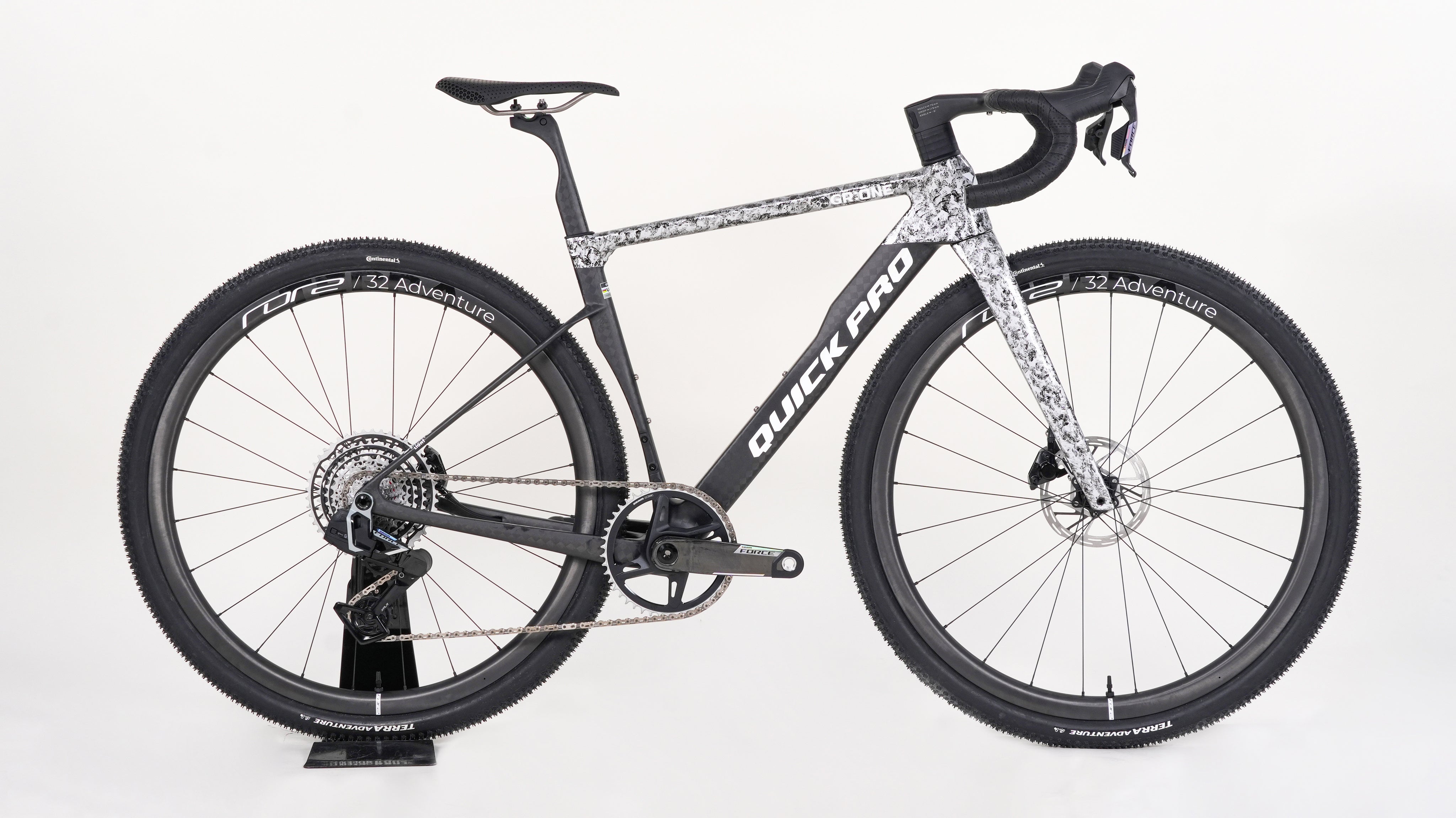

Meet the GR:One
The QuickPro GR:One is fast and versatile, built for racing,
exploration, and everything in between. Its lightweight carbon frame,
stable handling, and adaptable design deliver confidence inspiring
performance across rough roads, loose gravel, and long-distance adventures.
Designed to tackle
adventures on and
off road.Frameset weight
of 879g.Precision tuned fork
for multi-surface
riding.High-Strength
High-Modulus
Carbon Fiber.Lightweight
integrated
handlebar.Customisable
componentry.
Your bike, your way.
GR:ONE RED AXS 1x13 Specifications
Size Options
XS/426, SM/456, MD/486,
LG/516, XL/546
Frameset Material
High-Strength High-Modulus
Carbon Fiber
- Frameset Weight: 879g
- Fork Weight: 459g
Brakes
Front Brake
SRAM RED AXS HRD E1
Rear Brake
SRAM RED AXS HRD E1
Brake Rotors
SRAM Paceline X A1
(160 mm front / 160 mm rear)

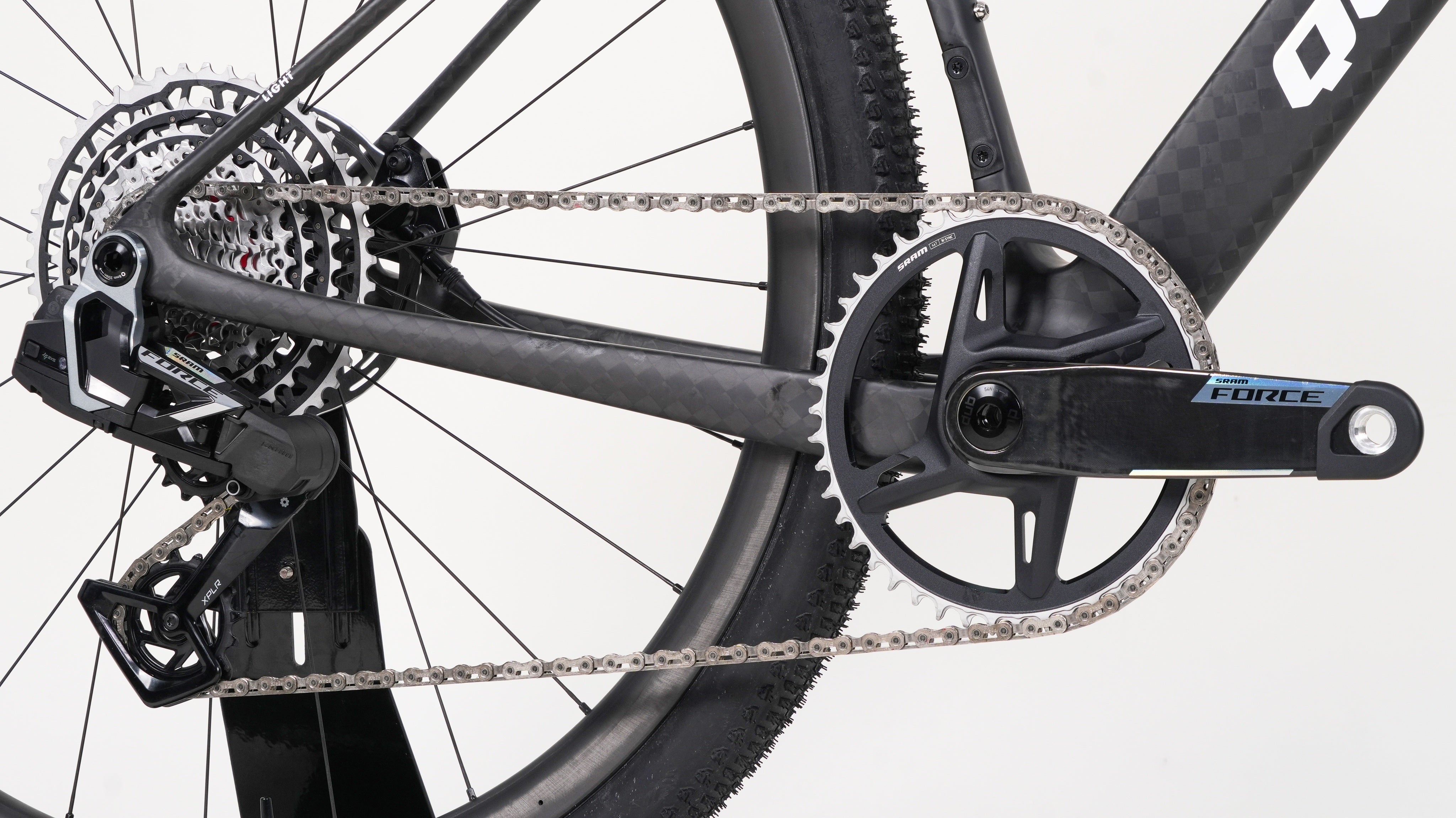

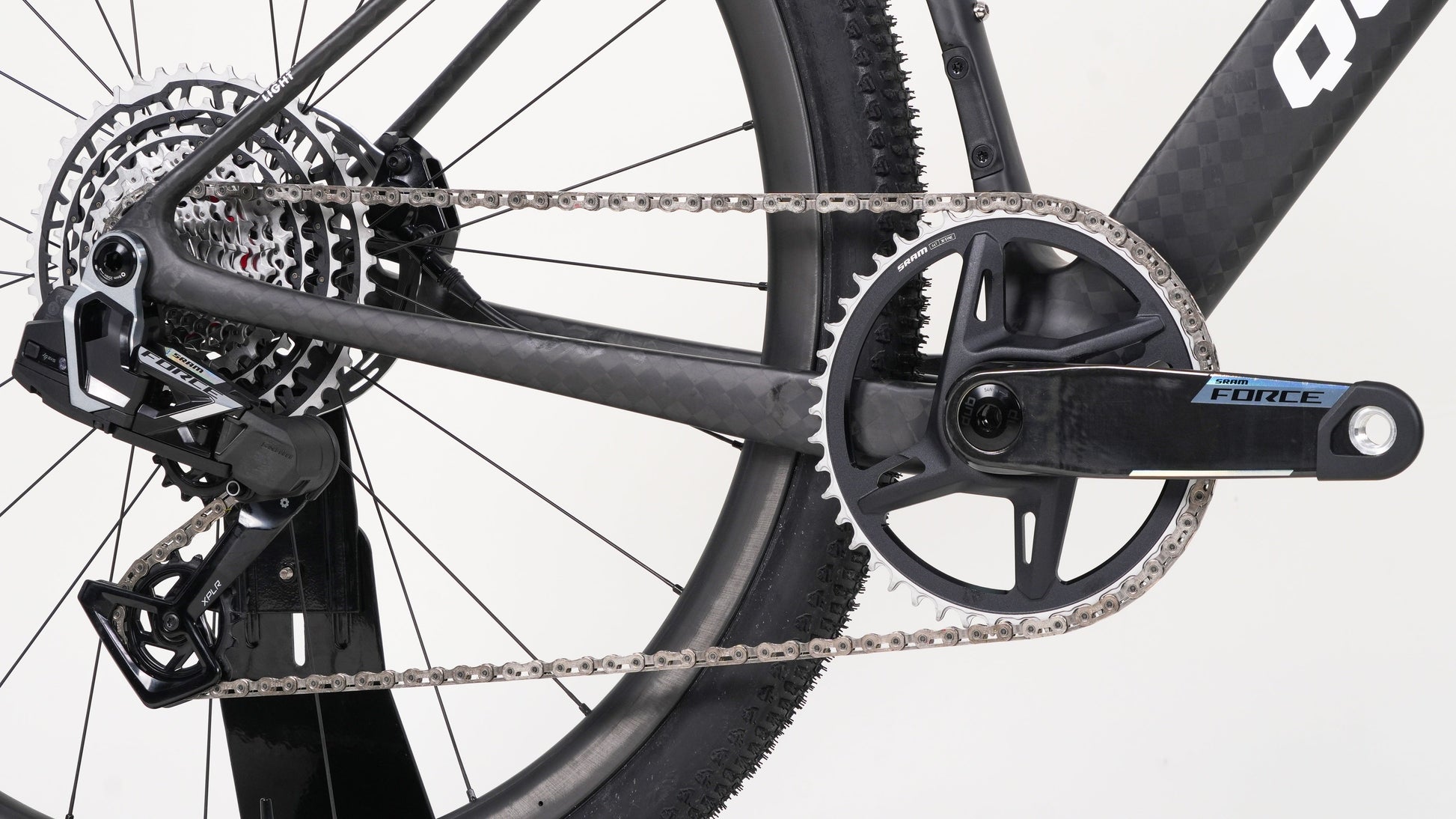

Drivetrain
Shift Lever
SRAM RED AXS E1
Derailleurs
Front: (N/A)
Rear: SRAM RED XPLR AXS
(RD-RED-1E-E1)
Cassette
SRAM RED XPLR XG-1391, 10-46T
(CS-XG-1391-E1)
Chain
SRAM RED Flattop
(CN-RED-E1)
Crankset
SRAM RED XPLR
(FC-RED-1W-E1)
Bottom Bracket
QuickPro/SSpade
Stainless Steel
T47/68mm
Wheelsets
Find Your GR:One Fit
Rider Size Guide
Use your rider height
to find your ideal
GR:One frame size.
Frame Size
Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| XS/426 | S/456 | M/486 | L/516 | XL/546 | ||
|---|---|---|---|---|---|---|
| A | Size / ST Length (mm) | 426 | 456 | 486 | 516 | 546 |
| B | Virtual TT (mm) | 518 | 535 | 553 | 572 | 590 |
| C | ST Angle (°) | 74.2° | 74° | 73.6° | 73.3° | 73.8° |
| D | HT Angle (°) | 70.5° | 71° | 71° | 71° | 71° |
| E | HT Length (mm) | 95 | 113 | 132 | 152 | 172 |
| F | RC Length (mm) | 425 | 425 | 425 | 425 | 425 |
| G | Wheel Base (mm) | 1006 | 1016 | 1032 | 1048 | 1062 |
| H | Fork Rake (mm) | 55 | 55 | 55 | 55 | 55 |
| I | BB Drop (mm) | 75 | 75 | 75 | 75 | 75 |
| J | Fork Length (mm) | 400 | 400 | 400 | 400 | 400 |
| K | Standover (mm) | 723 | 742 | 760 | 779 | 798 |
| — | Reach (mm) | 370 | 379 | 388 | 398 | 405 |
| — | Stack (mm) | 524 | 543 | 561 | 580 | 599 |
