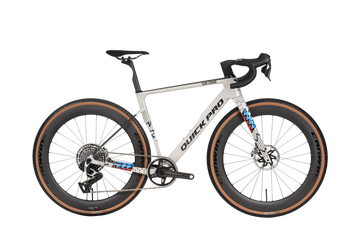

GR:ONE SRAM FORCE AXS 1x13
GR:ONE SRAM FORCE AXS 1x13

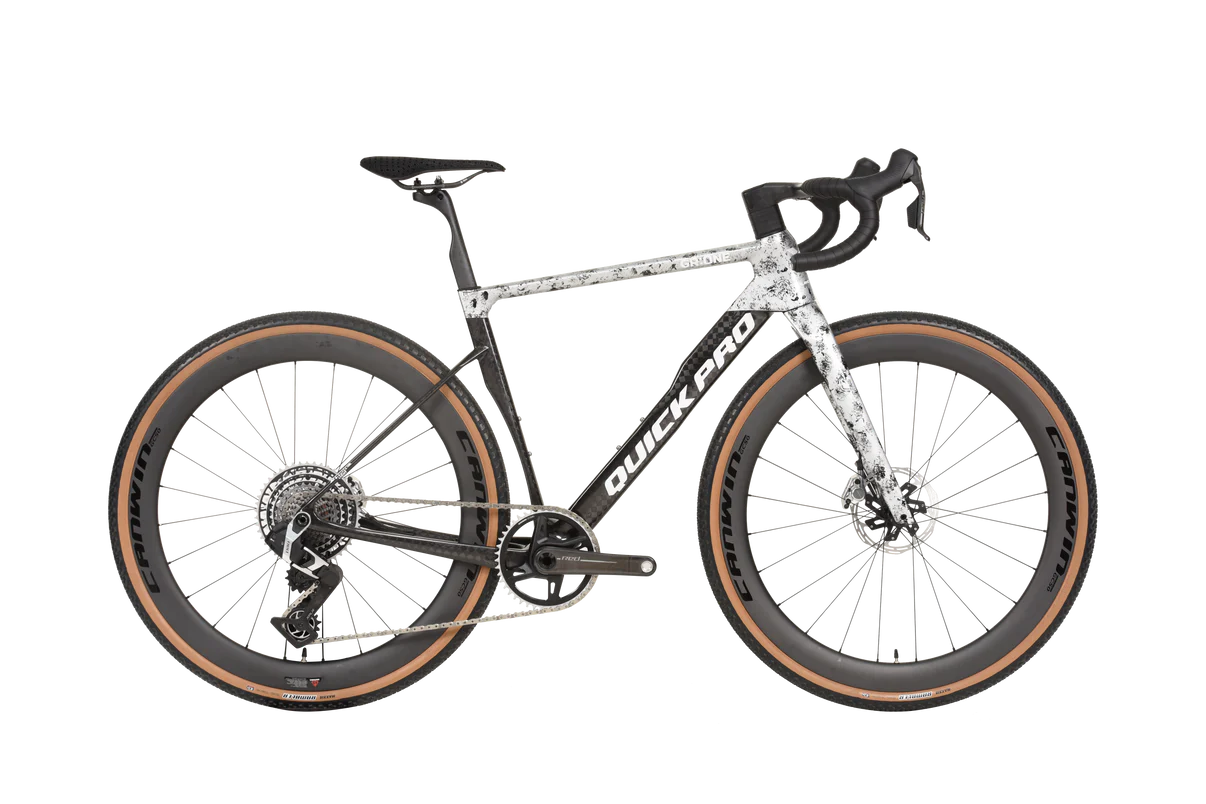

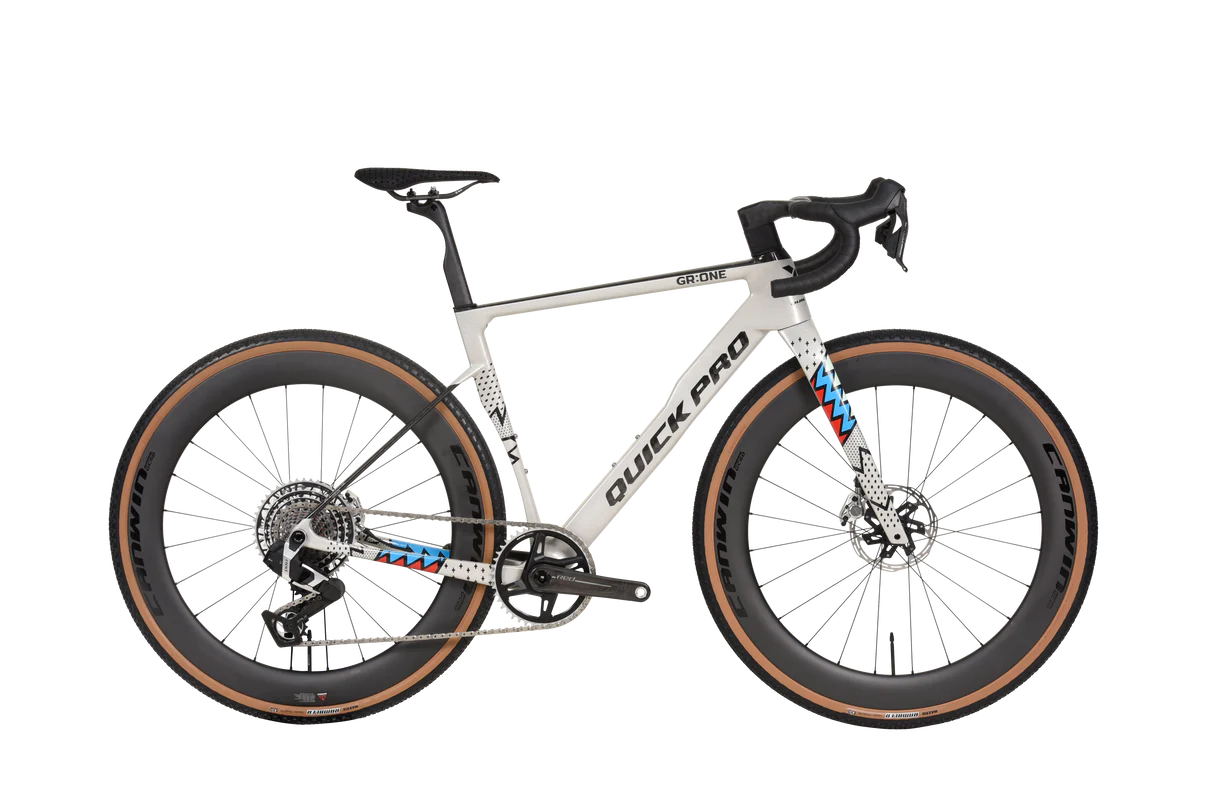

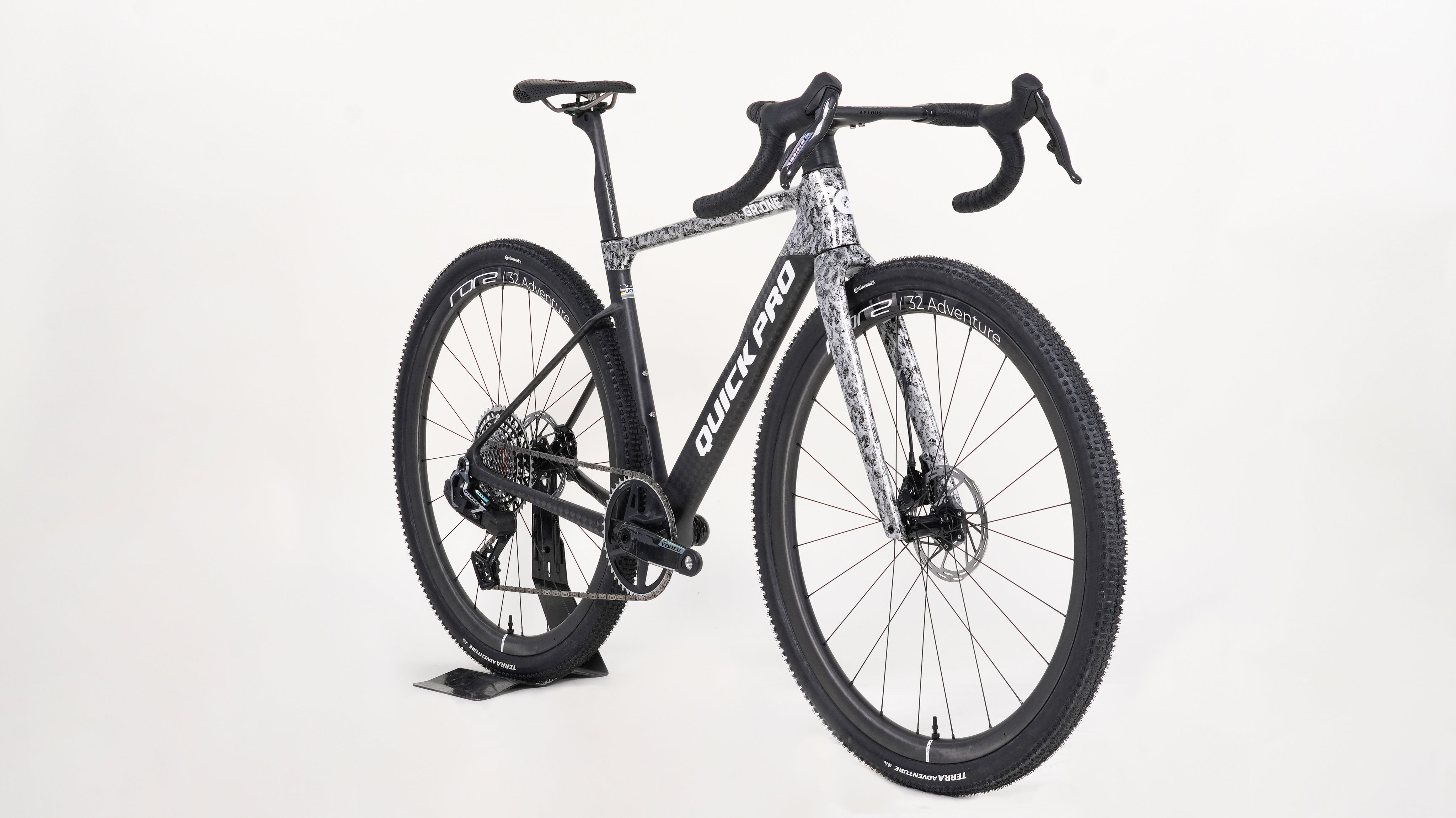

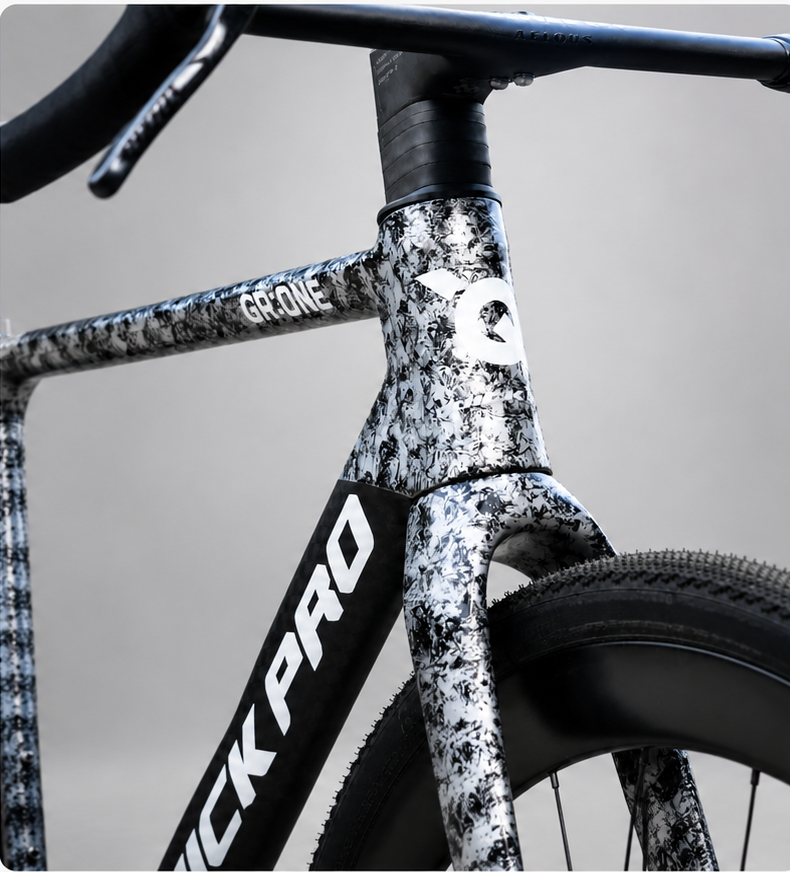

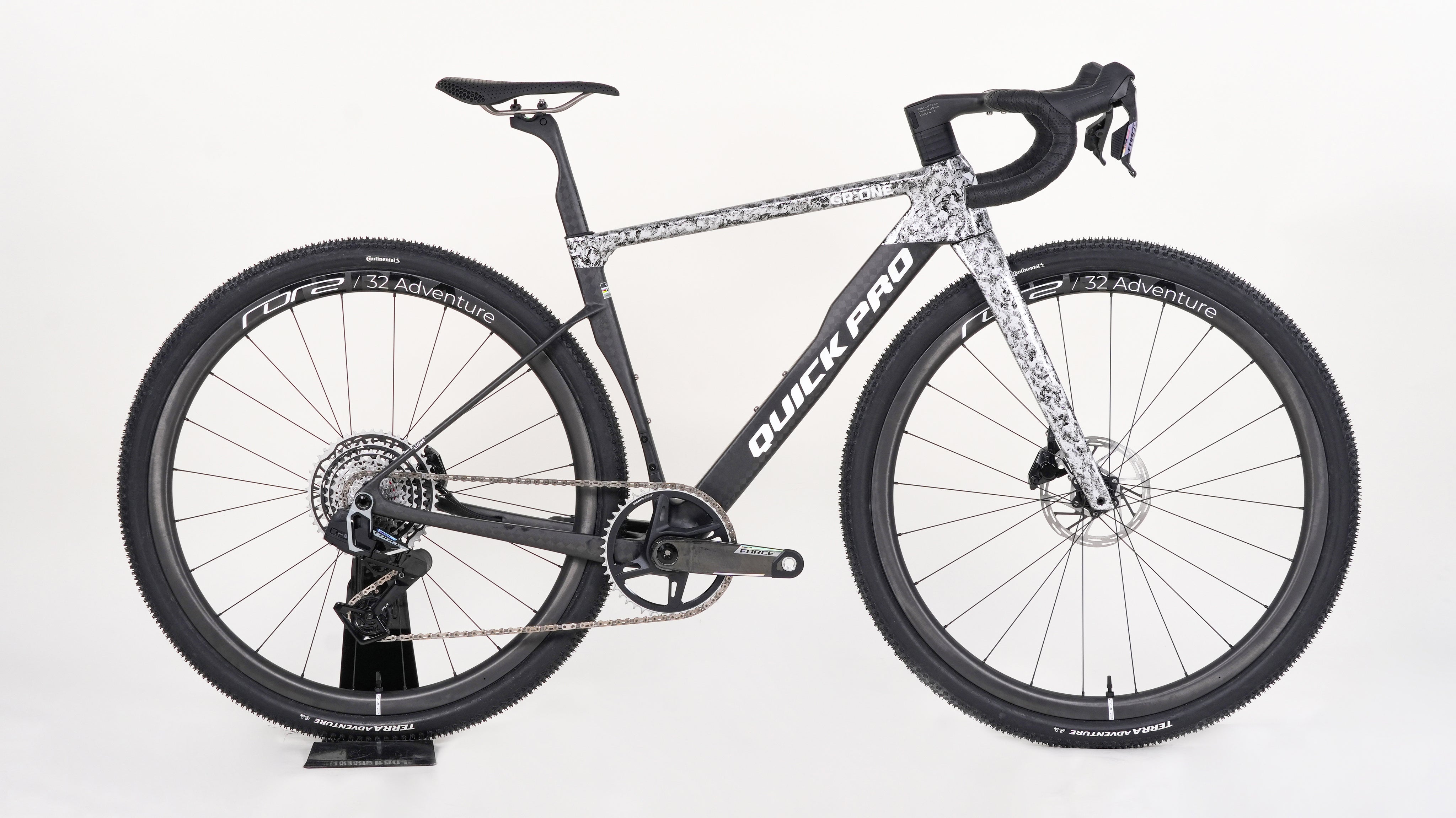

Meet the GR:One
The QuickPro GR:One is fast and versatile, built for racing,
exploration, and everything in between. Its lightweight carbon frame,
stable handling, and adaptable design deliver confidence inspiring
performance across rough roads, loose gravel, and long-distance adventures.
Designed to tackle
adventures on and
off road.Frameset weight
of 879g.Precision tuned fork
for multi-surface
riding.High-Strength
High-Modulus
Carbon Fiber.Lightweight
integrated

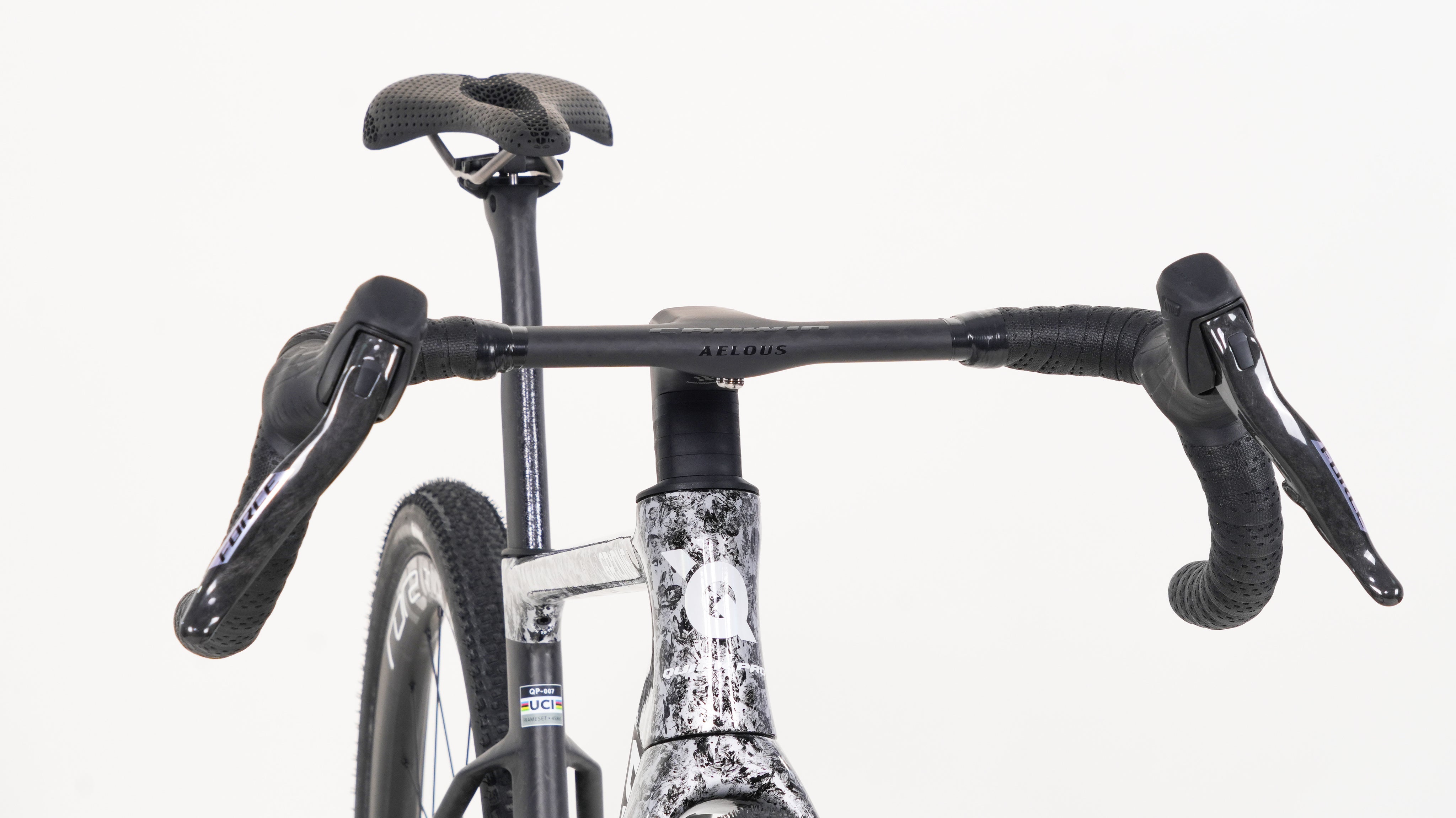

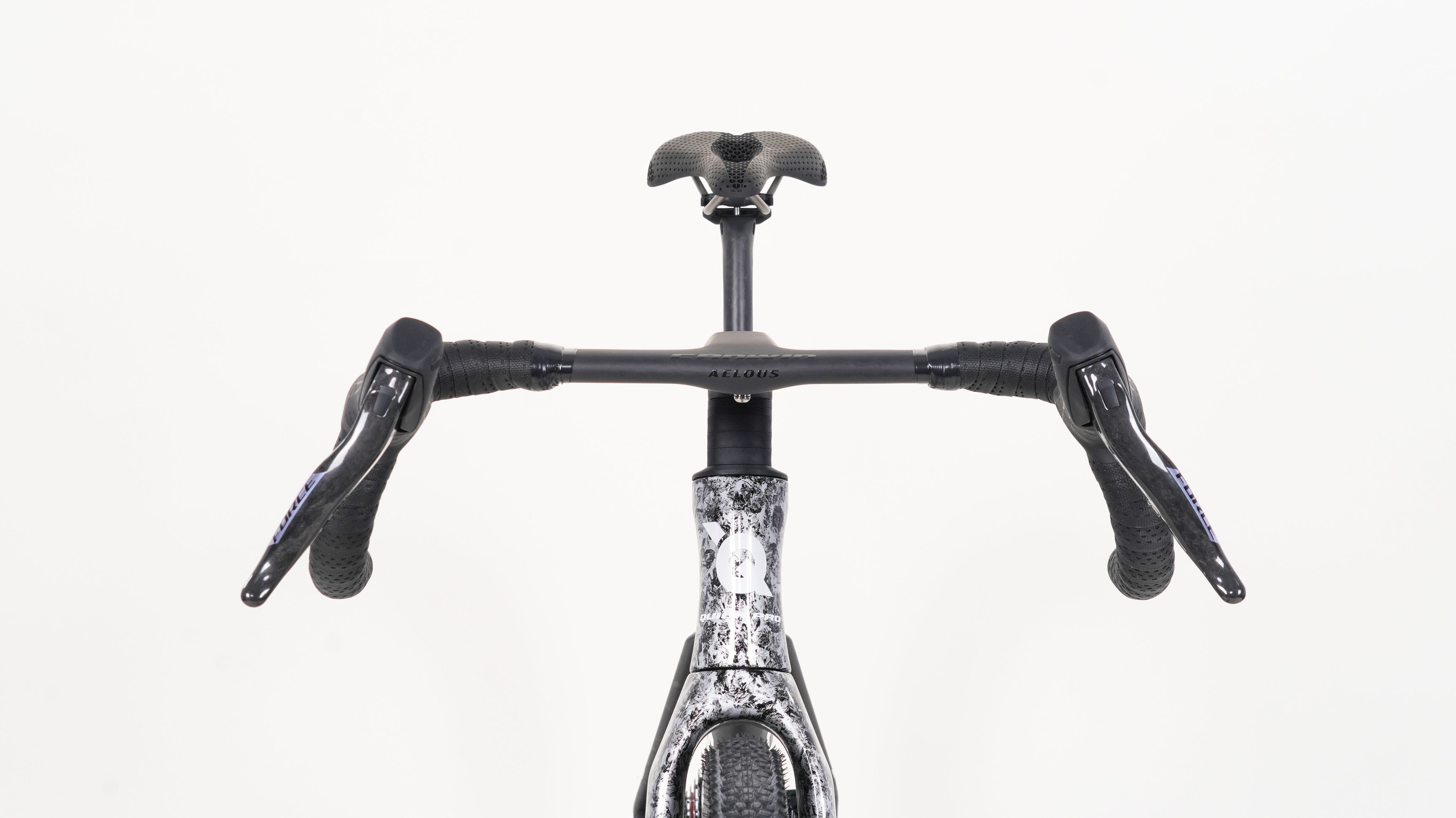

handlebar.Customisable
componentry.
Your bike, your way.
GR:ONE SRAM FORCE AXS 1x13 Specifications
Size Options
XS/426, SM/456, MD/486,
LG/516, XL/546
Frameset Material
High-Strength High-Modulus
Carbon Fiber
- Frameset Weight: 879g
- Fork Weight: 459g
Brakes
Front Brake
SRAM Force AXS XPLR E1
Rear Brake
SRAM Force AXS XPLR E1
Brake Rotors
SRAM Paceline A1
(160mm Front/160mm Rear)

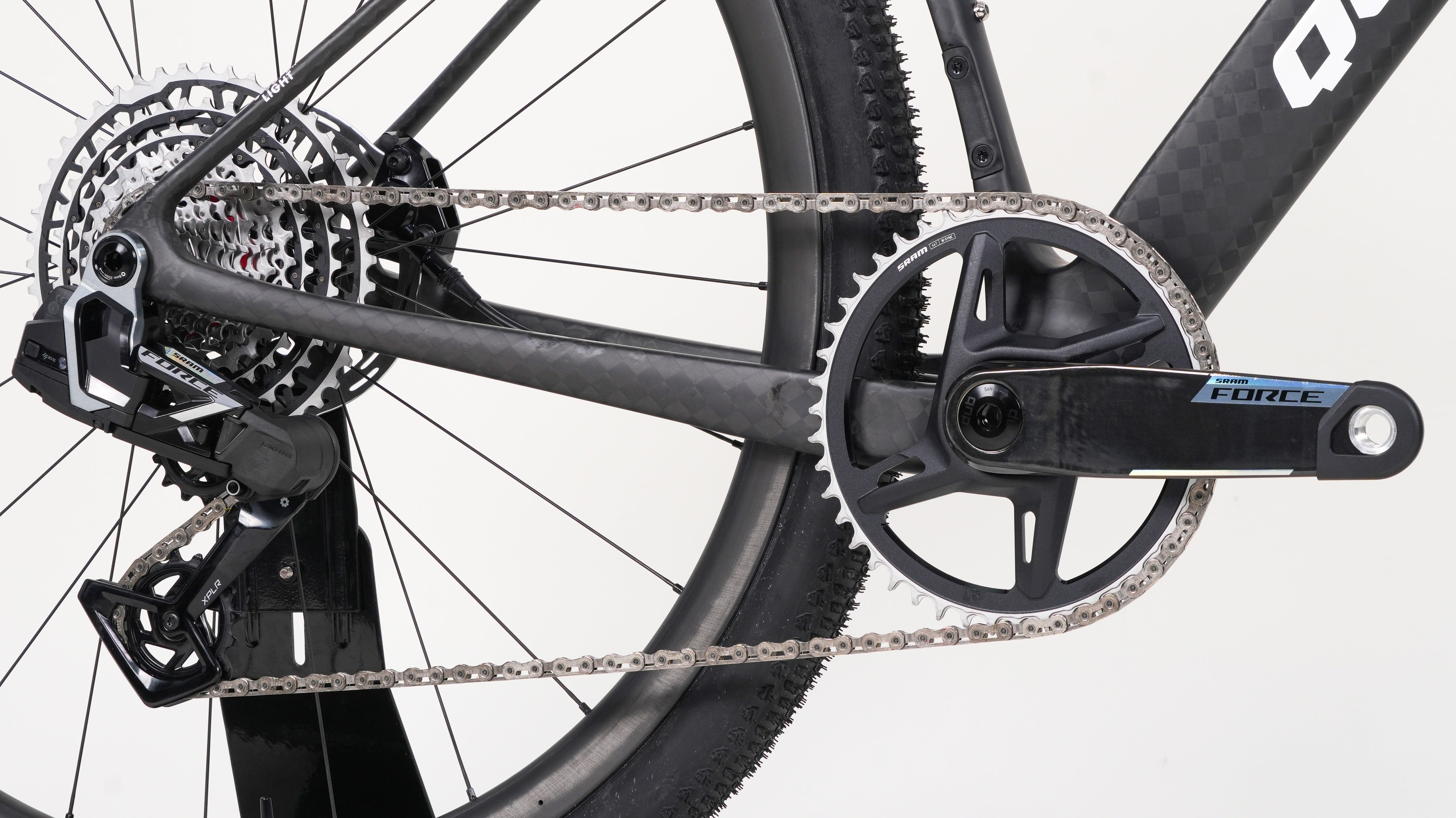

Drivetrain
Shift Levers
SRAM Force AXS XPLR E1
Derailleurs
Front: N/A
Rear: SRAM Force AXS XPLR
Cassette
SRAM Force CS-XG-1371-E1
(10/46T)
Chain
SRAM Force AXS
Crankset
SRAM Force XPLR.
170mm Length / 44T chainring
Bottom Bracket
QuickPro/SSpade
Stainless Steel
T47/68mm
Wheelsets
Find Your GR:One Fit

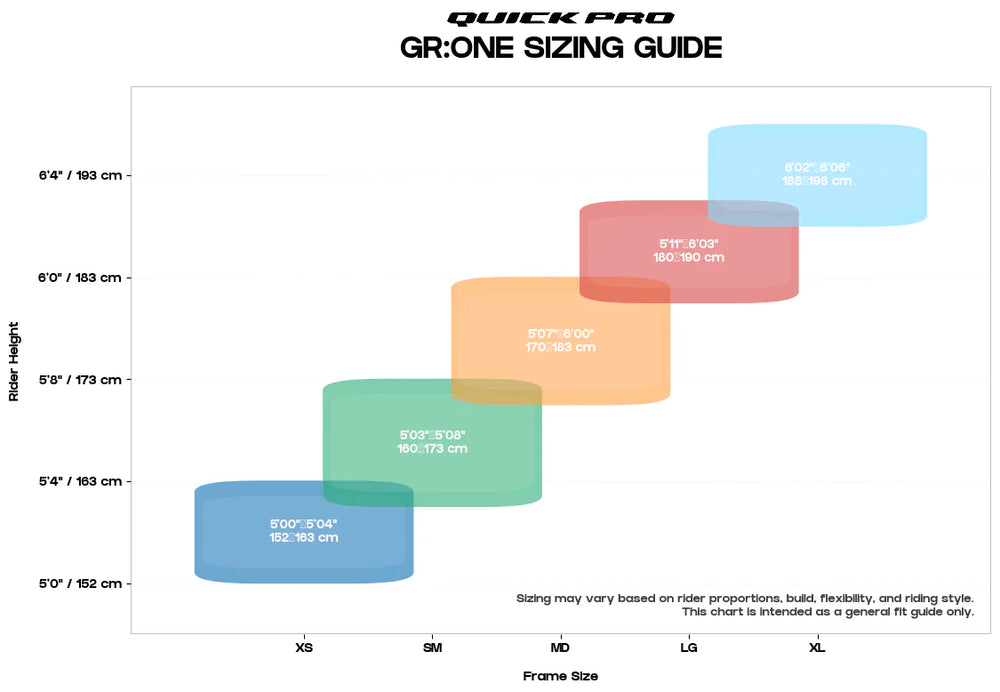

Rider Size Guide
Use your rider height
to find your ideal
GR:One frame size.
Frame Size

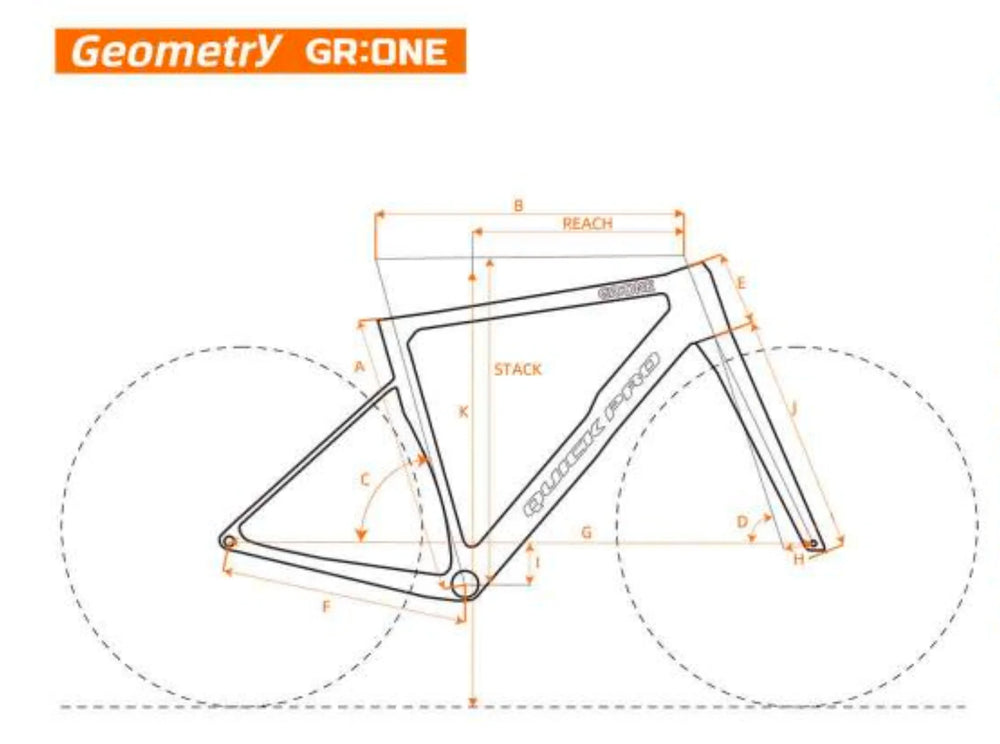

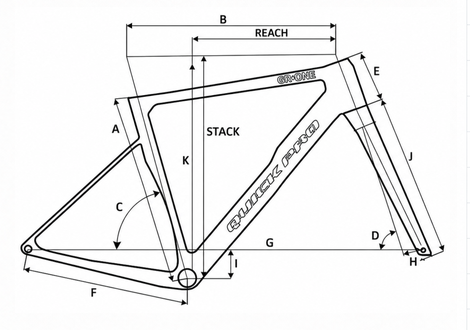

Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| XS/426 | S/456 | M/486 | L/516 | XL/546 | ||
|---|---|---|---|---|---|---|
| A | Size / ST Length (mm) | 426 | 456 | 486 | 516 | 546 |
| B | Virtual TT (mm) | 518 | 535 | 553 | 572 | 590 |
| C | ST Angle (°) | 74.2° | 74° | 73.6° | 73.3° | 73.8° |
| D | HT Angle (°) | 70.5° | 71° | 71° | 71° | 71° |
| E | HT Length (mm) | 95 | 113 | 132 | 152 | 172 |
| F | RC Length (mm) | 425 | 425 | 425 | 425 | 425 |
| G | Wheel Base (mm) | 1006 | 1016 | 1032 | 1048 | 1062 |
| H | Fork Rake (mm) | 55 | 55 | 55 | 55 | 55 |
| I | BB Drop (mm) | 75 | 75 | 75 | 75 | 75 |
| J | Fork Length (mm) | 400 | 400 | 400 | 400 | 400 |
| K | Standover (mm) | 723 | 742 | 760 | 779 | 798 |
| — | Reach (mm) | 370 | 379 | 388 | 398 | 405 |
| — | Stack (mm) | 524 | 543 | 561 | 580 | 599 |
