GRAVITY DH 29"
Regular price
$7,799.00 AUD
Sale price
$7,799.00 AUD
Regular price
Unit price

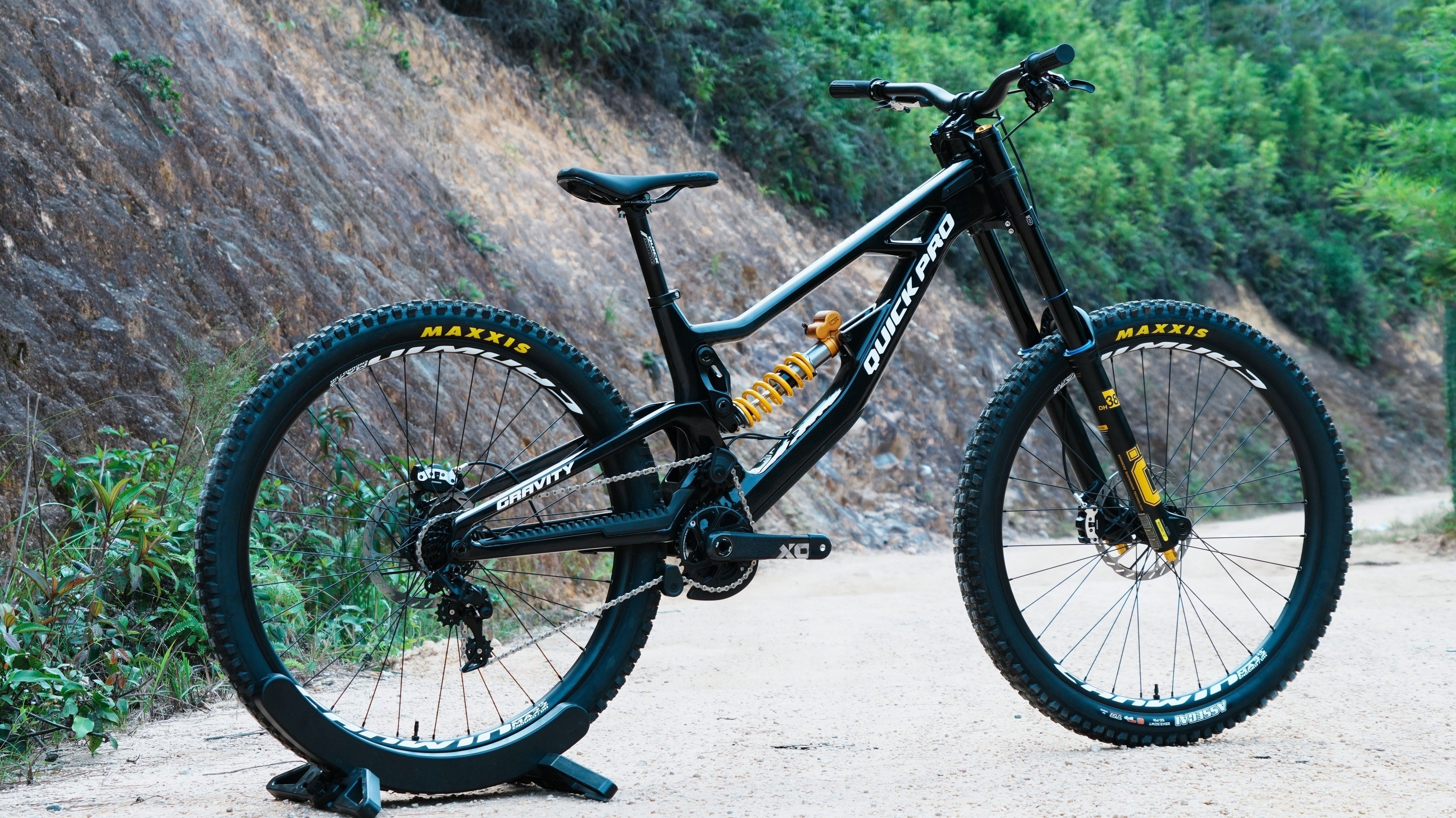

GRAVITY DH 29"

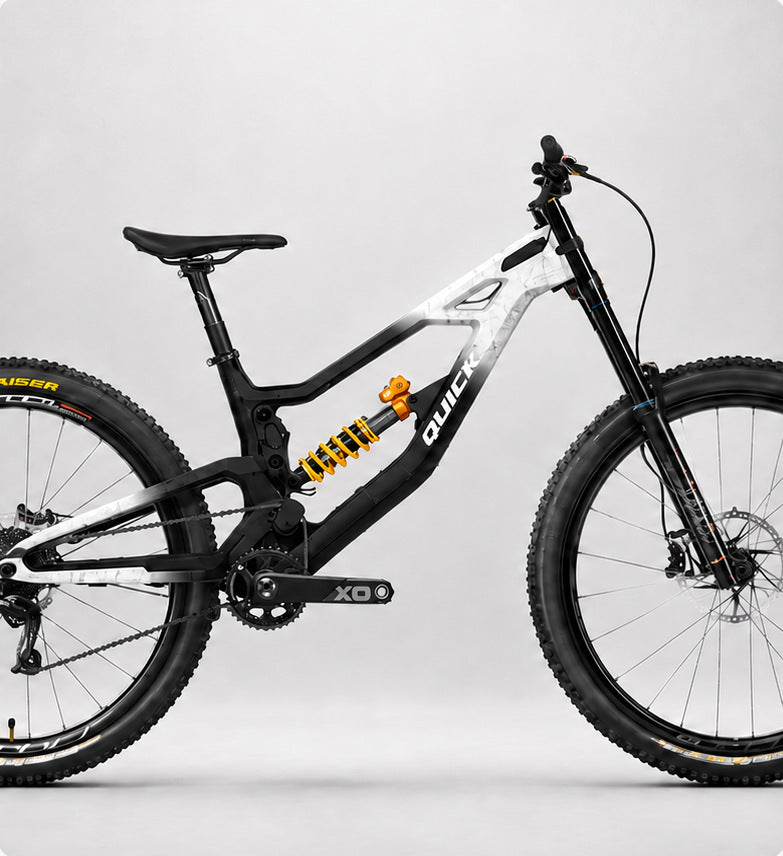

Meet the Gravity DH.
The Gravity DH was engineered for uncompromising downhill performance—stable, relentlessly capable, and meticulously designed to dominate steep, technical, and high-speed descents.
Designed to
dominate DH racing.Frameset weight
of 3129g.Progressive DH
optimised geometry.High-Strength
High-Modulus
Carbon FiberTake your DH riding
to the next level.Select your
preferred components.
GRAVITY DH 29" Specifications
Cockpit & Saddle
- Handlebar: CANWIN KARST
- Saddle: DH MTB Saddle
Dimensions
- Thru-axle: 157x12mm (R)110x20mm (F)
- Seat Post Diameter: 31.6mm
- BB: BSA-73mm
Wheels
- Wheelset: RORE Alloy DH Wheelset (Config. 1 & 2)
- Tyre: Maxxis Tubeless Tyres
- Maximum Tyre Width: 29 x 2.5”
Frame
Size Options
- S M L
Frameset Material
- High-Strength High-Modulus Carbon Fiber
- Frameset Weight: 3129g
Brakes
Brake Levers
- Config 1: SRAM Maven Bronze
- Config 2: SRAM Maven Silver
Brake Calipers
- Config 1: SRAM Maven Bronze
- Config 2: SRAM Maven Silver
Brake Rotors
- Config 1: SRAM HS2, 200mm F / 200mm R
- Config 2: SRAM HS2, 200mm F / 200mm R
Drivetrain
Derailleur / Shifter
- Config 1: GX DH X-Horizon(RD-GX-1DH-A3),GX DH X-Actuation Trigger(SL-GX-DH-A2)
- Config 2: X01 DH X-Horizon(RD-X0-1DH-A3),X01 DH X-Actuation Trigger(SL-X0-DH-A2)
Fork
- Config 1: ROCKSHOXZEB Base Fork
- Config 2: ÖHLINSRXF38 M.2 Fork
Shock
- Config 1: ROCKSHOXVIVID Base Shock
- Config 2: ÖHLINSTTX 2 Shock
Cassette / Crankset
- Config 1: PG-720 7 Speed 11–25T(CS-PG-720-A2) Cassette,Descendant DH(FC-DESC-DH-B1) Crankset.
- Config 2: XG-795 7 Speed 10–24T(CS-XG-795-A1) Cassette,X01 DH X-Sync(FC-X0-1DH-B1) Crankset.
Find Your GRAVITY DH Fit
Rider Size Guide
Use your rider height
to find your ideal
GRAVITY DH frame size.
SM / 380
5’2” to 5’7”157–170 cm
MD / 410
5’6” to 5’11”168–180 cm
LG / 440
5’10” to 6’3”178–191 cm
Frame Size
Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| S / 380 | M / 410 | L / 440 | ||
|---|---|---|---|---|
| A | Frame Size / Seat Tube Length (mm) | 380 | 410 | 440 |
| B | Effective Top Tube Length (mm) | 563 | 594 | 625 |
| C | Seat Tube Angle (°) | 76.5° | 76.5° | 76.5° |
| D | Head Tube Angle (°) | 63° | 63° | 63° |
| E | Head Tube Length (mm) | 95 | 100 | 105 |
| F | RC Length (mm) | 445 | 445 | 445 |
| G | Wheelbase (mm) | 1219 | 1251 | 1283 |
| H | Fork Offset / Rake (mm) | 46 | 46 | 46 |
| I | Bottom Bracket Drop (mm) | 15 | 15 | 15 |
| J | Fork Length (mm) | 602 | 602 | 602 |
| — | Reach (mm) | 415 | 445 | 475 |
| — | Stack (mm) | 618 | 622 | 627 |
