GRAVITY FRAMESET
Regular price
$3,799.00 AUD
Sale price
$3,799.00 AUD
Regular price
Unit price
GRAVITY FRAMESET

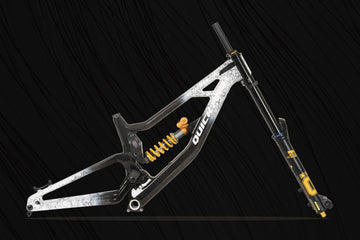

Meet the Gravity DH.
The Gravity DH was engineered for uncompromising downhill performance—stable, relentlessly capable, and meticulously designed to dominate steep, technical, and high-speed descents.
Designed to
dominate DH racing.Frameset weight
of 3129g.Progressive DH
optimised geometry.High-Strength
High-Modulus
Carbon FiberTake your DH riding
to the next level.Select your
preferred components.
Find Your GRAVITY DH Fit
Rider Size Guide
Use your rider height
to find your ideal
GRAVITY DH frame size.
SM / 380
5’2” to 5’7”157–170 cm
MD / 410
5’6” to 5’11”168–180 cm
LG / 440
5’10” to 6’3”178–191 cm
Frame Size
Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| S / 380 | M / 410 | L / 440 | ||
|---|---|---|---|---|
| A | Frame Size / Seat Tube Length (mm) | 380 | 410 | 440 |
| B | Effective Top Tube Length (mm) | 563 | 594 | 625 |
| C | Seat Tube Angle (°) | 76.5° | 76.5° | 76.5° |
| D | Head Tube Angle (°) | 63° | 63° | 63° |
| E | Head Tube Length (mm) | 95 | 100 | 105 |
| F | RC Length (mm) | 445 | 445 | 445 |
| G | Wheelbase (mm) | 1219 | 1251 | 1283 |
| H | Fork Offset / Rake (mm) | 46 | 46 | 46 |
| I | Bottom Bracket Drop (mm) | 15 | 15 | 15 |
| J | Fork Length (mm) | 602 | 602 | 602 |
| — | Reach (mm) | 415 | 445 | 475 |
| — | Stack (mm) | 618 | 622 | 627 |
