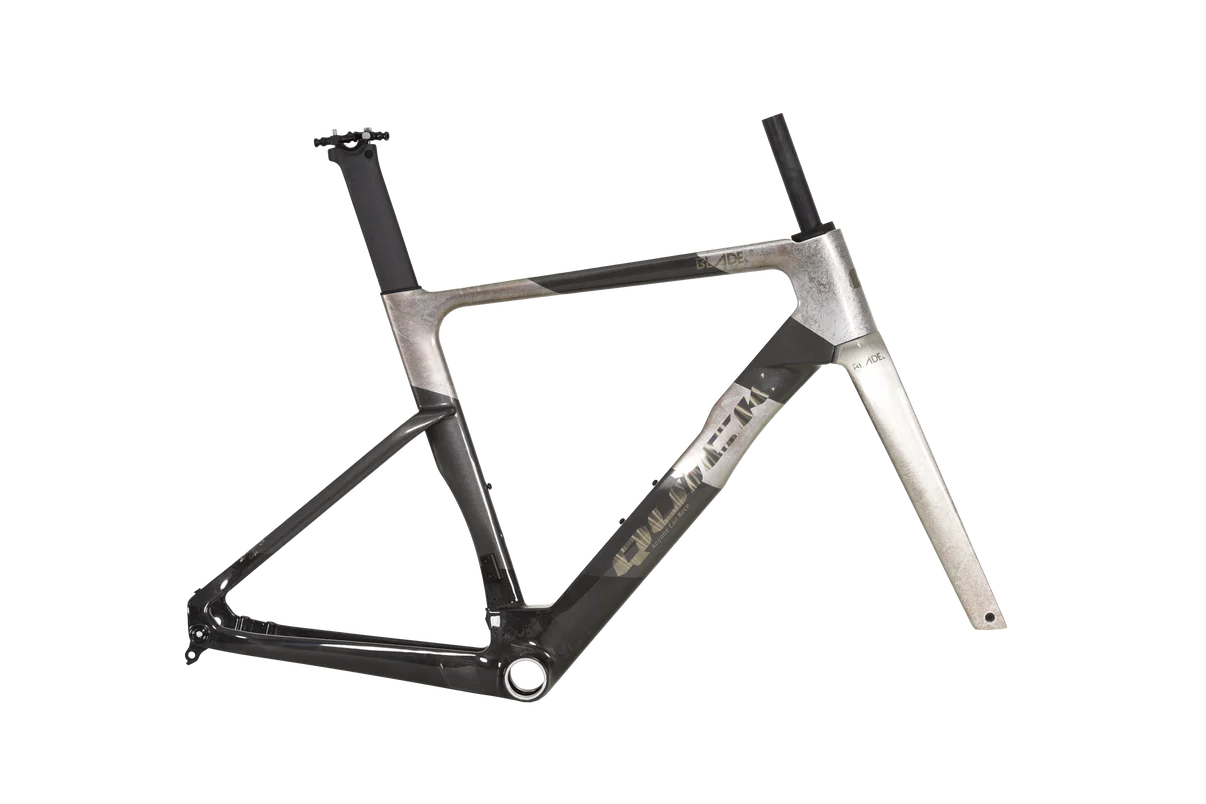

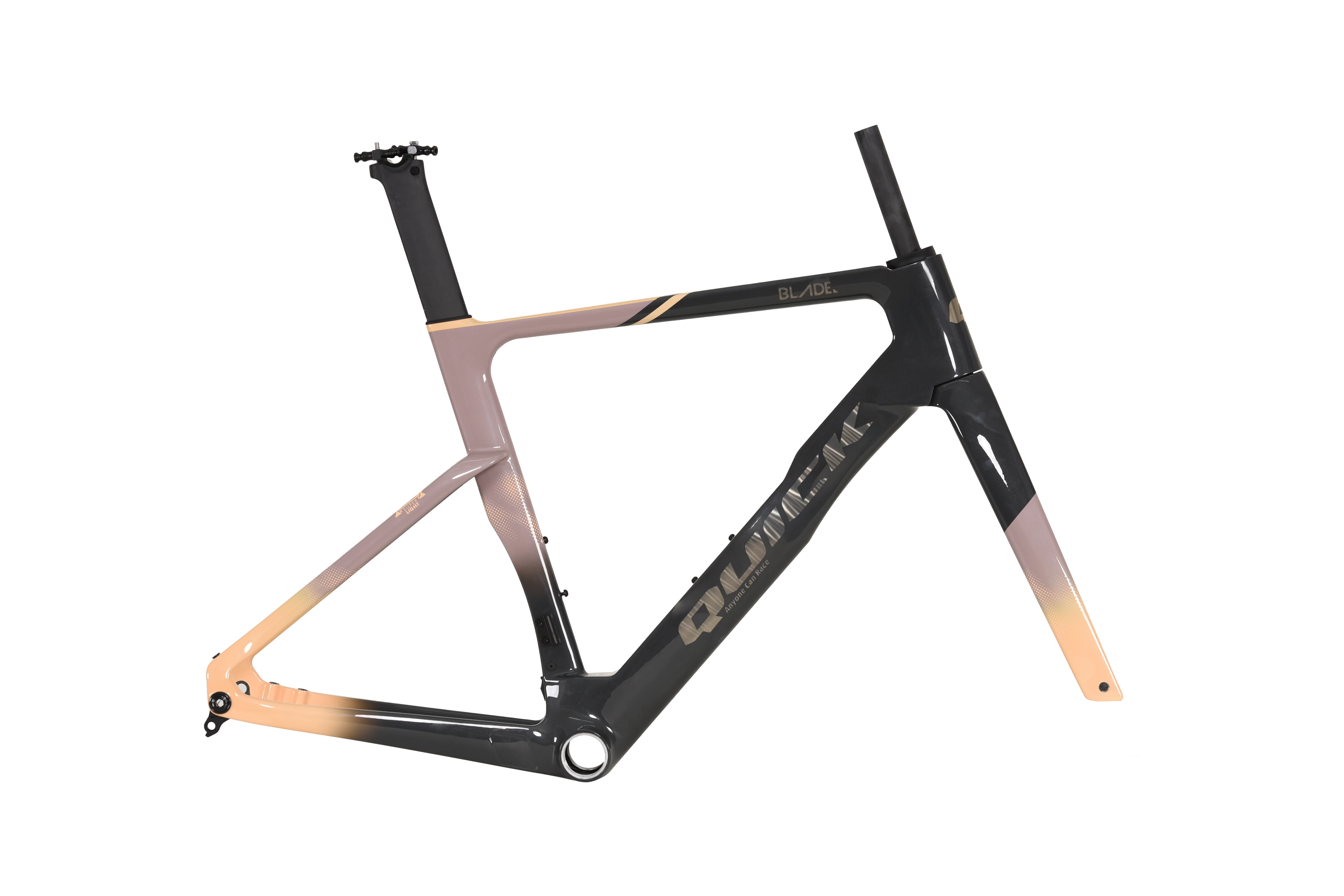

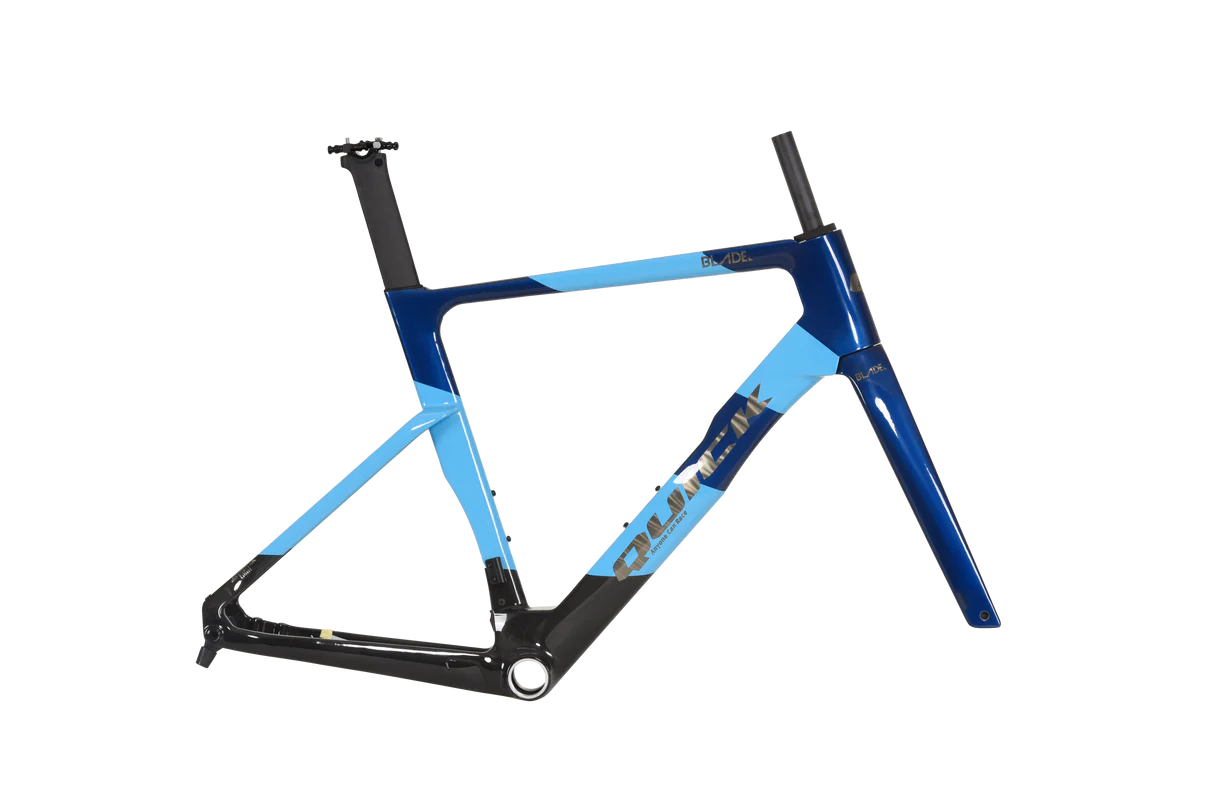

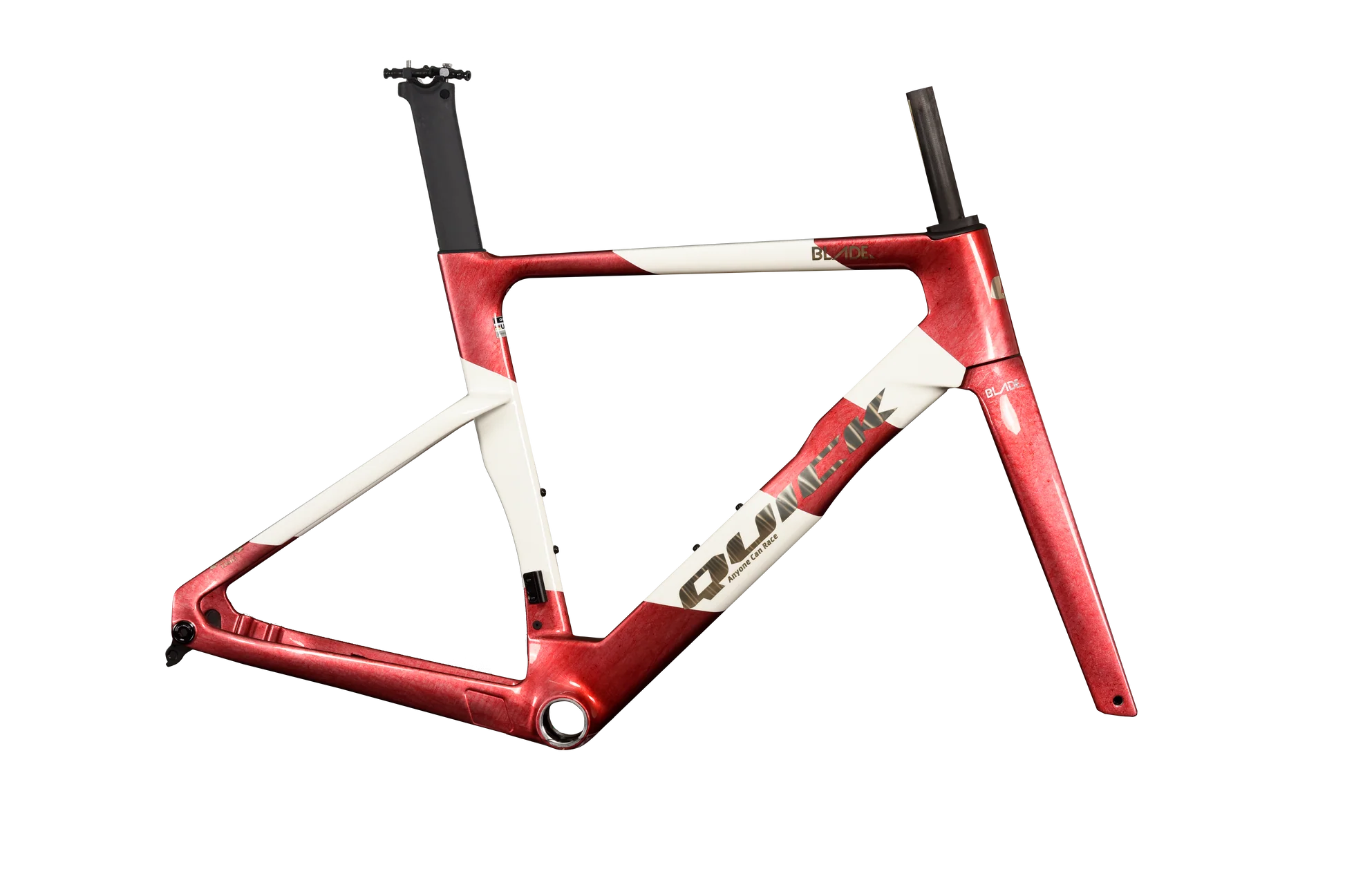

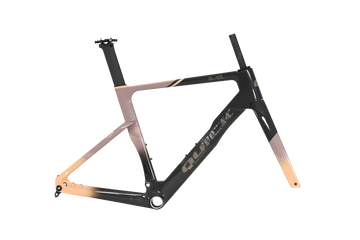

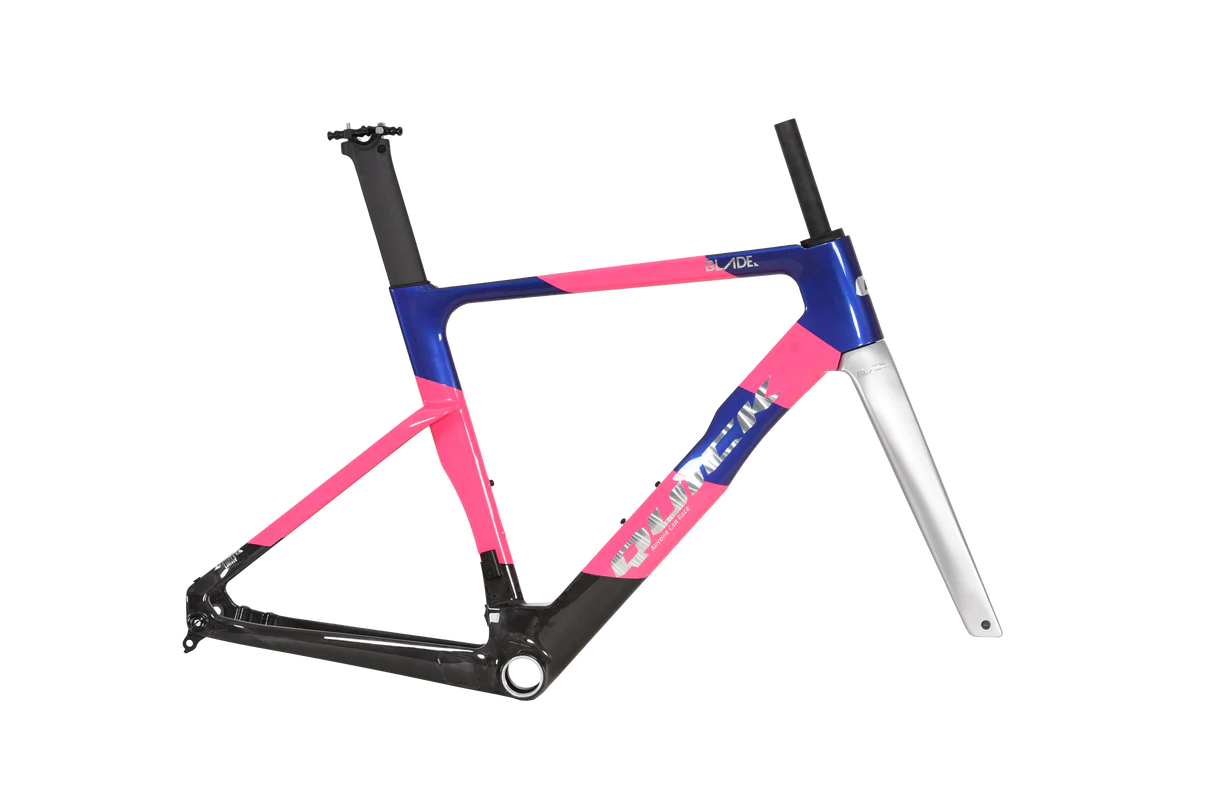

Quick Blade
Regular price
$2,399.00 AUD
Sale price
$2,399.00 AUD
Regular price
Unit price
-
Estimated Shipping:Jun 11 - Jun 15

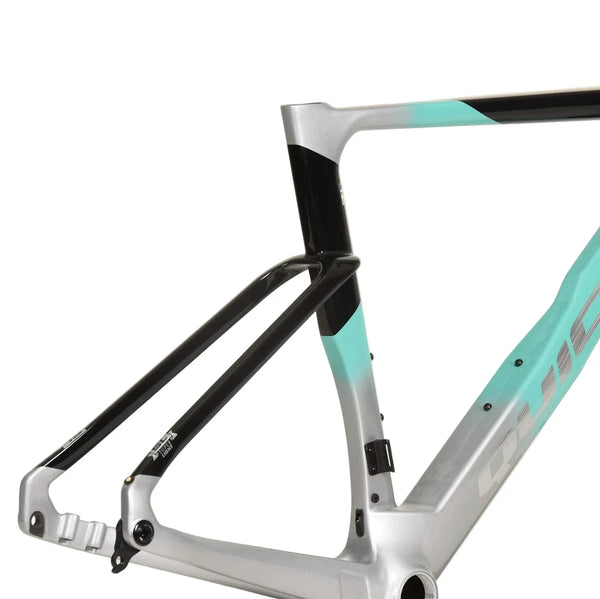

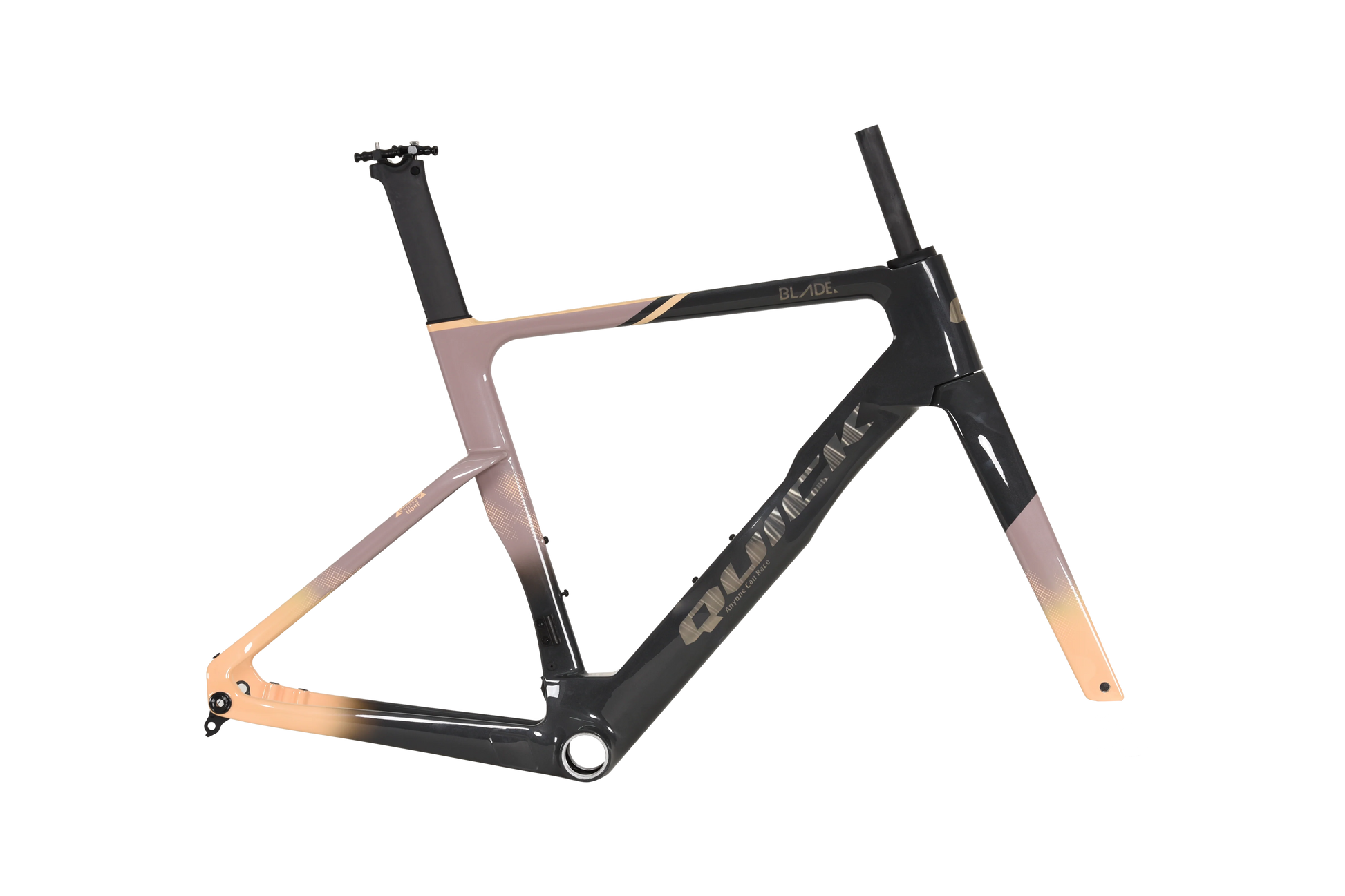

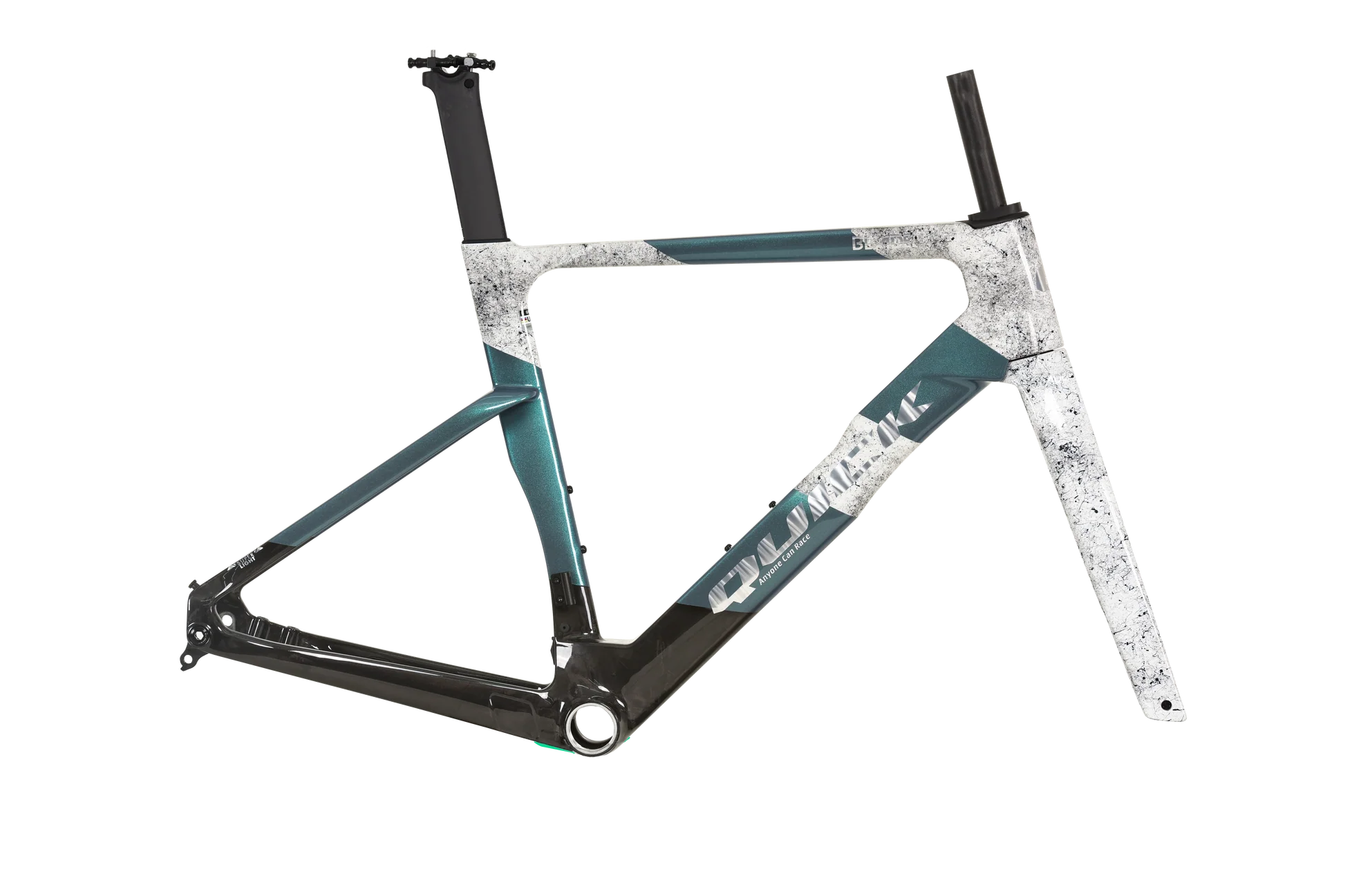

BLADE - Aero/Performance
The new BLADE introduces a next-generation aerodynamic design, refined through CFD fluid dynamics analysis to optimize tube profiles and minimize frontal drag. With a narrower wind-facing surface and enhanced integration, the frame slices through the air with greater efficiency. Constructed from premium T1000 and M60 carbon fibers and manufactured using advanced monolith one-piece molding technology, the BLADE delivers exceptional stiffness and responsiveness—instilling confidence whether accelerating at high speed or launching into a sprint.
Key Features
Key Specifications
Size & Fit

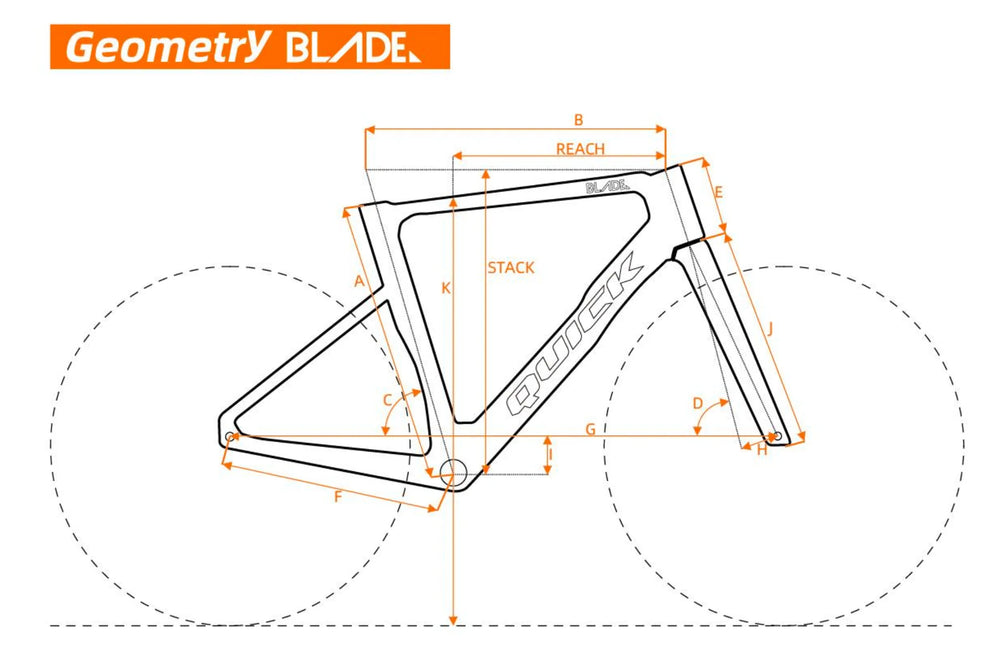

| Label | Specification | XS/456 | S/486 | M/514 | L/536 | XL/558 | XXL/576 |
|---|---|---|---|---|---|---|---|
| A | Size / ST Length (mm) | 456 | 486 | 514 | 536 | 558 | 576 |
| B | Virtual TT (mm) | 505 | 524 | 542 | 559 | 575 | 593 |
| C | ST Angle (°) | 74.3° | 74° | 73.5° | 73.5° | 73.3° | 73° |
| D | HT Angle (°) | 71° | 71.5° | 72° | 72.5° | 72.8° | 73° |
| E | HT Length (mm) | 101.7 | 117 | 138 | 157 | 175 | 192 |
| F | RC Length (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| G | Wheel Base (mm) | 963 | 976 | 985 | 998 | 1010 | 1022 |
| H | Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| I | BB Drop (mm) | 72 | 72 | 72 | 72 | 72 | 72 |
| J | Fork Length (mm) | 375 | 375 | 375 | 375 | 375 | 375 |
| K | Standover (mm) | 745 | 764 | 786 | 806 | 824 | 841 |
| Reach (mm) | 360 | 373 | 380 | 391 | 400 | 409 | |
| Stack (mm) | 509 | 525 | 547 | 567 | 585 | 602 |
Geometry & Size Guide
Quick Blade
