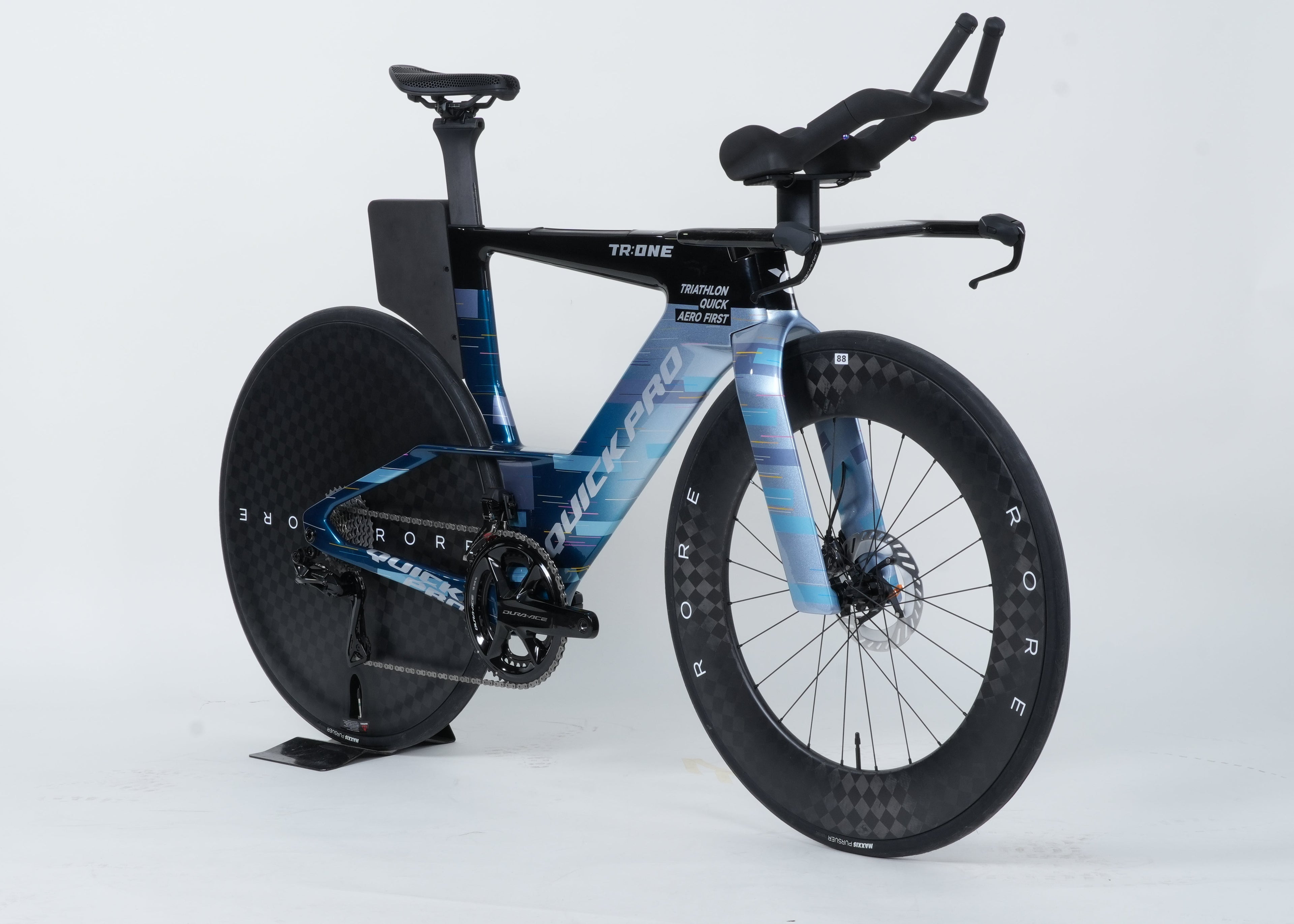

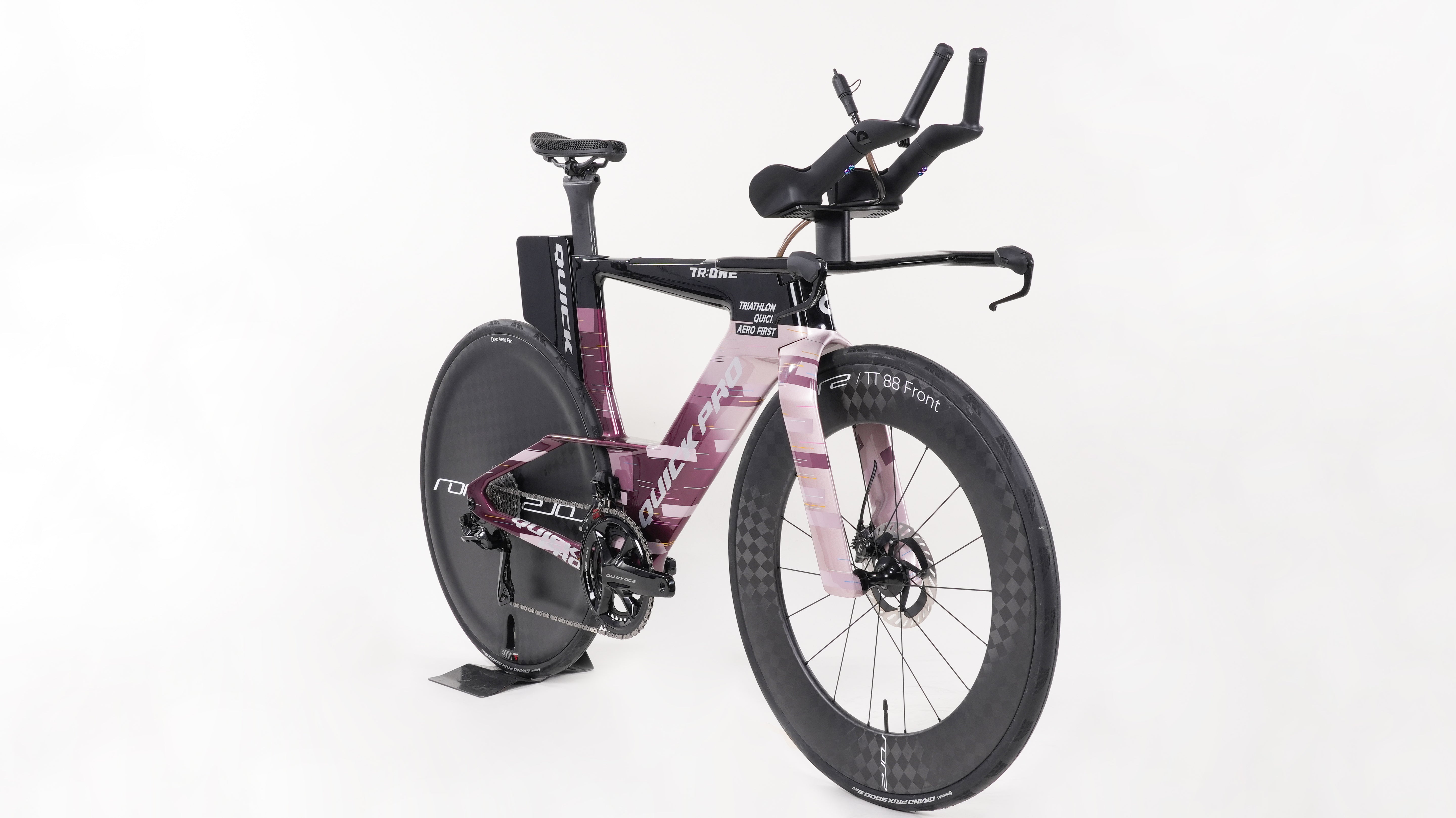

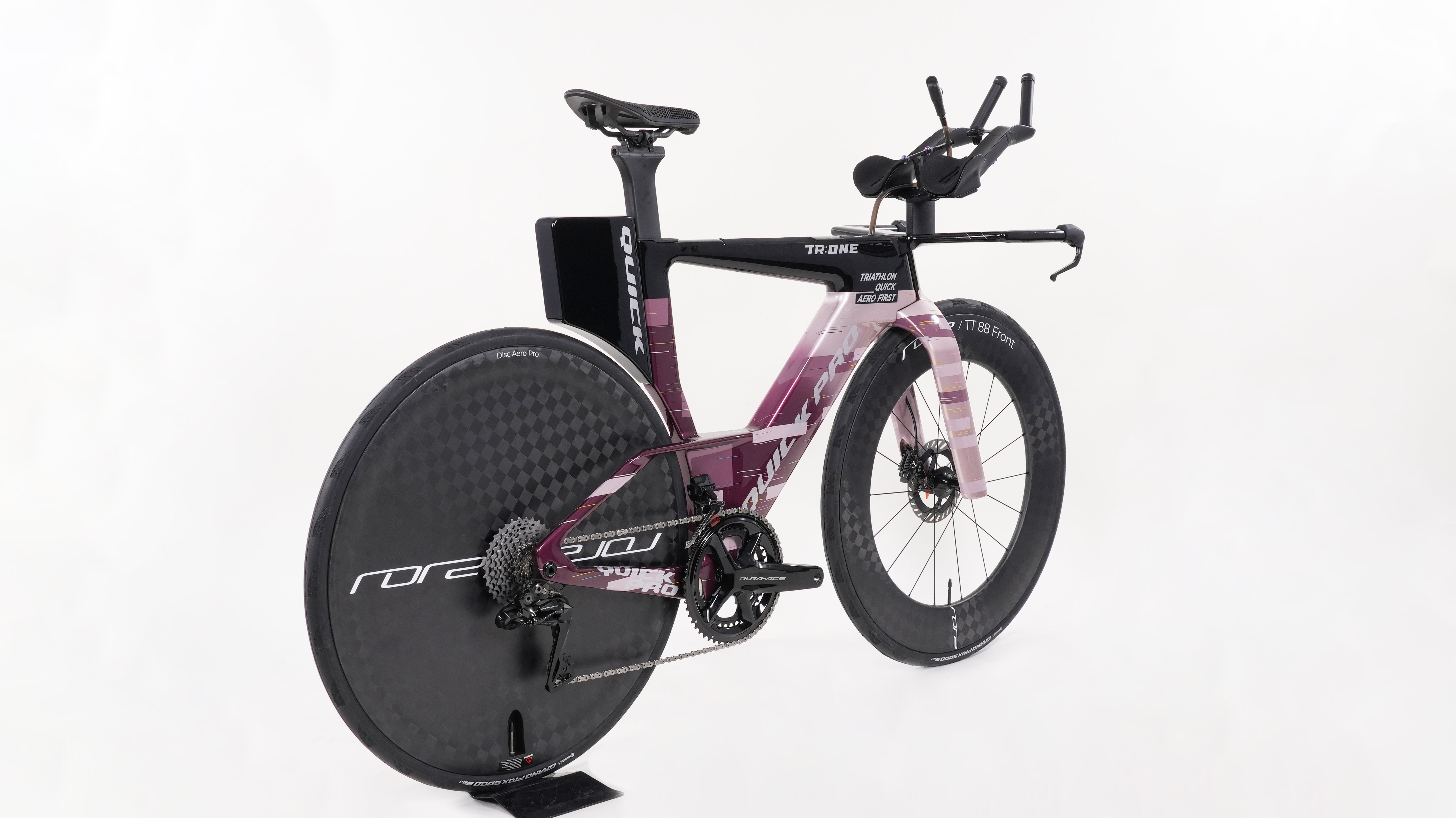

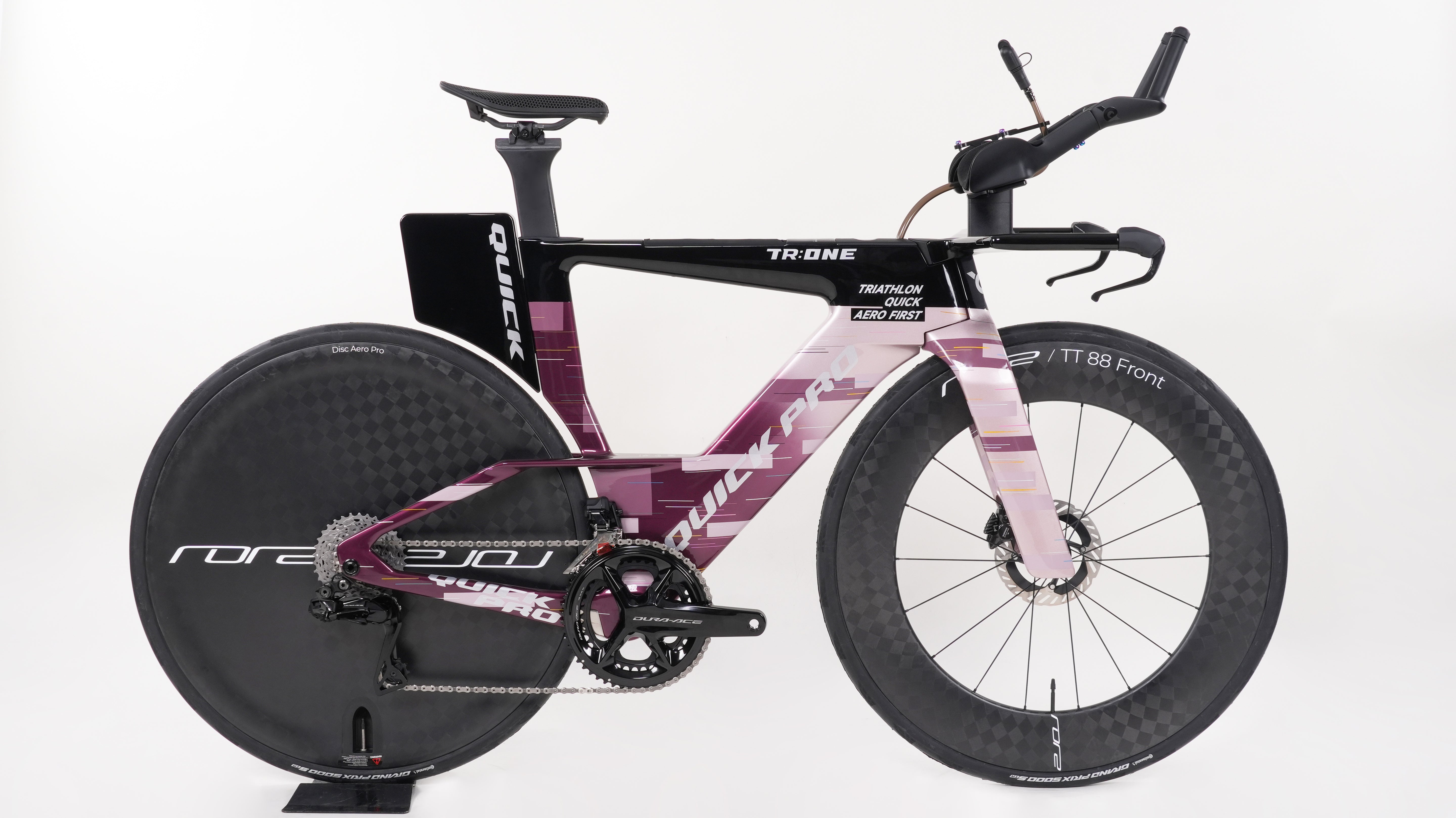

TR:ONE Dura-Ace
Regular price
$12,599.00 AUD
Sale price
$12,599.00 AUD
Regular price
Unit price
TR:ONE Dura-Ace

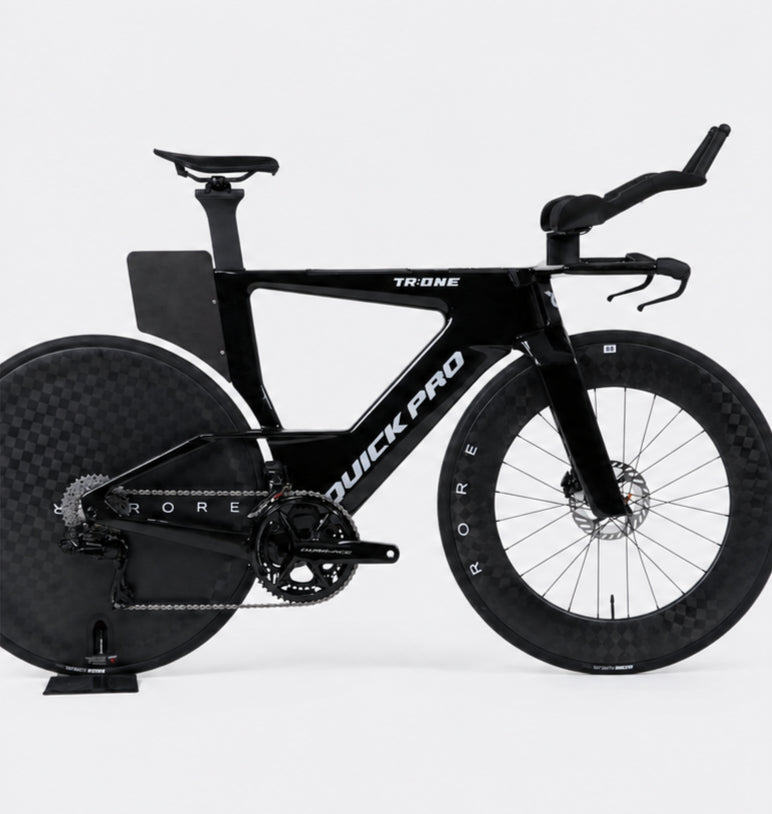

Meet the TR:ONE
QuickPro's ultimate triathlon and time-trial platform.
Race ready upon purchase. Built to win.
Race proven tri bike
Detachable onboard storage box
Integrated hydration and internal storage
High-Strength High-Modulus Carbon Fiber
Available in Shimano Dura-Ace or SRAM RED configuration
Adjustable extended aero cockpit
TR:ONE Dura-Ace Specifications
Weight
- Frame: 1219g
- Fork: 574g
- Seatpost: 175g
Dimensions
- Thru-axle: F/100×12mm
- R/142×12mm
- HT: 52×52mm
- BB: T47-68mm Threaded
Wheels
- Wheelset: (F) RORE TT/TR 88
- (R) TT/TR Aero Pro Disc
- Inner tube: 700×28c
- Max tire: 700×32c
Cockpit & Saddle
- Handlebar: Adjustable Aero TT/Tri Cockpit

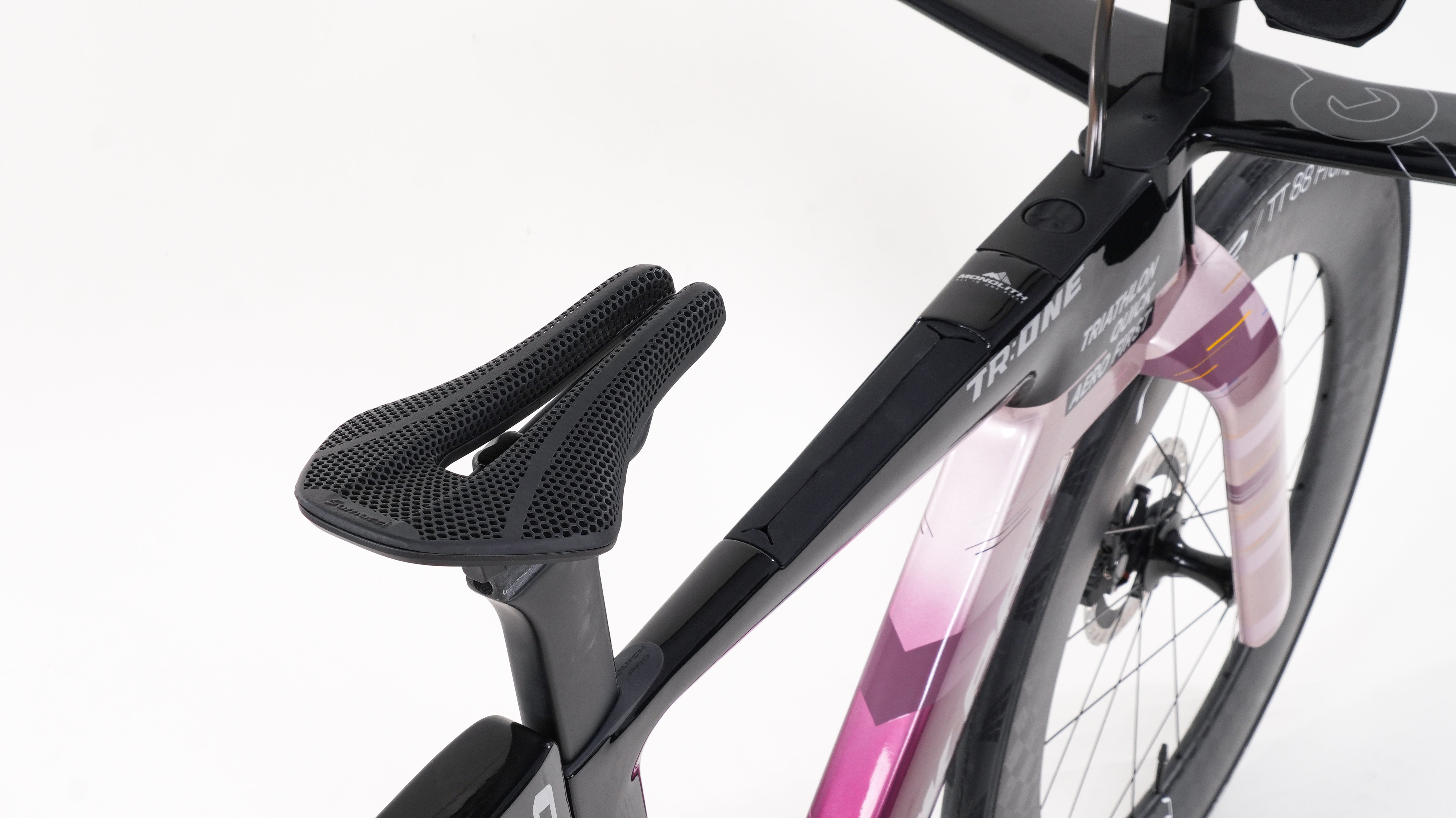

- Saddle: SAMASSI 3D Carbon Bow Saddle
Features

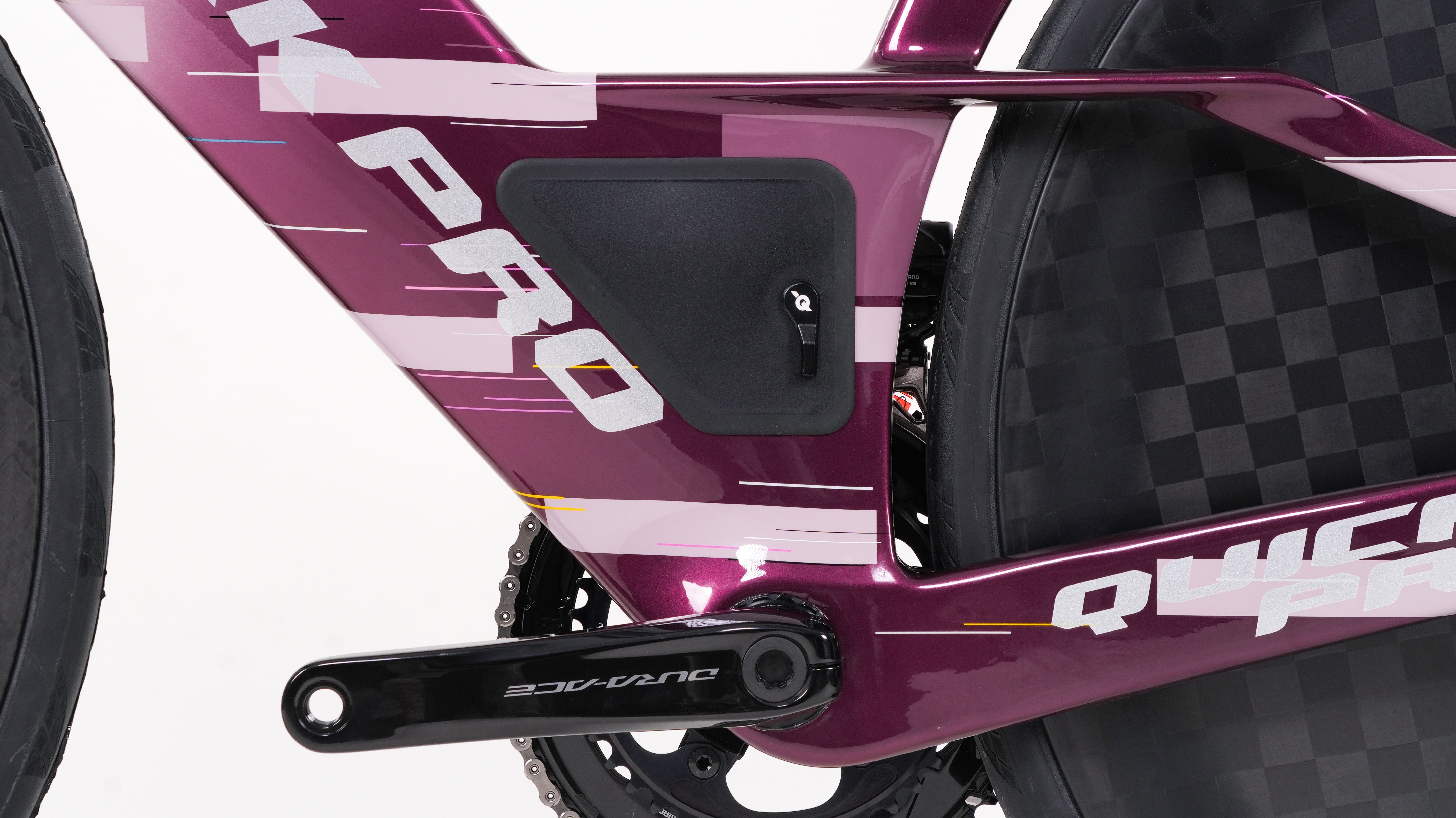

Integrated Hydration & Onboard Storage
- 1.2L Concealed hydration bladder.
- Hidden storage compartments for fluids, nutrition and tools.

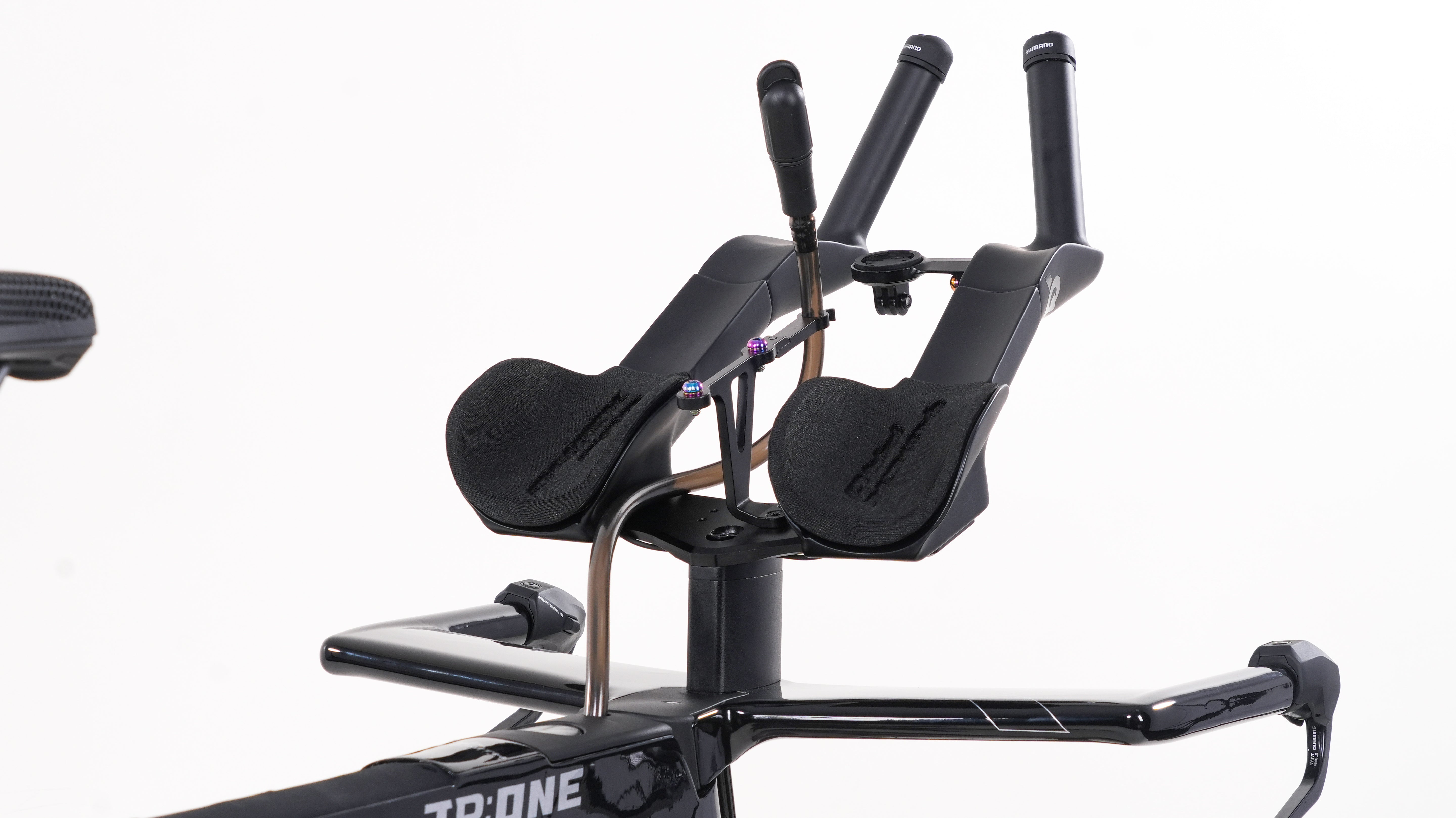

Adjustable TT/Tri Aero Cockpit
- Our one-piece, multi-point adjustable aero cockpit lets you fine-tune armrest width, reach and angle for a sustainable long-distance aero position.

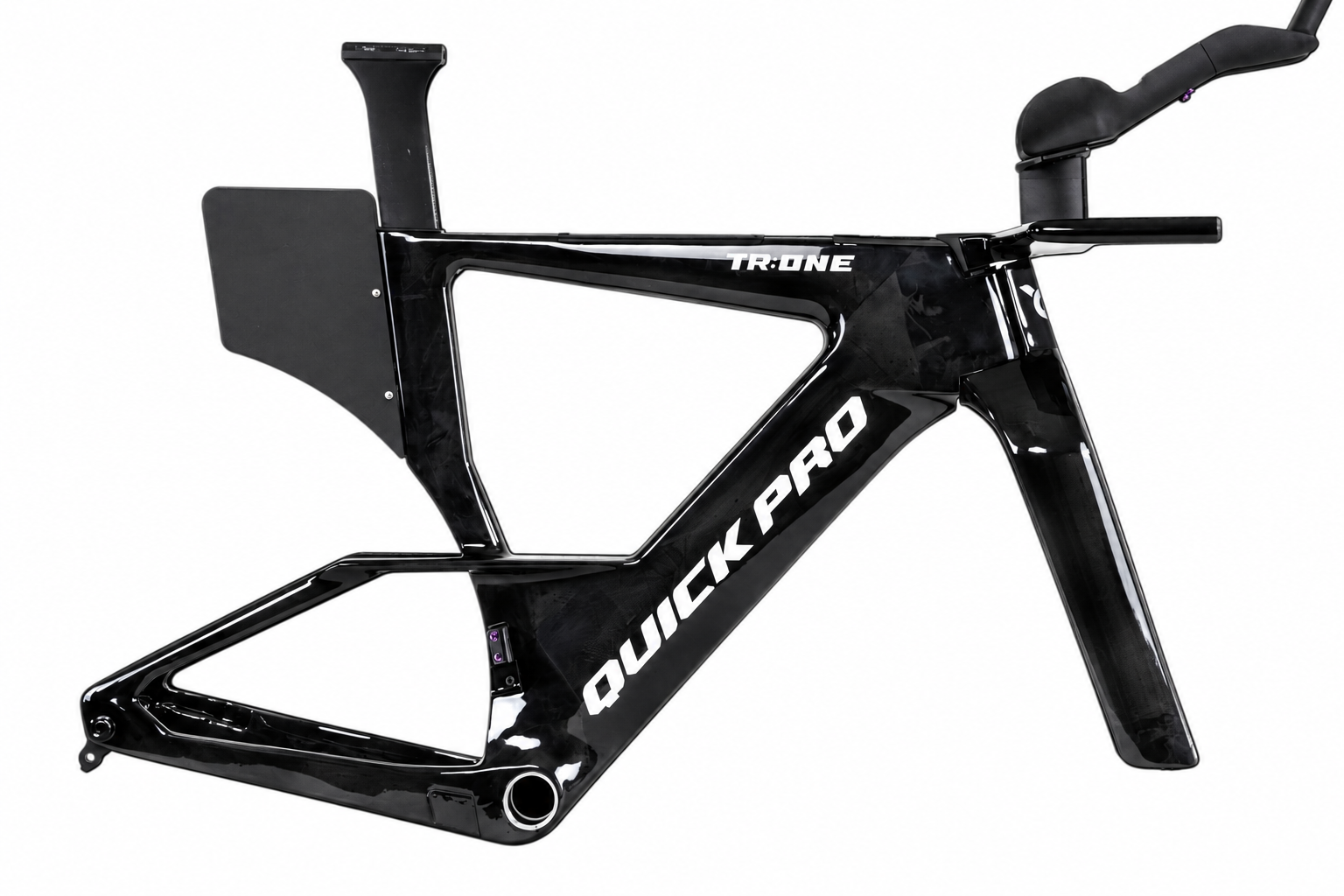

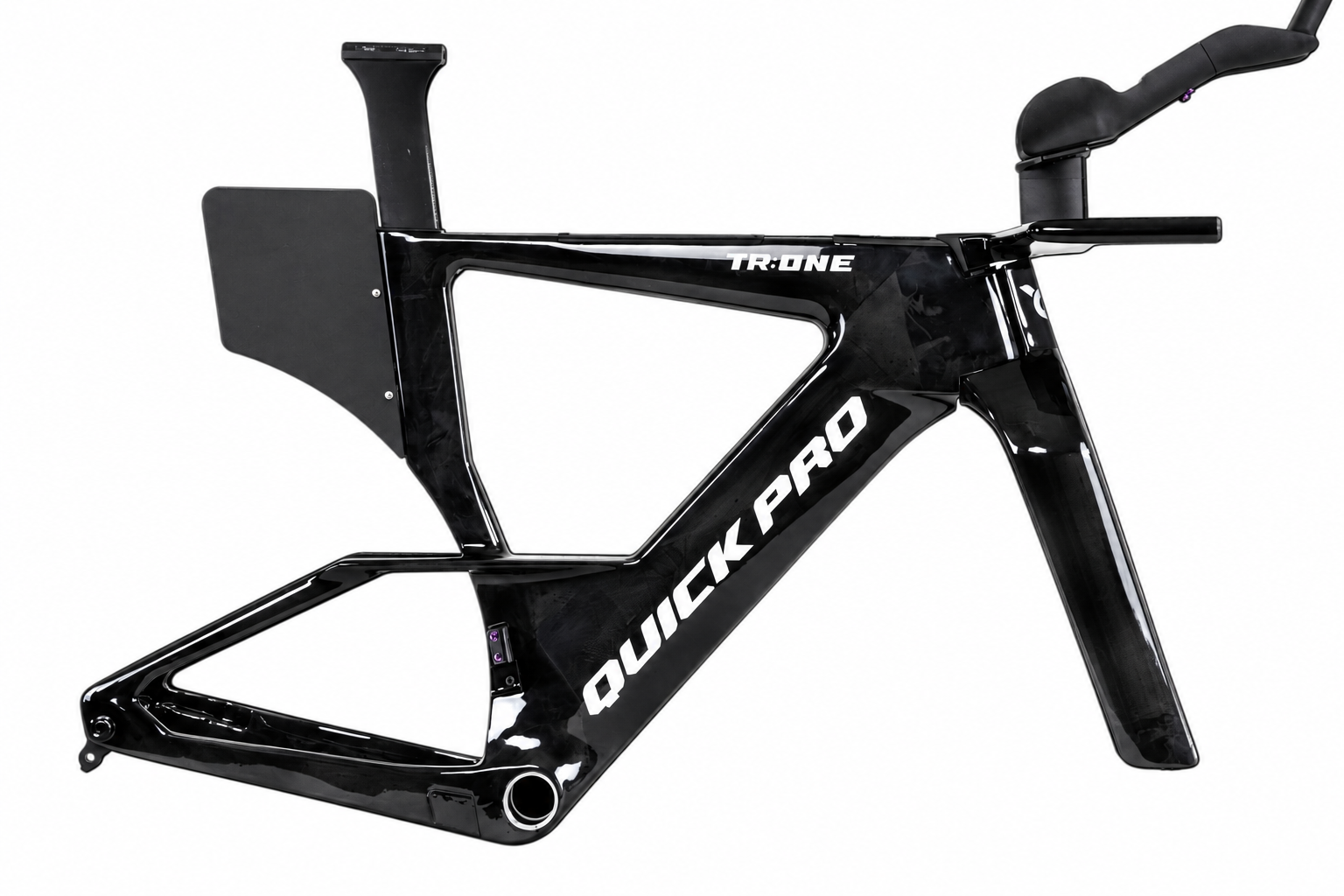

Removable Storage Box
- An onboard, detachable storage box is included for spares and additional nutrition. Removable in seconds to save weight when you don't need it.
Onboard Computer Mount
- Every TR: One bicycle includes an integrated computer mount as standard, with adaptable compatibility across all major cycling computer brands.

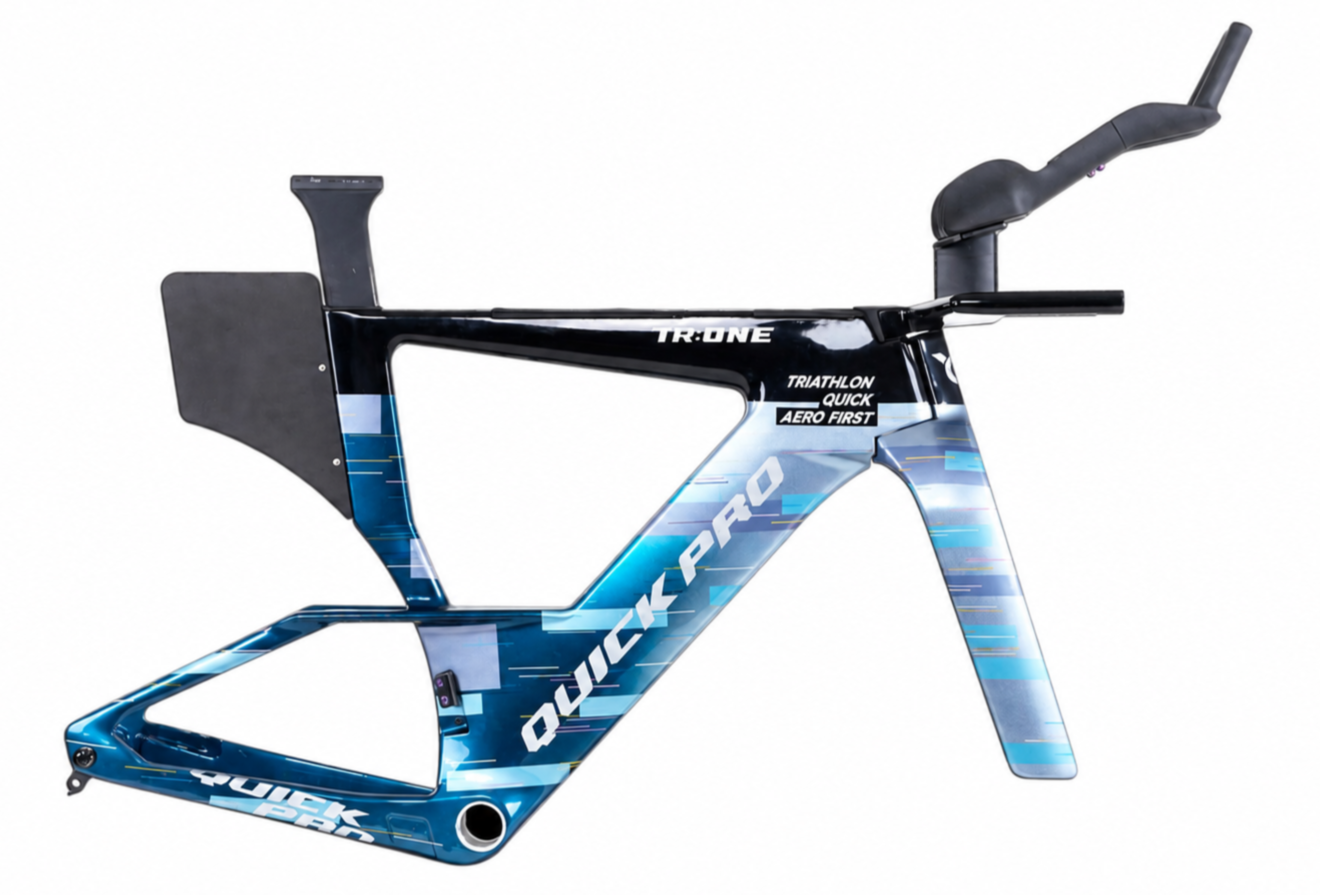

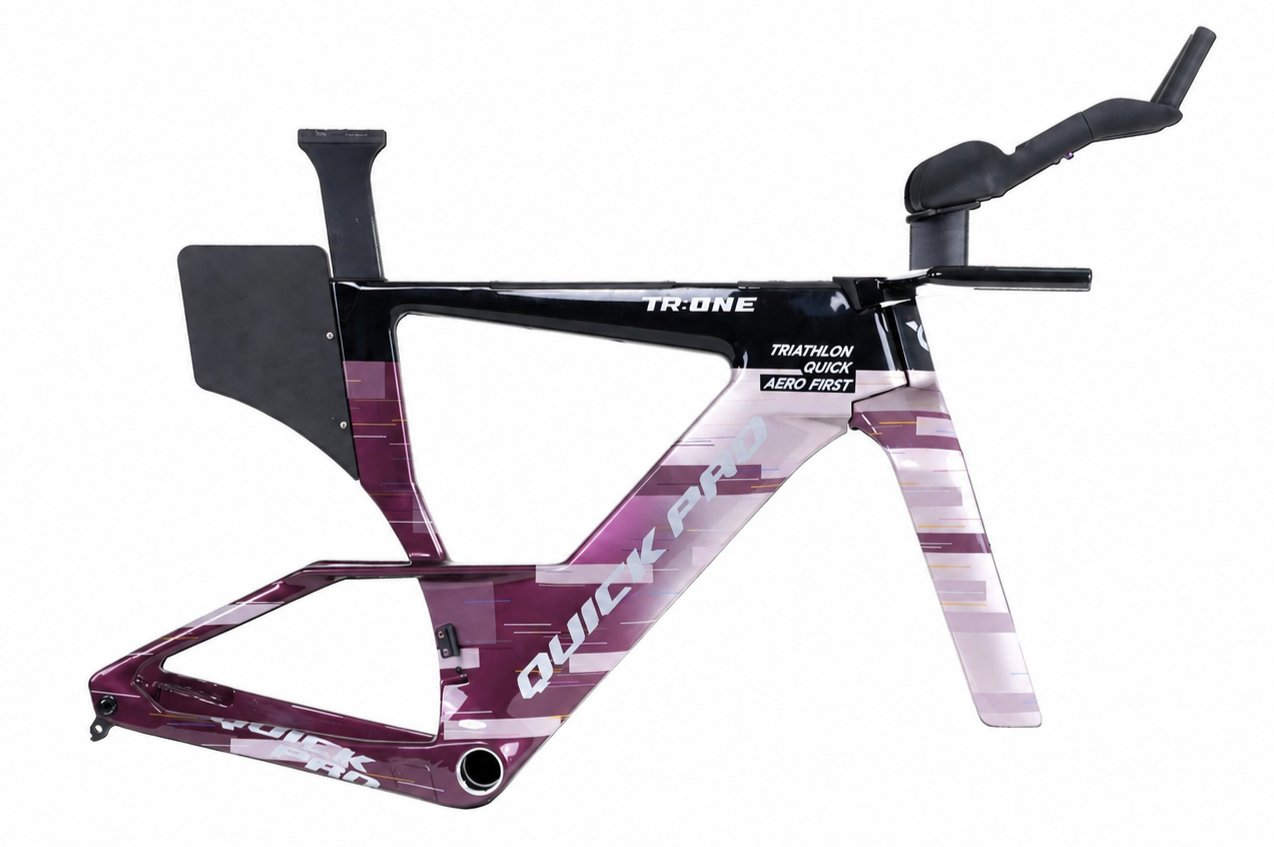

Frame
Size Options
- XS, S, M, L
Frameset Material
- High-Strength High-Modulus Carbon Fiber
Brakes
Brake Levers
- Shimano ST-R9180
Brake Calipers
- Shimano Dura-Ace BR-R9270
Brake Rotors
- Shimano Dura-Ace RT-CL900
- (160mm F/140mm R)

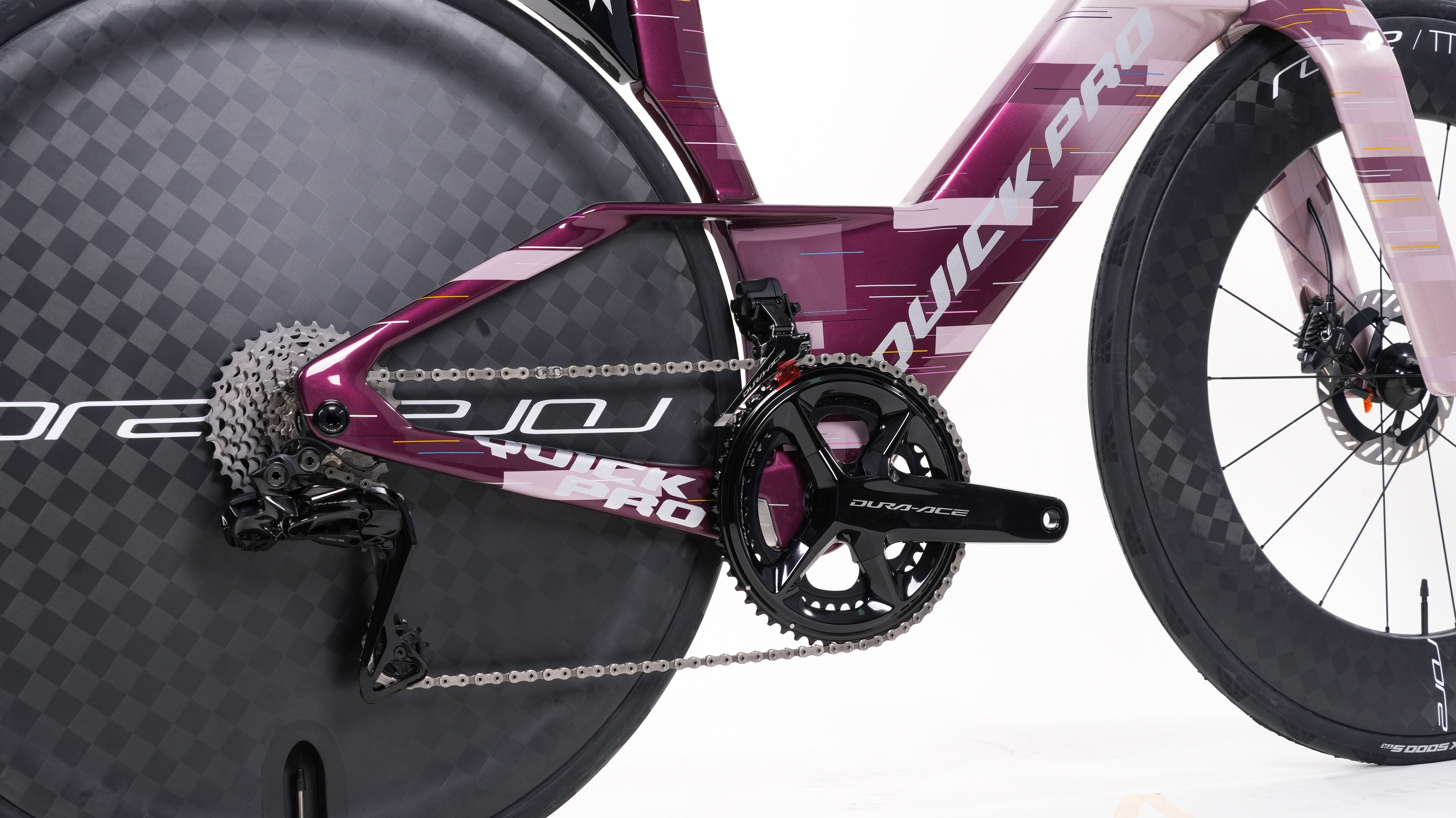

Drivetrain
Shift Levers
- Shimano Dura-Ace Di2
- ST-R9180 Hydraulic TT Levers
Derailleurs
- (F) Shimano Dura-Ace Di2 FD-R9250
- (R) Shimano Dura-Ace Di2 RD-R9250
Cassette
- Shimano Dura-Ace
- CS-R9200-12, 11-30T
Chain
- Shimano CN-M9100,
- 12 Speed Hyperglide+
Crankset/Chainrings
- Shimano Dura-Ace FC-R9200
- Hollowtech II. 165/170mm Crank
- Length. 54/40T Chainrings.
Bottom Bracket
- T-47 68mm Threaded BB
- for Shimano Hollowtech II Spindle
Find Your TR:One Fit
Rider Size Guide
Use your rider height
to find your ideal
TR:One frame size.
XS
5'1" – 5'5"155–165cm
SM
5'4" – 5'9"163–175cm
MD
5'8" – 6'1"173–185cm
LG
6'0" – 6'5"183–196cm
Frame Size

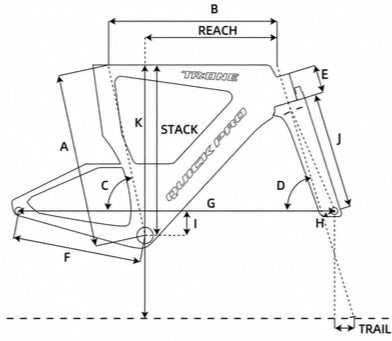

Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| XS / 528 | S / 537 | M / 557 | L / 572 | ||
|---|---|---|---|---|---|
| A | Frame Size / Seat Tube Length (mm) | 528 | 537 | 557 | 572 |
| B | Effective Top Tube Length (mm) | 484 | 507 | 535 | 563 |
| C | Seat Tube Angle (°) | 78° | 78° | 78° | 78° |
| D | Head Tube Angle (°) | 72.5° | 73° | 73° | 73° |
| E | Head Tube Length (mm) | 62 | 72 | 88 | 108.5 |
| F | RC Length (mm) | 410 | 410 | 410 | 410 |
| G | Wheelbase (mm) | 957 | 976 | 1006 | 1035 |
| H | Fork Offset / Rake (mm) | 40 | 40 | 40 | 40 |
| I | Bottom Bracket Drop (mm) | 78 | 78 | 78 | 78 |
| J | Front Center (mm) | 370 | 370 | 370 | 370 |
| K | Standover Height (mm) | 785 | 794 | 809 | 829 |
| — | Stack-to-Reach Ratio (STR) | 1.38 | 1.33 | 1.29 | 1.26 |
| — | Reach (mm) | 374 | 395 | 420 | 443.5 |
| — | Stack (mm) | 516 | 525 | 540 | 560 |
| — | Trail (mm) | 67.5 | 64.3 | 64.3 | 64.3 |
