UR:ONE SRAM RIVAL AXS 2x12
Regular price
$7,899.00 AUD
Sale price
$7,899.00 AUD
Regular price
Unit price
UR:ONE SRAM RIVAL AXS 2x12

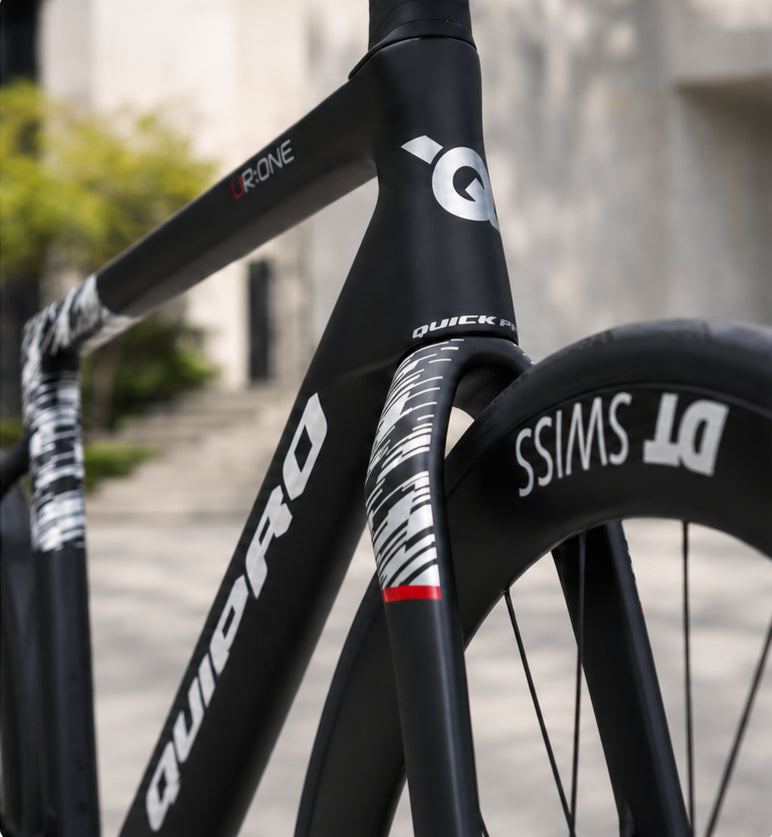

Meet the UR:ONE
The lightest model in the QuickPro range.
Discover what makes the UR:One our fastest bike yet.
Our lightest bike yet
Frameset weight of just 629g
Updated race geometry.
Higher stack, lower BBHigh-Strength
High-Modulus
Carbon FiberCustomisable componentry.
Your bike, your wayLightweight integrated
handlebar
UR:ONE SRAM RIVAL AXS 2x12 Specifications
Complete Bike Weight
- 7.1kg with RORE Steel Wheelset
- 6.8kg with RORE Aero Wheelset
- 6.7kg with RORE Lighter Wheelset
Weight
- Frame: 629g
- Fork: 339g
- Seatpost: 115g
Dimensions
- Thru-axle: F/100×12mmR/142×12mm
- HT: 49.5×49.5mm
- BB: BSA–68mmThreaded
Wheels
- Wheel options: AERO 50, AERO 60, Lighter 50 or Lighter 60
- Inner tube: 700×28c
- Max tire: 700×32c
Cockpit & Saddle
- Handlebar: CANWIN ZEPHYR SSL
- Saddle: SAMASSI 3D Print Saddle
Frame
Size Options
XXS/432, XS/446, SM/470,
MD/495, LG/518, XL/542
Frameset
High-Strength High-Modulus Carbon Fiber.
Monolith One Piece Construction.
Brakes
Front Brake
SRAM Rival AXS
Rear Brake
SRAM Rival AXS
Brake Rotors
SRAM Paceline Rotor A2 -
160mm Front & Rear
Drivetrain
Shift Levers
SRAM Rival AXS
Derailleurs
F: SRAM Rival AXS
R: SRAM Rival AXS
Cassette
SRAM Rival AXS 10-36T
Chain
SRAM Rival AXS
Crankset/Chainrings
SRAM Rival AXS - 170mm,
48/35T, 10-30T or 10-36T
Bottom Bracket
QuickPro/SSpade Stainless Steel
BSA/68mm
Wheelsets
AERO50
Price$1339
Size (Wheel)700c
Inner Width23mm
Outer Width32mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishUD weave
Rim Depth50mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (28–35c) or clincher
Rec. Max System Weight263 lbs / 120 kg
Brake Rgr (8mm int / F / R)260/257mm, 276/276mm
Wheelset Weight1180 ± 20g
AERO60
Price$1339
Size (Wheel)700c
Inner Width23mm
Outer Width32mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishUD weave
Rim Depth62mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (28–35c) or clincher
Rec. Max System Weight263 lbs / 100 kg
Spoke Length (F / R)251/247mm, 267/266mm
Wheelset Weight1310 ± 20g
LIGHTER50
Price$1599
Size (Wheel)700c
Inner Width22mm
Outer Width28mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishCF filament winding
Rim Depth50mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (25–32c) or clincher
Rec. Max System Weight220 lbs / 100 kg
Spoke Length (F / R)261/257mm, 276.5/276mm
Wheelset Weight1020 ± 20g
LIGHTER60
Price$1690
Size (Wheel)700c
Inner Width22mm
Outer Width31mm
Rim Structure / DesignCarbon fiber / Hooked
Cross-sectional ProfileSymmetric
Surface FinishCF filament winding
Rim Depth60mm
BearingCeramics
Brake CompatibilityDisc brake (Center Lock)
Tire CompatibilityTubeless (25–32c) or clincher
Rec. Max System Weight220 lbs / 100 kg
Spoke Length (F / R)251/247mm, 265.5/266mm
Wheelset Weight1220 ± 20g
Find Your UR:One Fit
Rider Size Guide
Use your rider height
to find your ideal
UR:One frame size.
XXS
4'10" to 5'03"148–159 cm
XS
5'01" to 5'06"156–167 cm
SM
5'05" to 5'09"164–175 cm
MD
5'08" to 6'00"172–184 cm
LG
5'11" to 6'04"181–193 cm
XL
6'03" to 6'08"191–203 cm
Frame Size

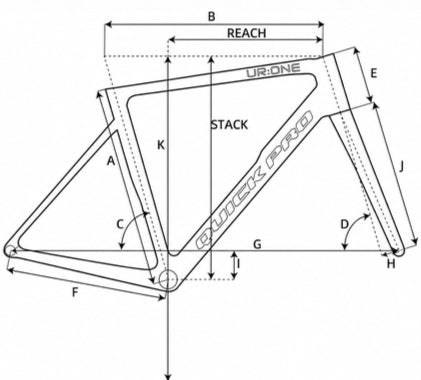

Geometry Diagram
Key frame measurements
that define fit, handling
and ride feel.
| XXS (432) | XS (446) | S (470) | M (495) | L (518) | XL (542) | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 432 | 446 | 470 | 495 | 518 | 542 |
| B | Top Tube Length (mm) | 497 | 512 | 531 | 551 | 570 | 592 |
| C | Seat Tube Angle (°) | 75.5° | 75.2° | 74.2° | 73.8° | 73.5° | 73° |
| D | Head Tube Angle (°) | 70.7° | 71.8° | 72.5° | 73.8° | 73° | 73.2° |
| E | Head Tube Length (mm) | 99 | 108 | 121 | 146 | 172 | 197 |
| F | Chainstay Length (mm) | 408 | 408 | 408 | 408 | 408 | 408 |
| G | Wheelbase (mm) | 968 | 971.5 | 975 | 987 | 1002 | 1015 |
| H | Fork Offset (mm) | 47 | 47 | 47 | 44 | 44 | 44 |
| I | Bottom Bracket Drop (mm) | 74 | 74 | 74 | 72 | 72 | 72 |
| J | Front Center (mm) | 370 | 370 | 370 | 370 | 370 | 370 |
| K | Standover Height (mm) | 710 | 724 | 745 | 770 | 794 | 818 |
| — | Stack-to-Reach Ratio (STR) | 1.36 | 1.36 | 1.38 | 1.41 | 1.44 | 1.47 |
| — | Reach (mm) | 367 | 376 | 381 | 390 | 399 | 408 |
| — | Stack (mm) | 502 | 514 | 529 | 553 | 578 | 603 |
