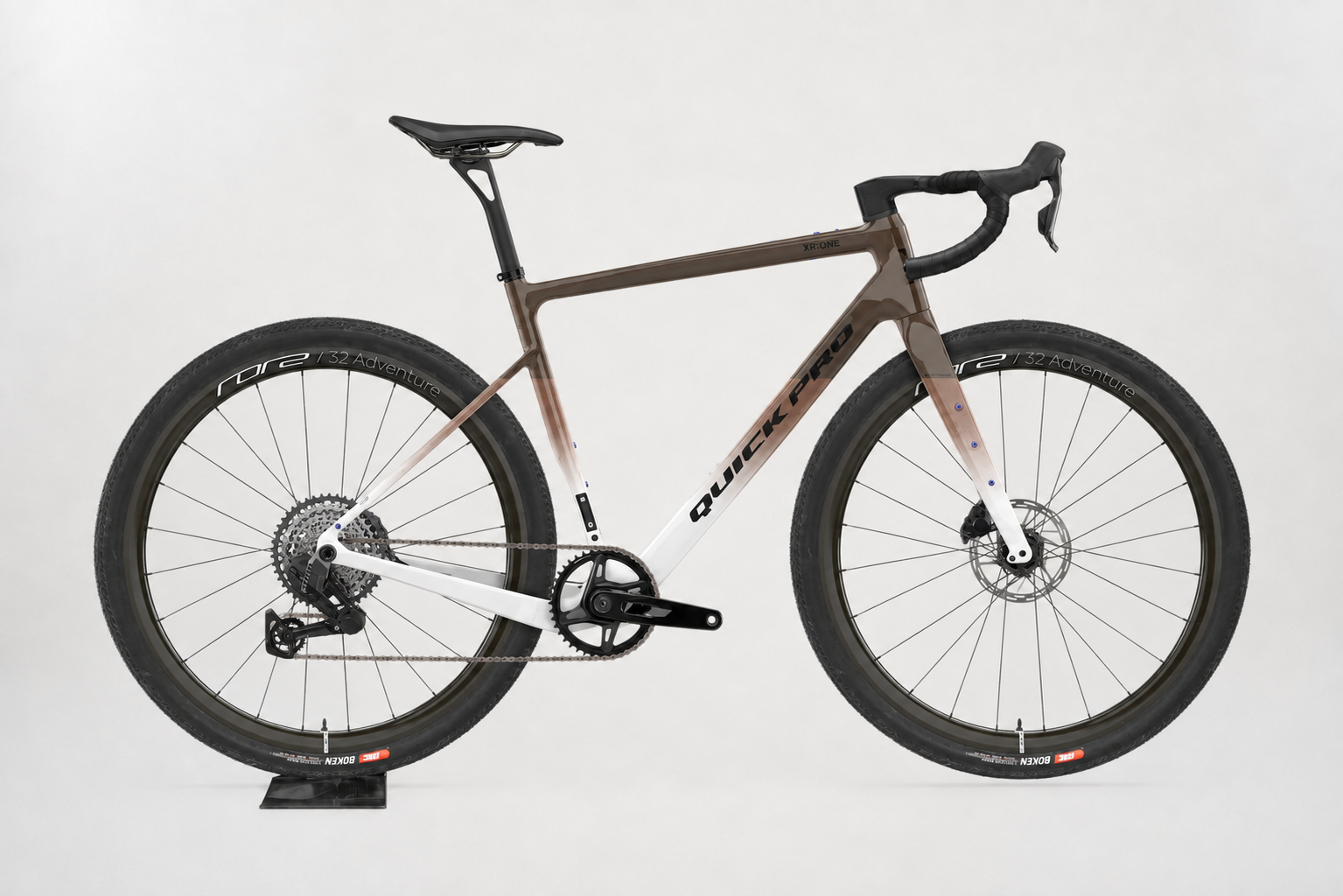

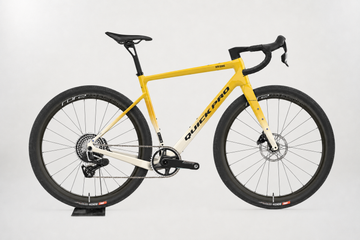

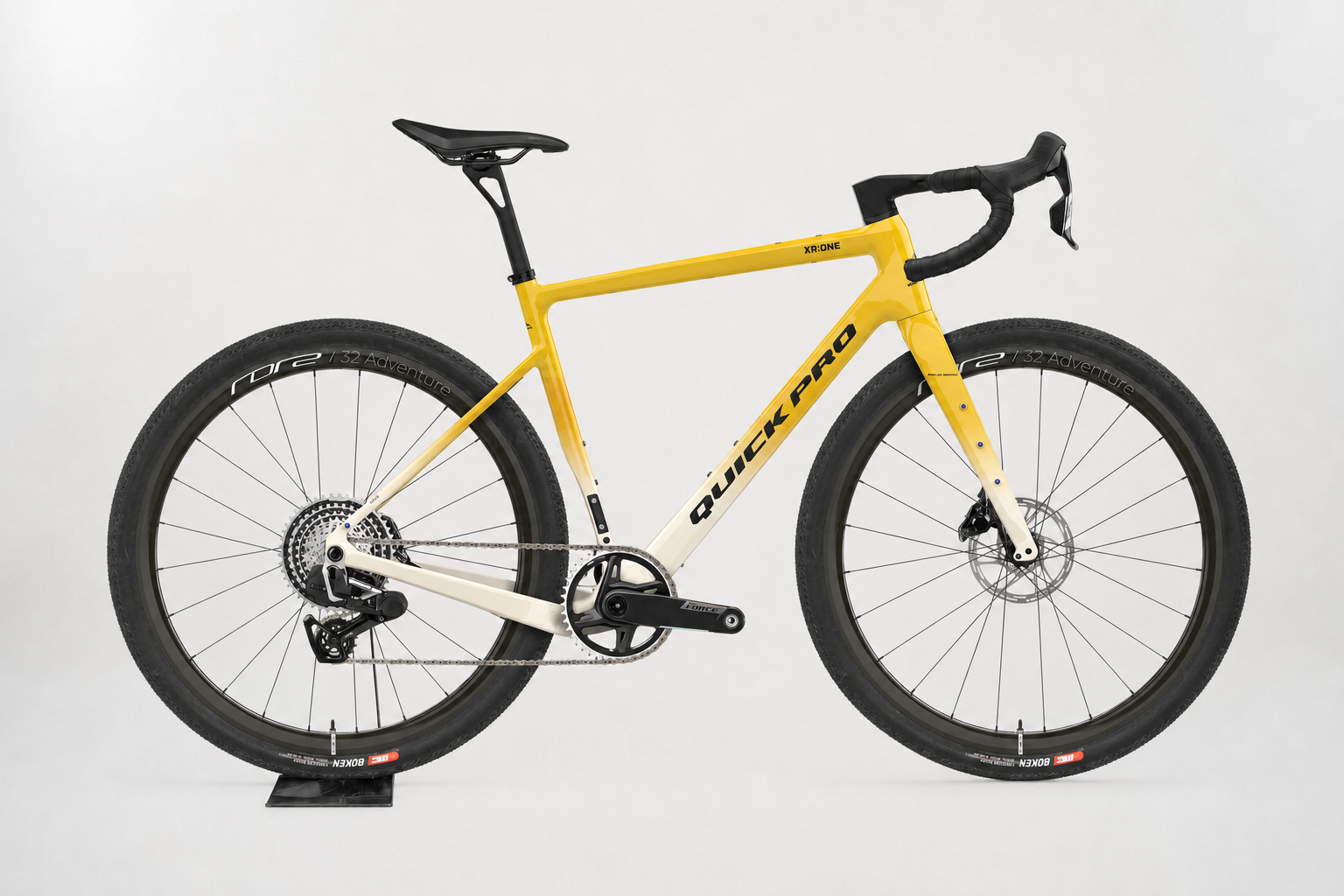

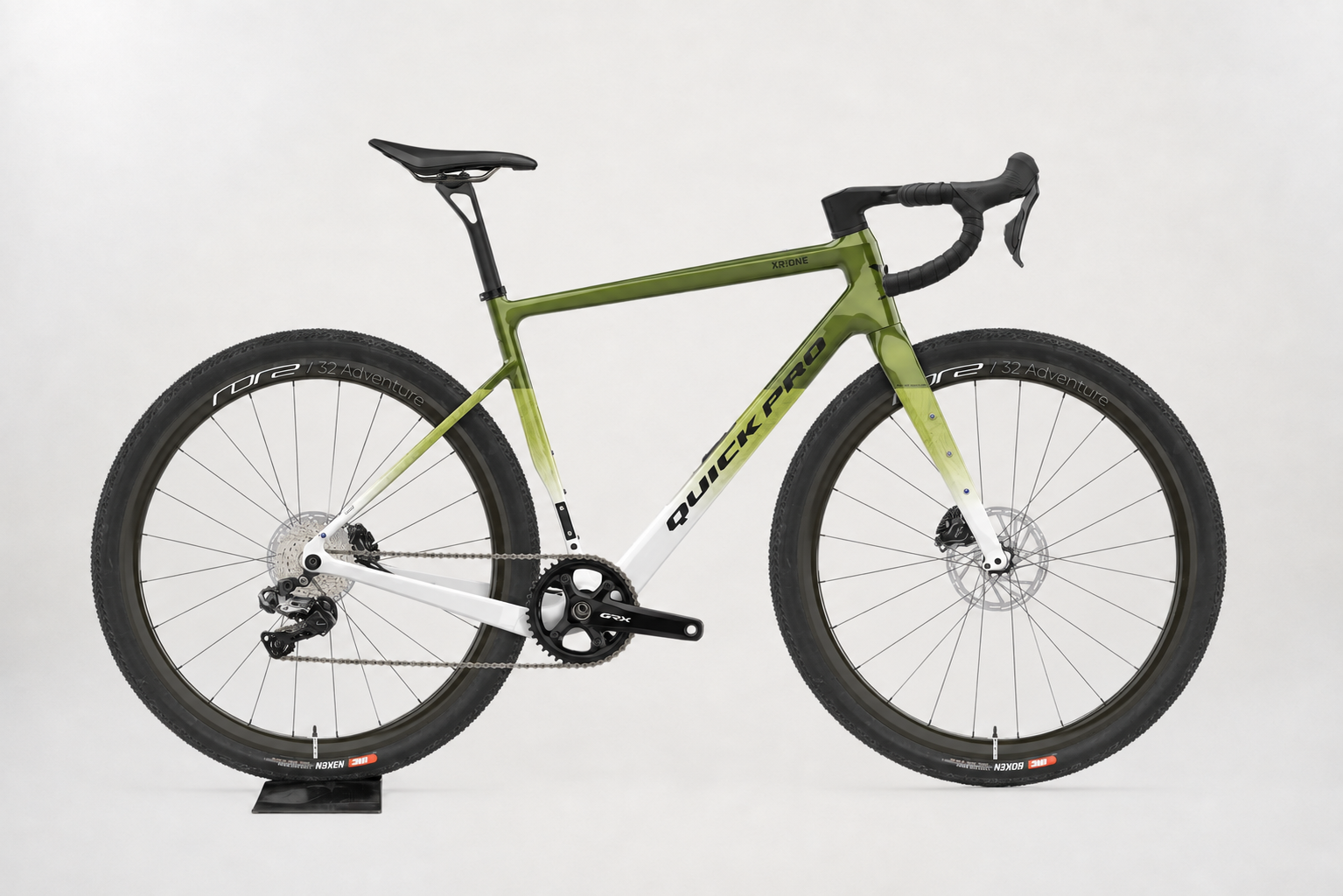

XR:ONE RIVAL AXS 1x13

Name: XR:ONE RIVAL AXS 1x13
Brand: Quickpro
Price: 6999.0 AUD
Availability: InStock

$6,999.00 AUD

Choose your colour^*

Size^*

Customise your build

Handlebar Width

Stem Length

Seatpost Offset

Drivetrain options

Select Wheelset

XR:ONE RIVAL AXS 1x13

Meet the XR:One

The XR was purposefully engineered as the ultimate
all-terrain adventure bike—exceptionally versatile,
confidently capable, and meticulously designed to
excel across every surface.

Adventure bike
with thoughtful design.
Frameset weight of 839g.
Fork weight of 449g.
Integrated frame storage.
26 mounting points across
the frame and fork,
ensuring nothing is
left behind.
High-Strength
High-Modulus
Carbon Fiber
Up to 50mm
tyre clearance.
Lightweight
integrated handlebar.

XR:ONE RIVAL AXS 1x13 Specifications

Size Options

XS/475, S/495, M/515,
L/535, XL/555, XXL/585

Frameset Material

High-Strength High-Modulus
Carbon Fiber

Frameset Weight: 839g
Fork Weight: 449g

Brakes

Front Brake

SRAM Rival AXS XPLR E1

Rear Brake

SRAM Rival AXS XPLR E1

Brake Rotors

SRAM Paceline A2
(160mm Front/160mm Rear)

Drivetrain

Shift Levers

SRAM Rival AXS XPLR E1

Derailleurs

Front: N/A
Rear: SRAM Rival AXS XPLR

Cassette

SRAM Rival CS-XG-1351-E1
(10/46T)

Chain

SRAM Rival AXS

Crankset

SRAM Rival XPLR.
170mm Length / 44T chainring

Bottom Bracket

T47-85.5mm Threaded BB

Wheelsets

RORE TERRA 32ADVENTURE

Size (Wheel)700c

Inner Width33.7mm

Outer Width40mm

Rim Structure / DesignCarbon fiber / Hooked

Cross-sectional ProfileSymmetric

Surface FinishUD weave

Rim Depth32mm

BearingCeramics

Brake CompatibilityDisc brake (Center Lock)

Tire CompatibilityTubeless (35–60c) or clincher

Rec. Max System Weight263 lbs / 120 kg

Spoke Length (DS)266mm/268mm

Spoke Length (NDS)266mm/268mm

Wheelset Weight1360 ± 20g

RORE TERRA 50RACE

Size (Wheel)700c

Inner Width31.5mm

Outer Width38mm

Rim Structure / DesignCarbon fiber / Hooked

Cross-sectional ProfileSymmetric

Surface FinishUD weave

Rim Depth50mm

BearingCeramics

Brake CompatibilityDisc brake (Center Lock)

Tire CompatibilityTubeless (35–60c) or clincher

Rec. Max System Weight263 lbs / 120 kg

Spoke Length (DS)266mm/268mm

Spoke Length (NDS)266mm/268mm

Wheelset Weight1360 ± 20g

Find Your XR:One Fit

XS 5'3" – 5'7"160–170cm

SM 5'6" – 5'10"167–178cm

MD 5'8" – 6'0"173–183cm

LG 5'11" – 6'3"180–190cm

XL 6'1" – 6'5"185–196cm

XXL 6'4" – 6'8"193–203cm

Frame Size

		XS/475	S/495	M/515	L/535	XL/555	XXL/585
A	Frame Size / Seat Tube Length (mm)	475	495	515	535	555	585
B	Effective Top Tube Length (mm)	525.3	545.3	560	576.5	595.4	615
C	Seat Tube Angle (°)	74.5°	73.5°	73.5°	73.5°	73.5°	73.5°
D	Head Tube Angle (°)	70°	70.3°	70.5°	72°	72.5°	72.5°
E	Head Tube Length (mm)	120	135	150	170	190	210
F	Chainstay Length (mm)	435	435	435	435	435	435
G	Wheelbase (mm)	1029.5	1037	1051	1053	1067	1087
H	Fork Offset (mm)	50	50	50	50	50	50
I	Bottom Bracket Drop (mm)	70	70	70	70	70	70
J	Front Center (mm)	400	400	400	400	400	400
K	Standover Height (mm)	753	772	790	810	832	856
L	Stack-to-Reach Ratio (STR)	1.44	1.46	1.46	1.49	1.50	1.50
—	Reach (mm)	375	380	390	400	412	426
—	Stack (mm)	542	558	573	596	619	638
